WHIRLPOOL 088 WT-BL WASHING MACHINES WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 088 WT-BL WASHING MACHINES WP |
| Kód 12NC: | 857008897010 |
| I.C. kód: | 857008897011 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 857008897012, 857008897013, 857008897014, 857008897010 |
Potřebujete servis? Jsme tady pro Vás

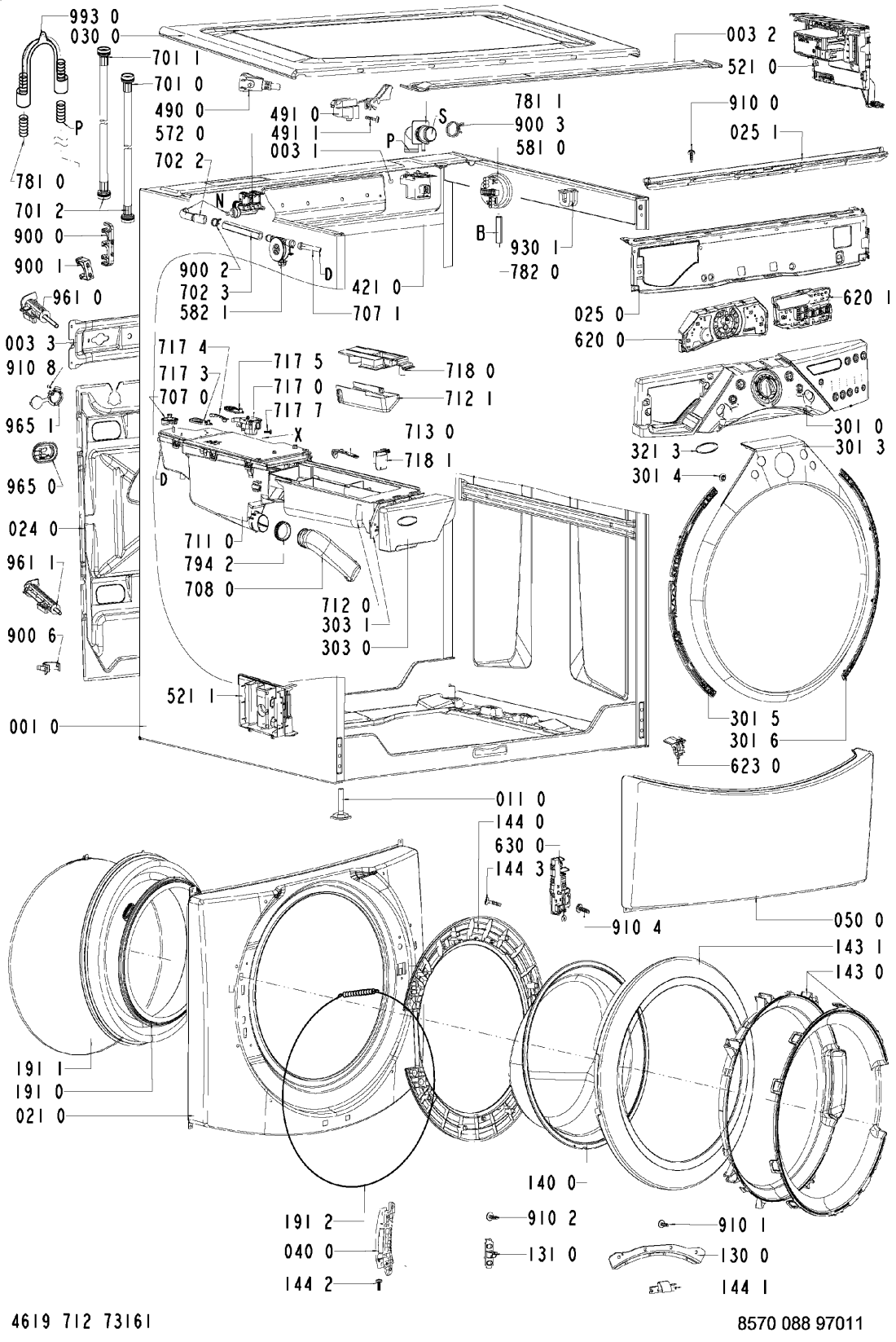

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 001 0 WHR74907 |
C00459118
481244011598 |
Cabinet Service Kit white | Na dotaz | Zadat poptávku | |
| 003 1 WHR74907 |
C00594458
481246448174 |
Crossbar rear. | Na dotaz | Zadat poptávku | |
| 003 2 WHR74907 |
C00330833
481246448175 |
Crossbar table top | Na dotaz | Zadat poptávku | |
| 003 3 WHR74907 |
C00330834
481246448176 |
Crossbar transport | Na dotaz | Zadat poptávku | |
| 004 0 WHR74907 |
C00327958
481244010786 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 011 0 WHR74907 |
C00330464
481246218303 |
Adjust. foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR74907 |
C00328052
481244011597 |
Front panel white | Na dotaz | Zadat poptávku | |
| 024 0 WHR74907 |
C00327980
481244011115 |
Panel rear | Na dotaz | Zadat poptávku | |
| 025 0 WHR74907 |
C00328053
481244011599 |
Bracket control board | Na dotaz | Zadat poptávku | |
| 025 1 WHR74907 |
C00328051
481244011596 |
Water guide | Na dotaz | Zadat poptávku | |
| 030 0 WHR74907 |
C00327963
481244010792 |
Table top white porcelain | Na dotaz | Zadat poptávku | |
| 040 0 WHR74907 |
C00316904
481241719447 |
Hinge cpl. | Na dotaz | Zadat poptávku | |
| 050 0 WHR74907 |
C00337651
481245938061 |
Plinth white | Na dotaz | Zadat poptávku | |
| 061 0 WHR74907 |
C00331009
481246688705 |
Counter weight rear | Na dotaz | Zadat poptávku | |
| 061 1 WHR74907 |
C00331494
481246688706 |
zavazi predni | 1 765 Kč
€ 69.70 |
||
| 081 0 WHR74907 |
C00464452
481246648116 |
Shock absorber | Na dotaz | Zadat poptávku | |
| 086 0 WHR74907 |
C00331290
481245218994 |
Screw M8x20 A2F | Na dotaz | Zadat poptávku | |
| 086 1 WHR74907 |
C00332171
481250518367 |
Nut push in M 8 | Na dotaz | Zadat poptávku | |
| 130 0 WHR74907 |
C00329785
481241728109 |
Clamp glass large | Na dotaz | Zadat poptávku | |
| 131 0 WHR74907 |
C00319986
481241728111 |
hak dveri | 177 Kč
€ 7.00 |
||
| 140 0 WHR74907 |
C00331180
481245078019 |
SKLO DVERI | 2 364 Kč
€ 93.30 |
||
| 143 0 WHR74907 |
C00328054
481244011602 |
rám dveří-náhrada 480111101147 | 1 463 Kč
€ 57.80 |
||
| 143 1 WHR74907 |
C00459124
481244011609 |
Door outer cpl. WH-HI, BLUE WALTZ | Na dotaz | Zadat poptávku | |
| 144 0 WHR74907 |
C00316529
481244011604 |
rám dveří | 635 Kč
€ 25.10 |
||
| 144 1 WHR74907 |
C00497565
481240148585 |
Clamp | Na dotaz | Zadat poptávku | |
| 144 2 WHR74907 |
C00332749
481256018068 |
ScrewDIN 7500, CM 5x14 | Na dotaz | Zadat poptávku | |
| 144 3 WHR74907 |
C00316665
481250248015 |
Šroub 4x16 | 140 Kč
€ 5.50 |
||
| 191 0 WHR74907 |
C00311191
481246668784 |
Těsnění dveří pračky (TVO 8900) | Na dotaz | Zadat poptávku | |
| 191 0 WHR74907 |
C00313179
481246668785 |
TVO 8000/1 | 865 Kč
€ 34.10 |
||
| 191 1 WHR74907 |
C00312587
481240118657 |
spona TVO - nadrz - VYŘAZENO | Na dotaz | Zadat poptávku | |
| 191 2 WHR74907 |
C00313447
481240118621 |
spona TVO | Na dotaz | Zadat poptávku | |
| 200 1 WHR74907 |
C00312060
481241818448 |
Tub USA, Frontpart cpl. | Na dotaz | Zadat poptávku | |
| 200 2 WHR74907 |
C00312181
481241818449 |
nadrz zadni cast 8000 480111101804 | 6 572 Kč
€ 259.50 |
||
| 200 4 WHR74907 |
C00314317
481229088054 |
Spona nádrže | 651 Kč
€ 25.70 |
||
| 220 0 WHR74907 |
C00312442
481241818525 |
Drum high cpl. | Na dotaz | Zadat poptávku | |
| 223 0 WHR74907 |
C00312455
481241848766 |
Drum lifter 1x | Na dotaz | Zadat poptávku | |
| 223 1 WHR74907 |
C00312688
481241848765 |
Drum lifter Set 3x | Na dotaz | Zadat poptávku | |
| 271 0 WHR74907 |
C00313727
481235818209 |
Belt J7 | Na dotaz | Zadat poptávku | |
| 272 0 WHR74907 |
C00314756
481252858037 |
Řemenice bubnu | 1 666 Kč
€ 65.80 |
||
| 272 1 WHR74907 |
C00320189
481253228944 |
Nut M16 f. pulley, drum | Na dotaz | Zadat poptávku | |
| 290 0 WHR74907 |
C00312613
481253268124 |
tesneni bocnice | 932 Kč
€ 36.80 |
||
| 301 0 WHR74907 |
C00461241
481245217632 |
Control panel Knob, button | Na dotaz | Zadat poptávku | |
| 301 3 WHR74907 |
C00461240
481245217631 |
Panel WH-HI, BLUE WALTZ | Na dotaz | Zadat poptávku | |
| 301 4 WHR74907 |
C00331280
481245217623 |
Clip | Na dotaz | Zadat poptávku | |
| 301 5 WHR74907 |
C00331281
481245217624 |
Fixation left | Na dotaz | Zadat poptávku | |
| 301 6 WHR74907 |
C00331282
481245217625 |
Fixation right | Na dotaz | Zadat poptávku | |
| 303 0 WHR74907 |
C00464576
481249818706 |
Handle drawer white | Na dotaz | Zadat poptávku | |
| 303 1 WHR74907 |
C00345885
481249818708 |
Fixation handle drawer | Na dotaz | Zadat poptávku | |
| 321 3 WHR74907 |
C00330206
481245918286 |
Sticker WH-Logo, gold | Na dotaz | Zadat poptávku | |
| 400 0 WHR74907 |
C00312017
481236158446 |
motor | 5 944 Kč
€ 234.70 |
||
| 421 0 WHR74907 |
C00454971
481212118294 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 430 0 WHR74907 |
C00457378
481236018571 |
Pump | Na dotaz | Zadat poptávku | |
| 430 1 WHR74907 |
C00330950
481246668879 |
Damper rubber rear | Na dotaz | Zadat poptávku | |
| 430 2 WHR74907 |
C00330929
481246668758 |
Damper rubber front | Na dotaz | Zadat poptávku | |
| 451 0 WHR74907 |
C00488507
481225928862 |
Heating element USA | Na dotaz | Zadat poptávku | |
| 451 1 WHR74907 |
C00340991
481240118622 |
Fastener heating element USA | Na dotaz | Zadat poptávku | |
| 451 2 WHR74907 |
C00332750
481256018069 |
Screw MP 1951, M4x14 SS | Na dotaz | Zadat poptávku | |
| 480 0 WHR74907 |
C00457319
481232178371 |
Cable harness motor | Na dotaz | Zadat poptávku | |
| 480 1 WHR74907 |
C00457320
481232178372 |
Cable harness main upper | Na dotaz | Zadat poptávku | |
| 480 3 WHR74907 |
C00457321
481232178373 |
Cable harness main lower | Na dotaz | Zadat poptávku | |
| 480 4 WHR74907 |
C00319479
481232178374 |
Cable harness UI | Na dotaz | Zadat poptávku | |
| 490 0 WHR74907 |
C00493156
481232118202 |
Cable mains | Na dotaz | Zadat poptávku | |
| 491 0 WHR74907 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 491 1 WHR74907 |
C00318425
481250238152 |
Screw 4.8x19 | Na dotaz | Zadat poptávku | |
| 521 0 WHR74907 |
C00455203
481221470114 |
Control board progr. | Na dotaz | Zadat poptávku | |
| 521 1 WHR74907 |
C00455200
481221470111 |
Control unit motor cpl. | Na dotaz | Zadat poptávku | |
| 572 0 WHR74907 |
C00378557
481228128466 |
Valve magnet double (Rast 2,5) | Na dotaz | Zadat poptávku | |
| 581 0 WHR74907 |
C00497320
481227128521 |
pressostat | Na dotaz | Zadat poptávku | |
| 582 1 WHR74907 |
C00311355
481227128522 |
prutokomer | 2 196 Kč
€ 86.70 |
||
| 620 0 WHR74907 |
C00456446
481223958068 |
User board center | Na dotaz | Zadat poptávku | |
| 620 1 WHR74907 |
C00456447
481223958069 |
User board modifier | Na dotaz | Zadat poptávku | |
| 623 0 WHR74907 |
C00491036
481227138455 |
Microswitch Grounding + Fixation | Na dotaz | Zadat poptávku | |
| 630 0 WHR74907 |
C00456618
481228058051 |
Door lock | Na dotaz | Zadat poptávku | |
| 691 0 WHR74907 |
C00311549
481225928863 |
senzor NTC | 1 140 Kč
€ 45.00 |
||
| 701 0 WHR74907 |
C00493692
481253018066 |
Hose, inlet cold water | Na dotaz | Zadat poptávku | |
| 701 1 WHR74907 |
C00496796
481253018067 |
Hose inlet warm water | Na dotaz | Zadat poptávku | |
| 701 2 WHR74907 |
C00493691
481253018065 |
Hose inlet Set (hot+cold+U-Bend) | Na dotaz | Zadat poptávku | |
| 702 2 WHR74907 |
C00318879
481253029442 |
Hose Flowmeter | Na dotaz | Zadat poptávku | |
| 702 3 WHR74907 |
C00332472
481253029444 |
Hose Nozzle inlet | Na dotaz | Zadat poptávku | |
| 707 0 WHR74907 |
C00332340
481252648158 |
Nozzle distribution | Na dotaz | Zadat poptávku | |
| 707 1 WHR74907 |
C00332349
481252648235 |
Nozzle inlet cold | Na dotaz | Zadat poptávku | |
| 708 0 WHR74907 |
C00332515
481253048626 |
Bend | Na dotaz | Zadat poptávku | |
| 711 0 WHR74907 |
C00458962
481241868434 |
Dispenser 4ch, MATADOR 2 | Na dotaz | Zadat poptávku | |
| 712 0 WHR74907 |
C00459003
481241889078 |
Drawer detergent cpl., 4ch | Na dotaz | Zadat poptávku | |
| 712 1 WHR74907 |
C00464703
481249878707 |
Cover pre-wash | Na dotaz | Zadat poptávku | |
| 713 0 WHR74907 |
C00317127
481241889013 |
Hook drawer | Na dotaz | Zadat poptávku | |
| 717 0 WHR74907 |
C00457346
481232318189 |
Actuator dispenser | Na dotaz | Zadat poptávku | |
| 717 3 WHR74907 |
C00457224
481232138042 |
Lever connection | Na dotaz | Zadat poptávku | |
| 717 4 WHR74907 |
C00328525
481232138043 |
Lever distribution | Na dotaz | Zadat poptávku | |
| 717 5 WHR74907 |
C00332369
481252838071 |
Cam actuator | Na dotaz | Zadat poptávku | |
| 717 7 WHR74907 |
C00332095
481250218623 |
Screw PT3,5x20-TORx20 | Na dotaz | Zadat poptávku | |
| 718 0 WHR74907 |
C00464825
481252648237 |
Siphon 4ch | Na dotaz | Zadat poptávku | |
| 718 1 WHR74907 |
C00459000
481241889075 |
Separator cpl. | Na dotaz | Zadat poptávku | |
| 753 0 WHR74907 |
C00315669
481241868292 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 754 0 WHR74907 |
C00332434
481253029278 |
Hadice nádrž - čerpadlo pračky Whirlpool, Bauknecht | 1 060 Kč
€ 41.80 |
||
| 754 1 WHR74907 |
C00332473
481253029445 |
Lock eco ball | Na dotaz | Zadat poptávku | |
| 754 4 WHR74907 |
C00328901
481240118623 |
Clamp 98,5 mm | Na dotaz | Zadat poptávku | |
| 760 0 WHR74907 |
C00345867
481248058384 |
Filter set pump | Na dotaz | Zadat poptávku | |
| 760 1 WHR74907 |
C00314405
481246688707 |
Těsnění | 1 002 Kč
€ 39.60 |
||
| 781 0 WHR74907 |
C00315517
481253029376 |
hadice vytokova 8900 | 712 Kč
€ 28.10 |
||
| 781 1 WHR74907 |
C00332437
481253029282 |
Hose connection outlet | Na dotaz | Zadat poptávku | |
| 782 0 WHR74907 |
C00314458
481253029196 |
Hose pressostat,with protector | Na dotaz | Zadat poptávku | |
| 783 4 WHR74907 |
C00318819
481253029284 |
Hadice čerpadlo - vypouštění pračky Whirlpool, Bauknecht | 564 Kč
€ 22.30 |
||
| 787 0 WHR74907 |
C00332471
481253029443 |
Steam hose | Na dotaz | Zadat poptávku | |
| 787 1 WHR74907 |
C00311154
481940118174 |
Spona odparov.hadica | 234 Kč
€ 9.20 |
||
| 787 2 WHR74907 |
C00332439
481253029285 |
Steam hose tub rear | Na dotaz | Zadat poptávku | |
| 787 3 WHR74907 |
C00594517
481253029286 |
Steam hose rear panel | Na dotaz | Zadat poptávku | |
| 787 4 WHR74907 |
C00489339
481244508013 |
Grille Air tube | Na dotaz | Zadat poptávku | |
| 787 5 WHR74907 |
C00328902
481240118624 |
spona | 147 Kč
€ 5.80 |
||
| 794 2 WHR74907 |
C00317164
481253058164 |
Sealing | Na dotaz | Zadat poptávku | |
| 794 5 WHR74907 |
C00319466
481253058098 |
tesneni vzdusniku-náhrada 481010395017 | 118 Kč
€ 4.70 |
||
| 900 0 WHR74907 |
C00327127
481225518288 |
Holder Hose outlet | Na dotaz | Zadat poptávku | |
| 900 1 WHR74907 |
C00327128
481225518289 |
holder Hose outlet, single | Na dotaz | Zadat poptávku | |
| 900 2 WHR74907 |
C00328881
481240118501 |
Svorka hadice 1 | 166 Kč
€ 6.60 |
||
| 900 3 WHR74907 |
C00328904
481240118626 |
Clamp 32,7 mm | Na dotaz | Zadat poptávku | |
| 900 4 WHR74907 |
C00328905
481240118627 |
Clamp 40 mm | Na dotaz | Zadat poptávku | |
| 900 6 WHR74907 |
C00327122
481225518249 |
Holder drainhose inner | Na dotaz | Zadat poptávku | |
| 910 0 WHR74907 |
C00332163
481250248344 |
Šroub | Na dotaz | Zadat poptávku | |
| 910 1 WHR74907 |
C00332096
481250218624 |
Screw 3.5x10-F A2F | Na dotaz | Zadat poptávku | |
| 910 2 WHR74907 |
C00332153
481250238352 |
Screw 4x10 | Na dotaz | Zadat poptávku | |
| 910 4 WHR74907 |
C00316741
481293008022 |
Šroub | 117 Kč
€ 4.60 |
||
| 910 5 WHR74907 |
C00345895
481250218382 |
Screw M8 X 35 | Na dotaz | Zadat poptávku | |
| 910 6 WHR74907 |
C00332154
481250238355 |
Screw 4,2x16 T20 | Na dotaz | Zadat poptávku | |
| 910 7 WHR74907 |
C00314893
481250218635 |
Screw 4.2x9.5 | Na dotaz | Zadat poptávku | |
| 910 8 WHR74907 |
C00332103
481250218668 |
Screw 3x8 | Na dotaz | Zadat poptávku | |
| 921 0 WHR74907 |
C00325593
481201118523 |
spona | 199 Kč
€ 7.90 |
||
| 930 0 WHR74907 |
C00345084
481249238403 |
Pružina agregátu-sada 2ks | 1 530 Kč
€ 60.40 |
||
| 930 1 WHR74907 |
C00345868
481249238388 |
Silent bloc | 95 Kč
€ 3.80 |
||
| 941 0 WHR74907 |
C00315000
481252028183 |
Ložisko 6307 2Z C3 GJN (SKF) | 767 Kč
€ 30.30 |
||
| 941 1 WHR74907 |
C00314732
481252028004 |
Ložisko 6206 2Z C3 GJN (SKF) | 371 Kč
€ 14.60 |
||
| 952 1 WHR74907 |
C00332314
481252448014 |
Bushingf. shaft seal | Na dotaz | Zadat poptávku | |
| 953 0 WHR74907 |
C00332646
481253068029 |
Shaft seal | Na dotaz | Zadat poptávku | |
| 961 0 WHR74907 |
C00327221
481226818018 |
Distance sleeve upper | Na dotaz | Zadat poptávku | |
| 961 1 WHR74907 |
C00327222
481226818019 |
kus distancni | 401 Kč
€ 15.80 |
||
| 965 0 WHR74907 |
C00330934
481246668812 |
Cover | Na dotaz | Zadat poptávku | |
| 965 1 WHR74907 |
C00486154
481246668789 |
Cover | Na dotaz | Zadat poptávku | |
| 993 0 WHR74907 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
