WHIRLPOOL 3CAP2762 AWM 900
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | 3CAP2762 AWM 900 |
Kód 12NC: | 857090001000 |
Značka: | WHIRLPOOL |
Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

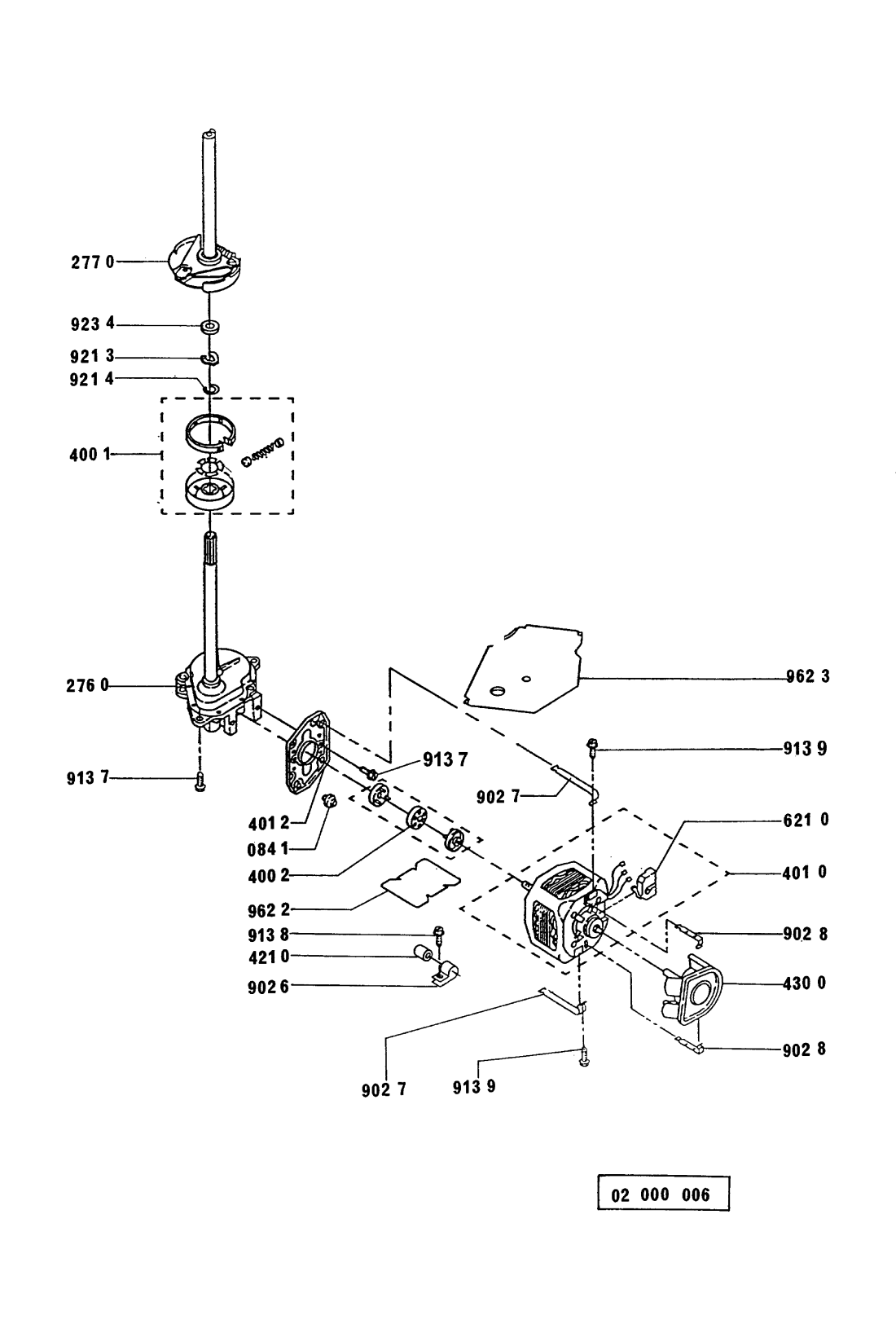

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
001 1 WHR114819 |
C00759576
481944019725 |
Cabinet part right, white | Na dotaz | Zadat poptávku | |
001 2 WHR114819 |
C00759577
481944019726 |
Cabinet part left, white | Na dotaz | Zadat poptávku | |
002 0 WHR114819 |
C00759578
481944019724 |
Lid white | Na dotaz | Zadat poptávku | |
002 1 WHR114819 |
C00759579
481946689317 |
Guard | Na dotaz | Zadat poptávku | |
002 3 WHR114819 |
C00759580
481944019727 |
Door slot meter white | Na dotaz | Zadat poptávku | |
004 0 WHR114819 |
C00344518
481946418127 |
BASE ASSEMBLY | Na dotaz | Zadat poptávku | |
004 1 WHR114819 |
C00759581
481946689322 |
Plate | Na dotaz | Zadat poptávku | |
004 2 WHR114819 |
C00336803
481953598416 |
Rod pull | Na dotaz | Zadat poptávku | |
004 3 WHR114819 |
C00337754
481946688953 |
PLATE SUSPENSION | Na dotaz | Zadat poptávku | |
004 4 WHR114819 |
C00759582
481952918186 |
Plate | Na dotaz | Zadat poptávku | |
004 5 WHR114819 |
C00759583
481946689323 |
Plate | Na dotaz | Zadat poptávku | |
010 0 WHR114819 |
C00759584
481944019722 |
Hob white | Na dotaz | Zadat poptávku | |
010 1 WHR114819 |
C00486726
481946248267 |
STOPPER | Na dotaz | Zadat poptávku | |
010 2 WHR114819 |
C00759585
481946248458 |
Plug | Na dotaz | Zadat poptávku | |
011 0 WHR114819 |
C00340787
481946248269 |
Foot front | Na dotaz | Zadat poptávku | |
011 1 WHR114819 |
C00340782
481946248271 |
Foot rear | Na dotaz | Zadat poptávku | |
011 2 WHR114819 |
C00341438
481953598417 |
Pin knurled | Na dotaz | Zadat poptávku | |
021 0 WHR114819 |
C00759586
481944019723 |
Panel front white | Na dotaz | Zadat poptávku | |
024 0 WHR114819 |
C00759587
481944019728 |
Panel rear | Na dotaz | Zadat poptávku | |
024 1 WHR114819 |
C00759588
481946089505 |
Trim | Na dotaz | Zadat poptávku | |
024 2 WHR114819 |
C00759589
481946689324 |
Plate | Na dotaz | Zadat poptávku | |
024 3 WHR114819 |
C00759590
481946089506 |
Guard | Na dotaz | Zadat poptávku | |
025 0 WHR114819 |
C00759591
481940479187 |
Bracket | Na dotaz | Zadat poptávku | |
030 1 WHR114819 |
C00759592
481941879386 |
Cabinet slot meter white | Na dotaz | Zadat poptávku | |
030 2 WHR114819 |
C00759593
481946689319 |
Funnel | Na dotaz | Zadat poptávku | |
030 3 WHR114819 |
C00484473
481946689321 |
Plate white | Na dotaz | Zadat poptávku | |
040 0 WHR114819 |
C00499092
481941719197 |
HINGE. | Na dotaz | Zadat poptávku | |
041 0 WHR114819 |
C00336855
481953238115 |
RING | Na dotaz | Zadat poptávku | |
041 4 WHR114819 |
C00339817
481941719195 |
Hinge left | Na dotaz | Zadat poptávku | |
041 5 WHR114819 |
C00332991
481941719496 |
HINGE | Na dotaz | Zadat poptávku | |
041 6 WHR114819 |
C00313588
481946248262 |
Shock absorber lid hinge | Na dotaz | Zadat poptávku | |
041 7 WHR114819 |
C00333264
481952018016 |
Bearing lid hinge | Na dotaz | Zadat poptávku | |
065 2 WHR114819 |
C00312241
481952918049 |
Pad plate | Na dotaz | Zadat poptávku | |
065 3 WHR114819 |
C00342057
481952918051 |
PAD BASE | Na dotaz | Zadat poptávku | |
084 0 WHR114819 |
C00759594
481952918185 |
Shock absorber | Na dotaz | Zadat poptávku | |
084 1 WHR114819 |
C00340201
481932568038 |
Grommet motor | Na dotaz | Zadat poptávku | |
084 1 WHR114819 |
C00759595
481953538143 |
Rivet | Na dotaz | Zadat poptávku | |
086 1 WHR114819 |
C00759596
481953538144 |
Rivet | Na dotaz | Zadat poptávku | |
130 0 WHR114819 |
C00314040
481953538108 |
Fixation lid switch | Na dotaz | Zadat poptávku | |
200 0 WHR114819 |
C00337449
481941818318 |
TUB | Na dotaz | Zadat poptávku | |
200 1 WHR114819 |
C00336861
481953288041 |
RING | Na dotaz | Zadat poptávku | |
210 0 WHR114819 |
C00317304
481940479186 |
SUPPORT | Na dotaz | Zadat poptávku | |
211 0 WHR114819 |
C00338209
481969018131 |
MECHANISM CLUTCH | Na dotaz | Zadat poptávku | |
220 0 WHR114819 |
C00759597
481941818317 |
Basket | Na dotaz | Zadat poptávku | |
220 1 WHR114819 |
C00759598
481946258976 |
Plug | Na dotaz | Zadat poptávku | |
223 0 WHR114819 |
C00518449
481951528252 |
AGITATOR. | Na dotaz | Zadat poptávku | |
223 1 WHR114819 |
C00636272
481951528253 |
AGITATOR. | Na dotaz | Zadat poptávku | |
223 2 WHR114819 |
C00595007
481946699041 |
SPACER. | Na dotaz | Zadat poptávku | |
223 3 WHR114819 |
C00759599
481951528254 |
Agitator cpl. | Na dotaz | Zadat poptávku | |
228 0 WHR114819 |
C00333275
481952838437 |
CAM | Na dotaz | Zadat poptávku | |
276 0 WHR114819 |
C00759600
481952228009 |
Box transmiss. | Na dotaz | Zadat poptávku | |
276 1 WHR114819 |
C00342506
481946279449 |
Cover f transmission. | Na dotaz | Zadat poptávku | |
276 2 WHR114819 |
C00499562
481952838379 |
Gear bottom | Na dotaz | Zadat poptávku | |
276 3 WHR114819 |
C00341433
481952218002 |
pINION | Na dotaz | Zadat poptávku | |
276 5 WHR114819 |
C00336535
481952838381 |
Segment,toothed. | Na dotaz | Zadat poptávku | |
276 6 WHR114819 |
C00344657
481952838382 |
ACTUATOR SHIFTshift | Na dotaz | Zadat poptávku | |
276 7 WHR114819 |
C00316498
481952228007 |
DRIVE SHAFT | Na dotaz | Zadat poptávku | |
276 8 WHR114819 |
C00759601
481952238023 |
Gear | Na dotaz | Zadat poptávku | |
276 9 WHR114819 |
C00518399
481931038943 |
ACCESSORIES NEUTRAL. | Na dotaz | Zadat poptávku | |
277 0 WHR114819 |
C00759602
481946648015 |
Brake | Na dotaz | Zadat poptávku | |
277 1 WHR114819 |
C00316835
481953238058 |
TUBE | Na dotaz | Zadat poptávku | |
277 2 WHR114819 |
C00317605
481953268535 |
SPACER | Na dotaz | Zadat poptávku | |
277 3 WHR114819 |
C00318938
481946688954 |
BRAKE SHOE | Na dotaz | Zadat poptávku | |
277 4 WHR114819 |
C00342862
481952838383 |
CAM | Na dotaz | Zadat poptávku | |
277 5 WHR114819 |
C00341171
481952648271 |
Drum lifter brake cam | Na dotaz | Zadat poptávku | |
277 6 WHR114819 |
C00336823
481946648009 |
Ring,retaining | Na dotaz | Zadat poptávku | |
292 0 WHR114819 |
C00340570
481946818178 |
GASKET | Na dotaz | Zadat poptávku | |
301 0 WHR114819 |
C00759603
481945319693 |
Control panel | Na dotaz | Zadat poptávku | |
301 1 WHR114819 |
C00759604
481946688946 |
Sidepiece left | Na dotaz | Zadat poptávku | |
301 2 WHR114819 |
C00759605
481946689318 |
Sidepiece | Na dotaz | Zadat poptávku | |
331 1 WHR114819 |
C00494678
481952648454 |
COUPLING PIECE | Na dotaz | Zadat poptávku | |
331 2 WHR114819 |
C00336736
481931039268 |
Screw | Na dotaz | Zadat poptávku | |
332 0 WHR114819 |
C00315276
481941028568 |
BUTTON | Na dotaz | Zadat poptávku | |
351 0 WHR114819 |
C00759606
481913448469 |
Pilot lamp | Na dotaz | Zadat poptávku | |
400 1 WHR114819 |
C00316825
481952018017 |
Clutch | Na dotaz | Zadat poptávku | |
400 2 WHR114819 |
C00319800
481932528019 |
Coupling piece | Na dotaz | Zadat poptávku | |
401 0 WHR114819 |
C00759607
481936158179 |
Motor | Na dotaz | Zadat poptávku | |
401 2 WHR114819 |
C00320112
481946688949 |
Plate mounting | Na dotaz | Zadat poptávku | |
421 0 WHR114819 |
C00311786
481912118185 |
482156 Capacitor 189/229uf | Na dotaz | Zadat poptávku | |
430 0 WHR114819 |
C00311624
481936018211 |
PUMP,DRAINING. | Na dotaz | Zadat poptávku | |
501 0 WHR114819 |
C00759608
481928218694 |
Timer for 115V, 60Hz | Na dotaz | Zadat poptávku | |
571 0 WHR114819 |
C00759609
481928128255 |
Valve Electr. 120 V | Na dotaz | Zadat poptávku | |
583 0 WHR114819 |
C00759610
481927618314 |
Pressostat | Na dotaz | Zadat poptávku | |
620 0 WHR114819 |
C00759611
481927618327 |
Switch | Na dotaz | Zadat poptávku | |
621 0 WHR114819 |
C00317947
481927618205 |
Switch motor | Na dotaz | Zadat poptávku | |
621 1 WHR114819 |
C00759612
481927618312 |
Switch | Na dotaz | Zadat poptávku | |
653 0 WHR114819 |
C00759613
481938118185 |
Lens amber | Na dotaz | Zadat poptávku | |
653 1 WHR114819 |
C00759614
481938118228 |
Lens yellow | Na dotaz | Zadat poptávku | |
701 0 WHR114819 |
C00759615
481953028955 |
Hose inlet | Na dotaz | Zadat poptávku | |
750 0 WHR114819 |
C00343493
481952648326 |
CONNECTION | Na dotaz | Zadat poptávku | |
753 1 WHR114819 |
C00318069
481941879385 |
CHAMBER,AIR. | Na dotaz | Zadat poptávku | |
754 0 WHR114819 |
C00339460
481953028804 |
HOSE | Na dotaz | Zadat poptávku | |
781 0 WHR114819 |
C00316500
481952928174 |
Hose draining 5-1/2 Ft. | Na dotaz | Zadat poptávku | |
781 1 WHR114819 |
C00499571
481953028803 |
HOSE. | Na dotaz | Zadat poptávku | |
783 0 WHR114819 |
C00759616
481953028805 |
Hose | Na dotaz | Zadat poptávku | |
783 2 WHR114819 |
C00499570
481953028802 |
HOSE. | Na dotaz | Zadat poptávku | |
791 2 WHR114819 |
C00320098
481946669832 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
791 3 WHR114819 |
C00317553
481946669833 |
Gasket | Na dotaz | Zadat poptávku | |
791 4 WHR114819 |
C00340571
481946669834 |
Gasket | Na dotaz | Zadat poptávku | |
791 5 WHR114819 |
C00336540
481939038023 |
SEALER GASKET | Na dotaz | Zadat poptávku | |
794 1 WHR114819 |
C00336441
481932568037 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
794 3 WHR114819 |
C00759617
481953278216 |
Gasket | Na dotaz | Zadat poptávku | |
794 7 WHR114819 |
C00499492
481948058125 |
FILTER. | Na dotaz | Zadat poptávku | |
794 8 WHR114819 |
C00314694
481953238055 |
Inlet Hose Washer | Na dotaz | Zadat poptávku | |
901 0 WHR114819 |
C00343354
481940118544 |
Clamp hose | Na dotaz | Zadat poptávku | |
901 2 WHR114819 |
C00332917
481940118542 |
hose clamp | Na dotaz | Zadat poptávku | |
901 4 WHR114819 |
C00343336
481940118548 |
Clamp hose | Na dotaz | Zadat poptávku | |
901 5 WHR114819 |
C00318138
481949268607 |
Holder suspension spring | Na dotaz | Zadat poptávku | |
901 7 WHR114819 |
C00332918
481940118546 |
Clamp hose | Na dotaz | Zadat poptávku | |
902 0 WHR114819 |
C00759618
481940479183 |
Bracket | Na dotaz | Zadat poptávku | |
902 1 WHR114819 |
C00484385
481940479184 |
BRACKET | Na dotaz | Zadat poptávku | |
902 2 WHR114819 |
C00759619
481940479185 |
Bracket | Na dotaz | Zadat poptávku | |
902 3 WHR114819 |
C00759620
481946699039 |
Spacer | Na dotaz | Zadat poptávku | |
902 4 WHR114819 |
C00343276
481949268753 |
Clip grounding | Na dotaz | Zadat poptávku | |
902 5 WHR114819 |
C00335795
481940478289 |
Support rear panel | Na dotaz | Zadat poptávku | |
902 6 WHR114819 |
C00498983
481940118551 |
Clamp capacitor. | Na dotaz | Zadat poptávku | |
902 7 WHR114819 |
C00343330
481940478291 |
CLAMPING PIECE MOTOR | Na dotaz | Zadat poptávku | |
902 8 WHR114819 |
C00316478
481940478292 |
CLAMPING PIECE PUMP | Na dotaz | Zadat poptávku | |
903 1 WHR114819 |
C00343314
481949268608 |
SPONA | 100 Kč
€ 3.90 |
||
903 3 WHR114819 |
C00499498
481949268754 |
CLIP. | Na dotaz | Zadat poptávku | |
903 6 WHR114819 |
C00315625
481949268595 |
Clip fix | Na dotaz | Zadat poptávku | |
903 7 WHR114819 |
C00333177
481949268597 |
Clip fix harness | Na dotaz | Zadat poptávku | |
903 8 WHR114819 |
C00336019
481946688971 |
STOPPER | Na dotaz | Zadat poptávku | |
910 0 WHR114819 |
C00492568
481950118002 |
BOLT | Na dotaz | Zadat poptávku | |
910 1 WHR114819 |
C00759621
481950318233 |
Screw | Na dotaz | Zadat poptávku | |
910 2 WHR114819 |
C00759622
481950318234 |
Screw | Na dotaz | Zadat poptávku | |
910 3 WHR114819 |
C00759623
481950118003 |
Bolt 5/16-18x2 1/2 | Na dotaz | Zadat poptávku | |
910 4 WHR114819 |
C00759624
481950318235 |
Screw | Na dotaz | Zadat poptávku | |
910 5 WHR114819 |
C00759625
481950318236 |
Screw | Na dotaz | Zadat poptávku | |
910 6 WHR114819 |
C00759626
481953598592 |
Pin | Na dotaz | Zadat poptávku | |
912 0 WHR114819 |
C00336649
481950318209 |
Screw 10-16x5/8 | Na dotaz | Zadat poptávku | |
912 1 WHR114819 |
C00336656
481950318211 |
Screw + washer | Na dotaz | Zadat poptávku | |
912 3 WHR114819 |
C00333227
481950318022 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
912 4 WHR114819 |
C00759627
481950318232 |
Screw | Na dotaz | Zadat poptávku | |
912 6 WHR114819 |
C00593458
481950218321 |
Screw. | Na dotaz | Zadat poptávku | |
912 7 WHR114819 |
C00336645
481950318036 |
Screw 10-32x1 | Na dotaz | Zadat poptávku | |
913 0 WHR114819 |
C00333228
481950318042 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
913 1 WHR114819 |
C00333206
481950218332 |
Screw 8Ax3/8 | Na dotaz | Zadat poptávku | |
913 2 WHR114819 |
C00759628
481950318037 |
Screw | Na dotaz | Zadat poptávku | |
913 3 WHR114819 |
C00759629
481950318038 |
SCREW | Na dotaz | Zadat poptávku | |
913 5 WHR114819 |
C00336650
481950318039 |
Screw 10-16x3/8 | Na dotaz | Zadat poptávku | |
913 6 WHR114819 |
C00314897
481950318043 |
Screw 5/16-24x1 | Na dotaz | Zadat poptávku | |
913 7 WHR114819 |
C00336711
481950318208 |
SCREW | Na dotaz | Zadat poptávku | |
913 8 WHR114819 |
C00336646
481950318034 |
Screw 10-24x3/8 | Na dotaz | Zadat poptávku | |
913 9 WHR114819 |
C00759630
481950318041 |
Screw | Na dotaz | Zadat poptávku | |
914 0 WHR114819 |
C00312035
481950618005 |
NUT | Na dotaz | Zadat poptávku | |
914 2 WHR114819 |
C00759631
481950618003 |
NUT | Na dotaz | Zadat poptávku | |
914 3 WHR114819 |
C00313854
481950618023 |
hex nut | Na dotaz | Zadat poptávku | |
914 3 WHR114819 |
C00759632
481950618004 |
NUT | Na dotaz | Zadat poptávku | |
921 0 WHR114819 |
C00311287
481946688948 |
Block basket drive | Na dotaz | Zadat poptávku | |
921 1 WHR114819 |
C00759633
481953228271 |
Nut | Na dotaz | Zadat poptávku | |
921 3 WHR114819 |
C00317410
481953228225 |
tesneni | 167 Kč
€ 6.60 |
||
921 4 WHR114819 |
C00315270
481932568036 |
tesneni | 286 Kč
€ 11.30 |
||
921 5 WHR114819 |
C00336824
481953238059 |
RING,RETAINING | Na dotaz | Zadat poptávku | |
921 6 WHR114819 |
C00336825
481953238062 |
RING,RETAINING. | Na dotaz | Zadat poptávku | |
921 7 WHR114819 |
C00336827
481953238064 |
RING RETAINING | Na dotaz | Zadat poptávku | |
922 0 WHR114819 |
C00318274
481953268534 |
Ring sound deadening | Na dotaz | Zadat poptávku | |
923 2 WHR114819 |
C00337230
481953268539 |
WASHER KIT | Na dotaz | Zadat poptávku | |
923 4 WHR114819 |
C00313860
481953228222 |
tesneni | 407 Kč
€ 16.10 |
||
931 0 WHR114819 |
C00312149
481949238103 |
SPRING,SUSPENS. | Na dotaz | Zadat poptávku | |
931 3 WHR114819 |
C00315623
481949238104 |
Spring leveling mechanism | Na dotaz | Zadat poptávku | |
931 4 WHR114819 |
C00315296
481949238109 |
SPRING COUNTERWEIGHT | Na dotaz | Zadat poptávku | |
932 0 WHR114819 |
C00759634
481946238823 |
Guide drawer | Na dotaz | Zadat poptávku | |
933 0 WHR114819 |
C00319882
481940478293 |
Bracket spring | Na dotaz | Zadat poptávku | |
933 1 WHR114819 |
C00344153
481940478294 |
BRACKET SPRING | Na dotaz | Zadat poptávku | |
941 0 WHR114819 |
C00344401
481952018018 |
BEARING | Na dotaz | Zadat poptávku | |
941 2 WHR114819 |
C00317392
481952018019 |
Bearing kit | Na dotaz | Zadat poptávku | |
941 4 WHR114819 |
C00344402
481952018022 |
Bearing | Na dotaz | Zadat poptávku | |
945 0 WHR114819 |
C00344404
481952018021 |
BEARING | Na dotaz | Zadat poptávku | |
951 1 WHR114819 |
C00318264
481953238057 |
RING | Na dotaz | Zadat poptávku | |
951 2 WHR114819 |
C00318284
481953278121 |
SHAFT SEAL | Na dotaz | Zadat poptávku | |
953 0 WHR114819 |
C00340560
481946669831 |
Gasket | Na dotaz | Zadat poptávku | |
953 1 WHR114819 |
C00498948
481932568039 |
GASKET. | Na dotaz | Zadat poptávku | |
962 2 WHR114819 |
C00336375
481946688951 |
SHIELD | Na dotaz | Zadat poptávku | |
962 3 WHR114819 |
C00340194
481946689325 |
GUARD | Na dotaz | Zadat poptávku | |
965 0 WHR114819 |
C00492430
481946258136 |
Cap agitator | Na dotaz | Zadat poptávku | |
965 1 WHR114819 |
C00311706
481953268533 |
GASKET CENTERPOST | Na dotaz | Zadat poptávku | |
965 2 WHR114819 |
C00518426
481946258175 |
PLUG. | Na dotaz | Zadat poptávku |
