WHIRLPOOL 3SWED4800YQ
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 3SWED4800YQ |
| Kód 12NC: | 853795043000 |
| I.C. kód: | 853795043002 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
| Další podobné modely: | 853795043000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

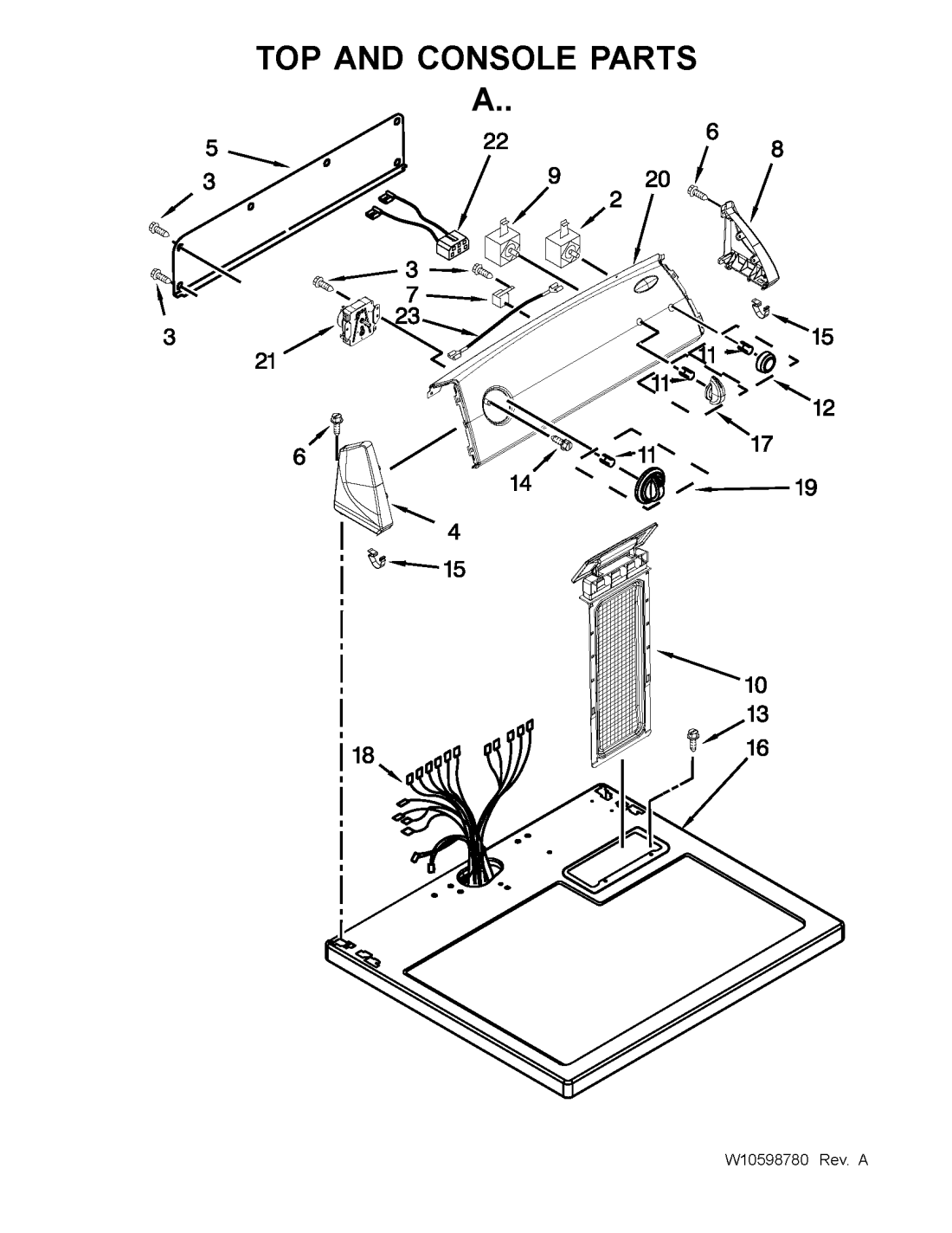

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A02 WHR23160 |
C00344945
482000008285 |
Spinac | 1 622 Kč
€ 64.00 |
||
| A03 WHR23160 |
C00333230
481950318053 |
Screw 8-18x3/8 | Na dotaz | Zadat poptávku | |
| A04 WHR23160 |
C00388698
480112100604 |
Sidepiece left control panel white | Na dotaz | Zadat poptávku | |
| A05 WHR23160 |
C00388950
480112101035 |
Panel rear control | Na dotaz | Zadat poptávku | |
| A06 WHR23160 |
C00333738
482000007518 |
Screw 8-18 x 5/16 | Na dotaz | Zadat poptávku | |
| A07 WHR23160 |
C00387899
480110100198 |
Bzučák pračky | 465 Kč
€ 18.30 |
||
| A08 WHR23160 |
C00388699
480112100605 |
Sidepiece right cont.panel white | Na dotaz | Zadat poptávku | |
| A09 WHR23160 |
C00388637
480112100507 |
Switch temperature | Na dotaz | Zadat poptávku | |
| A10 WHR23160 |
C00388681
480112100581 |
Filter fluff | Na dotaz | Zadat poptávku | |
| A11 WHR23160 |
C00316533
480110100173 |
Clip knob | Na dotaz | Zadat poptávku | |
| A12 WHR23160 |
C00321202
480112100548 |
Knob on off withe | Na dotaz | Zadat poptávku | |
| A13 WHR23160 |
C00336713
481950318049 |
Screw | Na dotaz | Zadat poptávku | |
| A14 WHR23160 |
C00321205
480112100555 |
Screw | Na dotaz | Zadat poptávku | |
| A15 WHR23160 |
C00320922
480110100224 |
Clip control panel | Na dotaz | Zadat poptávku | |
| A16 WHR23160 |
C00388701
480112100607 |
Table top | Na dotaz | Zadat poptávku | |
| A17 WHR23160 |
C00320920
480110100204 |
Knob switch silver | Na dotaz | Zadat poptávku | |
| A18 WHR23160 |
C00413342
482000013108 |
Cable harness | Na dotaz | Zadat poptávku | |
| A19 WHR23160 |
C00321201
480112100547 |
Knob timer ass. white | Na dotaz | Zadat poptávku | |
| A20 WHR23160 |
C00413999
482000014163 |
Control panel | Na dotaz | Zadat poptávku | |
| A21 WHR23160 |
C00334256
482000011522 |
Timer 60 Hz | Na dotaz | Zadat poptávku | |
| A22 WHR23160 |
C00388934
480112101017 |
Connector | Na dotaz | Zadat poptávku | |
| A23 WHR23160 |
C00388697
480112100603 |
Connector | Na dotaz | Zadat poptávku | |
| B02 WHR23160 |
C00333227
481950318022 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
| B04 WHR23160 |
C00410566
482000007522 |
Bracket cabinet | Na dotaz | Zadat poptávku | |
| B05 WHR23160 |
C00413344
482000013110 |
Cover terminal block | Na dotaz | Zadat poptávku | |
| B06 WHR23160 |
C00413345
482000013111 |
Plug strike | Na dotaz | Zadat poptávku | |
| B07 WHR23160 |
C00413346
482000013112 |
Rear panel | Na dotaz | Zadat poptávku | |
| B08 WHR23160 |
C00333228
481950318042 |
Screw 10-16x1/2 | Na dotaz | Zadat poptávku | |
| B09 WHR23160 |
C00413347
482000013113 |
Seal door | Na dotaz | Zadat poptávku | |
| B10 WHR23160 |
C00312708
481227138426 |
Door Lock | Na dotaz | Zadat poptávku | |
| B11 WHR23160 |
C00333233
481950318241 |
Screw 6-20x7/8 | Na dotaz | Zadat poptávku | |
| B12 WHR23160 |
C00498774
481903404162 |
Clamp | Na dotaz | Zadat poptávku | |
| B13 WHR23160 |
C00337611
481903404413 |
Plug white | Na dotaz | Zadat poptávku | |
| B14 WHR23160 |
C00336650
481950318039 |
Screw 10-16x3/8 | Na dotaz | Zadat poptávku | |
| B15 WHR23160 |
C00492554
481949268769 |
Clip | Na dotaz | Zadat poptávku | |
| B16 WHR23160 |
C00318924
481946279891 |
Foot | Na dotaz | Zadat poptávku | |
| B17 WHR23160 |
C00316151
481940118795 |
Terminal Block | Na dotaz | Zadat poptávku | |
| B18 WHR23160 |
C00388654
480112100527 |
Cabinet white | Na dotaz | Zadat poptávku | |
| B19 WHR23160 |
C00343314
481949268608 |
SPONA | 100 Kč
€ 3.90 |
||
| B20 WHR23160 |
C00413339
482000013105 |
Lock front top | Na dotaz | Zadat poptávku | |
| B21 WHR23160 |
C00388688
480112100588 |
Front cpl. | Na dotaz | Zadat poptávku | |
| B22 WHR23160 |
C00343411
480112100589 |
Clamp | Na dotaz | Zadat poptávku | |
| B23 WHR23160 |
C00343315
481949268609 |
Clip | Na dotaz | Zadat poptávku | |
| B24 WHR23160 |
C00413348
482000013114 |
Door lock | Na dotaz | Zadat poptávku | |
| B25 WHR23160 |
C00410568
482000007524 |
Motor | Na dotaz | Zadat poptávku | |
| B26 WHR23160 |
C00499095
481941719212 |
Hinge. | Na dotaz | Zadat poptávku | |
| B27 WHR23160 |
C00333234
481950318242 |
Screw 8-18x1/2 | Na dotaz | Zadat poptávku | |
| B28 WHR23160 |
C00410569
482000007525 |
Hinge | Na dotaz | Zadat poptávku | |
| B29 WHR23160 |
C00314957
481952888091 |
Pulley 50 Hz | Na dotaz | Zadat poptávku | |
| B30 WHR23160 |
C00336714
481903400500 |
Screw | Na dotaz | Zadat poptávku | |
| B31 WHR23160 |
C00335899
481946418009 |
Support | Na dotaz | Zadat poptávku | |
| B32 WHR23160 |
C00312676
481935818117 |
Řemen sušičky | 582 Kč
€ 23.00 |
||
| B33 WHR23160 |
C00336034
481903403431 |
Stop door | Na dotaz | Zadat poptávku | |
| B34 WHR23160 |
C00337065
481952888085 |
Pulley Jokey | Na dotaz | Zadat poptávku | |
| B35 WHR23160 |
C00413350
482000013116 |
Door inner | Na dotaz | Zadat poptávku | |
| B36 WHR23160 |
C00498768
481903402335 |
Door white | Na dotaz | Zadat poptávku | |
| B37 WHR23160 |
C00414000
482000014164 |
Handle door white | Na dotaz | Zadat poptávku | |
| B38 WHR23160 |
C00413352
482000013118 |
Seal + bearing | Na dotaz | Zadat poptávku | |
| B39 WHR23160 |
C00313698
481931038733 |
Plate connector screw kit | Na dotaz | Zadat poptávku | |
| B40 WHR23160 |
C00319766
481929068391 |
3397659 Terminal block | Na dotaz | Zadat poptávku | |
| B41 WHR23160 |
C00413355
482000013121 |
Pad front panel | Na dotaz | Zadat poptávku | |
| B42 WHR23160 |
C00388680
480112100576 |
Cable mains | Na dotaz | Zadat poptávku | |
| B43 WHR23160 |
C00343289
481949268644 |
Clip fix | Na dotaz | Zadat poptávku | |
| B44 WHR23160 |
C00413353
482000013119 |
Pad door handle | Na dotaz | Zadat poptávku | |
| B45 WHR23160 |
C00413372
482000013139 |
Pad power cord | Na dotaz | Zadat poptávku | |
| B46 WHR23160 |
C00413349
482000013115 |
Cover door lock | Na dotaz | Zadat poptávku | |
| B47 WHR23160 |
C00413354
482000013120 |
Bezel door lock | Na dotaz | Zadat poptávku | |
| C01 WHR23160 |
C00498705
481900348368 |
Conveyor | Na dotaz | Zadat poptávku | |
| C02 WHR23160 |
C00340566
481946669855 |
Gasket | Na dotaz | Zadat poptávku | |
| C03 WHR23160 |
C00337253
481953268661 |
Washer | Na dotaz | Zadat poptávku | |
| C04 WHR23160 |
C00499432
481946669852 |
Gasket. | Na dotaz | Zadat poptávku | |
| C05 WHR23160 |
C00333206
481950218332 |
Screw 8Ax3/8 | Na dotaz | Zadat poptávku | |
| C06 WHR23160 |
C00413357
482000013123 |
Shield exhaust | Na dotaz | Zadat poptávku | |
| C07 WHR23160 |
C00313061
481925228095 |
pojistka | 605 Kč
€ 23.90 |
||
| C08 WHR23160 |
C00311682
481928248311 |
Termostat sušičky | 1 545 Kč
€ 60.90 |
||
| C09 WHR23160 |
C00414001
482000014165 |
Switch thermal | Na dotaz | Zadat poptávku | |
| C10 WHR23160 |
C00315665
481951548051 |
Vrtule sušičky | 1 035 Kč
€ 40.80 |
||
| C11 WHR23160 |
C00388657
480112100531 |
Cabinet fan wheel | Na dotaz | Zadat poptávku | |
| C12 WHR23160 |
C00499500
481949268774 |
Clip. | Na dotaz | Zadat poptávku | |
| C14 WHR23160 |
C00320205
480112100532 |
Vzduchový kanál | 1 949 Kč
€ 76.90 |
||
| C15 WHR23160 |
C00414002
482000014166 |
Thermostat high limit 200#/120F | Na dotaz | Zadat poptávku | |
| C16 WHR23160 |
C00498773
481903403636 |
Agitator | Na dotaz | Zadat poptávku | |
| C17 WHR23160 |
C00339952
481225928776 |
HEATING ELEMENT | Na dotaz | Zadat poptávku | |
| C18 WHR23160 |
C00337625
481226318003 |
Plug drum | Na dotaz | Zadat poptávku | |
| C19 WHR23160 |
C00332864
481931038736 |
Accessories heating | Na dotaz | Zadat poptávku | |
| C20 WHR23160 |
C00332798
481900489463 |
Screw | Na dotaz | Zadat poptávku | |
| C21 WHR23160 |
C00333204
481950218294 |
Screw | Na dotaz | Zadat poptávku | |
| C22 WHR23160 |
C00343316
481953268553 |
Clip | Na dotaz | Zadat poptávku | |
| C23 WHR23160 |
C00497304
481225518228 |
Holder | Na dotaz | Zadat poptávku | |
| C24 WHR23160 |
C00312620
481953228227 |
pojistka zajištovací | 338 Kč
€ 13.30 |
||
| C25 WHR23160 |
C00336445
481953598423 |
Shaft left | Na dotaz | Zadat poptávku | |
| C26 WHR23160 |
C00345149
482000006856 |
W10359269 CN - SHAFT-DRUM ROLLER. | Na dotaz | Zadat poptávku | |
| C27 WHR23160 |
C00313642
481952878062 |
Vodící kolečka bubnu poloprofesionální sušičky prádla Whirlpool 3LWED4830FW, LWED4705FW. | 1 594 Kč
€ 62.90 |
||
| C28 WHR23160 |
C00337248
481953088033 |
Washer | Na dotaz | Zadat poptávku | |
| C29 WHR23160 |
C00410571
482000007527 |
Nut 3/8-16 | Na dotaz | Zadat poptávku | |
| C30 WHR23160 |
C00388659
480112100536 |
Panel rear bulkhead | Na dotaz | Zadat poptávku | |
| C31 WHR23160 |
C00498710
481900692490 |
Agitator | Na dotaz | Zadat poptávku | |
| C32 WHR23160 |
C00336854
481900692526 |
Ring | Na dotaz | Zadat poptávku | |
| C33 WHR23160 |
C00321210
480112100602 |
Screw 8-16x1/2 | Na dotaz | Zadat poptávku | |
| C34 WHR23160 |
C00413358
482000013124 |
Seal rear drum | Na dotaz | Zadat poptávku | |
| C35 WHR23160 |
C00318684
482000013125 |
Drum cpl. | Na dotaz | Zadat poptávku | |
| C36 WHR23160 |
C00413359
482000013126 |
Pad foam | Na dotaz | Zadat poptávku | |
