| Komerční kód: | 4KWED4705FW |
| Kód 12NC: | 852108880100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

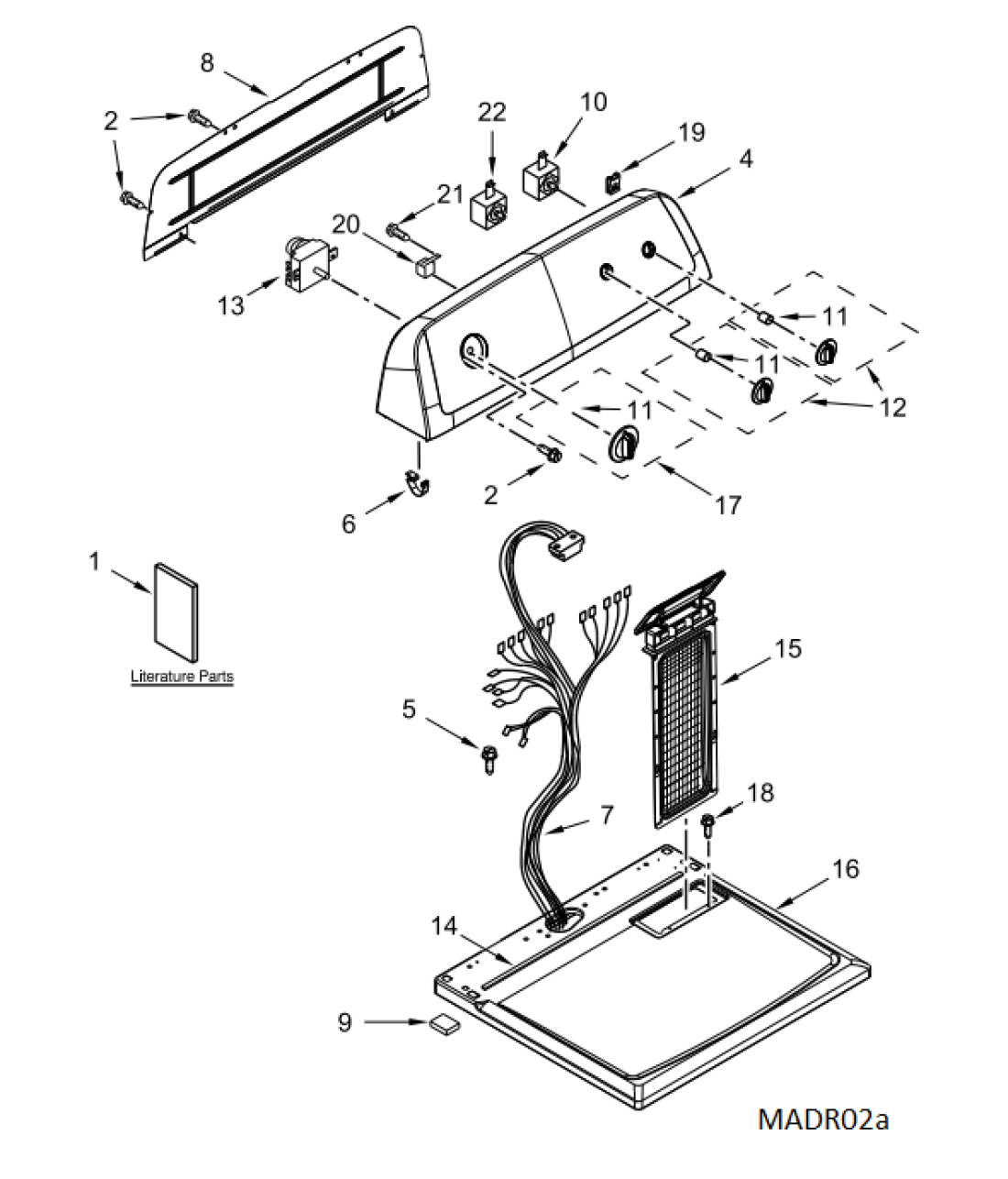

| 004 MADR02a |
C00508892
482000095996 |
Console assembly, white | Na dotaz | Zadat poptávku | |
| 006 MADR02a |
C00509315
482000095946 |
Clip | Na dotaz | Zadat poptávku | |
| 007 MADR02a |
C00508895
482000095999 |
Cable harness | Na dotaz | Zadat poptávku | |
| 008 MADR02a |
C00508889
482000095993 |
Rear panel | Na dotaz | Zadat poptávku | |
| 009 MADR02a |
C00518437
481946699051 |
SPACER. | Na dotaz | Zadat poptávku | |
| 010 MADR02a |
C00508894
482000095998 |
Switch pushbut. | Na dotaz | Zadat poptávku | |
| 011 MADR02a |
C00316533
480110100173 |
Clip knob | Na dotaz | Zadat poptávku | |
| 012 MADR02a |
C00508890
482000095994 |
Knob white | Na dotaz | Zadat poptávku | |
| 013 MADR02a |
C00508891
482000095995 |
Timer | Na dotaz | Zadat poptávku | |
| 014 MADR02a |
C00518603
482000098041 |
Seal foam | Na dotaz | Zadat poptávku | |
| 015 MADR02a |
C00519312
482000098253 |
Screening lint white | Na dotaz | Zadat poptávku | |
| 016 MADR02a |
C00519313
482000098254 |
Cover white | Na dotaz | Zadat poptávku | |
| 017 MADR02a |
C00519314
482000098255 |
Knob timer white assy | Na dotaz | Zadat poptávku | |
| 019 MADR02a |
C00519544
482000098256 |
Nut U | Na dotaz | Zadat poptávku | |
| 020 MADR02a |
C00387899
480110100198 |
Bzučák pračky | 465 Kč
€ 18.40 |
||
| 022 MADR02a |
C00508896
482000096000 |
Switch rotary | Na dotaz | Zadat poptávku | |
| 001 MADR02b |
C00519315
482000098257 |
Catch cover door | Na dotaz | Zadat poptávku | |
| 004 MADR02b |
C00518627
482000098078 |
Seal spill guard | Na dotaz | Zadat poptávku | |
| 005 MADR02b |
C00519316
482000098258 |
Block cover terminal | Na dotaz | Zadat poptávku | |
| 006 MADR02b |
C00519545
482000098259 |
Plug strike | Na dotaz | Zadat poptávku | |
| 007 MADR02b |
C00518617
482000098055 |
Rear panel | Na dotaz | Zadat poptávku | |
| 008 MADR02b |
C00519546
482000098260 |
Lock front top | Na dotaz | Zadat poptávku | |
| 009 MADR02b |
C00343314
481949268608 |
SPONA | 100 Kč
€ 3.90 |
||
| 010 MADR02b |
C00326613
481201231198 |
W10237959 LEADED DOOR SW SPST (IEC) | Na dotaz | Zadat poptávku | |
| 012 MADR02b |
C00519318
482000098262 |
Plug hole white | Na dotaz | Zadat poptávku | |
| 013 MADR02b |
C00518775
482000098141 |
Clip felt pad | Na dotaz | Zadat poptávku | |
| 015 MADR02b |
C00518771
482000098137 |
Clip front panel | Na dotaz | Zadat poptávku | |
| 016 MADR02b |
C00508518
482000095759 |
Foot | Na dotaz | Zadat poptávku | |
| 017 MADR02b |
C00454623
481201230929 |
279318 TERMINAL | Na dotaz | Zadat poptávku | |
| 018 MADR02b |
C00388654
480112100527 |
Cabinet white | Na dotaz | Zadat poptávku | |
| 019 MADR02b |
C00508897
482000096001 |
Front panel white | Na dotaz | Zadat poptávku | |
| 020 MADR02b |
C00519319
482000098264 |
Door strike | Na dotaz | Zadat poptávku | |
| 021 MADR02b |
C00508802
482000095910 |
Seal and bearing | Na dotaz | Zadat poptávku | |
| 022 MADR02b |
C00519321
482000098266 |
Catch assembly door | Na dotaz | Zadat poptávku | |
| 024 MADR02b |
C00410569
482000007525 |
Hinge | Na dotaz | Zadat poptávku | |
| 025 MADR02b |
C00519322
482000098268 |
Seal door | Na dotaz | Zadat poptávku | |
| 026 MADR02b |
C00413350
482000013116 |
Door inner | Na dotaz | Zadat poptávku | |
| 027 MADR02b |
C00508900
482000096005 |
Door outer white | Na dotaz | Zadat poptávku | |
| 028 MADR02b |
C00519323
482000098271 |
Handle door white | Na dotaz | Zadat poptávku | |
| 029 MADR02b |
C00454661
481201230993 |
279393 SCREW | Na dotaz | Zadat poptávku | |
| 031 MADR02b |
C00454552
481201230825 |
Terminal Block 3397659 | Na dotaz | Zadat poptávku | |
| 032 MADR02b |
C00498774
481903404162 |
Clamp | Na dotaz | Zadat poptávku | |
| 033 MADR02b |
C00343411
480112100589 |
Clamp | Na dotaz | Zadat poptávku | |
| 034 MADR02b |
C00410568
482000007524 |
Motor | Na dotaz | Zadat poptávku | |
| 035 MADR02b |
C00519326
482000098274 |
Pulley | Na dotaz | Zadat poptávku | |
| 036 MADR02b |
C00337065
481952888085 |
Pulley Jokey | Na dotaz | Zadat poptávku | |
| 037 MADR02b |
C00388691
480112100593 |
Belt | Na dotaz | Zadat poptávku | |
| 038 MADR02b |
C00519327
482000098275 |
Motor base | Na dotaz | Zadat poptávku | |
| 039 MADR02b |
C00336714
481903400500 |
Screw | Na dotaz | Zadat poptávku | |
| 040 MADR02b |
C00519328
482000098276 |
Hinge top | Na dotaz | Zadat poptávku | |
| 041,044 MADR02b |
C00413370
482000013137 |
Seal foam | Na dotaz | Zadat poptávku | |
| 043 MADR02b |
C00519552
482000098278 |
Seal spill guard | Na dotaz | Zadat poptávku | |
| 045 MADR02b |
C00519553
482000098279 |
Pad power cord | Na dotaz | Zadat poptávku | |
| 046 MADR02b |
C00413354
482000013120 |
Bezel door lock | Na dotaz | Zadat poptávku | |
| 001 MADR02c |
C00519329
482000098281 |
Hopper assembly lint | Na dotaz | Zadat poptávku | |
| 002 MADR02c |
C00340566
481946669855 |
Gasket | Na dotaz | Zadat poptávku | |
| 003 MADR02c |
C00337253
481953268661 |
Washer | Na dotaz | Zadat poptávku | |
| 004 MADR02c |
C00499432
481946669852 |
Gasket. | Na dotaz | Zadat poptávku | |
| 006 MADR02c |
C00413357
482000013123 |
Shield exhaust | Na dotaz | Zadat poptávku | |
| 007 MADR02c |
C00453860
481201229464 |
3392519 THERMAL FUSE (91 C). | Na dotaz | Zadat poptávku | |
| 008 MADR02c |
C00454205
481201230164 |
3387137 THERMOSTAT INTERNAL BIAS TOD. | Na dotaz | Zadat poptávku | |
| 009 MADR02c |
C00519613
482000098399 |
Fuse thermal 91C | Na dotaz | Zadat poptávku | |
| 010 MADR02c |
C00519563
482000098358 |
Blower wheel | Na dotaz | Zadat poptávku | |
| 011 MADR02c |
C00519564
482000098359 |
Housing blower | Na dotaz | Zadat poptávku | |
| 012 MADR02c |
C00508807
482000095915 |
Clip | Na dotaz | Zadat poptávku | |
| 014 MADR02c |
C00519565
482000098360 |
Box heater | Na dotaz | Zadat poptávku | |
| 015 MADR02c |
C00519334
482000098286 |
Thermostat 221 F (105C) | Na dotaz | Zadat poptávku | |
| 016 MADR02c |
C00519335
482000098287 |
Drum baffle | Na dotaz | Zadat poptávku | |
| 017 MADR02c |
C00518678
482000098096 |
heater def element | Na dotaz | Zadat poptávku | |
| 018 MADR02c |
C00518781
482000098147 |
Nut push on | Na dotaz | Zadat poptávku | |
| 019 MADR02c |
C00332864
481931038736 |
Accessories heating | Na dotaz | Zadat poptávku | |
| 021 MADR02c |
C00508811
482000095919 |
Seal drum | Na dotaz | Zadat poptávku | |
| 022 MADR02c |
C00508810
482000095918 |
Bracket | Na dotaz | Zadat poptávku | |
| 023 MADR02c |
C00498710
481900692490 |
Agitator | Na dotaz | Zadat poptávku | |
| 024 MADR02c |
C00312620
481953228227 |
pojistka zajištovací | 338 Kč
€ 13.30 |
||
| 025 MADR02c |
C00336445
481953598423 |
Shaft left | Na dotaz | Zadat poptávku | |
| 026 MADR02c |
C00345149
482000006856 |
W10359269 CN - SHAFT-DRUM ROLLER. | Na dotaz | Zadat poptávku | |
| 027 MADR02c |
C00519332
482000098284 |
Roller support | Na dotaz | Zadat poptávku | |
| 028 MADR02c |
C00519333
482000098285 |
Washer | Na dotaz | Zadat poptávku | |
| 029,030 MADR02c |
C00410571
482000007527 |
Nut 3/8-16 | Na dotaz | Zadat poptávku | |
| 031 MADR02c |
C00508812
482000095920 |
Drum | Na dotaz | Zadat poptávku | |
| 032 MADR02c |
C00518782
482000098148 |
Bearing ring | Na dotaz | Zadat poptávku | |
