WHIRLPOOL 4KWED4915FW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | 4KWED4915FW |
Kód 12NC: | 852109080100 |
Značka: | WHIRLPOOL |
Typ produktu: | Sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|

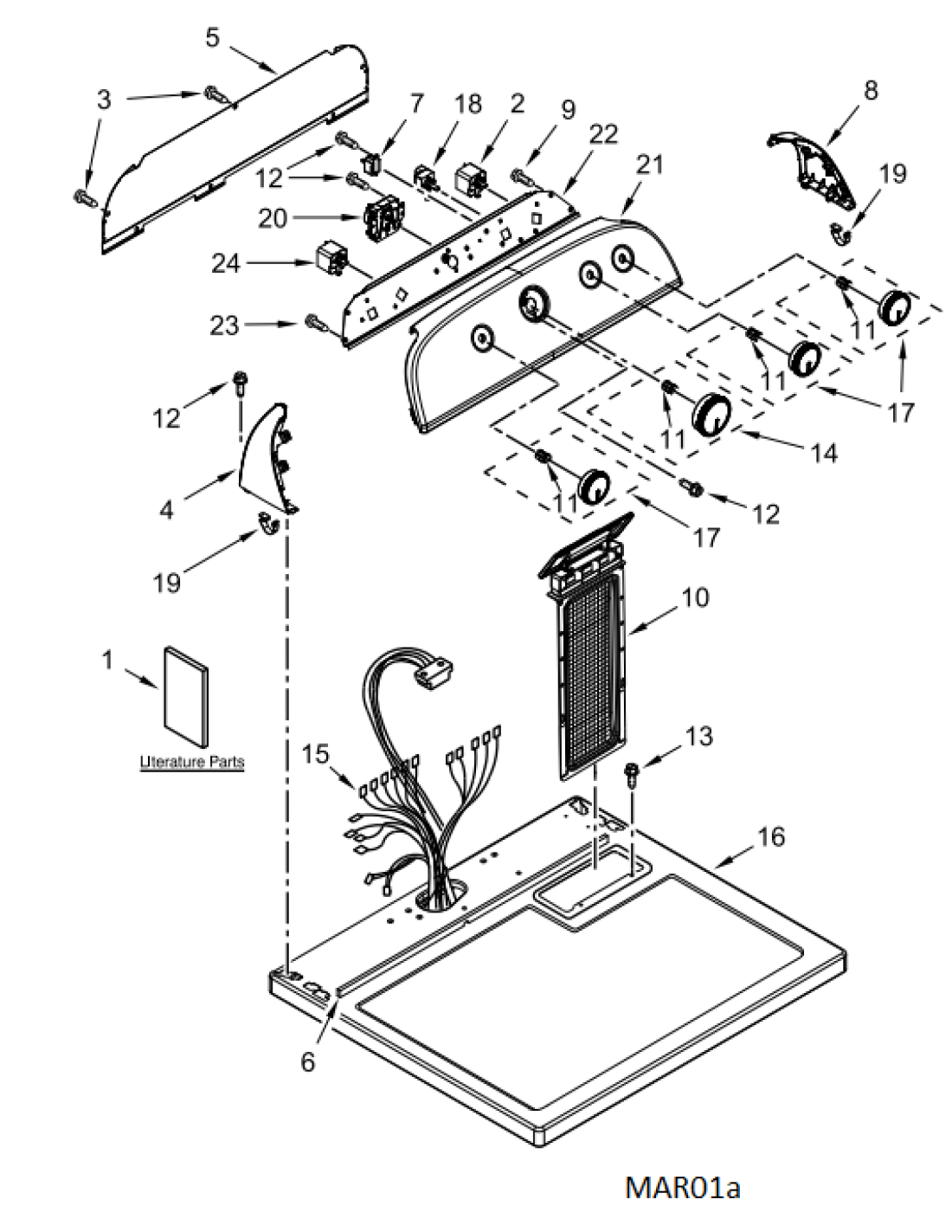

0010 MAR01a |
C00519312
482000098253 |
Screening lint white | Na dotaz | Zadat poptávku | |
004 MAR01a |
C00508782
482000095890 |
End cap left white | Na dotaz | Zadat poptávku | |
005 MAR01a |
C00508783
482000095891 |
Panel rear | Na dotaz | Zadat poptávku | |
006 MAR01a |
C00518603
482000098041 |
Seal foam | Na dotaz | Zadat poptávku | |
007 MAR01a |
C00387899
480110100198 |
Bzučák pračky | 465 Kč
€ 18.40 |
||
008 MAR01a |
C00508784
482000095892 |
End cap right white | Na dotaz | Zadat poptávku | |
011 MAR01a |
C00316533
480110100173 |
Clip knob | Na dotaz | Zadat poptávku | |
014 MAR01a |
C00508786
482000095894 |
Knob timer white/mettalic | Na dotaz | Zadat poptávku | |
015 MAR01a |
C00520059
482000098530 |
Cable harness wire | Na dotaz | Zadat poptávku | |
016 MAR01a |
C00518608
482000098046 |
Cover top | Na dotaz | Zadat poptávku | |
017 MAR01a |
C00509276
482000095953 |
Control knob | Na dotaz | Zadat poptávku | |
018 MAR01a |
C00520058
482000098529 |
Switch rotary 2 position | Na dotaz | Zadat poptávku | |
019 MAR01a |
C00509315
482000095946 |
Clip | Na dotaz | Zadat poptávku | |
020 MAR01a |
C00388685
480112100585 |
Programátor sušičky | 5 454 Kč
€ 215.30 |
||
021 MAR01a |
C00521221
488000521221 |
Assembly, Console white | Na dotaz | Zadat poptávku | |
022 MAR01a |
C00518613
482000098051 |
Bracket control | Na dotaz | Zadat poptávku | |
024 MAR01a |
C00454121
481201229991 |
W10168170 SWITCH - ROTARY TPA | Na dotaz | Zadat poptávku | |
001 MAR01b |
C00508793
482000095901 |
Plug power cord | Na dotaz | Zadat poptávku | |
004 MAR01b |
C00454661
481201230993 |
279393 SCREW | Na dotaz | Zadat poptávku | |
005 MAR01b |
C00518615
482000098053 |
Terminal block cover | Na dotaz | Zadat poptávku | |
006 MAR01b |
C00454552
481201230825 |
Terminal Block 3397659 | Na dotaz | Zadat poptávku | |
007 MAR01b |
C00518617
482000098055 |
Rear panel | Na dotaz | Zadat poptávku | |
008 MAR01b |
C00519328
482000098276 |
Hinge top | Na dotaz | Zadat poptávku | |
009 MAR01b |
C00518772
482000098138 |
Seal door | Na dotaz | Zadat poptávku | |
010 MAR01b |
C00326613
481201231198 |
W10237959 LEADED DOOR SW SPST (IEC) | Na dotaz | Zadat poptávku | |
012 MAR01b |
C00498774
481903404162 |
Clamp | Na dotaz | Zadat poptávku | |
013 MAR01b |
C00508797
482000095905 |
Clip | Na dotaz | Zadat poptávku | |
014 MAR01b |
C00388707
480112100614 |
Spring door | Na dotaz | Zadat poptávku | |
015 MAR01b |
C00518771
482000098137 |
Clip front panel | Na dotaz | Zadat poptávku | |
016 MAR01b |
C00508518
482000095759 |
Foot | Na dotaz | Zadat poptávku | |
017 MAR01b |
C00454623
481201230929 |
279318 TERMINAL | Na dotaz | Zadat poptávku | |
018 MAR01b |
C00388654
480112100527 |
Cabinet white | Na dotaz | Zadat poptávku | |
019 MAR01b |
C00343314
481949268608 |
SPONA | 100 Kč
€ 3.90 |
||
020 MAR01b |
C00519546
482000098260 |
Lock front top | Na dotaz | Zadat poptávku | |
021 MAR01b |
C00518774
482000098140 |
Panel front white | Na dotaz | Zadat poptávku | |
022 MAR01b |
C00343411
480112100589 |
Clamp | Na dotaz | Zadat poptávku | |
023 MAR01b |
C00518775
482000098141 |
Clip felt pad | Na dotaz | Zadat poptávku | |
024 MAR01b |
C00314257
481946698722 |
zamek | 406 Kč
€ 16.00 |
||
025 MAR01b |
C00410568
482000007524 |
Motor | Na dotaz | Zadat poptávku | |
028 MAR01b |
C00388709
480112100616 |
Hinge R.H. | Na dotaz | Zadat poptávku | |
029 MAR01b |
C00519326
482000098274 |
Pulley | Na dotaz | Zadat poptávku | |
030 MAR01b |
C00336714
481903400500 |
Screw | Na dotaz | Zadat poptávku | |
031 MAR01b |
C00519327
482000098275 |
Motor base | Na dotaz | Zadat poptávku | |
032 MAR01b |
C00388691
480112100593 |
Belt | Na dotaz | Zadat poptávku | |
033 MAR01b |
C00508459
482000095793 |
Door clip | Na dotaz | Zadat poptávku | |
034 MAR01b |
C00337065
481952888085 |
Pulley Jokey | Na dotaz | Zadat poptávku | |
035 MAR01b |
C00388711
480112100618 |
Vnitřní dveře | 3 363 Kč
€ 132.80 |
||
036 MAR01b |
C00518778
482000098144 |
Door outer white | Na dotaz | Zadat poptávku | |
037 MAR01b |
C00519323
482000098271 |
Handle door white | Na dotaz | Zadat poptávku | |
038 MAR01b |
C00508802
482000095910 |
Seal and bearing | Na dotaz | Zadat poptávku | |
039 MAR01b |
C00518627
482000098078 |
Seal spill guard | Na dotaz | Zadat poptávku | |
040 MAR01b |
C00412459
482000011508 |
Clip Hinge | Na dotaz | Zadat poptávku | |
043 MAR01b |
C00518663
482000098080 |
Strain relief | Na dotaz | Zadat poptávku | |
044 MAR01b |
C00518779
482000098145 |
Cable tie | Na dotaz | Zadat poptávku | |
045 MAR01b |
C00413370
482000013137 |
Seal foam | Na dotaz | Zadat poptávku | |
046 MAR01b |
C00519552
482000098278 |
Seal spill guard | Na dotaz | Zadat poptávku | |
001 MAR01c |
C00508805
482000095913 |
Spout lint | Na dotaz | Zadat poptávku | |
003 MAR01c |
C00337253
481953268661 |
Washer | Na dotaz | Zadat poptávku | |
004 MAR01c |
C00499432
481946669852 |
Gasket. | Na dotaz | Zadat poptávku | |
006 MAR01c |
C00413357
482000013123 |
Shield exhaust | Na dotaz | Zadat poptávku | |
007 MAR01c |
C00453860
481201229464 |
3392519 THERMAL FUSE (91 C). | Na dotaz | Zadat poptávku | |
008 MAR01c |
C00454205
481201230164 |
3387137 THERMOSTAT INTERNAL BIAS TOD. | Na dotaz | Zadat poptávku | |
009 MAR01c |
C00519613
482000098399 |
Fuse thermal 91C | Na dotaz | Zadat poptávku | |
010 MAR01c |
C00519563
482000098358 |
Blower wheel | Na dotaz | Zadat poptávku | |
011 MAR01c |
C00519564
482000098359 |
Housing blower | Na dotaz | Zadat poptávku | |
012 MAR01c |
C00508807
482000095915 |
Clip | Na dotaz | Zadat poptávku | |
014 MAR01c |
C00519565
482000098360 |
Box heater | Na dotaz | Zadat poptávku | |
015 MAR01c |
C00519334
482000098286 |
Thermostat 221 F (105C) | Na dotaz | Zadat poptávku | |
016 MAR01c |
C00518677
482000098095 |
Pad foam | Na dotaz | Zadat poptávku | |
017 MAR01c |
C00518678
482000098096 |
heater def element | Na dotaz | Zadat poptávku | |
018 MAR01c |
C00340566
481946669855 |
Gasket | Na dotaz | Zadat poptávku | |
019 MAR01c |
C00332864
481931038736 |
Accessories heating | Na dotaz | Zadat poptávku | |
022 MAR01c |
C00519335
482000098287 |
Drum baffle | Na dotaz | Zadat poptávku | |
023 MAR01c |
C00518781
482000098147 |
Nut push on | Na dotaz | Zadat poptávku | |
024 MAR01c |
C00312620
481953228227 |
pojistka zajištovací | 338 Kč
€ 13.30 |
||
025 MAR01c |
C00336445
481953598423 |
Shaft left | Na dotaz | Zadat poptávku | |
026 MAR01c |
C00345149
482000006856 |
W10359269 CN - SHAFT-DRUM ROLLER. | Na dotaz | Zadat poptávku | |
027 MAR01c |
C00519332
482000098284 |
Roller support | Na dotaz | Zadat poptávku | |
028 MAR01c |
C00519333
482000098285 |
Washer | Na dotaz | Zadat poptávku | |
029 MAR01c |
C00410571
482000007527 |
Nut 3/8-16 | Na dotaz | Zadat poptávku | |
030 MAR01c |
C00508809
482000095917 |
Partition | Na dotaz | Zadat poptávku | |
031 MAR01c |
C00508810
482000095918 |
Bracket | Na dotaz | Zadat poptávku | |
032 MAR01c |
C00518782
482000098148 |
Bearing ring | Na dotaz | Zadat poptávku | |
034 MAR01c |
C00508811
482000095919 |
Seal drum | Na dotaz | Zadat poptávku | |
035 MAR01c |
C00508812
482000095920 |
Drum | Na dotaz | Zadat poptávku | |
036 MAR01c |
C00498710
481900692490 |
Agitator | Na dotaz | Zadat poptávku |
