| Komerční kód: | WSR 16 |
| Kód 12NC: | 850192042000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

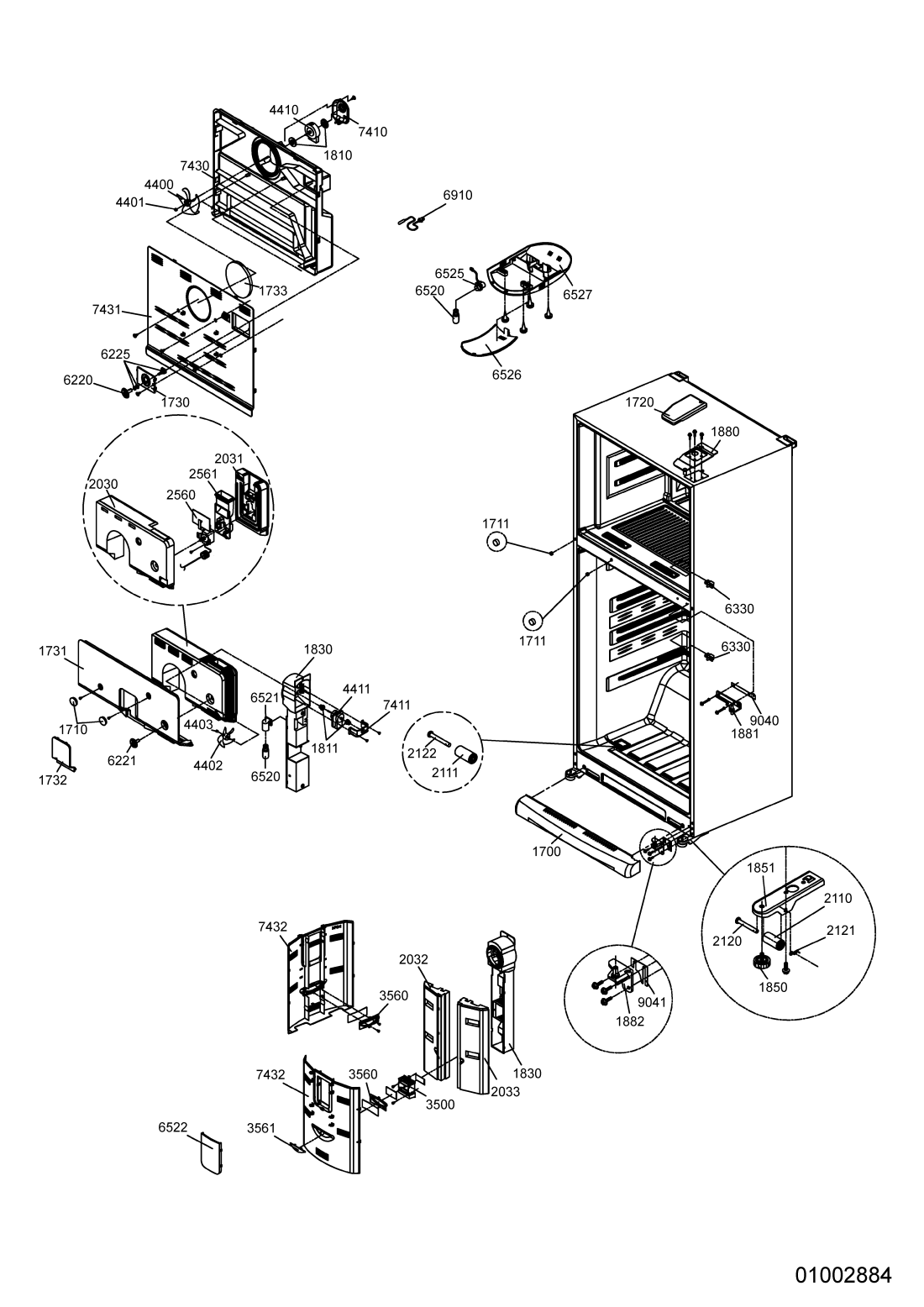

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1020 WHR17597 |
C00407717
482000002154 |
Door freezer | Na dotaz | Zadat poptávku | |
| 1040 WHR17597 |
C00407718
482000002155 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 1100 WHR17597 |
C00407610
482000002046 |
Handle door | Na dotaz | Zadat poptávku | |
| 1101 WHR17597 |
C00407611
482000002047 |
Handle cover (X) wh | Na dotaz | Zadat poptávku | |
| 1520 WHR17597 |
C00407719
482000002156 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1521 WHR17597 |
C00407720
482000002157 |
Flap | Na dotaz | Zadat poptávku | |
| 1522 WHR17597 |
C00407721
482000002158 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1523 WHR17597 |
C00407722
482000002159 |
Door dairy | Na dotaz | Zadat poptávku | |
| 1530 WHR17597 |
C00407723
482000002160 |
Bottle shelf | Na dotaz | Zadat poptávku | |
| 1560 WHR17597 |
C00407724
482000002161 |
Ice maker | Na dotaz | Zadat poptávku | |
| 1561 WHR17597 |
C00407725
482000002162 |
Holder tray | Na dotaz | Zadat poptávku | |
| 1562 WHR17597 |
C00407726
482000002163 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 1563 WHR17597 |
C00407727
482000002164 |
Separator | Na dotaz | Zadat poptávku | |
| 1564 WHR17597 |
C00407728
482000002165 |
Holder | Na dotaz | Zadat poptávku | |
| 1565 WHR17597 |
C00407729
482000002166 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 1566 WHR17597 |
C00407730
482000002167 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 1640 WHR17597 |
C00407731
482000002168 |
Electronic box | Na dotaz | Zadat poptávku | |
| 1641 WHR17597 |
C00407732
482000002169 |
Cover plate | Na dotaz | Zadat poptávku | |
| 1642 WHR17597 |
C00407626
482000002062 |
Cover protect. | Na dotaz | Zadat poptávku | |
| 1700 WHR17597 |
C00407733
482000002170 |
Front panel | Na dotaz | Zadat poptávku | |
| 1710 WHR17597 |
C00407628
482000002064 |
Screw cap | Na dotaz | Zadat poptávku | |
| 1711 WHR17597 |
C00407734
482000002171 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 1720 WHR17597 |
C00407735
482000002172 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 1730 WHR17597 |
C00407736
482000002173 |
Cover plate | Na dotaz | Zadat poptávku | |
| 1731 WHR17597 |
C00407737
482000002174 |
Cover plate | Na dotaz | Zadat poptávku | |
| 1732 WHR17597 |
C00407738
482000002175 |
Cover | Na dotaz | Zadat poptávku | |
| 1733 WHR17597 |
C00407739
482000002176 |
Cover | Na dotaz | Zadat poptávku | |
| 1770 WHR17597 |
C00407632
482000002068 |
Štítek | 497 Kč
€ 19.60 |
||
| 1810 WHR17597 |
C00407740
482000002177 |
Damper | Na dotaz | Zadat poptávku | |
| 1811 WHR17597 |
C00407741
482000002178 |
Damper | Na dotaz | Zadat poptávku | |
| 1815 WHR17597 |
C00407635
482000002071 |
Damper | Na dotaz | Zadat poptávku | |
| 1816 WHR17597 |
C00407636
482000002072 |
Damper | Na dotaz | Zadat poptávku | |
| 1817 WHR17597 |
C00407637
482000002073 |
Damper | Na dotaz | Zadat poptávku | |
| 1820 WHR17597 |
C00407742
482000002179 |
Support | Na dotaz | Zadat poptávku | |
| 1830 WHR17597 |
C00407743
482000002180 |
Mounting frame | Na dotaz | Zadat poptávku | |
| 1840 WHR17597 |
C00407744
482000002181 |
Base | Na dotaz | Zadat poptávku | |
| 1850 WHR17597 |
C00407639
482000002075 |
Foot | Na dotaz | Zadat poptávku | |
| 1851 WHR17597 |
C00407640
482000002076 |
Bracket foot | Na dotaz | Zadat poptávku | |
| 1880 WHR17597 |
C00407745
482000002182 |
Hinge upper | Na dotaz | Zadat poptávku | |
| 1881 WHR17597 |
C00407746
482000002183 |
Hinge middle | Na dotaz | Zadat poptávku | |
| 1882 WHR17597 |
C00407747
482000002184 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 1910 WHR17597 |
C00407748
482000002185 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 1911 WHR17597 |
C00407749
482000002186 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 2030 WHR17597 |
C00407750
482000002187 |
Insulation | Na dotaz | Zadat poptávku | |
| 2031 WHR17597 |
C00407751
482000002188 |
Insulation | Na dotaz | Zadat poptávku | |
| 2032 WHR17597 |
C00407752
482000002189 |
Insulation | Na dotaz | Zadat poptávku | |
| 2033 WHR17597 |
C00407753
482000002190 |
Insulation | Na dotaz | Zadat poptávku | |
| 2110 WHR17597 |
C00407650
482000002086 |
Wheel | Na dotaz | Zadat poptávku | |
| 2111 WHR17597 |
C00407754
482000002191 |
Wheel basket | Na dotaz | Zadat poptávku | |
| 2115 WHR17597 |
C00407651
482000002087 |
Wheel | Na dotaz | Zadat poptávku | |
| 2120 WHR17597 |
C00407652
482000002088 |
Axle | Na dotaz | Zadat poptávku | |
| 2121 WHR17597 |
C00407653
482000002089 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 2122 WHR17597 |
C00407755
482000002192 |
Axle | Na dotaz | Zadat poptávku | |
| 2330 WHR17597 |
C00407654
482000002090 |
Support | Na dotaz | Zadat poptávku | |
| 2340 WHR17597 |
C00407756
482000002193 |
Trim | Na dotaz | Zadat poptávku | |
| 2341 WHR17597 |
C00407757
482000002194 |
Trim | Na dotaz | Zadat poptávku | |
| 2342 WHR17597 |
C00407758
482000002195 |
Trim | Na dotaz | Zadat poptávku | |
| 2350 WHR17597 |
C00407759
482000002196 |
Flap front | Na dotaz | Zadat poptávku | |
| 2410 WHR17597 |
C00407760
482000002197 |
Shelf | Na dotaz | Zadat poptávku | |
| 2430 WHR17597 |
C00407761
482000002198 |
Shelf | Na dotaz | Zadat poptávku | |
| 2431 WHR17597 |
C00407762
482000002199 |
Shelf | Na dotaz | Zadat poptávku | |
| 2440 WHR17597 |
C00407763
482000002200 |
Shelf | Na dotaz | Zadat poptávku | |
| 2441 WHR17597 |
C00407764
482000002201 |
Crisper cover | Na dotaz | Zadat poptávku | |
| 2560 WHR17597 |
C00407765
482000002202 |
Air regulator | Na dotaz | Zadat poptávku | |
| 2561 WHR17597 |
C00407664
482000002100 |
Air adjust.tube | Na dotaz | Zadat poptávku | |
| 3500 WHR17597 |
C00407766
482000002203 |
Display board | Na dotaz | Zadat poptávku | |
| 3560 WHR17597 |
C00407767
482000002204 |
Display | Na dotaz | Zadat poptávku | |
| 3561 WHR17597 |
C00407768
482000002205 |
Cover transpar. | Na dotaz | Zadat poptávku | |
| 4020 WHR17597 |
C00407665
482000002101 |
Compressor | Na dotaz | Zadat poptávku | |
| 4200 WHR17597 |
C00407666
482000002102 |
Capacitor | Na dotaz | Zadat poptávku | |
| 4400 WHR17597 |
C00407769
482000002206 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4401 WHR17597 |
C00407770
482000002207 |
Clamp ring | Na dotaz | Zadat poptávku | |
| 4402 WHR17597 |
C00407771
482000002208 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 4403 WHR17597 |
C00407772
482000002209 |
Clamp ring | Na dotaz | Zadat poptávku | |
| 4410 WHR17597 |
C00407773
482000002210 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4411 WHR17597 |
C00407774
482000002211 |
Motor fan | Na dotaz | Zadat poptávku | |
| 4510 WHR17597 |
C00407775
482000002212 |
Heating element | Na dotaz | Zadat poptávku | |
| 5210 WHR17597 |
C00407776
482000002213 |
Control board | Na dotaz | Zadat poptávku | |
| 5620 WHR17597 |
C00407673
482000002109 |
Protect motor | Na dotaz | Zadat poptávku | |
| 6140 WHR17597 |
C00407674
482000002110 |
Relay | Na dotaz | Zadat poptávku | |
| 6220 WHR17597 |
C00407777
482000002214 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 6221 WHR17597 |
C00407779
482000002216 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 6225 WHR17597 |
C00407778
482000002215 |
Regulator | Na dotaz | Zadat poptávku | |
| 6330 WHR17597 |
C00407678
482000002114 |
Switch door | Na dotaz | Zadat poptávku | |
| 6520 WHR17597 |
C00407682
482000002118 |
Lamp | Na dotaz | Zadat poptávku | |
| 6521 WHR17597 |
C00407780
482000002217 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 6522 WHR17597 |
C00407781
482000002218 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 6525 WHR17597 |
C00407782
482000002219 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 6526 WHR17597 |
C00407783
482000002220 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 6527 WHR17597 |
C00407784
482000002221 |
Base lamp | Na dotaz | Zadat poptávku | |
| 6910 WHR17597 |
C00407785
482000002222 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 6911 WHR17597 |
C00407786
482000002223 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 6915 WHR17597 |
C00407787
482000002224 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 7400 WHR17597 |
C00407788
482000002225 |
Condenser | Na dotaz | Zadat poptávku | |
| 7410 WHR17597 |
C00407789
482000002226 |
Housing | Na dotaz | Zadat poptávku | |
| 7411 WHR17597 |
C00407790
482000002227 |
Support motor | Na dotaz | Zadat poptávku | |
| 7430 WHR17597 |
C00407791
482000002228 |
Air guide | Na dotaz | Zadat poptávku | |
| 7431 WHR17597 |
C00407792
482000002229 |
Air guide | Na dotaz | Zadat poptávku | |
| 7432 WHR17597 |
C00407793
482000002230 |
Air guide | Na dotaz | Zadat poptávku | |
| 7450 WHR17597 |
C00407794
482000002231 |
Evaporator | Na dotaz | Zadat poptávku | |
| 7630 WHR17597 |
C00407694
482000002130 |
Dryer | Na dotaz | Zadat poptávku | |
| 7850 WHR17597 |
C00407795
482000002232 |
Tray drip | Na dotaz | Zadat poptávku | |
| 9000 WHR17597 |
C00407698
482000002134 |
Clip | Na dotaz | Zadat poptávku | |
| 9040 WHR17597 |
C00407796
482000002233 |
Hinge support | Na dotaz | Zadat poptávku | |
| 9041 WHR17597 |
C00407797
482000002234 |
Hinge support | Na dotaz | Zadat poptávku | |
| 9300 WHR17597 |
C00407702
482000002138 |
Spring | Na dotaz | Zadat poptávku | |
| 9990 WHR17597 |
C00407703
482000002139 |
Blocking pin | Na dotaz | Zadat poptávku | |
| 9991 WHR17597 |
C00407704
482000002140 |
Tank | Na dotaz | Zadat poptávku | |
