| Komerční kód: | WSR19 GD REFRIGERATORS WP |
| Kód 12NC: | 850192142120 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

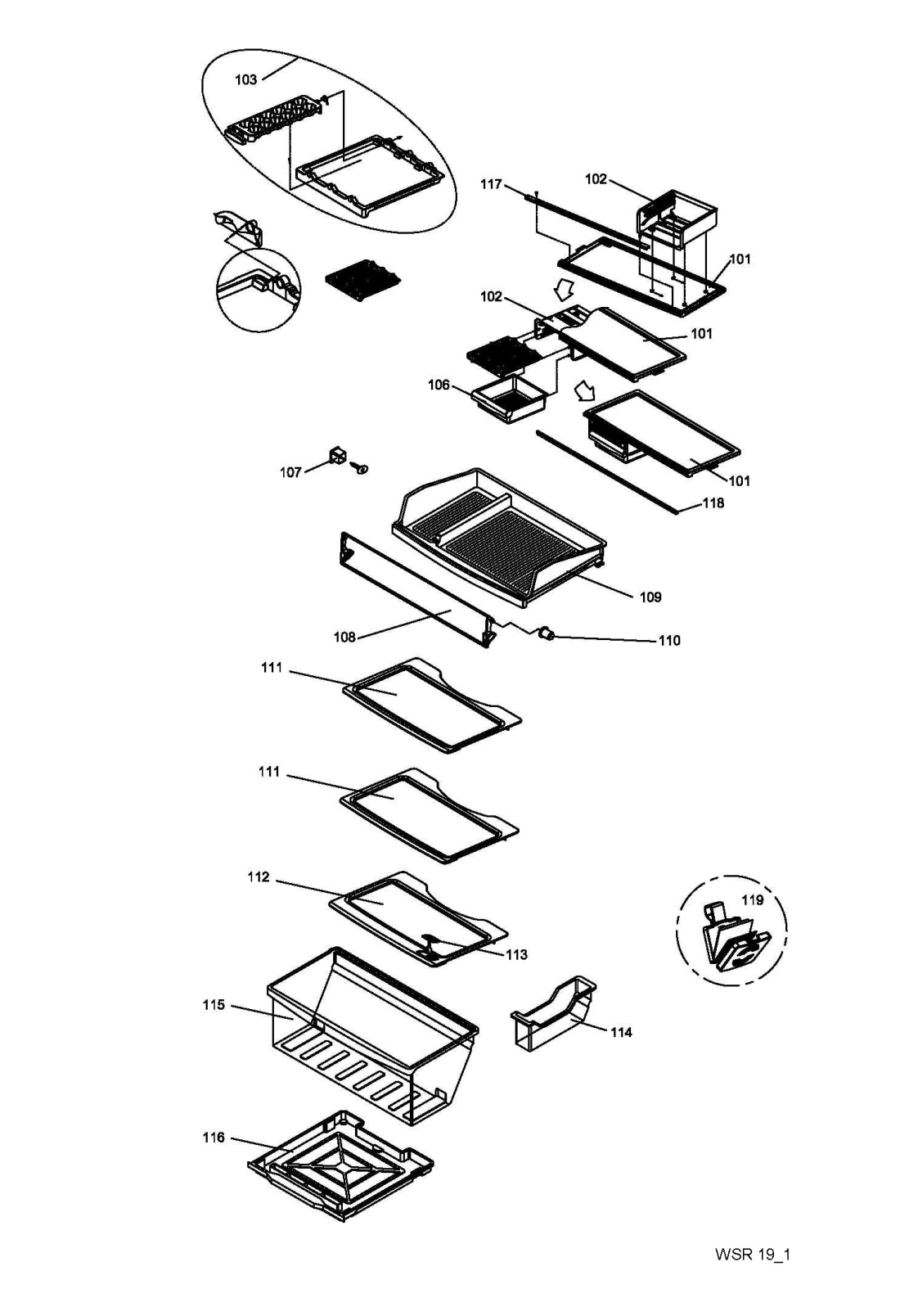

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 101 WHR17614 |
C00408694
482000004279 |
Shelf freezer conner | Na dotaz | Zadat poptávku | |
| 102 WHR17614 |
C00407742
482000002179 |
Support | Na dotaz | Zadat poptávku | |
| 103 WHR17614 |
C00411617
482000009449 |
Icecube tray cpl. | Na dotaz | Zadat poptávku | |
| 106 WHR17614 |
C00407726
482000002163 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 107 WHR17614 |
C00407654
482000002090 |
Support | Na dotaz | Zadat poptávku | |
| 108 WHR17614 |
C00408695
482000004280 |
Flap front door | Na dotaz | Zadat poptávku | |
| 109 WHR17614 |
C00408696
482000004281 |
Shelf tray chiller 001 | Na dotaz | Zadat poptávku | |
| 110 WHR17614 |
C00407703
482000002139 |
Blocking pin | Na dotaz | Zadat poptávku | |
| 111 WHR17614 |
C00408697
482000004282 |
Shelf tray chiller 002 | Na dotaz | Zadat poptávku | |
| 112 WHR17614 |
C00408698
482000004283 |
Shelf tray crisper 003 | Na dotaz | Zadat poptávku | |
| 113 WHR17614 |
C00407727
482000002164 |
Separator | Na dotaz | Zadat poptávku | |
| 114 WHR17614 |
C00378604
482000009450 |
Crisper | Na dotaz | Zadat poptávku | |
| 115 WHR17614 |
C00408700
482000004285 |
Crisper | Na dotaz | Zadat poptávku | |
| 116 WHR17614 |
C00407795
482000002232 |
Tray drip | Na dotaz | Zadat poptávku | |
| 117 WHR17614 |
C00408701
482000004286 |
Trim | Na dotaz | Zadat poptávku | |
| 118 WHR17614 |
C00408702
482000004287 |
Trim Shelf | Na dotaz | Zadat poptávku | |
| 119 WHR17614 |
C00407728
482000002165 |
Holder | Na dotaz | Zadat poptávku | |
| 202 WHR17614 |
C00407805
482000002242 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 203 WHR17614 |
C00408703
482000004288 |
Hinge kit top | Na dotaz | Zadat poptávku | |
| 204 WHR17614 |
C00408704
482000004289 |
Hinge kit F-R | Na dotaz | Zadat poptávku | |
| 205 WHR17614 |
C00408705
482000004290 |
Hinge support SHIM 019 | Na dotaz | Zadat poptávku | |
| 206 WHR17614 |
C00407747
482000002184 |
Hinge lower | Na dotaz | Zadat poptávku | |
| 207 WHR17614 |
C00407797
482000002234 |
Hinge support | Na dotaz | Zadat poptávku | |
| 208 WHR17614 |
C00409014
482000004912 |
Cable mains | Na dotaz | Zadat poptávku | |
| 209 WHR17614 |
C00407639
482000002075 |
Foot | Na dotaz | Zadat poptávku | |
| 210 WHR17614 |
C00407640
482000002076 |
Bracket foot | Na dotaz | Zadat poptávku | |
| 211 WHR17614 |
C00407652
482000002088 |
Axle | Na dotaz | Zadat poptávku | |
| 212 WHR17614 |
C00407650
482000002086 |
Wheel | Na dotaz | Zadat poptávku | |
| 213 WHR17614 |
C00407653
482000002089 |
Clamp fixation | Na dotaz | Zadat poptávku | |
| 214 WHR17614 |
C00409246
482000005216 |
Front panel | Na dotaz | Zadat poptávku | |
| 215 WHR17614 |
C00407777
482000002214 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 216 WHR17614 |
C00407778
482000002215 |
Regulator | Na dotaz | Zadat poptávku | |
| 217 WHR17614 |
C00411618
482000009451 |
Cover plate cpl. | Na dotaz | Zadat poptávku | |
| 218 WHR17614 |
C00411619
482000009452 |
Air guide Cover | Na dotaz | Zadat poptávku | |
| 219 WHR17614 |
C00407770
482000002207 |
Clamp ring | Na dotaz | Zadat poptávku | |
| 220 WHR17614 |
C00407769
482000002206 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 221 WHR17614 |
C00408710
482000004295 |
Air guide plate mtg motor 001 | Na dotaz | Zadat poptávku | |
| 222 WHR17614 |
C00407740
482000002177 |
Damper | Na dotaz | Zadat poptávku | |
| 223 WHR17614 |
C00411620
482000009453 |
Motor fan | Na dotaz | Zadat poptávku | |
| 224 WHR17614 |
C00407789
482000002226 |
Housing | Na dotaz | Zadat poptávku | |
| 225 WHR17614 |
C00407682
482000002118 |
Lamp | Na dotaz | Zadat poptávku | |
| 226 WHR17614 |
C00407780
482000002217 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 227 WHR17614 |
C00407738
482000002175 |
Cover | Na dotaz | Zadat poptávku | |
| 228 WHR17614 |
C00407779
482000002216 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 229 WHR17614 |
C00407628
482000002064 |
Screw cap | Na dotaz | Zadat poptávku | |
| 230 WHR17614 |
C00408711
482000004296 |
Cover plate cover thermo | Na dotaz | Zadat poptávku | |
| 231 WHR17614 |
C00407772
482000002209 |
Clamp ring | Na dotaz | Zadat poptávku | |
| 232 WHR17614 |
C00407771
482000002208 |
Fan wheel | Na dotaz | Zadat poptávku | |
| 233 WHR17614 |
C00408712
482000004297 |
Sound insulat. 001 | Na dotaz | Zadat poptávku | |
| 234 WHR17614 |
C00411621
482000009454 |
Damper | Na dotaz | Zadat poptávku | |
| 235 WHR17614 |
C00407664
482000002100 |
Air adjust.tube | Na dotaz | Zadat poptávku | |
| 236 WHR17614 |
C00408713
482000004298 |
Sound insulat. 002 | Na dotaz | Zadat poptávku | |
| 237 WHR17614 |
C00407790
482000002227 |
Support motor | Na dotaz | Zadat poptávku | |
| 238 WHR17614 |
C00407741
482000002178 |
Damper | Na dotaz | Zadat poptávku | |
| 239 WHR17614 |
C00407774
482000002211 |
Motor fan | Na dotaz | Zadat poptávku | |
| 240 WHR17614 |
C00407743
482000002180 |
Mounting frame | Na dotaz | Zadat poptávku | |
| 241 WHR17614 |
C00407752
482000002189 |
Insulation | Na dotaz | Zadat poptávku | |
| 242 WHR17614 |
C00407753
482000002190 |
Insulation | Na dotaz | Zadat poptávku | |
| 243 WHR17614 |
C00407766
482000002203 |
Display board | Na dotaz | Zadat poptávku | |
| 244 WHR17614 |
C00407767
482000002204 |
Display | Na dotaz | Zadat poptávku | |
| 245 WHR17614 |
C00407768
482000002205 |
Cover transpar. | Na dotaz | Zadat poptávku | |
| 246 WHR17614 |
C00407781
482000002218 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 247 WHR17614 |
C00407793
482000002230 |
Air guide | Na dotaz | Zadat poptávku | |
| 248 WHR17614 |
C00407734
482000002171 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 249 WHR17614 |
C00407678
482000002114 |
Switch door | Na dotaz | Zadat poptávku | |
| 250 WHR17614 |
C00407782
482000002219 |
Holder lamp | Na dotaz | Zadat poptávku | |
| 251 WHR17614 |
C00407684
482000002120 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 252 WHR17614 |
C00407685
482000002121 |
Housing | Na dotaz | Zadat poptávku | |
| 253 WHR17614 |
C00411622
482000009455 |
Grommet | Na dotaz | Zadat poptávku | |
| 254 WHR17614 |
C00407785
482000002222 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 255 WHR17614 |
C00407755
482000002192 |
Axle | Na dotaz | Zadat poptávku | |
| 256 WHR17614 |
C00407754
482000002191 |
Wheel basket | Na dotaz | Zadat poptávku | |
| 301 WHR17614 |
C00408714
482000004299 |
Police | 475 Kč
€ 18.70 |
||
| 302 WHR17614 |
C00408715
482000004300 |
Magnetic seal assy up | Na dotaz | Zadat poptávku | |
| 304 WHR17614 |
C00408718
482000004303 |
Door dairy rack R-T door | Na dotaz | Zadat poptávku | |
| 305 WHR17614 |
C00407729
482000002166 |
Holder eggs | Na dotaz | Zadat poptávku | |
| 306 WHR17614 |
C00408719
482000004304 |
Door dairy rack R-T up | Na dotaz | Zadat poptávku | |
| 307 WHR17614 |
C00408720
482000004305 |
Door dairy rack R-T egg lo | Na dotaz | Zadat poptávku | |
| 308 WHR17614 |
C00408721
482000004306 |
Door dairy rack R-B 002 | Na dotaz | Zadat poptávku | |
| 309 WHR17614 |
C00408722
482000004307 |
Magnetic seal assy low 766x1029mm | Na dotaz | Zadat poptávku | |
| 311 WHR17614 |
C00407632
482000002068 |
Štítek | 497 Kč
€ 19.60 |
||
| 312 WHR17614 |
C00407730
482000002167 |
Holder bottles | Na dotaz | Zadat poptávku | |
| 313 WHR17614 |
C00411630
482000009463 |
Door freezer | Na dotaz | Zadat poptávku | |
| 314 WHR17614 |
C00411631
482000009464 |
Door refriger. | Na dotaz | Zadat poptávku | |
| 315 WHR17614 |
C00407610
482000002046 |
Handle door | Na dotaz | Zadat poptávku | |
| 316 WHR17614 |
C00407710
482000002146 |
Handle cover GD | Na dotaz | Zadat poptávku | |
| 401 WHR17614 |
C00408729
482000004314 |
Evaporator | Na dotaz | Zadat poptávku | |
| 402 WHR17614 |
C00411625
482000009458 |
Element defrost | Na dotaz | Zadat poptávku | |
| 406 WHR17614 |
C00411626
482000009459 |
Base Compressor | Na dotaz | Zadat poptávku | |
| 407 WHR17614 |
C00407635
482000002071 |
Damper | Na dotaz | Zadat poptávku | |
| 408 WHR17614 |
C00409016
482000004914 |
Dryer | Na dotaz | Zadat poptávku | |
| 409 WHR17614 |
C00408732
482000004317 |
Sleeve comp FXG | Na dotaz | Zadat poptávku | |
| 410 WHR17614 |
C00407636
482000002072 |
Damper | Na dotaz | Zadat poptávku | |
| 411 WHR17614 |
C00407698
482000002134 |
Clip | Na dotaz | Zadat poptávku | |
| 412 WHR17614 |
C00407626
482000002062 |
Cover protect. | Na dotaz | Zadat poptávku | |
| 413 WHR17614 |
C00407674
482000002110 |
Relay | Na dotaz | Zadat poptávku | |
| 414 WHR17614 |
C00407673
482000002109 |
Protect motor | Na dotaz | Zadat poptávku | |
| 415 WHR17614 |
C00411627
482000009460 |
Compressor BKC-BF 175L5Z | Na dotaz | Zadat poptávku | |
| 416 WHR17614 |
C00407704
482000002140 |
Tank | Na dotaz | Zadat poptávku | |
| 417 WHR17614 |
C00407637
482000002073 |
Damper | Na dotaz | Zadat poptávku | |
| 418 WHR17614 |
C00407788
482000002225 |
Condenser | Na dotaz | Zadat poptávku | |
| 419 WHR17614 |
C00407666
482000002102 |
Capacitor | Na dotaz | Zadat poptávku | |
| 420 WHR17614 |
C00411628
482000009461 |
Control board | Na dotaz | Zadat poptávku | |
| 421 WHR17614 |
C00407732
482000002169 |
Cover plate | Na dotaz | Zadat poptávku | |
| 422 WHR17614 |
C00407731
482000002168 |
Electronic box | Na dotaz | Zadat poptávku | |
| 423 WHR17614 |
C00407786
482000002223 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| 424 WHR17614 |
C00407787
482000002224 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 999 WHR17614 |
C00551285 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
