KITCHENAID KHSP5 77510
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KHSP5 77510 |
| Kód 12NC/I.C. kód: | 851349001000 |
| Značka: | KITCHENAID |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | Q0938120000, 859991538610, 851349012100 |
Potřebujete servis? Jsme tady pro Vás

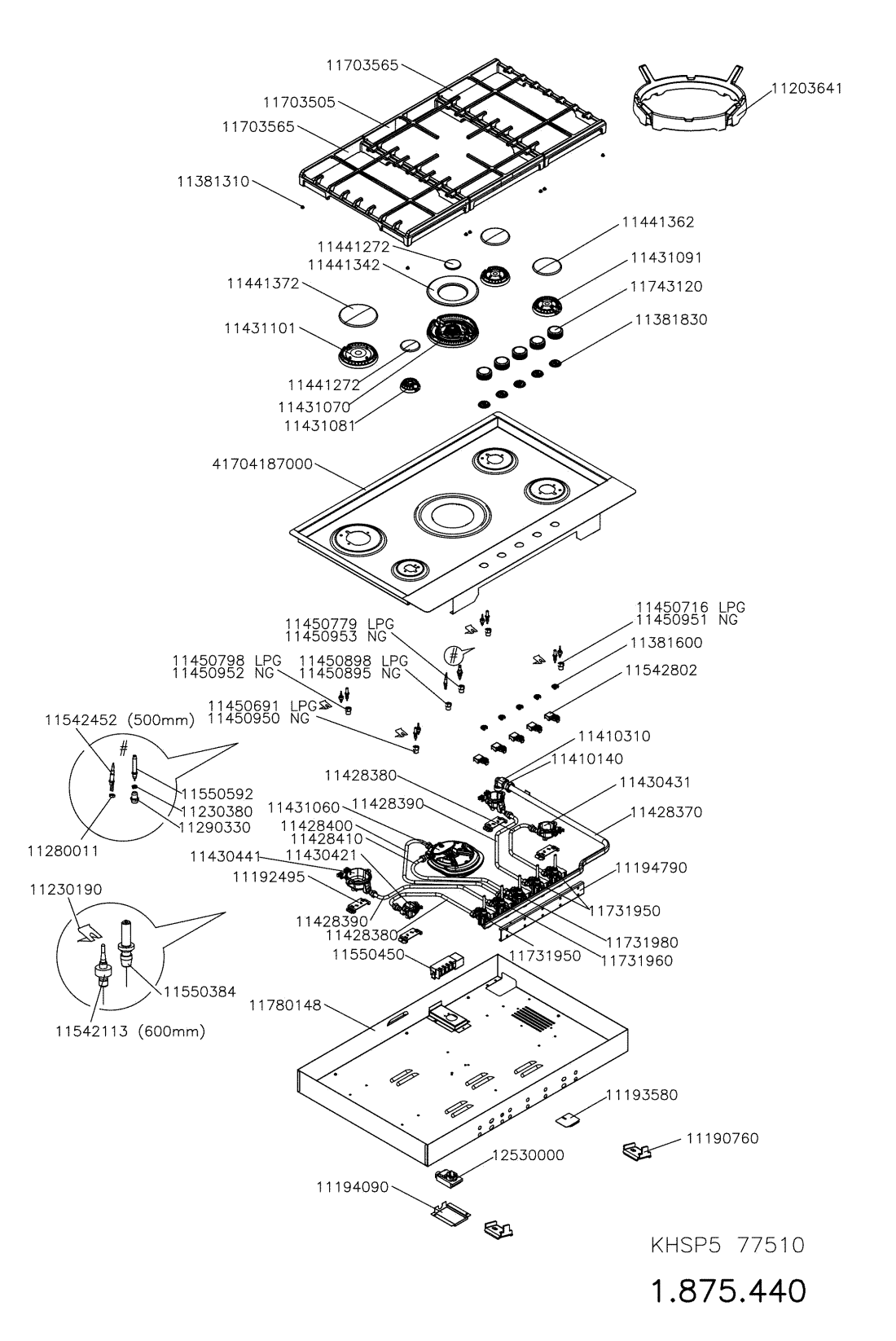

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 11192495 WHR06281 |
C00416549
482000019248 |
Support burner | Na dotaz | Zadat poptávku | |
| 11193580 WHR06281 |
C00416533
482000019230 |
Cover base | Na dotaz | Zadat poptávku | |
| 11194090 WHR06281 |
C00416534
482000019231 |
Cover terminal block | Na dotaz | Zadat poptávku | |
| 11194790 WHR06281 |
C00417862
482000021732 |
Bracket | Na dotaz | Zadat poptávku | |
| 11203641 WHR06281 |
C00417863
482000021733 |
Grid for hob wok | Na dotaz | Zadat poptávku | |
| 11230380 WHR06281 |
C00417891
482000021761 |
Spring sparkplug | Na dotaz | Zadat poptávku | |
| 11280011 WHR06281 |
C00332177
481250518404 |
Thermocouple nut | Na dotaz | Zadat poptávku | |
| 11290330 WHR06281 |
C00417892
482000021762 |
Nut sparkplug | Na dotaz | Zadat poptávku | |
| 11381310 WHR06281 |
C00417864
482000021734 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 11381600 WHR06281 |
C00416535
482000019232 |
Ring ignition switch | Na dotaz | Zadat poptávku | |
| 11381830 WHR06281 |
C00417865
482000021735 |
Threaded ring button | Na dotaz | Zadat poptávku | |
| 11382 WHR06281 |
C00848972
488000848972 |
Ring ignition switch | Na dotaz | Zadat poptávku | |
| 11410140 WHR06281 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 11410310 WHR06281 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 11428370 WHR06281 |
C00417945
482000021830 |
Manifold | Na dotaz | Zadat poptávku | |
| 11428380 WHR06281 |
C00417946
482000021831 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11428390 WHR06281 |
C00417947
482000021832 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11428400 WHR06281 |
C00417866
482000021736 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11428410 WHR06281 |
C00417867
482000021737 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11430421 WHR06281 |
C00328765
481236078104 |
Malý hořák | Na dotaz | Zadat poptávku | |
| 11430431 WHR06281 |
C00328766
481236078105 |
Burner medium | Na dotaz | Zadat poptávku | |
| 11430441 WHR06281 |
C00328767
481236078106 |
Burner cup | Na dotaz | Zadat poptávku | |
| 11431060 WHR06281 |
C00417871
482000021741 |
Burner | Na dotaz | Zadat poptávku | |
| 11431070 WHR06281 |
C00417872
482000021742 |
Spreader,burner | Na dotaz | Zadat poptávku | |
| 11431081 WHR06281 |
C00417873
482000021743 |
Spreader,burner aux. | Na dotaz | Zadat poptávku | |
| 11431091 WHR06281 |
C00417874
482000021744 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 11431101 WHR06281 |
C00417875
482000021745 |
Spreader,burner rap. | Na dotaz | Zadat poptávku | |
| 11441272 WHR06281 |
C00417876
482000021746 |
Burner cap | Na dotaz | Zadat poptávku | |
| 11441342 WHR06281 |
C00417877
482000021747 |
Burner cap ext. | Na dotaz | Zadat poptávku | |
| 11441362 WHR06281 |
C00417878
482000021748 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 11441372 WHR06281 |
C00417879
482000021749 |
Burner cap | Na dotaz | Zadat poptávku | |
| 11450779 WHR06281 |
C00417948
482000021833 |
Nozzle LPG 0.80 | Na dotaz | Zadat poptávku | |
| 11450798 WHR06281 |
C00417912
482000021795 |
Nozzle LPG 0.85 | Na dotaz | Zadat poptávku | |
| 11450895 WHR06281 |
C00417880
482000021750 |
Nozzle NG 0.71 | Na dotaz | Zadat poptávku | |
| 11450898 WHR06281 |
C00417949
482000021834 |
Nozzle LPG 0.46 | Na dotaz | Zadat poptávku | |
| 11450950 WHR06281 |
C00417913
482000021796 |
Nozzle NG | Na dotaz | Zadat poptávku | |
| 11450951 WHR06281 |
C00417950
482000021835 |
Nozzle NG | Na dotaz | Zadat poptávku | |
| 11450952 WHR06281 |
C00417914
482000021797 |
Nozzle NG | Na dotaz | Zadat poptávku | |
| 11450953 WHR06281 |
C00417951
482000021836 |
Nozzle NG | Na dotaz | Zadat poptávku | |
| 11542113 WHR06281 |
C00326863
481213838016 |
Thermo couple L=600mm | Na dotaz | Zadat poptávku | |
| 11542452 WHR06281 |
C00417885
482000021755 |
Thermocouple | Na dotaz | Zadat poptávku | |
| 11550384 WHR06281 |
C00321840
480121100288 |
Spark plug A-SR-R | Na dotaz | Zadat poptávku | |
| 11550450 WHR06281 |
C00321842
480121100293 |
Generator | Na dotaz | Zadat poptávku | |
| 11550592 WHR06281 |
C00417893
482000021763 |
Spark plug L.500 | Na dotaz | Zadat poptávku | |
| 11703505 WHR06281 |
C00417886
482000021756 |
Grid for hob centr. | Na dotaz | Zadat poptávku | |
| 11703565 WHR06281 |
C00417952
482000021837 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 11731950 WHR06281 |
C00416543
482000019242 |
Gas cock 0.34 | Na dotaz | Zadat poptávku | |
| 11731960 WHR06281 |
C00416544
482000019243 |
Gas cock 0.43 | Na dotaz | Zadat poptávku | |
| 11731980 WHR06281 |
C00417888
482000021758 |
Gas cock 0.29/0.57 | Na dotaz | Zadat poptávku | |
| 11743120 WHR06281 |
C00417889
482000021759 |
Knob | Na dotaz | Zadat poptávku | |
| 11780148 WHR06281 |
C00417956
482000021841 |
Cabinet | Na dotaz | Zadat poptávku | |
| 12530000 WHR06281 |
C00322176
480121102442 |
Svorkovnice+upevnění kabelu 16A | 438 Kč
€ 17.50 |
||
| 4170418700 WHR06281 |
C00417953
482000021838 |
Hob | Na dotaz | Zadat poptávku | |
| G30-50 WHR06281 |
C00419647
482000091799 |
Set of nozzles G30-50 SB 6kW | Na dotaz | Zadat poptávku | |
