| Komerční kód: | AKF 597 IX |
| Kód 12NC/I.C. kód: | 852759738000 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné trouby a varné desky |
| Další podobné modely: | 852759738002 |
Potřebujete servis? Jsme tady pro Vás

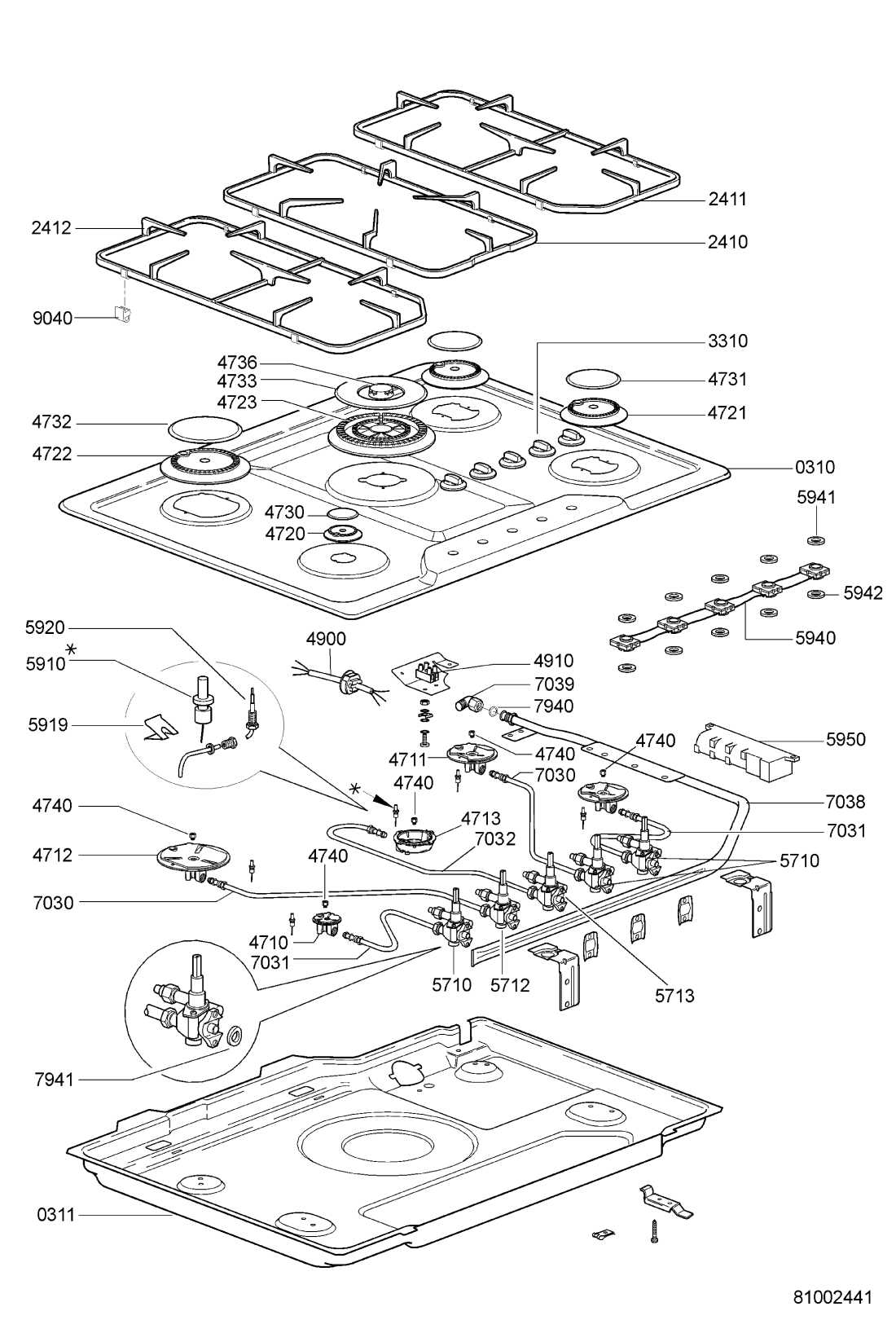

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 031 0 WHR43316 |
C00582693
481244039306 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR43316 |
C00582695
481244039529 |
Hob base. | Na dotaz | Zadat poptávku | |
| 241 0 WHR43316 |
C00330162
481245858216 |
Grid middle | Na dotaz | Zadat poptávku | |
| 241 1 WHR43316 |
C00330131
481245838049 |
Grid right | Na dotaz | Zadat poptávku | |
| 241 2 WHR43316 |
C00330161
481245858215 |
Grid left | Na dotaz | Zadat poptávku | |
| 331 0 WHR43316 |
C00329415
481241258906 |
Knob | Na dotaz | Zadat poptávku | |
| 471 0 WHR43316 |
C00344123
481236078095 |
Burner , small | Na dotaz | Zadat poptávku | |
| 471 1 WHR43316 |
C00497524
481236078096 |
Burner , semirapid | Na dotaz | Zadat poptávku | |
| 471 2 WHR43316 |
C00344125
481236078097 |
Burner , rapid | Na dotaz | Zadat poptávku | |
| 471 3 WHR43316 |
C00582651
481236078133 |
Burner TC | Na dotaz | Zadat poptávku | |
| 472 0 WHR43316 |
C00336136
481236068314 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 472 1 WHR43316 |
C00336137
481236068315 |
Spreader,burner semirapid | Na dotaz | Zadat poptávku | |
| 472 2 WHR43316 |
C00336138
481236068316 |
Spreader,burner rapid | Na dotaz | Zadat poptávku | |
| 472 3 WHR43316 |
C00482770
481236068485 |
Spreader,burner outer WOK | Na dotaz | Zadat poptávku | |
| 473 0 WHR43316 |
C00328650
481236068313 |
Cover f.sm.fl.spr. | Na dotaz | Zadat poptávku | |
| 473 1 WHR43316 |
C00328649
481236068312 |
Cover f med.fl.spr. | Na dotaz | Zadat poptávku | |
| 473 2 WHR43316 |
C00092064
481236068311 |
FAST BURNER CAP | Na dotaz | Zadat poptávku | |
| 473 3 WHR43316 |
C00482768
481236068483 |
Burner cap WOK | Na dotaz | Zadat poptávku | |
| 473 6 WHR43316 |
C00482769
481236068484 |
Spreader,burner inner | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00057233
481231088377 |
GAS JET SMALL (105) - METANO | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00482642
481231038839 |
Nozzle NG Wok 1,35 | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00482693
481231088376 |
Nozzle 0.83 G25 | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00482694
481231088378 |
Nozzle 1.3 G25 | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00582556
481231088379 |
Nozzle 0.5 G30 | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00582557
481231088381 |
Nozzle 0.65 G30 | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00582612
481231038947 |
Nozzle LPG 0,92 | Na dotaz | Zadat poptávku | |
| 474 0 WHR43316 |
C00582621
481231088382 |
Nozzle 0.85 G30 | Na dotaz | Zadat poptávku | |
| 490 0 WHR43316 |
C00327584
481229048014 |
Strain relief | Na dotaz | Zadat poptávku | |
| 491 0 WHR43316 |
C00497381
481229068237 |
Terminal strip | Na dotaz | Zadat poptávku | |
| 571 0 WHR43316 |
C00340621
481236058241 |
Gas cock A+SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR43316 |
C00316367
481236058239 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 571 3 WHR43316 |
C00582630
481236058455 |
Tap TC | Na dotaz | Zadat poptávku | |
| 591 0 WHR43316 |
C00318195
481225268031 |
Spark plug medium | Na dotaz | Zadat poptávku | |
| 591 0 WHR43316 |
C00582590
481225268051 |
Spark plug L 370 WOK. | Na dotaz | Zadat poptávku | |
| 591 9 WHR43316 |
C00329038
481240448757 |
Fastener f.spark plug | Na dotaz | Zadat poptávku | |
| 592 0 WHR43316 |
C00335564
481213838007 |
Thermo couple 460 mm | Na dotaz | Zadat poptávku | |
| 592 0 WHR43316 |
C00335565
481213838008 |
Thermo couple 340 mm | Na dotaz | Zadat poptávku | |
| 594 0 WHR43316 |
C00497340
481227818005 |
Electron.ignit. 5-way | Na dotaz | Zadat poptávku | |
| 594 1 WHR43316 |
C00491067
481227328229 |
Spacer ignition switch | Na dotaz | Zadat poptávku | |
| 594 2 WHR43316 |
C00081740
481227328231 |
SPACER | Na dotaz | Zadat poptávku | |
| 595 0 WHR43316 |
C00332789
481290508023 |
Generator Ignition | Na dotaz | Zadat poptávku | |
| 703 0 WHR43316 |
C00332507
481253048295 |
Tube RL and RR | Na dotaz | Zadat poptávku | |
| 703 1 WHR43316 |
C00332336
481252648096 |
Gas pipe FL and FR | Na dotaz | Zadat poptávku | |
| 703 2 WHR43316 |
C00582778
481253048486 |
Gas pipe WOK. | Na dotaz | Zadat poptávku | |
| 703 8 WHR43316 |
C00582777
481253048485 |
Gas pipe. | Na dotaz | Zadat poptávku | |
| 703 9 WHR43316 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 794 0 WHR43316 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 794 1 WHR43316 |
C00332780
481285018015 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR43316 |
C00332790
481290508024 |
Damper for grid | Na dotaz | Zadat poptávku | |
| 999 WHR43316 |
C00618469 | Gastable WHP | Na dotaz | Zadat poptávku | |
