| Komerční kód: | AMD 025/1 |
| Kód 12NC: | 853002501100 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

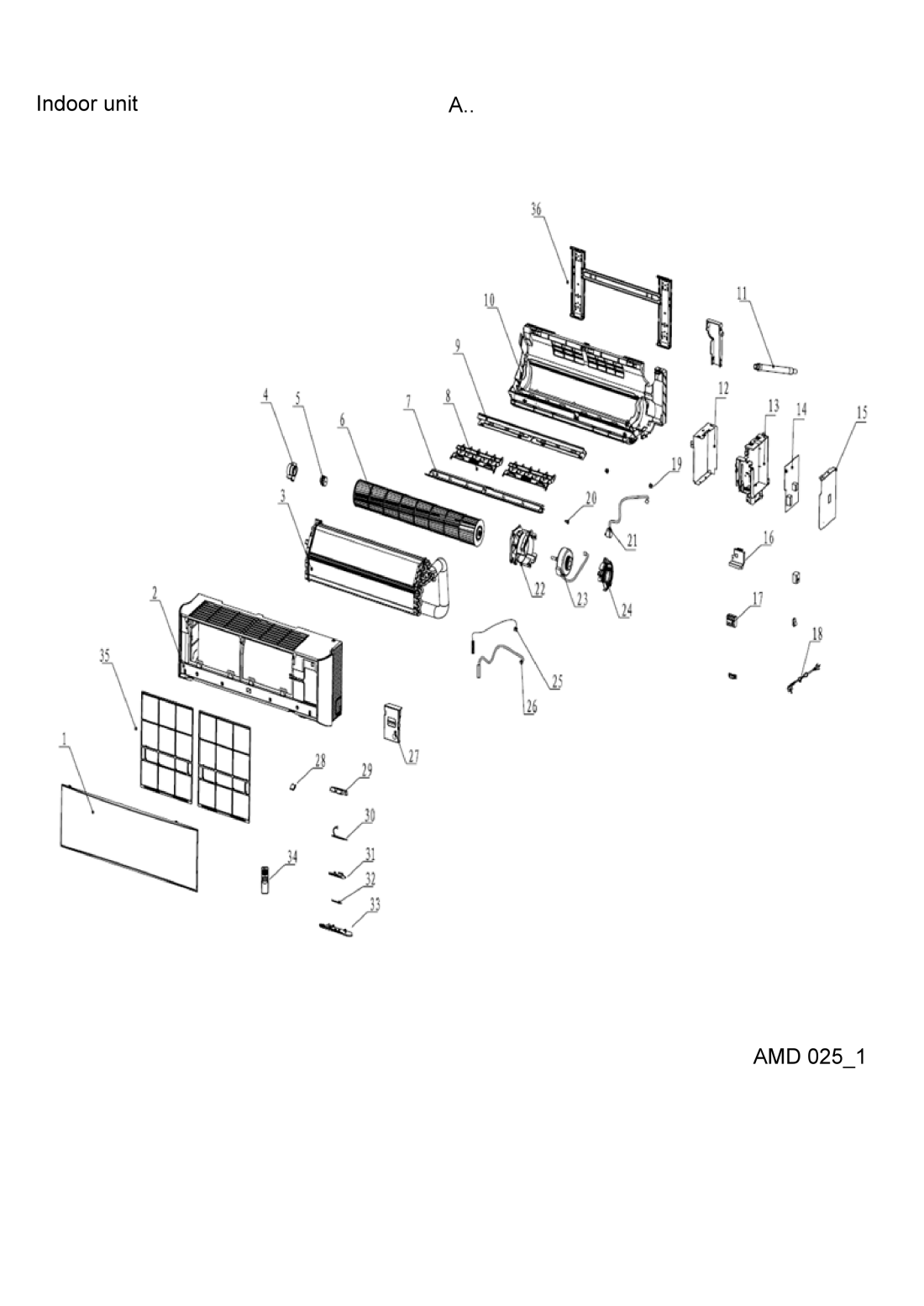

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR14245 |
C00541563 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR14245 |
C00545424 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR14245 |
C00545425 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| A01 WHR14245 |
C00411985
482000010352 |
Front panel | Na dotaz | Zadat poptávku | |
| A02 WHR14245 |
C00415511
482000017858 |
Cover front | Na dotaz | Zadat poptávku | |
| A03 WHR14245 |
C00385813
482000017859 |
Evaporator | Na dotaz | Zadat poptávku | |
| A04 WHR14245 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
| A05 WHR14245 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
| A06 WHR14245 |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 2 031 Kč
€ 80.20 |
||
| A07 WHR14245 |
C00411988
482000010357 |
Air guide | Na dotaz | Zadat poptávku | |
| A08 WHR14245 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
| A09 WHR14245 |
C00411989
482000010358 |
Rail Guide | Na dotaz | Zadat poptávku | |
| A10 WHR14245 |
C00415512
482000017860 |
Rear panel | Na dotaz | Zadat poptávku | |
| A11 WHR14245 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
| A12 WHR14245 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
| A13 WHR14245 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| A14 WHR14245 |
C00415513
482000017861 |
Control board | Na dotaz | Zadat poptávku | |
| A15 WHR14245 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
| A16 WHR14245 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A17 WHR14245 |
C00386171
482000010332 |
Wire terminal board | Na dotaz | Zadat poptávku | |
| A18 WHR14245 |
C00411959
482000010308 |
Cable mains | Na dotaz | Zadat poptávku | |
| A19 WHR14245 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A20 WHR14245 |
C00381043
482000010309 |
Axle | Na dotaz | Zadat poptávku | |
| A21 WHR14245 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
| A22 WHR14245 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
| A23 WHR14245 |
C00378271
482000010312 |
Motor fan | Na dotaz | Zadat poptávku | |
| A24 WHR14245 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
| A25 WHR14245 |
C00378138
482000000399 |
Temperature sensor | Na dotaz | Zadat poptávku | |
| A26 WHR14245 |
C00385824
482000010333 |
SONDA TEPELNÁ | Na dotaz | Zadat poptávku | |
| A27 WHR14245 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
| A28 WHR14245 |
C00411992
482000010361 |
Cover | Na dotaz | Zadat poptávku | |
| A29 WHR14245 |
C00411993
482000010362 |
Cover Display | Na dotaz | Zadat poptávku | |
| A30 WHR14245 |
C00411973
482000010335 |
Display board | Na dotaz | Zadat poptávku | |
| A31 WHR14245 |
C00411961
482000010318 |
Control box | Na dotaz | Zadat poptávku | |
| A32 WHR14245 |
C00411994
482000010363 |
Display Window | Na dotaz | Zadat poptávku | |
| A33 WHR14245 |
C00411962
482000010319 |
Panel | Na dotaz | Zadat poptávku | |
| A34 WHR14245 |
C00496502
482000017856 |
Remote control | Na dotaz | Zadat poptávku | |
| A35 WHR14245 |
C00411995
482000010364 |
Filter | Na dotaz | Zadat poptávku | |
| A36 WHR14245 |
C00536088
482000010365 |
installation plate assy | Na dotaz | Zadat poptávku | |
| A37 WHR14245 |
C00411965
482000010324 |
Carbon filter HEPA | 675 Kč
€ 26.60 |
||
| A38 WHR14245 |
C00411975
482000010337 |
Filter | Na dotaz | Zadat poptávku | |
| B01 WHR14245 |
C00385865
482000000500 |
Panel front | Na dotaz | Zadat poptávku | |
| B02 WHR14245 |
C00378154
482000000515 |
Vrtule ventilátoru | 963 Kč
€ 38.00 |
||
| B03 WHR14245 |
C00385866
482000017843 |
Motor fan outdoor | Na dotaz | Zadat poptávku | |
| B04 WHR14245 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| B05 WHR14245 |
C00385875
482000010366 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B06 WHR14245 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B07 WHR14245 |
C00385873
482000000384 |
Air grid REAR | Na dotaz | Zadat poptávku | |
| B08 WHR14245 |
C00385871
480150100111 |
Cover top | Na dotaz | Zadat poptávku | |
| B09 WHR14245 |
C00385958
480150100879 |
Panel side | Na dotaz | Zadat poptávku | |
| B10 WHR14245 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B11 WHR14245 |
C00385985
480150100377 |
Sensor temper. Outdoor ambient | Na dotaz | Zadat poptávku | |
| B12 WHR14245 |
C00378141
482000000402 |
TEMPERATURE SENSOR | Na dotaz | Zadat poptávku | |
| B13 WHR14245 |
C00378140
482000000401 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| B14 WHR14245 |
C00415514
482000017862 |
Control board assy | Na dotaz | Zadat poptávku | |
| B15 WHR14245 |
C00385966
482000000379 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
| B16 WHR14245 |
C00386298
480150100391 |
Terminal Board. | Na dotaz | Zadat poptávku | |
| B17 WHR14245 |
C00385981
482000000382 |
Support plate | Na dotaz | Zadat poptávku | |
| B18 WHR14245 |
C00415504
482000017846 |
Filter PCB | Na dotaz | Zadat poptávku | |
| B19 WHR14245 |
C00411981
482000010344 |
Radiator | Na dotaz | Zadat poptávku | |
| B20 WHR14245 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B21 WHR14245 |
C00385885
482000000397 |
Valve magnet | Na dotaz | Zadat poptávku | |
| B22 WHR14245 |
C00385881
482000010368 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
| B23 WHR14245 |
C00385957
482000010346 |
Valve 3 way | Na dotaz | Zadat poptávku | |
| B24 WHR14245 |
C00385950
482000017851 |
Capillary tube assy | Na dotaz | Zadat poptávku | |
| B25 WHR14245 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B26 WHR14245 |
C00385880
482000000386 |
Transformer | Na dotaz | Zadat poptávku | |
| B27 WHR14245 |
C00385879
482000000390 |
Separator | Na dotaz | Zadat poptávku | |
| B28 WHR14245 |
C00385886
482000017852 |
Compressor ASM108D18UFZA - R410A | Na dotaz | Zadat poptávku | |
| B29 WHR14245 |
C00386314
482000017849 |
Overload prot. | Na dotaz | Zadat poptávku | |
| B30 WHR14245 |
C00385937
482000000391 |
Cable harness | Na dotaz | Zadat poptávku | |
| B31 WHR14245 |
C00377024
480150100887 |
Support Valve | Na dotaz | Zadat poptávku | |
| B32 WHR14245 |
C00385878
482000010350 |
Base | Na dotaz | Zadat poptávku | |
| B35 WHR14245 |
C00401597
481236068897 |
Rubber blanket water outlet | Na dotaz | Zadat poptávku | |
| B36 WHR14245 |
C00409042
482000004978 |
Outlet stud drain condensat n.s. | Na dotaz | Zadat poptávku | |
| B37 WHR14245 |
C00417528
482000021345 |
Gasket Outlet stud n.shown | Na dotaz | Zadat poptávku | |
