WHIRLPOOL SPOW 212
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | SPOW 212 |
Kód 12NC: | 853031501100 |
Značka: | WHIRLPOOL |
Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

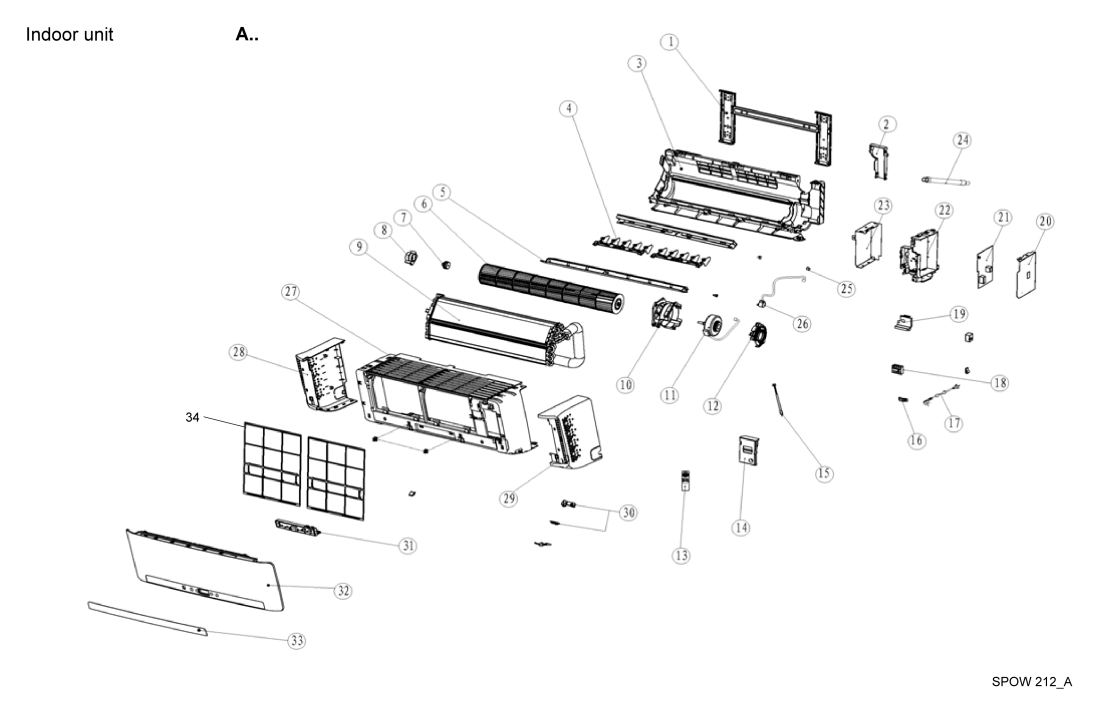

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
999 WHR26077 |
C00561796 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
999 WHR26077 |
C00561798 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
A001 WHR26077 |
C00536088
482000010365 |
installation plate assy | Na dotaz | Zadat poptávku | |
A002 WHR26077 |
C00513507
482000010355 |
Cap for hole | Na dotaz | Zadat poptávku | |
A003 WHR26077 |
C00385800
482000021162 |
Rear panel | Na dotaz | Zadat poptávku | |
A004 WHR26077 |
C00385801
482000010300 |
Air guide | Na dotaz | Zadat poptávku | |
A005 WHR26077 |
C00386332
482000021163 |
Air guide | Na dotaz | Zadat poptávku | |
A006 WHR26077 |
C00385810
482000010356 |
Ventilátor klim.vnitřní jednotka | 2 031 Kč
€ 80.10 |
||
A007 WHR26077 |
C00377868
481252048017 |
Bearing | Na dotaz | Zadat poptávku | |
A008 WHR26077 |
C00385811
482000010297 |
Baffle | Na dotaz | Zadat poptávku | |
A009 WHR26077 |
C00419661
482000091813 |
Evaporator | Na dotaz | Zadat poptávku | |
A010 WHR26077 |
C00385815
482000010311 |
Protect motor | Na dotaz | Zadat poptávku | |
A011 WHR26077 |
C00378271
482000010312 |
Motor fan | Na dotaz | Zadat poptávku | |
A012 WHR26077 |
C00385817
482000010313 |
Cover | Na dotaz | Zadat poptávku | |
A013 WHR26077 |
C00378274
482000010320 |
Ovladač dálkový | Na dotaz | Zadat poptávku | |
A014 WHR26077 |
C00385823
482000010315 |
Electric box cover | Na dotaz | Zadat poptávku | |
A015 WHR26077 |
C00378272
482000010314 |
Sensor temper. | Na dotaz | Zadat poptávku | |
A016 WHR26077 |
C00419622
482000091708 |
Clamp | Na dotaz | Zadat poptávku | |
A017 WHR26077 |
C00411959
482000010308 |
Cable mains | Na dotaz | Zadat poptávku | |
A018 WHR26077 |
C00394929
480150100136 |
Terminal Board | Na dotaz | Zadat poptávku | |
A019 WHR26077 |
C00385837
482000010307 |
Electric box cover | Na dotaz | Zadat poptávku | |
A020 WHR26077 |
C00385838
482000010306 |
Electric joint box plate | Na dotaz | Zadat poptávku | |
A021 WHR26077 |
C00419662
482000091814 |
Control board | Na dotaz | Zadat poptávku | |
A022 WHR26077 |
C00385840
482000010304 |
KRABICE ELEKTRIKA | Na dotaz | Zadat poptávku | |
A023 WHR26077 |
C00385841
482000010303 |
Electric parts box cover | Na dotaz | Zadat poptávku | |
A024 WHR26077 |
C00385842
482000006237 |
Condensed tube | Na dotaz | Zadat poptávku | |
A025 WHR26077 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
A026 WHR26077 |
C00378270
482000010310 |
Step motor | Na dotaz | Zadat poptávku | |
A027 WHR26077 |
C00386335
482000091815 |
SHELL | Na dotaz | Zadat poptávku | |
A028 WHR26077 |
C00386264
482000021165 |
Cap ornamental | Na dotaz | Zadat poptávku | |
A029 WHR26077 |
C00386267
482000021166 |
Cap ornamental | Na dotaz | Zadat poptávku | |
A030 WHR26077 |
C00385852
482000091710 |
Keyboard | Na dotaz | Zadat poptávku | |
A031 WHR26077 |
C00419624
482000091711 |
Display board | Na dotaz | Zadat poptávku | |
A032 WHR26077 |
C00417416
482000021169 |
Front panel | Na dotaz | Zadat poptávku | |
A033 WHR26077 |
C00419663
482000091816 |
Display | Na dotaz | Zadat poptávku | |
A034 WHR26077 |
C00385864
482000018037 |
Filter | Na dotaz | Zadat poptávku | |
B001 WHR26077 |
C00406983
482000000509 |
Base | Na dotaz | Zadat poptávku | |
B002 WHR26077 |
C00377024
480150100887 |
Support Valve | Na dotaz | Zadat poptávku | |
B003 WHR26077 |
C00406924
482000000404 |
Condenser | Na dotaz | Zadat poptávku | |
B004 WHR26077 |
C00406984
482000000518 |
Separator | Na dotaz | Zadat poptávku | |
B005 WHR26077 |
C00386446
480150100462 |
Valve | Na dotaz | Zadat poptávku | |
B006 WHR26077 |
C00419664
482000091817 |
Compressor | Na dotaz | Zadat poptávku | |
B008 WHR26077 |
C00406985
482000000519 |
Cable harness | Na dotaz | Zadat poptávku | |
B009 WHR26077 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
B010 WHR26077 |
C00378156
482000000517 |
Motor ventilátoru | 2 711 Kč
€ 106.90 |
||
B011 WHR26077 |
C00378154
482000000515 |
Vrtule ventilátoru | 963 Kč
€ 38.00 |
||
B012 WHR26077 |
C00419665
482000091818 |
Valve 4 way cpl. | Na dotaz | Zadat poptávku | |
B013 WHR26077 |
C00407061
482000000637 |
Valve body | Na dotaz | Zadat poptávku | |
B014 WHR26077 |
C00394954
480150100172 |
Coil Valve | Na dotaz | Zadat poptávku | |
B015 WHR26077 |
C00419666
482000091819 |
Capillary tube | Na dotaz | Zadat poptávku | |
B016 WHR26077 |
C00386445
482000000358 |
Valve | Na dotaz | Zadat poptávku | |
B017 WHR26077 |
C00419667
482000091820 |
Capacitor | Na dotaz | Zadat poptávku | |
B018 WHR26077 |
C00376992
480150100148 |
Electric plate | Na dotaz | Zadat poptávku | |
B019 WHR26077 |
C00406986
482000000520 |
Terminal Board | Na dotaz | Zadat poptávku | |
B020 WHR26077 |
C00409754
482000006138 |
Capacitor | Na dotaz | Zadat poptávku | |
B021 WHR26077 |
C00385958
480150100879 |
Panel side | Na dotaz | Zadat poptávku | |
B022 WHR26077 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
B023 WHR26077 |
C00385865
482000000500 |
Panel front | Na dotaz | Zadat poptávku | |
B024 WHR26077 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
B025 WHR26077 |
C00376983
480150100114 |
Grille rear | Na dotaz | Zadat poptávku | |
B026 WHR26077 |
C00385871
480150100111 |
Cover top | Na dotaz | Zadat poptávku |
