WHIRLPOOL AMD 345
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AMD 345 |
| Kód 12NC: | 853034501000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Klimatizace |
Potřebujete servis? Jsme tady pro Vás

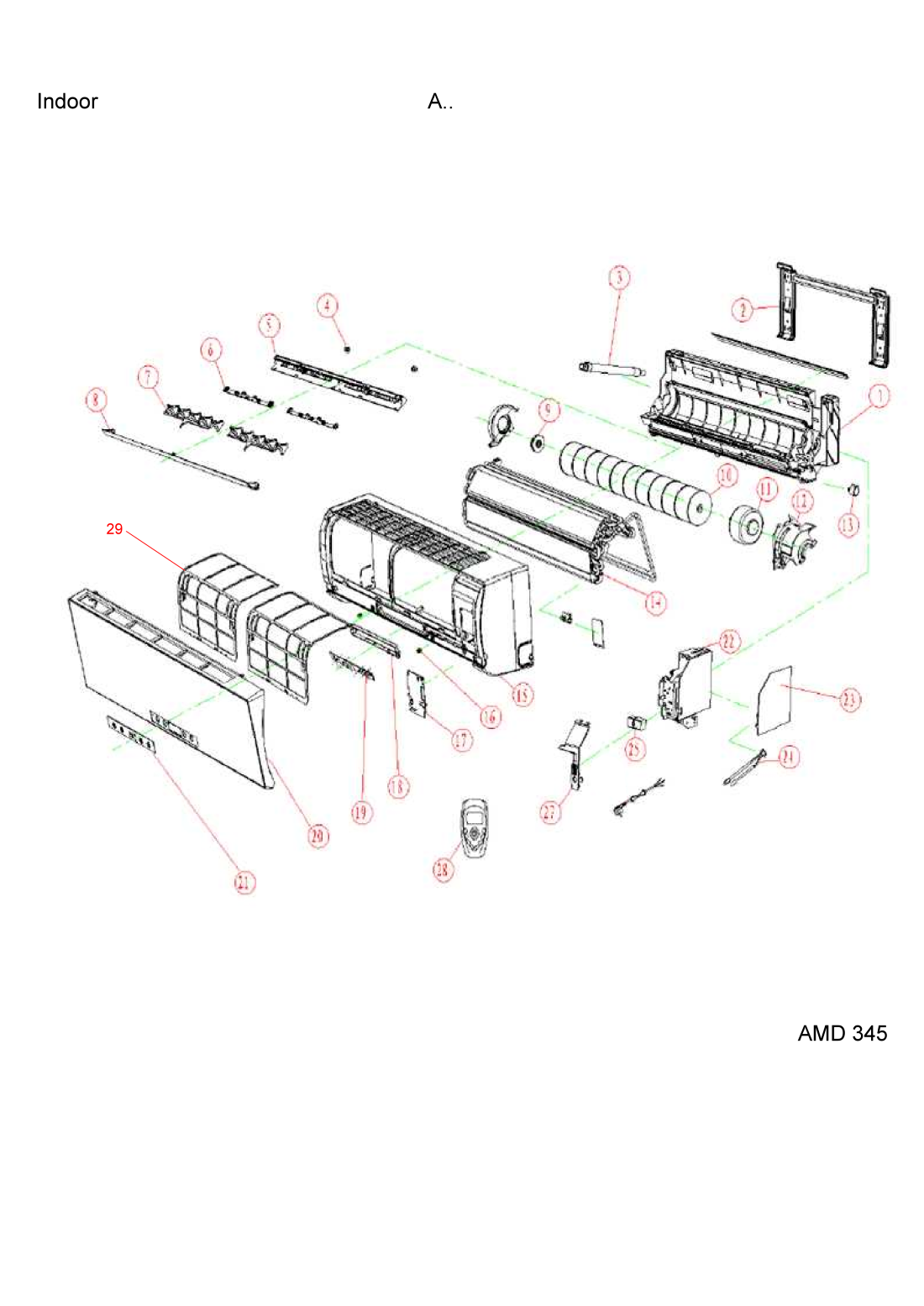

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR22191 |
C00562104 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR22191 |
C00562106 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
| A01 WHR22191 |
C00378255
482000009532 |
Cabinet | Na dotaz | Zadat poptávku | |
| A02 WHR22191 |
C00378146
482000000504 |
Plate mounting | Na dotaz | Zadat poptávku | |
| A03 WHR22191 |
C00377871
481253008019 |
Drainpipe | Na dotaz | Zadat poptávku | |
| A04 WHR22191 |
C00385844
481252048018 |
Axis sheath | Na dotaz | Zadat poptávku | |
| A05 WHR22191 |
C00406989
482000000526 |
Air guide | Na dotaz | Zadat poptávku | |
| A06 WHR22191 |
C00406990
482000000527 |
Holder | Na dotaz | Zadat poptávku | |
| A07 WHR22191 |
C00406991
482000000528 |
Air guide | Na dotaz | Zadat poptávku | |
| A08 WHR22191 |
C00378135
482000000300 |
Air guide | Na dotaz | Zadat poptávku | |
| A09 WHR22191 |
C00378162
482000000531 |
Axle | Na dotaz | Zadat poptávku | |
| A10 WHR22191 |
C00378153
482000000514 |
Vrtule ventilátoru | 849 Kč
€ 33.50 |
||
| A11 WHR22191 |
C00378155
482000000516 |
Motor fan | Na dotaz | Zadat poptávku | |
| A12 WHR22191 |
C00411663
482000009533 |
Support motor | Na dotaz | Zadat poptávku | |
| A12 WHR22191 |
C00415534
482000017902 |
Cover motor guard | Na dotaz | Zadat poptávku | |
| A13 WHR22191 |
C00376989
480150100135 |
Motorek | 495 Kč
€ 19.50 |
||
| A14 WHR22191 |
C00378166
482000000538 |
Evaporator | Na dotaz | Zadat poptávku | |
| A15 WHR22191 |
C00380688
482000006189 |
Cover | Na dotaz | Zadat poptávku | |
| A16 WHR22191 |
C00378147
482000000505 |
Cap | Na dotaz | Zadat poptávku | |
| A17 WHR22191 |
C00406980
482000000503 |
Cover cable | Na dotaz | Zadat poptávku | |
| A18 WHR22191 |
C00415535
482000017903 |
Electronic box | Na dotaz | Zadat poptávku | |
| A19 WHR22191 |
C00378292
482000017904 |
Display board | Na dotaz | Zadat poptávku | |
| A20 WHR22191 |
C00415536
482000017905 |
Front panel | Na dotaz | Zadat poptávku | |
| A21 WHR22191 |
C00415537
482000017906 |
Panel | Na dotaz | Zadat poptávku | |
| A22 WHR22191 |
C00378236
482000006129 |
Electronic box | Na dotaz | Zadat poptávku | |
| A23 WHR22191 |
C00378245
482000006198 |
Control board | Na dotaz | Zadat poptávku | |
| A24 WHR22191 |
C00376990
480150100143 |
Sensor Indoor | Na dotaz | Zadat poptávku | |
| A25 WHR22191 |
C00394929
480150100136 |
Terminal Board | Na dotaz | Zadat poptávku | |
| A27 WHR22191 |
C00409751
482000006132 |
Cover plate | Na dotaz | Zadat poptávku | |
| A27 WHR22191 |
C00411668
482000009538 |
Cover plastic | Na dotaz | Zadat poptávku | |
| A28 WHR22191 |
C00378274
482000010320 |
Ovladač dálkový | Na dotaz | Zadat poptávku | |
| A28 WHR22191 |
C00378173
482000002784 |
Holder Remote control | Na dotaz | Zadat poptávku | |
| A29 WHR22191 |
C00409602
482000005819 |
Filter | Na dotaz | Zadat poptávku | |
| B01 WHR22191 |
C00406983
482000000509 |
Base | Na dotaz | Zadat poptávku | |
| B02 WHR22191 |
C00377024
480150100887 |
Support Valve | Na dotaz | Zadat poptávku | |
| B03 WHR22191 |
C00409793
482000006199 |
Condenser cpl. | Na dotaz | Zadat poptávku | |
| B04 WHR22191 |
C00406984
482000000518 |
Separator | Na dotaz | Zadat poptávku | |
| B05 WHR22191 |
C00377580
481236058645 |
Valve 3-way | Na dotaz | Zadat poptávku | |
| B06,B07 WHR22191 |
C00378246
482000006200 |
Compressor | Na dotaz | Zadat poptávku | |
| B08 WHR22191 |
C00406985
482000000519 |
Cable harness | Na dotaz | Zadat poptávku | |
| B09 WHR22191 |
C00385868
480150100117 |
Bracket Motor | Na dotaz | Zadat poptávku | |
| B10 WHR22191 |
C00378156
482000000517 |
Motor ventilátoru | 2 711 Kč
€ 107.00 |
||
| B11 WHR22191 |
C00378154
482000000515 |
Vrtule ventilátoru | 963 Kč
€ 38.00 |
||
| B12 WHR22191 |
C00409795
482000006202 |
Valve 4 Way cpl. | Na dotaz | Zadat poptávku | |
| B13 WHR22191 |
C00377009
480150100338 |
Valve 4-way | Na dotaz | Zadat poptávku | |
| B14 WHR22191 |
C00394954
480150100172 |
Coil Valve | Na dotaz | Zadat poptávku | |
| B15 WHR22191 |
C00409796
482000006203 |
Capillary tube cpl. | Na dotaz | Zadat poptávku | |
| B16 WHR22191 |
C00377578
481236058637 |
Valve 2-way | Na dotaz | Zadat poptávku | |
| B17 WHR22191 |
C00378152
482000000513 |
Capacitor | Na dotaz | Zadat poptávku | |
| B18 WHR22191 |
C00376992
480150100148 |
Electric plate | Na dotaz | Zadat poptávku | |
| B19 WHR22191 |
C00406986
482000000520 |
Terminal Board | Na dotaz | Zadat poptávku | |
| B20 WHR22191 |
C00409754
482000006138 |
Capacitor | Na dotaz | Zadat poptávku | |
| B21 WHR22191 |
C00385958
480150100879 |
Panel side | Na dotaz | Zadat poptávku | |
| B22 WHR22191 |
C00385959
480150100575 |
Cover | Na dotaz | Zadat poptávku | |
| B23 WHR22191 |
C00385865
482000000500 |
Panel front | Na dotaz | Zadat poptávku | |
| B24 WHR22191 |
C00385869
480150100107 |
Support | Na dotaz | Zadat poptávku | |
| B25 WHR22191 |
C00376983
480150100114 |
Grille rear | Na dotaz | Zadat poptávku | |
| B26 WHR22191 |
C00385871
480150100111 |
Cover top | Na dotaz | Zadat poptávku | |
