WHIRLPOOL 3SWTW4800YQ
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 3SWTW4800YQ |
| Kód 12NC/I.C. kód: | 853795643000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | 853795643001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

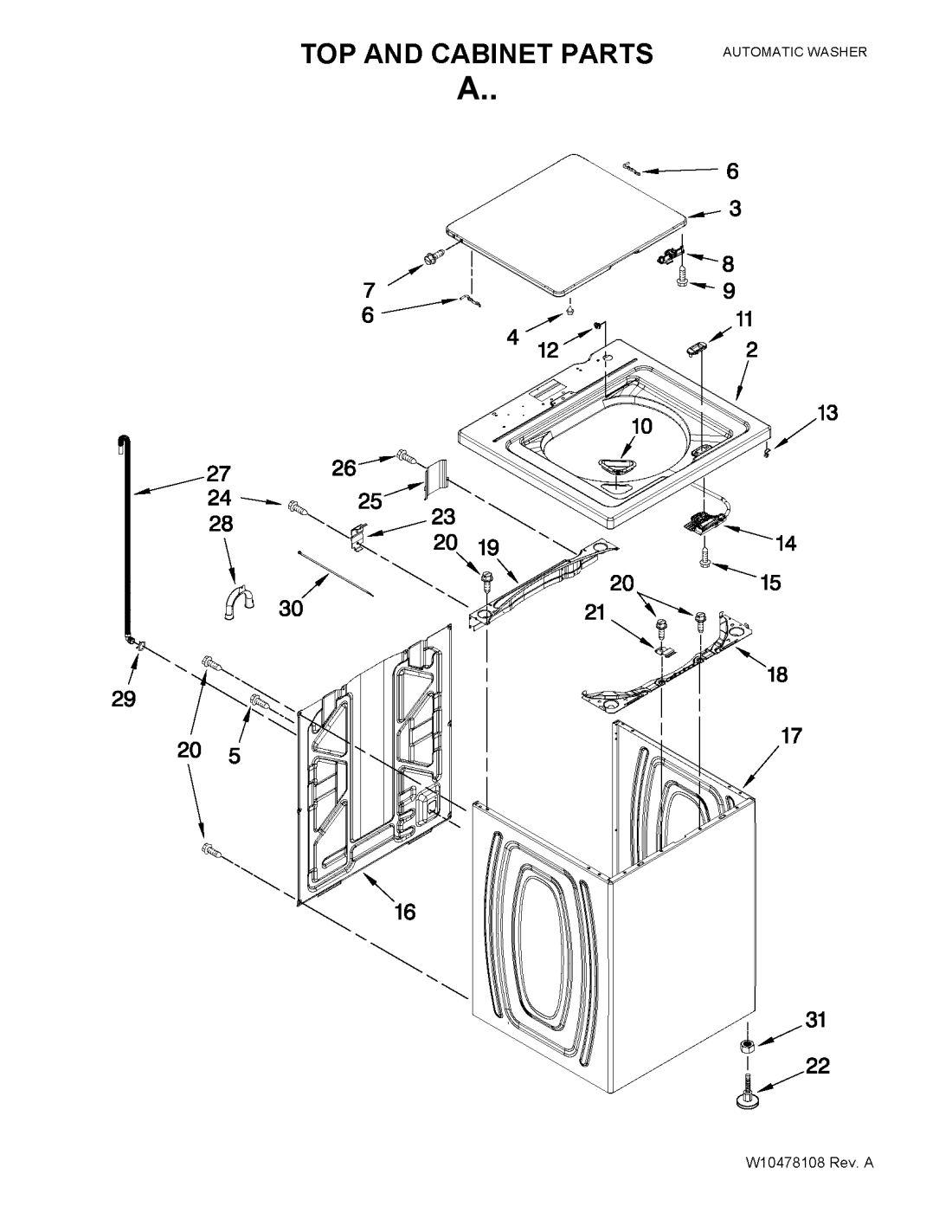

| 999 WHR39711 |
C00611048 | Technical Instruction WHP | Na dotaz | Zadat poptávku | |
| A02 WHR39711 |
C00334225
482000011447 |
Lid inner | Na dotaz | Zadat poptávku | |
| A03 WHR39711 |
C00334226
482000011448 |
Lid outer | Na dotaz | Zadat poptávku | |
| A04 WHR39711 |
C00330920
481246668693 |
Damper cabinet lid | Na dotaz | Zadat poptávku | |
| A05 WHR39711 |
C00332158
481250238368 |
Screw 8-18x1/2 | Na dotaz | Zadat poptávku | |
| A06 WHR39711 |
C00332991
481941719496 |
HINGE | Na dotaz | Zadat poptávku | |
| A07 WHR39711 |
C00320923
480110100251 |
W10119828 Screw. | Na dotaz | Zadat poptávku | |
| A08 WHR39711 |
C00318650
482000011381 |
Fixation lid lock | Na dotaz | Zadat poptávku | |
| A09 WHR39711 |
C00333994
482000010628 |
Screw | Na dotaz | Zadat poptávku | |
| A10 WHR39711 |
C00320925
480110100352 |
Dispencer bleach | Na dotaz | Zadat poptávku | |
| A11 WHR39711 |
C00317697
482000011383 |
Door lock | Na dotaz | Zadat poptávku | |
| A12 WHR39711 |
C00333264
481952018016 |
Bearing lid hinge | Na dotaz | Zadat poptávku | |
| A13 WHR39711 |
C00333177
481949268597 |
Clip fix harness | Na dotaz | Zadat poptávku | |
| A14 WHR39711 |
C00313324
482000011384 |
Lock | Na dotaz | Zadat poptávku | |
| A15 WHR39711 |
C00333733
482000007184 |
Screw | Na dotaz | Zadat poptávku | |
| A16 WHR39711 |
C00334178
482000011385 |
Rear panel | Na dotaz | Zadat poptávku | |
| A17 WHR39711 |
C00334179
482000011386 |
Cabinet white | Na dotaz | Zadat poptávku | |
| A18 WHR39711 |
C00334180
482000011387 |
Brace side cabinet top front | Na dotaz | Zadat poptávku | |
| A19 WHR39711 |
C00334181
482000011388 |
Brace side cabinet top rear | Na dotaz | Zadat poptávku | |
| A20 WHR39711 |
C00320927
480110100505 |
Screw 8-18 x 3/8 | Na dotaz | Zadat poptávku | |
| A21 WHR39711 |
C00334182
482000011389 |
Lock plate top | Na dotaz | Zadat poptávku | |
| A22 WHR39711 |
C00334601
482000012938 |
Foot | Na dotaz | Zadat poptávku | |
| A23 WHR39711 |
C00334184
482000011391 |
Hinge top | Na dotaz | Zadat poptávku | |
| A24 WHR39711 |
C00334185
482000011392 |
Screw | Na dotaz | Zadat poptávku | |
| A25 WHR39711 |
C00334186
482000011393 |
Cover cable | Na dotaz | Zadat poptávku | |
| A26 WHR39711 |
C00332166
481250318003 |
Screw 10-32x5/8 | Na dotaz | Zadat poptávku | |
| A27 WHR39711 |
C00334187
482000011394 |
Hose draining | Na dotaz | Zadat poptávku | |
| A28 WHR39711 |
C00334188
482000011395 |
Bow | Na dotaz | Zadat poptávku | |
| A29 WHR39711 |
C00332918
481940118546 |
Clamp hose | Na dotaz | Zadat poptávku | |
| A30 WHR39711 |
C00334189
482000011396 |
Staple | Na dotaz | Zadat poptávku | |
| A31 WHR39711 |
C00313854
481950618023 |
hex nut | Na dotaz | Zadat poptávku | |
| B01 WHR39711 |
C00334227
482000011449 |
Control panel | Na dotaz | Zadat poptávku | |
| B02 WHR39711 |
C00316533
480110100173 |
Clip knob | Na dotaz | Zadat poptávku | |
| B03 WHR39711 |
C00388698
480112100604 |
Sidepiece left control panel white | Na dotaz | Zadat poptávku | |
| B04 WHR39711 |
C00388699
480112100605 |
Sidepiece right cont.panel white | Na dotaz | Zadat poptávku | |
| B05 WHR39711 |
C00320922
480110100224 |
Clip control panel | Na dotaz | Zadat poptávku | |
| B06 WHR39711 |
C00334228
482000011450 |
Control unit | Na dotaz | Zadat poptávku | |
| B07 WHR39711 |
C00334192
482000011401 |
Bracket | Na dotaz | Zadat poptávku | |
| B09 WHR39711 |
C00334229
482000011451 |
Pressostat | Na dotaz | Zadat poptávku | |
| B10 WHR39711 |
C00333206
481950218332 |
Screw 8Ax3/8 | Na dotaz | Zadat poptávku | |
| B11 WHR39711 |
C00413066
482000012721 |
Cable mains | Na dotaz | Zadat poptávku | |
| B13 WHR39711 |
C00321201
480112100547 |
Knob timer ass. white | Na dotaz | Zadat poptávku | |
| B14 WHR39711 |
C00320920
480110100204 |
Knob switch silver | Na dotaz | Zadat poptávku | |
| B15 WHR39711 |
C00334230
482000011452 |
Switch rotary | Na dotaz | Zadat poptávku | |
| B16 WHR39711 |
C00334231
482000011453 |
Cable harness upper | Na dotaz | Zadat poptávku | |
| B17 WHR39711 |
C00413249
482000012965 |
Water inlet cpl. | Na dotaz | Zadat poptávku | |
| B18 WHR39711 |
C00413250
482000012966 |
Valve | Na dotaz | Zadat poptávku | |
| B19 WHR39711 |
C00334196
482000011407 |
Cut out | Na dotaz | Zadat poptávku | |
| B20 WHR39711 |
C00334197
482000011408 |
Hose | Na dotaz | Zadat poptávku | |
| B21 WHR39711 |
C00332917
481940118542 |
hose clamp | Na dotaz | Zadat poptávku | |
| B22 WHR39711 |
C00413251
482000012967 |
Cable harness valve | Na dotaz | Zadat poptávku | |
| B24 WHR39711 |
C00334200
482000011411 |
Push button start | Na dotaz | Zadat poptávku | |
| B25 WHR39711 |
C00334232
482000011454 |
Clamp | Na dotaz | Zadat poptávku | |
| B26 WHR39711 |
C00314694
481953238055 |
Inlet Hose Washer | Na dotaz | Zadat poptávku | |
| B27 WHR39711 |
C00413053
482000012693 |
Hose inlet cold water | Na dotaz | Zadat poptávku | |
| B27 WHR39711 |
C00414003
482000014167 |
Hose inlet hot water | Na dotaz | Zadat poptávku | |
| B28 WHR39711 |
C00413055
482000012696 |
Washer | Na dotaz | Zadat poptávku | |
| B29 WHR39711 |
C00334202
482000011413 |
roupling piece Y | Na dotaz | Zadat poptávku | |
| B30 WHR39711 |
C00334173
482000011364 |
Washer | Na dotaz | Zadat poptávku | |
| C01 WHR39711 |
C00320921
480110100206 |
Dispenser | Na dotaz | Zadat poptávku | |
| C02 WHR39711 |
C00313547
481946258109 |
CAP | Na dotaz | Zadat poptávku | |
| C03 WHR39711 |
C00320256
480110100179 |
Seal | Na dotaz | Zadat poptávku | |
| C04 WHR39711 |
C00312931
480110100279 |
Screw 5/16-24 x 1 and washer | Na dotaz | Zadat poptávku | |
| C05 WHR39711 |
C00320854
481903949550 |
WASHER | Na dotaz | Zadat poptávku | |
| C06 WHR39711 |
C00313215
481903946501 |
Agitator CPL. | Na dotaz | Zadat poptávku | |
| C07 WHR39711 |
C00312975
481252838064 |
CAM | Na dotaz | Zadat poptávku | |
| C08 WHR39711 |
C00333275
481952838437 |
CAM | Na dotaz | Zadat poptávku | |
| C09 WHR39711 |
C00332293
481252008029 |
Bearing driven cam | Na dotaz | Zadat poptávku | |
| C10 WHR39711 |
C00320838
481903363003 |
AGITATOR | Na dotaz | Zadat poptávku | |
| C11 WHR39711 |
C00319587
481246279795 |
SPACER | Na dotaz | Zadat poptávku | |
| C12 WHR39711 |
C00332289
481251528088 |
DRUM LIFTER | Na dotaz | Zadat poptávku | |
| C13 WHR39711 |
C00334234
482000011456 |
Ring tub | Na dotaz | Zadat poptávku | |
| C14 WHR39711 |
C00312035
481950618005 |
NUT | Na dotaz | Zadat poptávku | |
| C15 WHR39711 |
C00334235
482000011457 |
Drum | Na dotaz | Zadat poptávku | |
| C16 WHR39711 |
C00311287
481946688948 |
Block basket drive | Na dotaz | Zadat poptávku | |
| C17 WHR39711 |
C00334204
482000011418 |
Plate protect. | Na dotaz | Zadat poptávku | |
| C18 WHR39711 |
C00334205
482000011419 |
Tub | Na dotaz | Zadat poptávku | |
| C19 WHR39711 |
C00334206
482000011420 |
Shaft seal | Na dotaz | Zadat poptávku | |
| C20 WHR39711 |
C00334207
482000011421 |
Filter drain pump | Na dotaz | Zadat poptávku | |
| C21 WHR39711 |
C00320932
480110100581 |
Screw 8-18 x 3/4 | Na dotaz | Zadat poptávku | |
| C22 WHR39711 |
C00334208
482000011422 |
Shock absorber | Na dotaz | Zadat poptávku | |
| C23 WHR39711 |
C00334209
482000011423 |
Bearing ball | Na dotaz | Zadat poptávku | |
| C24 WHR39711 |
C00334210
482000011424 |
Bushing | Na dotaz | Zadat poptávku | |
| C25 WHR39711 |
C00334211
482000011425 |
Cable harness lower | Na dotaz | Zadat poptávku | |
| C26 WHR39711 |
C00334212
482000011426 |
Hose pressostat | Na dotaz | Zadat poptávku | |
| C27 WHR39711 |
C00320931
480110100571 |
Clamp | Na dotaz | Zadat poptávku | |
| C28 WHR39711 |
C00320934
480110100593 |
Screw 10-16 x 3/4 | Na dotaz | Zadat poptávku | |
| C29 WHR39711 |
C00334213
482000011427 |
Staple | Na dotaz | Zadat poptávku | |
| C30 WHR39711 |
C00334214
482000011428 |
Screw | Na dotaz | Zadat poptávku | |
| D01 WHR39711 |
C00312834
482000011429 |
Pump draining | Na dotaz | Zadat poptávku | |
| D02 WHR39711 |
C00320933
480110100587 |
Screw 12-16 x 1-1/8 | Na dotaz | Zadat poptávku | |
| D03 WHR39711 |
C00334215
482000011430 |
Hose | Na dotaz | Zadat poptávku | |
| D04 WHR39711 |
C00320919
480110100165 |
Clamp | Na dotaz | Zadat poptávku | |
| D05 WHR39711 |
C00334216
482000011431 |
Box transmiss. | Na dotaz | Zadat poptávku | |
| D06 WHR39711 |
C00334217
482000011432 |
Screw | Na dotaz | Zadat poptávku | |
| D07 WHR39711 |
C00334218
482000011433 |
Motor | Na dotaz | Zadat poptávku | |
| D08 WHR39711 |
C00320935
480110100778 |
Bolt counterweight | Na dotaz | Zadat poptávku | |
| D09 WHR39711 |
C00334219
482000011434 |
Spring splutch | Na dotaz | Zadat poptávku | |
| D10 WHR39711 |
C00318654
482000011435 |
Regulator splutch | Na dotaz | Zadat poptávku | |
| D11 WHR39711 |
C00334220
482000011436 |
Ring cam, splutch. | Na dotaz | Zadat poptávku | |
| D12 WHR39711 |
C00314614
482000011437 |
Cam splutch | Na dotaz | Zadat poptávku | |
| D13 WHR39711 |
C00312461
482000011438 |
Kladka pračky Whirlpool | 1 245 Kč
€ 49.80 |
||
| D14 WHR39711 |
C00314011
482000011439 |
Nut pulley | Na dotaz | Zadat poptávku | |
| D15 WHR39711 |
C00312096
482000011440 |
Belt driving | Na dotaz | Zadat poptávku | |
| D16 WHR39711 |
C00334221
482000011441 |
Actuator | Na dotaz | Zadat poptávku | |
| D17 WHR39711 |
C00334222
482000011442 |
Screw | Na dotaz | Zadat poptávku | |
| D18 WHR39711 |
C00334223
482000011443 |
Capacitor | Na dotaz | Zadat poptávku | |
| D19 WHR39711 |
C00333229
481950318047 |
SCREW | Na dotaz | Zadat poptávku | |
| D20 WHR39711 |
C00312203
482000011444 |
Cover shield | Na dotaz | Zadat poptávku | |
| D21 WHR39711 |
C00334224
482000011445 |
Counter weight | Na dotaz | Zadat poptávku | |
| D22 WHR39711 |
C00318660
482000011446 |
Screw | Na dotaz | Zadat poptávku | |
