WHIRLPOOL 3LWTW5550YW
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | 3LWTW5550YW |
| Kód 12NC/I.C. kód: | 853795965000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Pračky |
| Další podobné modely: | Q0913280000, 853795965002 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 999 WHR01912 |
C00357735 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357736 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357737 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357738 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357739 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357740 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357741 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357742 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357743 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357744 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357745 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357746 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357747 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357748 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357749 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357750 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357751 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357752 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357753 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR01912 |
C00357754 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |

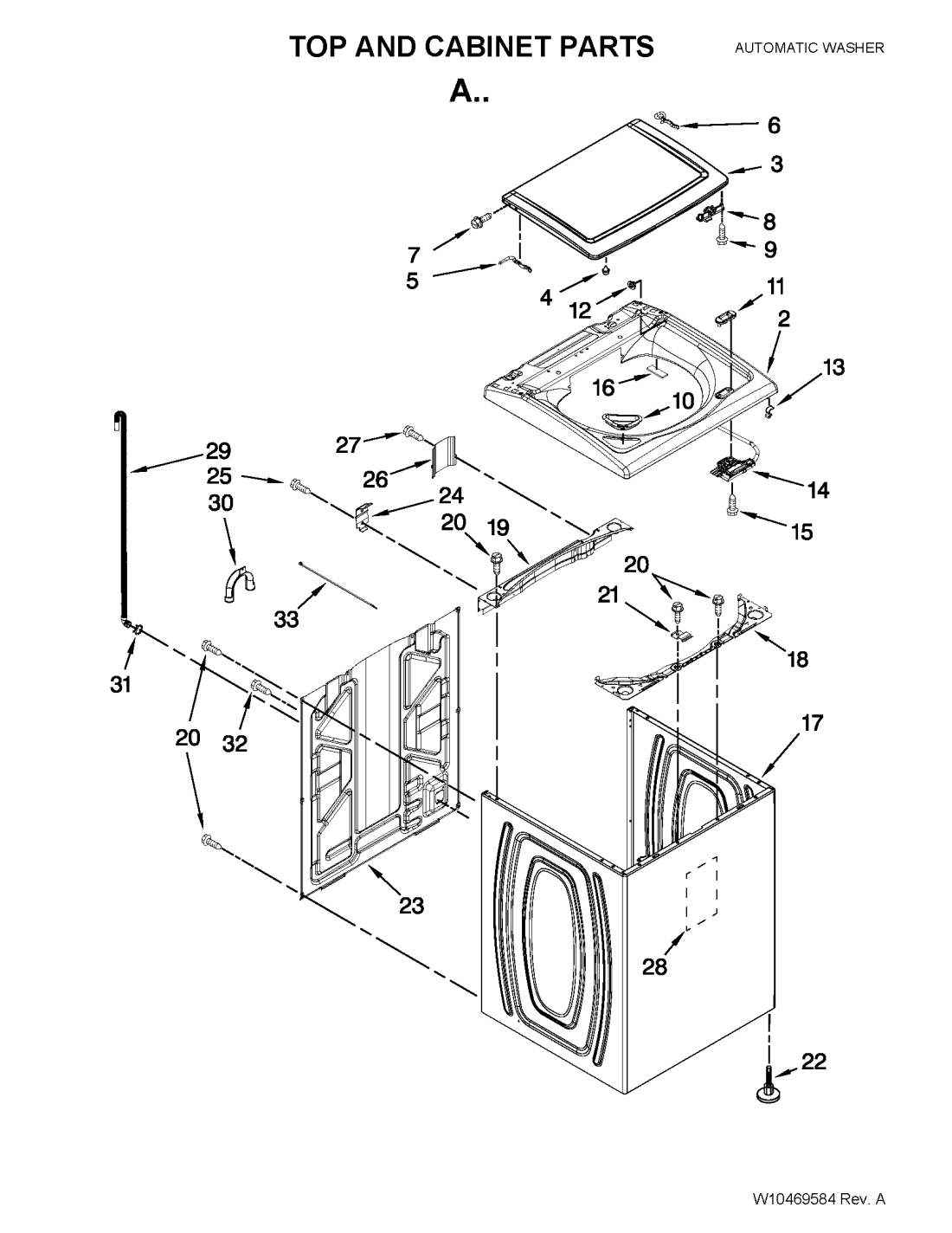

| A02 WHR01912 |
C00334598
482000012935 |
Lid inner | Na dotaz | Zadat poptávku | |
| A03 WHR01912 |
C00334599
482000012936 |
Lid outer | Na dotaz | Zadat poptávku | |
| A04 WHR01912 |
C00330920
481246668693 |
Damper cabinet lid | Na dotaz | Zadat poptávku | |
| A05 WHR01912 |
C00334545
482000012667 |
Hinge L H. | Na dotaz | Zadat poptávku | |
| A06 WHR01912 |
C00334546
482000012668 |
Hinge R.H. | Na dotaz | Zadat poptávku | |
| A07 WHR01912 |
C00320923
480110100251 |
W10119828 Screw. | Na dotaz | Zadat poptávku | |
| A08 WHR01912 |
C00318650
482000011381 |
Fixation lid lock | Na dotaz | Zadat poptávku | |
| A09 WHR01912 |
C00333994
482000010628 |
Screw | Na dotaz | Zadat poptávku | |
| A10 WHR01912 |
C00334547
482000012669 |
Dispenser bleach | Na dotaz | Zadat poptávku | |
| A11 WHR01912 |
C00317697
482000011383 |
Door lock | Na dotaz | Zadat poptávku | |
| A12 WHR01912 |
C00334548
482000012670 |
Bearing lid hinge, left. | Na dotaz | Zadat poptávku | |
| A12 WHR01912 |
C00334549
482000012671 |
Bearing lid hinge, right. | Na dotaz | Zadat poptávku | |
| A13 WHR01912 |
C00333177
481949268597 |
Clip fix harness | Na dotaz | Zadat poptávku | |
| A14 WHR01912 |
C00313324
482000011384 |
Lock | Na dotaz | Zadat poptávku | |
| A15 WHR01912 |
C00333733
482000007184 |
Screw | Na dotaz | Zadat poptávku | |
| A16 WHR01912 |
C00334600
482000012937 |
Pad lid hinge | Na dotaz | Zadat poptávku | |
| A17 WHR01912 |
C00334179
482000011386 |
Cabinet white | Na dotaz | Zadat poptávku | |
| A18 WHR01912 |
C00334180
482000011387 |
Brace side cabinet top front | Na dotaz | Zadat poptávku | |
| A19 WHR01912 |
C00334181
482000011388 |
Brace side cabinet top rear | Na dotaz | Zadat poptávku | |
| A20 WHR01912 |
C00320927
480110100505 |
Screw 8-18 x 3/8 | Na dotaz | Zadat poptávku | |
| A21 WHR01912 |
C00334182
482000011389 |
Lock plate top | Na dotaz | Zadat poptávku | |
| A22 WHR01912 |
C00334601
482000012938 |
Foot | Na dotaz | Zadat poptávku | |
| A23 WHR01912 |
C00334178
482000011385 |
Rear panel | Na dotaz | Zadat poptávku | |
| A24 WHR01912 |
C00334184
482000011391 |
Hinge top | Na dotaz | Zadat poptávku | |
| A25 WHR01912 |
C00334185
482000011392 |
Screw | Na dotaz | Zadat poptávku | |
| A26 WHR01912 |
C00334186
482000011393 |
Cover cable | Na dotaz | Zadat poptávku | |
| A27 WHR01912 |
C00332166
481250318003 |
Screw 10-32x5/8 | Na dotaz | Zadat poptávku | |
| A28 WHR01912 |
C00334602
482000012939 |
Insulation | Na dotaz | Zadat poptávku | |
| A29 WHR01912 |
C00334187
482000011394 |
Hose draining | Na dotaz | Zadat poptávku | |
| A30 WHR01912 |
C00334188
482000011395 |
Bow | Na dotaz | Zadat poptávku | |
| A31 WHR01912 |
C00332918
481940118546 |
Clamp hose | Na dotaz | Zadat poptávku | |
| A32 WHR01912 |
C00332158
481250238368 |
Screw 8-18x1/2 | Na dotaz | Zadat poptávku | |
| A33 WHR01912 |
C00334189
482000011396 |
Staple | Na dotaz | Zadat poptávku | |
| B01 WHR01912 |
C00334603
482000012940 |
Control panel | Na dotaz | Zadat poptávku | |
| B02 WHR01912 |
C00334604
482000012941 |
Knob control | Na dotaz | Zadat poptávku | |
| B03 WHR01912 |
C00316899
482000012942 |
User board | Na dotaz | Zadat poptávku | |
| B04 WHR01912 |
C00321210
480112100602 |
Screw 8-16x1/2 | Na dotaz | Zadat poptávku | |
| B05 WHR01912 |
C00320922
480110100224 |
Clip control panel | Na dotaz | Zadat poptávku | |
| B06 WHR01912 |
C00315856
482000012943 |
Control unit | Na dotaz | Zadat poptávku | |
| B07 WHR01912 |
C00334553
482000012681 |
Bracket | Na dotaz | Zadat poptávku | |
| B08 WHR01912 |
C00333204
481950218294 |
Screw | Na dotaz | Zadat poptávku | |
| B10 WHR01912 |
C00334554
482000012682 |
Seal control panel | Na dotaz | Zadat poptávku | |
| B11 WHR01912 |
C00334605
482000012944 |
Cable mains | Na dotaz | Zadat poptávku | |
| B13 WHR01912 |
C00334555
482000012684 |
Dispenser | Na dotaz | Zadat poptávku | |
| B14 WHR01912 |
C00334556
482000012685 |
Valve cold water inlet | Na dotaz | Zadat poptávku | |
| B15 WHR01912 |
C00334557
482000012686 |
Valve hot water inlet | Na dotaz | Zadat poptávku | |
| B16 WHR01912 |
C00334558
482000012687 |
Cable valve | Na dotaz | Zadat poptávku | |
| B17 WHR01912 |
C00320928
480110100535 |
Screw 10-16 x 9/16 | Na dotaz | Zadat poptávku | |
| B18 WHR01912 |
C00333236
481950318261 |
Screw 11-16x3/4 | Na dotaz | Zadat poptávku | |
| B19 WHR01912 |
C00334559
482000012688 |
Rail dispenser | Na dotaz | Zadat poptávku | |
| B20 WHR01912 |
C00334606
482000012945 |
Drawer | Na dotaz | Zadat poptávku | |
| B21 WHR01912 |
C00320926
480110100473 |
Screw 8-18 x 1/2 | Na dotaz | Zadat poptávku | |
| B23 WHR01912 |
C00334607
482000012946 |
Spacer knob | Na dotaz | Zadat poptávku | |
| B24 WHR01912 |
C00316533
480110100173 |
Clip knob | Na dotaz | Zadat poptávku | |
| B25 WHR01912 |
C00334560
482000012692 |
Clamping sleeve | Na dotaz | Zadat poptávku | |
| B26 WHR01912 |
C00334561
482000012695 |
Cable harness user board | Na dotaz | Zadat poptávku | |
| B27 WHR01912 |
C00311382
481254828033 |
3949383 Hose inlet blue | Na dotaz | Zadat poptávku | |
| B27 WHR01912 |
C00315634
481254828032 |
Hose inlet red | Na dotaz | Zadat poptávku | |
| B28 WHR01912 |
C00314694
481953238055 |
Inlet Hose Washer | Na dotaz | Zadat poptávku | |
| B29 WHR01912 |
C00313828
481931039637 |
ADAPTER | Na dotaz | Zadat poptávku | |
| B30 WHR01912 |
C00334173
482000011364 |
Washer | Na dotaz | Zadat poptávku | |
| B31 WHR01912 |
C00334608
482000012947 |
Interf filter. | Na dotaz | Zadat poptávku | |
| B32 WHR01912 |
C00334609
482000012948 |
Handle drawer | Na dotaz | Zadat poptávku | |
| C01 WHR01912 |
C00334610
482000012949 |
Spring | Na dotaz | Zadat poptávku | |
| C02 WHR01912 |
C00312931
480110100279 |
Screw 5/16-24 x 1 and washer | Na dotaz | Zadat poptávku | |
| C03 WHR01912 |
C00320854
481903949550 |
WASHER | Na dotaz | Zadat poptávku | |
| C04 WHR01912 |
C00334563
482000012698 |
Ring tub | Na dotaz | Zadat poptávku | |
| C05 WHR01912 |
C00334564
482000012699 |
Absorber | Na dotaz | Zadat poptávku | |
| C06 WHR01912 |
C00334611
482000012950 |
Impeller washplate | Na dotaz | Zadat poptávku | |
| C07 WHR01912 |
C00320930
480110100564 |
Screw 8-16 x 1.000 | Na dotaz | Zadat poptávku | |
| C08 WHR01912 |
C00334566
482000012701 |
Hub driven, basket | Na dotaz | Zadat poptávku | |
| C09 WHR01912 |
C00334567
482000012702 |
Block basket drive | Na dotaz | Zadat poptávku | |
| C10 WHR01912 |
C00334568
482000012703 |
Block basket drive | Na dotaz | Zadat poptávku | |
| C11 WHR01912 |
C00334569
482000012704 |
BASKET ASM - SS. | Na dotaz | Zadat poptávku | |
| C12 WHR01912 |
C00334570
482000012705 |
Tub | Na dotaz | Zadat poptávku | |
| C13 WHR01912 |
C00334206
482000011420 |
Shaft seal | Na dotaz | Zadat poptávku | |
| C14 WHR01912 |
C00334207
482000011421 |
Filter drain pump | Na dotaz | Zadat poptávku | |
| C15 WHR01912 |
C00320932
480110100581 |
Screw 8-18 x 3/4 | Na dotaz | Zadat poptávku | |
| C16 WHR01912 |
C00334612
482000012951 |
Damper | Na dotaz | Zadat poptávku | |
| C17 WHR01912 |
C00334613
482000012952 |
Bearing ball | Na dotaz | Zadat poptávku | |
| C18 WHR01912 |
C00334210
482000011424 |
Bushing | Na dotaz | Zadat poptávku | |
| C19 WHR01912 |
C00334572
482000012707 |
Cable harness lower | Na dotaz | Zadat poptávku | |
| C20 WHR01912 |
C00320929
480110100562 |
Hose Pressostat | Na dotaz | Zadat poptávku | |
| C21 WHR01912 |
C00320931
480110100571 |
Clamp | Na dotaz | Zadat poptávku | |
| C22 WHR01912 |
C00320934
480110100593 |
Screw 10-16 x 3/4 | Na dotaz | Zadat poptávku | |
| C23 WHR01912 |
C00334213
482000011427 |
Staple | Na dotaz | Zadat poptávku | |
| C24 WHR01912 |
C00334585
482000012745 |
Plate protect. | Na dotaz | Zadat poptávku | |
| C25 WHR01912 |
C00334214
482000011428 |
Screw | Na dotaz | Zadat poptávku | |
| D01 WHR01912 |
C00312834
482000011429 |
Pump draining | Na dotaz | Zadat poptávku | |
| D02 WHR01912 |
C00320933
480110100587 |
Screw 12-16 x 1-1/8 | Na dotaz | Zadat poptávku | |
| D03 WHR01912 |
C00334215
482000011430 |
Hose | Na dotaz | Zadat poptávku | |
| D04 WHR01912 |
C00320919
480110100165 |
Clamp | Na dotaz | Zadat poptávku | |
| D05 WHR01912 |
C00319236
482000012953 |
Box transmiss. | Na dotaz | Zadat poptávku | |
| D06 WHR01912 |
C00334217
482000011432 |
Screw | Na dotaz | Zadat poptávku | |
| D07 WHR01912 |
C00318674
482000012711 |
Motor | Na dotaz | Zadat poptávku | |
| D08 WHR01912 |
C00320935
480110100778 |
Bolt counterweight | Na dotaz | Zadat poptávku | |
| D09 WHR01912 |
C00334219
482000011434 |
Spring splutch | Na dotaz | Zadat poptávku | |
| D10 WHR01912 |
C00318654
482000011435 |
Regulator splutch | Na dotaz | Zadat poptávku | |
| D11 WHR01912 |
C00334220
482000011436 |
Ring cam, splutch. | Na dotaz | Zadat poptávku | |
| D12 WHR01912 |
C00314614
482000011437 |
Cam splutch | Na dotaz | Zadat poptávku | |
| D13 WHR01912 |
C00312461
482000011438 |
Kladka pračky Whirlpool | 1 245 Kč
€ 49.80 |
||
| D14 WHR01912 |
C00314011
482000011439 |
Nut pulley | Na dotaz | Zadat poptávku | |
| D15 WHR01912 |
C00312096
482000011440 |
Belt driving | Na dotaz | Zadat poptávku | |
| D16 WHR01912 |
C00334221
482000011441 |
Actuator | Na dotaz | Zadat poptávku | |
| D17 WHR01912 |
C00334222
482000011442 |
Screw | Na dotaz | Zadat poptávku | |
| D18 WHR01912 |
C00334223
482000011443 |
Capacitor | Na dotaz | Zadat poptávku | |
| D19 WHR01912 |
C00333229
481950318047 |
SCREW | Na dotaz | Zadat poptávku | |
| D20 WHR01912 |
C00312203
482000011444 |
Cover shield | Na dotaz | Zadat poptávku | |
| D21 WHR01912 |
C00334224
482000011445 |
Counter weight | Na dotaz | Zadat poptávku | |
| D22 WHR01912 |
C00318660
482000011446 |
Screw | Na dotaz | Zadat poptávku | |
