BAUKNECHT KSN 4T A+ IN
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | KSN 4T A+ IN |
| Kód 12NC: | 855086222000 |
| Značka: | BAUKNECHT |
| Typ produktu: | Volně stojící lednice s mrazákem |
Potřebujete servis? Jsme tady pro Vás

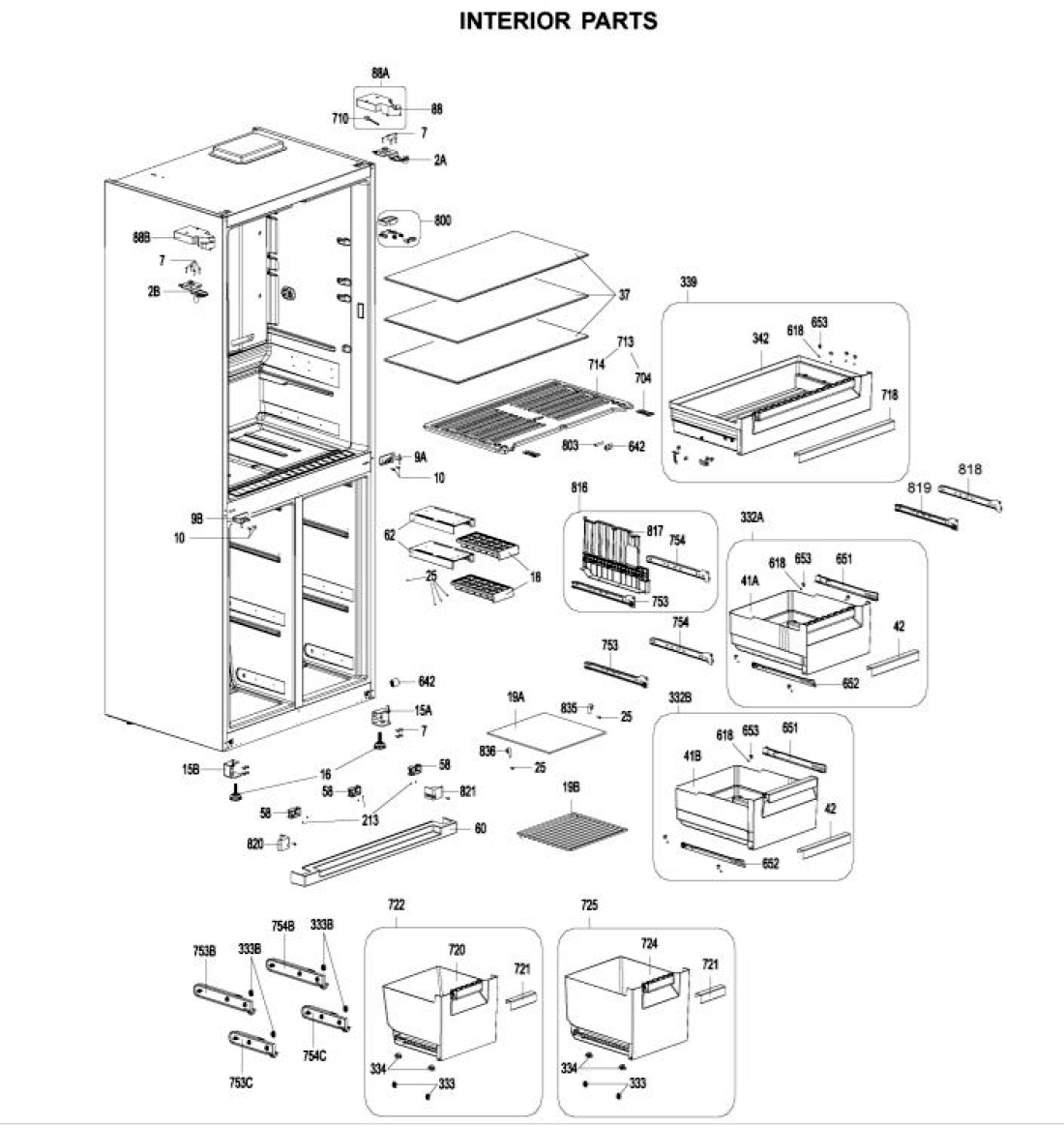

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002A WHR11340 |
C00416391
482000019075 |
Hinge upper left | Na dotaz | Zadat poptávku | |
| 002B WHR11340 |
C00416392
482000019076 |
Hinge upper right | Na dotaz | Zadat poptávku | |
| 007 WHR11340 |
C00416393
482000019077 |
Screw M5x14 | Na dotaz | Zadat poptávku | |
| 009A WHR11340 |
C00416394
482000019078 |
Hinge middle right | Na dotaz | Zadat poptávku | |
| 009B WHR11340 |
C00416395
482000019079 |
Hinge middle left | Na dotaz | Zadat poptávku | |
| 010 WHR11340 |
C00416396
482000019080 |
Screw TT M5x14 | Na dotaz | Zadat poptávku | |
| 015A WHR11340 |
C00416397
482000019081 |
Hinge lower right | Na dotaz | Zadat poptávku | |
| 015B WHR11340 |
C00416398
482000019082 |
Hinge lower left | Na dotaz | Zadat poptávku | |
| 016 WHR11340 |
C00299752
482000013075 |
Adjust. foot M10x40 Grey | Na dotaz | Zadat poptávku | |
| 018 WHR11340 |
C00410718
482000007772 |
Icecube tray | Na dotaz | Zadat poptávku | |
| 019A WHR11340 |
C00416399
482000019083 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 019B WHR11340 |
C00416400
482000019084 |
Shelf | Na dotaz | Zadat poptávku | |
| 025 WHR11340 |
C00416110
482000018670 |
Screw 40x13 YSB-R-C-INOX | Na dotaz | Zadat poptávku | |
| 037 WHR11340 |
C00416401
482000019085 |
Glass shelf | Na dotaz | Zadat poptávku | |
| 041A WHR11340 |
C00416402
482000019086 |
Crisper right | Na dotaz | Zadat poptávku | |
| 041B WHR11340 |
C00416403
482000019087 |
Crisper left | Na dotaz | Zadat poptávku | |
| 042 WHR11340 |
C00416404
482000019088 |
Trim crisper | Na dotaz | Zadat poptávku | |
| 058 WHR11340 |
C00285190
480132103336 |
PODLOŽKA DOLNÍ ZÁVĚS | Na dotaz | Zadat poptávku | |
| 060 WHR11340 |
C00416405
482000019089 |
Frame kickplate | Na dotaz | Zadat poptávku | |
| 062 WHR11340 |
C00416406
482000019090 |
Cover ice tray | Na dotaz | Zadat poptávku | |
| 070 WHR11340 |
C00410597
482000007557 |
Screw Inox | Na dotaz | Zadat poptávku | |
| 088 WHR11340 |
C00416407
482000019091 |
Cover hinge upper right | Na dotaz | Zadat poptávku | |
| 088A WHR11340 |
C00416408
482000019092 |
Cover hinge upper right cpl. | Na dotaz | Zadat poptávku | |
| 088B WHR11340 |
C00416409
482000019093 |
Cover hinge upper left | Na dotaz | Zadat poptávku | |
| 153A WHR11340 |
C00416410
482000019094 |
Door freezer left | Na dotaz | Zadat poptávku | |
| 153B WHR11340 |
C00416411
482000019095 |
Door freezer right | Na dotaz | Zadat poptávku | |
| 154 WHR11340 |
C00419047
482000025848 |
Nameplate Bauknecht | Na dotaz | Zadat poptávku | |
| 155A WHR11340 |
C00416412
482000019096 |
Door refriger. left | Na dotaz | Zadat poptávku | |
| 155B WHR11340 |
C00416413
482000019097 |
Door refriger. right | Na dotaz | Zadat poptávku | |
| 156 WHR11340 |
C00416414
482000019098 |
Shelf flap | Na dotaz | Zadat poptávku | |
| 157 WHR11340 |
C00416415
482000019099 |
Rack | Na dotaz | Zadat poptávku | |
| 159 WHR11340 |
C00345125
482000019100 |
Egg rack | Na dotaz | Zadat poptávku | |
| 160 WHR11340 |
C00416416
482000019101 |
Rod shelf | Na dotaz | Zadat poptávku | |
| 171 WHR11340 |
C00416417
482000019102 |
Door stop right | Na dotaz | Zadat poptávku | |
| 173 WHR11340 |
C00416418
482000019103 |
Door stop left | Na dotaz | Zadat poptávku | |
| 195 WHR11340 |
C00416419
482000019104 |
Screw ST 3.5x13 | Na dotaz | Zadat poptávku | |
| 200 WHR11340 |
C00416420
482000019105 |
Display board | Na dotaz | Zadat poptávku | |
| 201 WHR11340 |
C00416421
482000019106 |
Condenser | Na dotaz | Zadat poptávku | |
| 203 WHR11340 |
C00345215
482000018659 |
Spacer | Na dotaz | Zadat poptávku | |
| 205 WHR11340 |
C00402055
481240449788 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 207 WHR11340 |
C00330791
481246368025 |
Resonator | Na dotaz | Zadat poptávku | |
| 210 WHR11340 |
C00413990
482000014131 |
Cable mains | Na dotaz | Zadat poptávku | |
| 211A WHR11340 |
C00416422
482000019107 |
Electronic box VCC Compressor | Na dotaz | Zadat poptávku | |
| 211B WHR11340 |
C00416423
482000019108 |
Overload prot. | Na dotaz | Zadat poptávku | |
| 212B WHR11340 |
C00394356
480132102476 |
Kondenzátor | 574 Kč
€ 22.70 |
||
| 213 WHR11340 |
C00416424
482000019109 |
Screw ST 4.2x9.5 | Na dotaz | Zadat poptávku | |
| 214 WHR11340 |
C00416425
482000019110 |
Tray leak | Na dotaz | Zadat poptávku | |
| 215 WHR11340 |
C00416426
482000019111 |
Dryer filter | Na dotaz | Zadat poptávku | |
| 216 WHR11340 |
C00513218
482000007565 |
Holder | Na dotaz | Zadat poptávku | |
| 217A WHR11340 |
C00416428
482000019113 |
Compressor VEMX9C, VCC | Na dotaz | Zadat poptávku | |
| 217B WHR11340 |
C00416427
482000019112 |
Compressor HXK55AA | Na dotaz | Zadat poptávku | |
| 218 WHR11340 |
C00416429
482000019114 |
Base compressor | Na dotaz | Zadat poptávku | |
| 218B WHR11340 |
C00416430
482000019115 |
Rail | Na dotaz | Zadat poptávku | |
| 219 WHR11340 |
C00416431
482000019116 |
Wire | Na dotaz | Zadat poptávku | |
| 220 WHR11340 |
C00416107
482000018666 |
Nut M4x3.2 DIN 934 ZNK | Na dotaz | Zadat poptávku | |
| 221 WHR11340 |
C00513150
482000018667 |
Washer 4.3x8x0.9 DIN 6798 | Na dotaz | Zadat poptávku | |
| 222 WHR11340 |
C00416108
482000018668 |
Screw M4x16 AKB-F | Na dotaz | Zadat poptávku | |
| 224 WHR11340 |
C00416109
482000018669 |
Screw KA50x14 YSB-F | Na dotaz | Zadat poptávku | |
| 225 WHR11340 |
C00287942
480132103191 |
Tube LOKRING (105*6*0,7)TYPE B | Na dotaz | Zadat poptávku | |
| 226 WHR11340 |
C00306237
480132103192 |
Tube | Na dotaz | Zadat poptávku | |
| 227 WHR11340 |
C00330654
481246238225 |
Roller | Na dotaz | Zadat poptávku | |
| 228 WHR11340 |
C00280300
480132101057 |
Axle Roller | Na dotaz | Zadat poptávku | |
| 230 WHR11340 |
C00416432
482000019117 |
Fan | Na dotaz | Zadat poptávku | |
| 242 WHR11340 |
C00416433
482000019118 |
Control board | Na dotaz | Zadat poptávku | |
| 244 WHR11340 |
C00416434
482000019119 |
Cover | Na dotaz | Zadat poptávku | |
| 332A WHR11340 |
C00416435
482000019120 |
Crisper right cpl. | Na dotaz | Zadat poptávku | |
| 332B WHR11340 |
C00416436
482000019121 |
Crisper left cpl. | Na dotaz | Zadat poptávku | |
| 333 WHR11340 |
C00281750
480132102192 |
KOLEČKO DRAWER CHILLER | Na dotaz | Zadat poptávku | |
| 333B WHR11340 |
C00416437
482000019122 |
Roller | Na dotaz | Zadat poptávku | |
| 334 WHR11340 |
C00281752
480132102193 |
PODPĚRA KOLEČKO DRAWER | Na dotaz | Zadat poptávku | |
| 339 WHR11340 |
C00416438
482000019123 |
Tray chiller cpl. | Na dotaz | Zadat poptávku | |
| 342 WHR11340 |
C00416439
482000019124 |
Tray chiller | Na dotaz | Zadat poptávku | |
| 400A WHR11340 |
C00416440
482000019125 |
Evaporator kit right | Na dotaz | Zadat poptávku | |
| 400B WHR11340 |
C00416441
482000019126 |
Evaporator kit left | Na dotaz | Zadat poptávku | |
| 401A WHR11340 |
C00416442
482000019127 |
Evaporator | Na dotaz | Zadat poptávku | |
| 401B WHR11340 |
C00416443
482000019128 |
Evaporator | Na dotaz | Zadat poptávku | |
| 407 WHR11340 |
C00306398
482000019129 |
VENTILÁTOR S MOTOREM | Na dotaz | Zadat poptávku | |
| 408A WHR11340 |
C00416444
482000019130 |
Conveyor freezer right | Na dotaz | Zadat poptávku | |
| 408B WHR11340 |
C00416445
482000019131 |
Conveyor freezer left | Na dotaz | Zadat poptávku | |
| 409 WHR11340 |
C00306457
482000002948 |
VRTULE | Na dotaz | Zadat poptávku | |
| 411 WHR11340 |
C00306444
482000002956 |
PODPĚRA MOTORU VENTILÁTORU | Na dotaz | Zadat poptávku | |
| 413 WHR11340 |
C00306402
482000002949 |
Motor fan | Na dotaz | Zadat poptávku | |
| 415 WHR11340 |
C00416446
482000019132 |
Cover | Na dotaz | Zadat poptávku | |
| 427A WHR11340 |
C00416447
482000019133 |
Insulation right | Na dotaz | Zadat poptávku | |
| 427B WHR11340 |
C00416448
482000019134 |
Insulation left | Na dotaz | Zadat poptávku | |
| 428A WHR11340 |
C00416449
482000019135 |
Conveyor refriger. right cpl. | Na dotaz | Zadat poptávku | |
| 428B WHR11340 |
C00416450
482000019136 |
Conveyor refriger. left cpl. | Na dotaz | Zadat poptávku | |
| 429A WHR11340 |
C00416451
482000019137 |
Conveyor refriger. right | Na dotaz | Zadat poptávku | |
| 429B WHR11340 |
C00416452
482000019138 |
Conveyor refriger. left | Na dotaz | Zadat poptávku | |
| 433 WHR11340 |
C00376914
480132100183 |
Sensor Defrost | Na dotaz | Zadat poptávku | |
| 433B WHR11340 |
C00306415
482000019139 |
Sensor ambient/electromechanic | Na dotaz | Zadat poptávku | |
| 449 WHR11340 |
C00345179
480131100432 |
Cap | Na dotaz | Zadat poptávku | |
| 459 WHR11340 |
C00416453
482000019140 |
Gasket.fre.door | Na dotaz | Zadat poptávku | |
| 460 WHR11340 |
C00416454
482000019141 |
Gasket ref.door | Na dotaz | Zadat poptávku | |
| 499 WHR11340 |
C00345029
482000001630 |
Thermal fuse | Na dotaz | Zadat poptávku | |
| 500 WHR11340 |
C00408122
482000002958 |
Support motor | Na dotaz | Zadat poptávku | |
| 501A WHR11340 |
C00416455
482000019142 |
Insulation 3 rows | Na dotaz | Zadat poptávku | |
| 501B WHR11340 |
C00416456
482000019143 |
Insulation 2 rows | Na dotaz | Zadat poptávku | |
| 532A WHR11340 |
C00416457
482000019144 |
heater def right/20W 910 | Na dotaz | Zadat poptávku | |
| 542A WHR11340 |
C00416458
482000019145 |
Heating element freezer right/20W 910 | Na dotaz | Zadat poptávku | |
| 542B WHR11340 |
C00416459
482000019146 |
Heating element freezer left/20W 910 | Na dotaz | Zadat poptávku | |
| 545 WHR11340 |
C00416460
482000019147 |
Cover sensor | Na dotaz | Zadat poptávku | |
| 618 WHR11340 |
C00416461
482000019148 |
Screw 30x8 | Na dotaz | Zadat poptávku | |
| 624 WHR11340 |
C00416462
482000019149 |
Holder sensor | Na dotaz | Zadat poptávku | |
| 626 WHR11340 |
C00306453
482000002957 |
FREEZER FAN MOTOR RUBBER | Na dotaz | Zadat poptávku | |
| 642 WHR11340 |
C00411852
482000010035 |
Wheel | Na dotaz | Zadat poptávku | |
| 651 WHR11340 |
C00416463
482000019150 |
Rail | Na dotaz | Zadat poptávku | |
| 652 WHR11340 |
C00416464
482000019151 |
Rail | Na dotaz | Zadat poptávku | |
| 653 WHR11340 |
C00416465
482000019152 |
Pin | Na dotaz | Zadat poptávku | |
| 654 WHR11340 |
C00416466
482000019153 |
Contact reed | Na dotaz | Zadat poptávku | |
| 704 WHR11340 |
C00416467
482000019154 |
Clamp | Na dotaz | Zadat poptávku | |
| 710 WHR11340 |
C00416468
482000019155 |
Sensor night | Na dotaz | Zadat poptávku | |
| 713 WHR11340 |
C00416469
482000019156 |
Shelf bottom cpl. | Na dotaz | Zadat poptávku | |
| 714 WHR11340 |
C00416470
482000019157 |
Shelf bottom | Na dotaz | Zadat poptávku | |
| 718 WHR11340 |
C00416471
482000019158 |
Trim | Na dotaz | Zadat poptávku | |
| 720 WHR11340 |
C00416472
482000019159 |
Crisper bottom | Na dotaz | Zadat poptávku | |
| 721 WHR11340 |
C00416473
482000019160 |
Trim crisper | Na dotaz | Zadat poptávku | |
| 722 WHR11340 |
C00416474
482000019161 |
Crisper bottom cpl. | Na dotaz | Zadat poptávku | |
| 724 WHR11340 |
C00416475
482000019162 |
Crisper Top | Na dotaz | Zadat poptávku | |
| 725 WHR11340 |
C00416476
482000019163 |
Crisper Top cpl. | Na dotaz | Zadat poptávku | |
| 753 WHR11340 |
C00416477
482000019164 |
Rail right | Na dotaz | Zadat poptávku | |
| 753B WHR11340 |
C00416478
482000019165 |
Rail Guide freezer Top right | Na dotaz | Zadat poptávku | |
| 753C WHR11340 |
C00416479
482000019166 |
Kolejnicový mrazák Spodní pravý | Na dotaz | Zadat poptávku | |
| 754 WHR11340 |
C00416480
482000019167 |
Rail left | Na dotaz | Zadat poptávku | |
| 754B WHR11340 |
C00416481
482000019168 |
Kolejnicový mrazák Horní levý | Na dotaz | Zadat poptávku | |
| 754C WHR11340 |
C00416482
482000019169 |
Rail Guide freezer Bottom left | Na dotaz | Zadat poptávku | |
| 800 WHR11340 |
C00416483
482000019170 |
Door lock refriger. upper | Na dotaz | Zadat poptávku | |
| 803 WHR11340 |
C00416484
482000019171 |
Pin | Na dotaz | Zadat poptávku | |
| 804 WHR11340 |
C00416485
482000019172 |
Grille freezer air duct | Na dotaz | Zadat poptávku | |
| 805 WHR11340 |
C00416486
482000019173 |
Conveyor refriger. upper | Na dotaz | Zadat poptávku | |
| 806 WHR11340 |
C00416487
482000019174 |
Conveyor refriger. lower | Na dotaz | Zadat poptávku | |
| 807 WHR11340 |
C00416488
482000019175 |
Shield refriger. conveyor | Na dotaz | Zadat poptávku | |
| 808 WHR11340 |
C00416489
482000019176 |
Heating element refriger. 12V-3W | Na dotaz | Zadat poptávku | |
| 809 WHR11340 |
C00416490
482000019177 |
Insulation refriger. | Na dotaz | Zadat poptávku | |
| 810 WHR11340 |
C00416491
482000019178 |
LED páska lednice | Na dotaz | Zadat poptávku | |
| 811 WHR11340 |
C00416492
482000019179 |
Gasket middle channel | Na dotaz | Zadat poptávku | |
| 812 WHR11340 |
C00416493
482000019180 |
Gasket right channel | Na dotaz | Zadat poptávku | |
| 813 WHR11340 |
C00416494
482000019181 |
Device mounting rear | Na dotaz | Zadat poptávku | |
| 814 WHR11340 |
C00416495
482000019182 |
Conveyor air middle, cpl. | Na dotaz | Zadat poptávku | |
| 815 WHR11340 |
C00419046
482000025847 |
Cover front Multiflow ALUGRPaint | Na dotaz | Zadat poptávku | |
| 816 WHR11340 |
C00416497
482000019184 |
Separator set crisper small | Na dotaz | Zadat poptávku | |
| 817 WHR11340 |
C00416498
482000019185 |
Separator refriger. | Na dotaz | Zadat poptávku | |
| 818 WHR11340 |
C00416499
482000019186 |
Rail telescopic right | Na dotaz | Zadat poptávku | |
| 819 WHR11340 |
C00416500
482000019187 |
Rail telescopic left | Na dotaz | Zadat poptávku | |
| 820 WHR11340 |
C00416501
482000019188 |
Cover hinge bottom left | Na dotaz | Zadat poptávku | |
| 821 WHR11340 |
C00416502
482000019189 |
Cover hinge bottom right | Na dotaz | Zadat poptávku | |
| 822 WHR11340 |
C00416503
482000019190 |
Trim door refriger. | Na dotaz | Zadat poptávku | |
| 824A WHR11340 |
C00416504
482000019191 |
Door handle upper left cpl. | Na dotaz | Zadat poptávku | |
| 824B WHR11340 |
C00416505
482000019192 |
Door handle upper right cpl. | Na dotaz | Zadat poptávku | |
| 824C WHR11340 |
C00416506
482000019193 |
Door handle bottom left cpl. | Na dotaz | Zadat poptávku | |
| 824D WHR11340 |
C00416507
482000019194 |
Door handle bottom right cpl. | Na dotaz | Zadat poptávku | |
| 825A WHR11340 |
C00416508
482000019195 |
Klika dvířek LED vlevo nahoře | Na dotaz | Zadat poptávku | |
| 825B WHR11340 |
C00416509
482000019196 |
Klika dvířek LED vpravo | Na dotaz | Zadat poptávku | |
| 825C WHR11340 |
C00416510
482000019197 |
Klika dvířek LED vlevo dole | Na dotaz | Zadat poptávku | |
| 825D WHR11340 |
C00416511
482000019198 |
Klika dvířek LED vpravo dole | Na dotaz | Zadat poptávku | |
| 826A WHR11340 |
C00416512
482000019199 |
LED pásek, klika dveří | Na dotaz | Zadat poptávku | |
| 826B WHR11340 |
C00416513
482000019200 |
LED pásek, vnitřní dveře | Na dotaz | Zadat poptávku | |
| 827A WHR11340 |
C00416514
482000019201 |
Door handle upper left | Na dotaz | Zadat poptávku | |
| 827B WHR11340 |
C00416515
482000019202 |
Door handle upper right | Na dotaz | Zadat poptávku | |
| 827C WHR11340 |
C00416516
482000019203 |
Door handle bottom left | Na dotaz | Zadat poptávku | |
| 827D WHR11340 |
C00416517
482000019204 |
Door handle bottom right | Na dotaz | Zadat poptávku | |
| 828 WHR11340 |
C00416518
482000019205 |
Support door handle | Na dotaz | Zadat poptávku | |
| 829 WHR11340 |
C00416519
482000019206 |
Screw TT M4x17 | Na dotaz | Zadat poptávku | |
| 830A WHR11340 |
C00416520
482000019207 |
Cover door handle, upper left | Na dotaz | Zadat poptávku | |
| 830B WHR11340 |
C00416521
482000019208 |
Cover door handle, upper right | Na dotaz | Zadat poptávku | |
| 830C WHR11340 |
C00416522
482000019209 |
Cover door handle, bottom left | Na dotaz | Zadat poptávku | |
| 830D WHR11340 |
C00416523
482000019210 |
Cover door handle, bottom right | Na dotaz | Zadat poptávku | |
| 831 WHR11340 |
C00416524
482000019211 |
Housing hinge | Na dotaz | Zadat poptávku | |
| 832 WHR11340 |
C00416525
482000019212 |
Cover hinge | Na dotaz | Zadat poptávku | |
| 833 WHR11340 |
C00416526
482000019213 |
LED pásek, vnitřní dveře | Na dotaz | Zadat poptávku | |
| 834 WHR11340 |
C00416527
482000019214 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 835 WHR11340 |
C00416528
482000019215 |
Lock freezer shelf right | Na dotaz | Zadat poptávku | |
| 836 WHR11340 |
C00416529
482000019216 |
Lock freezer shelf left | Na dotaz | Zadat poptávku | |
| 999 WHR11340 |
C00379474
482000019217 |
Display Lifter Suction Tool (not shown) | Na dotaz | Zadat poptávku | |
| 999 WHR11340 |
C00511268
482000096609 |
Valve BI-STABLE I.C.=2,15 | Na dotaz | Zadat poptávku | |
| 999 WHR11344 |
C00541519 | Board diagram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR11344 |
C00541522 | NTC/PTC Chart WHP | Na dotaz | Zadat poptávku | |
| 999 WHR11344 |
C00541523 | Testprogram WHP | Na dotaz | Zadat poptávku | |
| 999 WHR11344 |
C00541525 | Function Flow Chart WHP | Na dotaz | Zadat poptávku | |
