WHIRLPOOL AKM 298 IX
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AKM 298 IX |
| Kód 12NC/I.C. kód: | 857129838000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Vestavné trouby a varné desky |
Potřebujete servis? Jsme tady pro Vás

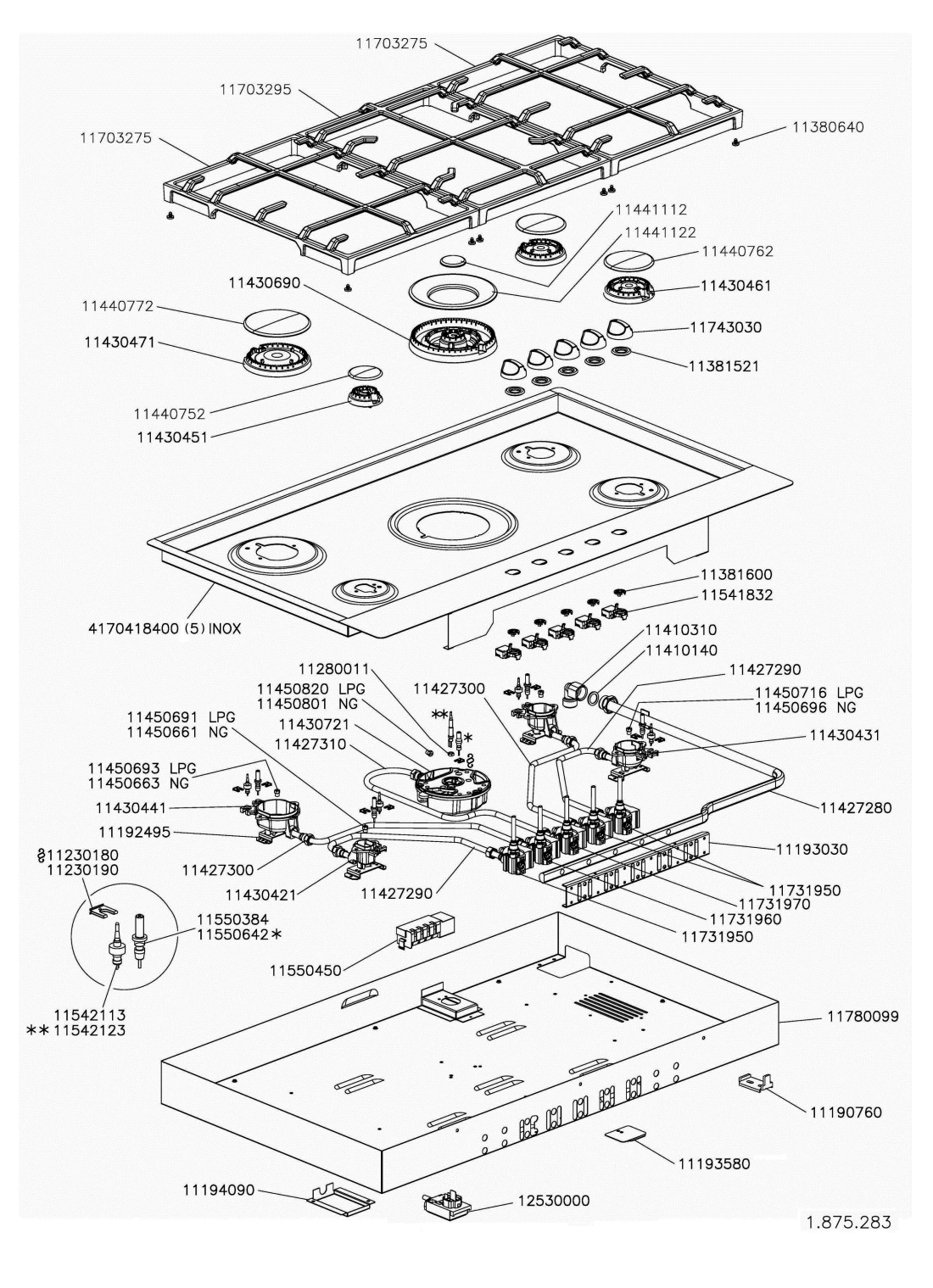

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 11190760 WHR11618 |
C00113469
481240478832 |
FIXING BRACKET | Na dotaz | Zadat poptávku | |
| 11192495 WHR11618 |
C00416549
482000019248 |
Support burner | Na dotaz | Zadat poptávku | |
| 11193030 WHR11618 |
C00416532
482000019229 |
Bracket Gas cock | Na dotaz | Zadat poptávku | |
| 11193580 WHR11618 |
C00416533
482000019230 |
Cover base | Na dotaz | Zadat poptávku | |
| 11194090 WHR11618 |
C00416534
482000019231 |
Cover terminal block | Na dotaz | Zadat poptávku | |
| 11230180 WHR11618 |
C00345755
481249258043 |
Spring spark plug/thermocouple | Na dotaz | Zadat poptávku | |
| 11230190 WHR11618 |
C00267205
481244048355 |
SPRING | Na dotaz | Zadat poptávku | |
| 11280011 WHR11618 |
C00332177
481250518404 |
Thermocouple nut | Na dotaz | Zadat poptávku | |
| 11380640 WHR11618 |
C00330797
481246378011 |
grille rubber | Na dotaz | Zadat poptávku | |
| 11381521 WHR11618 |
C00277039
482000002664 |
Držák knoflíku | Na dotaz | Zadat poptávku | |
| 11381600 WHR11618 |
C00416535
482000019232 |
Ring ignition switch | Na dotaz | Zadat poptávku | |
| 11410140 WHR11618 |
C00332675
481253268097 |
Těsnění | Na dotaz | Zadat poptávku | |
| 11410310 WHR11618 |
C00332506
481253048294 |
Spojka kónická | Na dotaz | Zadat poptávku | |
| 11427280 WHR11618 |
C00416550
482000019249 |
Manifold | Na dotaz | Zadat poptávku | |
| 11427290 WHR11618 |
C00416551
482000019250 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11427300 WHR11618 |
C00416552
482000019251 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11427310 WHR11618 |
C00416536
482000019233 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 11430421 WHR11618 |
C00328765
481236078104 |
Malý hořák | Na dotaz | Zadat poptávku | |
| 11430431 WHR11618 |
C00328766
481236078105 |
Burner medium | Na dotaz | Zadat poptávku | |
| 11430441 WHR11618 |
C00328767
481236078106 |
Burner cup | Na dotaz | Zadat poptávku | |
| 11430451 WHR11618 |
C00328655
481236068521 |
Spreader,burner small | Na dotaz | Zadat poptávku | |
| 11430461 WHR11618 |
C00328656
481236068522 |
Spreader,burner medium | Na dotaz | Zadat poptávku | |
| 11430471 WHR11618 |
C00328657
481236068523 |
Spreader,burner rapid | Na dotaz | Zadat poptávku | |
| 11430690 WHR11618 |
C00321838
480121100282 |
Spreader,burner DR | Na dotaz | Zadat poptávku | |
| 11430721 WHR11618 |
C00321837
480121100281 |
Burner double ring | Na dotaz | Zadat poptávku | |
| 11440752 WHR11618 |
C00328658
481236068525 |
Burner cap small | Na dotaz | Zadat poptávku | |
| 11440762 WHR11618 |
C00328659
481236068526 |
Burner cap medium | Na dotaz | Zadat poptávku | |
| 11440772 WHR11618 |
C00328660
481236068527 |
Burner cap rapid | Na dotaz | Zadat poptávku | |
| 11441112 WHR11618 |
C00321890
480121100459 |
Burner cap | Na dotaz | Zadat poptávku | |
| 11441122 WHR11618 |
C00321889
480121100458 |
Burner | Na dotaz | Zadat poptávku | |
| 11450661 WHR11618 |
C00267215
481231038823 |
TRYSKA D= 77 GN | Na dotaz | Zadat poptávku | |
| 11450663 WHR11618 |
C00267216
481231038824 |
TRYSKA D= 129 GN | Na dotaz | Zadat poptávku | |
| 11450691 WHR11618 |
C00267219
481231038825 |
TRYSKA D=50 GPL | Na dotaz | Zadat poptávku | |
| 11450693 WHR11618 |
C00267218
481231038826 |
TRYSKA D= 87 GPL | Na dotaz | Zadat poptávku | |
| 11450696 WHR11618 |
C00274935
481231038827 |
TRYSKA GN D=1.01 | Na dotaz | Zadat poptávku | |
| 11450716 WHR11618 |
C00274946
481231038828 |
GAS JET SMALL (066) - LPG | Na dotaz | Zadat poptávku | |
| 11450801 WHR11618 |
C00308698
482000019237 |
TRYSKA GN D=1.50 | Na dotaz | Zadat poptávku | |
| 11450820 WHR11618 |
C00308689
482000019238 |
TRYSKA 1.02 GPL | Na dotaz | Zadat poptávku | |
| 11541832 WHR11618 |
C00416540
482000019239 |
Ignition generator | Na dotaz | Zadat poptávku | |
| 11542113 WHR11618 |
C00326863
481213838016 |
Thermo couple L=600mm | Na dotaz | Zadat poptávku | |
| 11542123 WHR11618 |
C00317778
480121100291 |
Thermo couple L=450mm | Na dotaz | Zadat poptávku | |
| 11550384 WHR11618 |
C00321840
480121100288 |
Spark plug A-SR-R | Na dotaz | Zadat poptávku | |
| 11550450 WHR11618 |
C00321842
480121100293 |
Generator | Na dotaz | Zadat poptávku | |
| 11550642 WHR11618 |
C00287420
482000002672 |
ZAPALOVACÍ SVÍČKA TROJITÁ KORUNA | Na dotaz | Zadat poptávku | |
| 11703275 WHR11618 |
C00416553
482000019252 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 11703295 WHR11618 |
C00416542
482000019241 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 11731950 WHR11618 |
C00416543
482000019242 |
Gas cock 0.34 | Na dotaz | Zadat poptávku | |
| 11731960 WHR11618 |
C00416544
482000019243 |
Gas cock 0.43 | Na dotaz | Zadat poptávku | |
| 11731970 WHR11618 |
C00416545
482000019244 |
Gas cock 0.64 | Na dotaz | Zadat poptávku | |
| 11743030 WHR11618 |
C00416546
482000019245 |
Knob | Na dotaz | Zadat poptávku | |
| 11780099 WHR11618 |
C00416554
482000019253 |
Cabinet hob | Na dotaz | Zadat poptávku | |
| 12530000 WHR11618 |
C00322176
480121102442 |
Svorkovnice+upevnění kabelu 16A | 438 Kč
€ 17.50 |
||
| 4170418400 WHR11618 |
C00416555
482000019254 |
Hob | Na dotaz | Zadat poptávku | |
