| Komerční kód: | ACM 992 IX |
| Kód 12NC: | 857699226000 |
| I.C. kód: | 857699226001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
| Další podobné modely: | 857699226000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

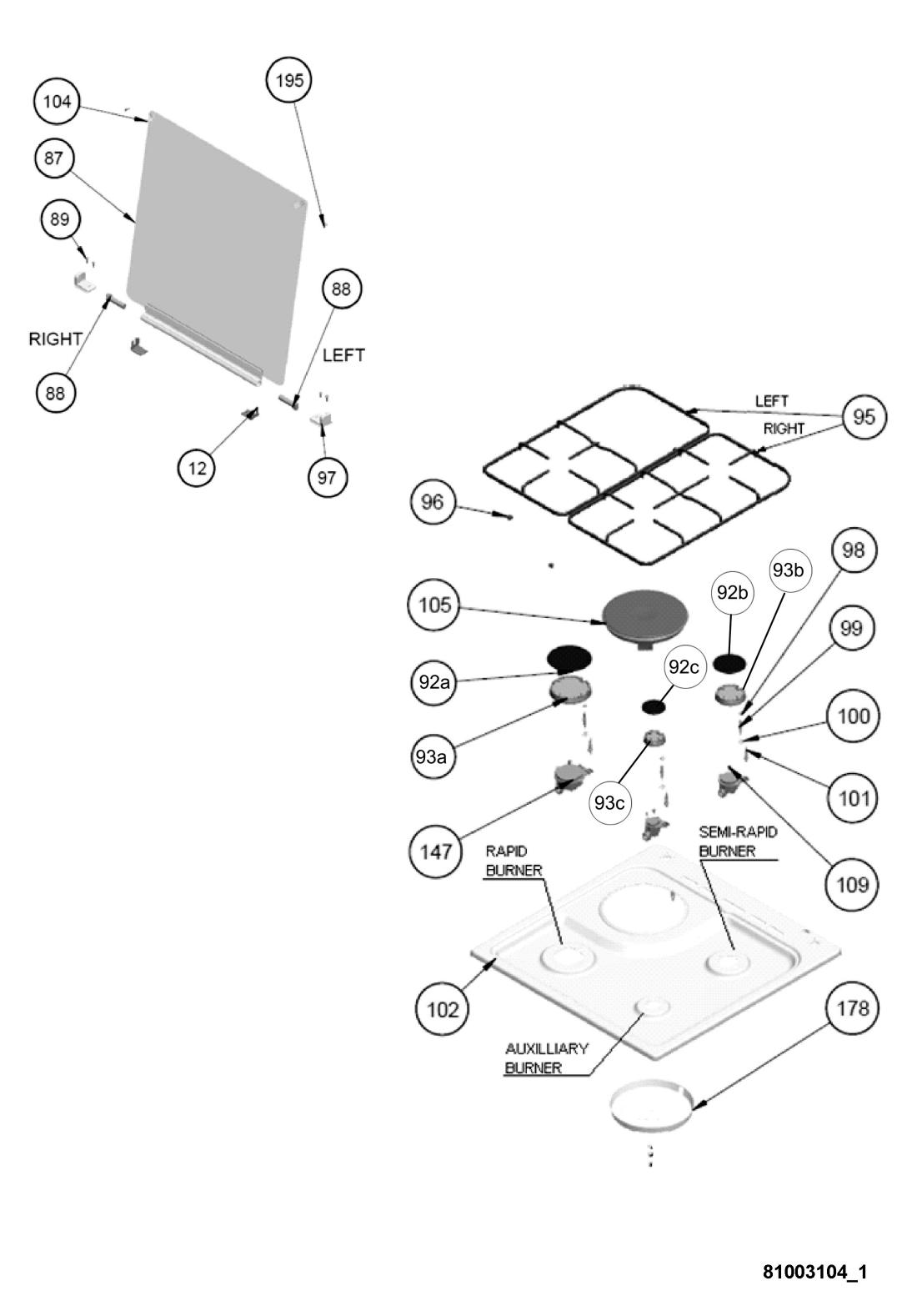

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 100 WHR30787 |
C00389994
480121101302 |
Bracket | Na dotaz | Zadat poptávku | |
| 101 WHR30787 |
C00376852
480121101303 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 102 WHR30787 |
C00389995
480121101304 |
Hob plate | Na dotaz | Zadat poptávku | |
| 104 WHR30787 |
C00390118
480121101457 |
Damping part lid | Na dotaz | Zadat poptávku | |
| 105 WHR30787 |
C00389996
480121101305 |
Cooking plate 180mm 1500W | Na dotaz | Zadat poptávku | |
| 107 WHR30787 |
C00389998
480121101307 |
Washer flat | Na dotaz | Zadat poptávku | |
| 107 WHR30787 |
C00389997
480121101306 |
Washer d6 | Na dotaz | Zadat poptávku | |
| 109 WHR30787 |
C00390121
480121101459 |
Set of nozzles G20-20 mbar | Na dotaz | Zadat poptávku | |
| 109 WHR30787 |
C00390126
480121101461 |
Set of nozzles G30-28/30 mbar | Na dotaz | Zadat poptávku | |
| 110 WHR30787 |
C00389999
480121101308 |
Heating element lower heat 1100W | Na dotaz | Zadat poptávku | |
| 112 WHR30787 |
C00391583
480121104794 |
Heating element TOP | Na dotaz | Zadat poptávku | |
| 113 WHR30787 |
C00391581
480121104792 |
Timer | Na dotaz | Zadat poptávku | |
| 114 WHR30787 |
C00390002
480121101312 |
Bracket | Na dotaz | Zadat poptávku | |
| 12 WHR30787 |
C00389949
480121101245 |
Hinge run.mech. right | Na dotaz | Zadat poptávku | |
| 12 WHR30787 |
C00389950
480121101246 |
Hinge run.mech. left | Na dotaz | Zadat poptávku | |
| 12 WHR30787 |
C00390112
480121101449 |
Hingehalf glass lid | Na dotaz | Zadat poptávku | |
| 122 WHR30787 |
C00390003
480121101313 |
Display | Na dotaz | Zadat poptávku | |
| 124 WHR30787 |
C00390004
480121101314 |
Holder Display | Na dotaz | Zadat poptávku | |
| 137 WHR30787 |
C00391593
480121104805 |
Switch TIMER | Na dotaz | Zadat poptávku | |
| 147 WHR30787 |
C00390009
480121101318 |
Burner body A | Na dotaz | Zadat poptávku | |
| 147 WHR30787 |
C00390008
480121101317 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 147 WHR30787 |
C00390007
480121101316 |
Burner body R | Na dotaz | Zadat poptávku | |
| 15 WHR30787 |
C00390293
480121101716 |
Baking tray deep | Na dotaz | Zadat poptávku | |
| 15 WHR30787 |
C00406675
482000000054 |
Tray 60*60cm, 8cm | Na dotaz | Zadat poptávku | |
| 16 WHR30787 |
C00389952
480121101248 |
Gasket door | Na dotaz | Zadat poptávku | |
| 17 WHR30787 |
C00391042
480121103003 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 178 WHR30787 |
C00390010
480121101319 |
Bracket 180 mm | Na dotaz | Zadat poptávku | |
| 18 WHR30787 |
C00389954
480121101251 |
Bracket thermostat | Na dotaz | Zadat poptávku | |
| 195 WHR30787 |
C00390120
480121101458 |
Damping part silicone | Na dotaz | Zadat poptávku | |
| 2 WHR30787 |
C00344981
480121103814 |
Lamp,oven 230V with holder | Na dotaz | Zadat poptávku | |
| 204 WHR30787 |
C00391589
480121104801 |
Tap | Na dotaz | Zadat poptávku | |
| 21 WHR30787 |
C00390294
480121101717 |
Fan | Na dotaz | Zadat poptávku | |
| 3 WHR30787 |
C00306038
482000000016 |
Wheel drawer | Na dotaz | Zadat poptávku | |
| 30 WHR30787 |
C00391582
480121104793 |
Terminal block | Na dotaz | Zadat poptávku | |
| 32 WHR30787 |
C00391590
480121104802 |
Side panel | Na dotaz | Zadat poptávku | |
| 34 WHR30787 |
C00389958
480121101255 |
Foot | Na dotaz | Zadat poptávku | |
| 347 WHR30787 |
C00406641
482000000009 |
Bracket DRAWER RIGHT | Na dotaz | Zadat poptávku | |
| 347 WHR30787 |
C00406642
482000000010 |
Bracket DRAWER LEFT | Na dotaz | Zadat poptávku | |
| 348 WHR30787 |
C00306027
482000000017 |
Wheel hub | Na dotaz | Zadat poptávku | |
| 349 WHR30787 |
C00306030
482000000018 |
Wheel drawer | Na dotaz | Zadat poptávku | |
| 37 WHR30787 |
C00407927
482000002609 |
Stopper drawer | Na dotaz | Zadat poptávku | |
| 375 WHR30787 |
C00407926
482000002606 |
Oven door complete | Na dotaz | Zadat poptávku | |
| 39 WHR30787 |
C00306032
482000000015 |
Rail drawer | Na dotaz | Zadat poptávku | |
| 49 WHR30787 |
C00391586
480121104797 |
Fixation Kit | Na dotaz | Zadat poptávku | |
| 5 WHR30787 |
C00406674
482000000053 |
Cover inner | Na dotaz | Zadat poptávku | |
| 50 WHR30787 |
C00389959
480121101256 |
Door inner assy | Na dotaz | Zadat poptávku | |
| 52 WHR30787 |
C00376847
480121101257 |
Hinge | Na dotaz | Zadat poptávku | |
| 53 WHR30787 |
C00389960
480121101258 |
Pin | Na dotaz | Zadat poptávku | |
| 54 WHR30787 |
C00389961
480121101259 |
Oven glass | Na dotaz | Zadat poptávku | |
| 55 WHR30787 |
C00391588
480121104799 |
Madlo dveří sporáku Whirlpool | 683 Kč
€ 27.10 |
||
| 56 WHR30787 |
C00391587
480121104798 |
Handle | Na dotaz | Zadat poptávku | |
| 58 WHR30787 |
C00389966
480121101265 |
Gas pipe R | Na dotaz | Zadat poptávku | |
| 58 WHR30787 |
C00389965
480121101264 |
Gas pipe SR | Na dotaz | Zadat poptávku | |
| 58 WHR30787 |
C00389964
480121101263 |
Gas pipe A | Na dotaz | Zadat poptávku | |
| 6 WHR30787 |
C00389948
480121101244 |
Plinth | Na dotaz | Zadat poptávku | |
| 60 WHR30787 |
C00390113
480121101451 |
Transf,puls | Na dotaz | Zadat poptávku | |
| 63 WHR30787 |
C00389967
480121101266 |
Manifold | Na dotaz | Zadat poptávku | |
| 64 WHR30787 |
C00389968
480121101267 |
Gasket | Na dotaz | Zadat poptávku | |
| 65 WHR30787 |
C00389969
480121101268 |
Hose connection LPG | Na dotaz | Zadat poptávku | |
| 65 WHR30787 |
C00389970
480121101269 |
Hose connection NG | Na dotaz | Zadat poptávku | |
| 66 WHR30787 |
C00389971
480121101271 |
Gas cock R | Na dotaz | Zadat poptávku | |
| 66 WHR30787 |
C00389972
480121101272 |
Gas cock SR | Na dotaz | Zadat poptávku | |
| 66 WHR30787 |
C00389973
480121101273 |
Gas cock A | Na dotaz | Zadat poptávku | |
| 69 WHR30787 |
C00389974
480121101274 |
Microswitch | Na dotaz | Zadat poptávku | |
| 72 WHR30787 |
C00391591
480121104803 |
Panel control | Na dotaz | Zadat poptávku | |
| 73 WHR30787 |
C00407928
482000002615 |
Ring knob | Na dotaz | Zadat poptávku | |
| 74 WHR30787 |
C00391570
480121104775 |
Spring knob | Na dotaz | Zadat poptávku | |
| 74 WHR30787 |
C00376848
480121101277 |
Spring | Na dotaz | Zadat poptávku | |
| 76 WHR30787 |
C00407929
482000002616 |
Knob | Na dotaz | Zadat poptávku | |
| 77 WHR30787 |
C00305993
480121101281 |
Lens red | Na dotaz | Zadat poptávku | |
| 77 WHR30787 |
C00389977
480121101282 |
Lens orange | Na dotaz | Zadat poptávku | |
| 79 WHR30787 |
C00389978
480121101283 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 81 WHR30787 |
C00391043
480121103004 |
Hex.code switch 7-POS. | Na dotaz | Zadat poptávku | |
| 81 WHR30787 |
C00390523
480121102233 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 82 WHR30787 |
C00389980
480121101286 |
Thermostat 50-285°C | Na dotaz | Zadat poptávku | |
| 83 WHR30787 |
C00389981
480121101287 |
Bracket gas cock hob | Na dotaz | Zadat poptávku | |
| 87 WHR30787 |
C00391044
480121103005 |
Lid glass | Na dotaz | Zadat poptávku | |
| 88 WHR30787 |
C00390115
480121101453 |
Hinge right | Na dotaz | Zadat poptávku | |
| 88 WHR30787 |
C00317716
480121101454 |
Hinge left | Na dotaz | Zadat poptávku | |
| 9 WHR30787 |
C00390292
480121101715 |
Ventilátor trouby | 1 517 Kč
€ 60.20 |
||
| 90 WHR30787 |
C00407930
482000002619 |
Knob | Na dotaz | Zadat poptávku | |
| 92a WHR30787 |
C00389983
480121101289 |
Burner cap R | Na dotaz | Zadat poptávku | |
| 92b WHR30787 |
C00389984
480121101291 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 92c WHR30787 |
C00389985
480121101292 |
Burner cap A | Na dotaz | Zadat poptávku | |
| 93a WHR30787 |
C00389986
480121101293 |
Spreader,burner R | Na dotaz | Zadat poptávku | |
| 93b WHR30787 |
C00389987
480121101294 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 93c WHR30787 |
C00389988
480121101295 |
Spreader,burner A | Na dotaz | Zadat poptávku | |
| 95 WHR30787 |
C00389989
480121101296 |
Grid for hob right | Na dotaz | Zadat poptávku | |
| 95 WHR30787 |
C00389990
480121101297 |
Grid for hob left | Na dotaz | Zadat poptávku | |
| 96 WHR30787 |
C00389991
480121101298 |
damper | Na dotaz | Zadat poptávku | |
| 97 WHR30787 |
C00390116
480121101455 |
Cover hinge right | Na dotaz | Zadat poptávku | |
| 97 WHR30787 |
C00390117
480121101456 |
Cover hinge left | Na dotaz | Zadat poptávku | |
| 98 WHR30787 |
C00389992
480121101299 |
Gasket | Na dotaz | Zadat poptávku | |
| 99 WHR30787 |
C00389993
480121101301 |
Spark plug | Na dotaz | Zadat poptávku | |
| 99 WHR30787 |
C00407931
482000002627 |
Wire | Na dotaz | Zadat poptávku | |
