| Komerční kód: | MWO 615 SL |
| Kód 12NC/I.C. kód: | 858761564890 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A00 WHR43956 |
C00508983
482000096008 |
Oven cavity | Na dotaz | Zadat poptávku | |
| A01 WHR43956 |
C00507093
482000095305 |
Plate cover | Na dotaz | Zadat poptávku | |
| B01 WHR43956 |
C00508984
482000096009 |
Base | Na dotaz | Zadat poptávku | |
| B02 WHR43956 |
C00508985
482000096010 |
Foot | Na dotaz | Zadat poptávku | |
| B03 WHR43956 |
C00509056
482000096011 |
Hinge lower | Na dotaz | Zadat poptávku | |
| C00 WHR43956 |
C00508986
482000096012 |
Panel assembly | Na dotaz | Zadat poptávku | |
| C01 WHR43956 |
C00508987
482000096013 |
Control panel | Na dotaz | Zadat poptávku | |
| C05 WHR43956 |
C00508988
482000096014 |
Facia panel | Na dotaz | Zadat poptávku | |
| C18 WHR43956 |
C00508989
482000096015 |
Control board | Na dotaz | Zadat poptávku | |
| C26 WHR43956 |
C00508990
482000096016 |
Membrane switch | Na dotaz | Zadat poptávku | |

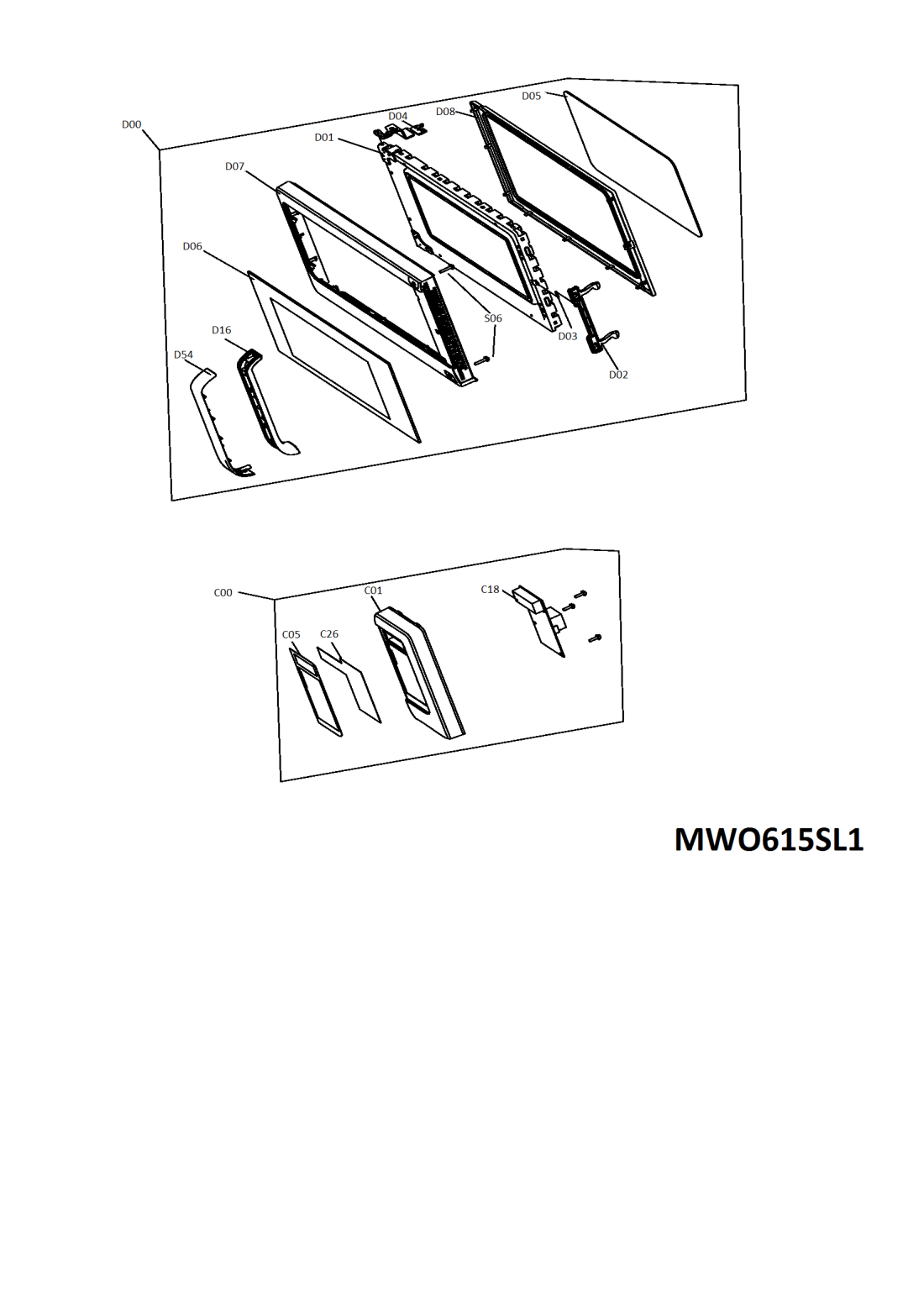

| D00 WHR43956 |
C00508991
482000096017 |
Door assembly | Na dotaz | Zadat poptávku | |
| D01 WHR43956 |
C00509057
482000096018 |
Door frame | Na dotaz | Zadat poptávku | |
| D02 WHR43956 |
C00508992
482000096019 |
Latch | Na dotaz | Zadat poptávku | |
| D03 WHR43956 |
C00507107
482000095319 |
Spring | Na dotaz | Zadat poptávku | |
| D04 WHR43956 |
C00507108
482000095320 |
Hinge upper | Na dotaz | Zadat poptávku | |
| D05 WHR43956 |
C00509058
482000096020 |
Door membrane | Na dotaz | Zadat poptávku | |
| D06 WHR43956 |
C00508993
482000096021 |
Glass door | Na dotaz | Zadat poptávku | |
| D07 WHR43956 |
C00508994
482000096022 |
Door frame | Na dotaz | Zadat poptávku | |
| D08 WHR43956 |
C00509059
482000096023 |
Gasket door | Na dotaz | Zadat poptávku | |
| D16 WHR43956 |
C00508995
482000096024 |
Door handle | Na dotaz | Zadat poptávku | |
| D54 WHR43956 |
C00508996
482000096025 |
Handle cover | Na dotaz | Zadat poptávku | |
| E01 WHR43956 |
C00509060
482000096026 |
Magnetron | Na dotaz | Zadat poptávku | |
| E02 WHR43956 |
C00509061
482000096027 |
Thermostat | Na dotaz | Zadat poptávku | |
| E05 WHR43956 |
C00509062
482000096028 |
Transformer | Na dotaz | Zadat poptávku | |
| E06 WHR43956 |
C00509063
482000096029 |
Capacitor | Na dotaz | Zadat poptávku | |
| E07 WHR43956 |
C00509064
482000096030 |
Diode | Na dotaz | Zadat poptávku | |
| E10 WHR43956 |
C00509065
482000096031 |
Filter noise | Na dotaz | Zadat poptávku | |
| E13 WHR43956 |
C00509066
482000096032 |
Lamp | Na dotaz | Zadat poptávku | |
| E14 WHR43956 |
C00509067
482000096033 |
Lamp assembly | Na dotaz | Zadat poptávku | |
| E16 WHR43956 |
C00509068
482000096034 |
Mains cable | Na dotaz | Zadat poptávku | |
| E28 WHR43956 |
C00509069
482000096035 |
Fuse | Na dotaz | Zadat poptávku | |
| E33 WHR43956 |
C00509070
482000096036 |
Thermostat kit | Na dotaz | Zadat poptávku | |
| L01 WHR43956 |
C00509071
482000096037 |
Držák mikrospínače | 158 Kč
€ 6.30 |
||
| L02 WHR43956 |
C00509072
482000096038 |
Locking lever | Na dotaz | Zadat poptávku | |
| L03 WHR43956 |
C00509073
482000096039 |
Microswitch interlock | Na dotaz | Zadat poptávku | |
| L04 WHR43956 |
C00509074
482000096040 |
Microswitch monitor | Na dotaz | Zadat poptávku | |
| L05 WHR43956 |
C00509075
482000096041 |
Cable harness | Na dotaz | Zadat poptávku | |
| S06 WHR43956 |
C00507146
482000095358 |
Nut | Na dotaz | Zadat poptávku | |
| T01 WHR43956 |
C00509076
482000096042 |
Motor turntable | Na dotaz | Zadat poptávku | |
| T02 WHR43956 |
C00509077
482000096043 |
Coupler | Na dotaz | Zadat poptávku | |
| T03 WHR43956 |
C00509078
482000096044 |
Ring rotation | Na dotaz | Zadat poptávku | |
| T04 WHR43956 |
C00509079
482000096045 |
Turntable | Na dotaz | Zadat poptávku | |
| W01 WHR43956 |
C00509080
482000096046 |
Fan box | Na dotaz | Zadat poptávku | |
| W02 WHR43956 |
C00507152
482000095364 |
Fan | Na dotaz | Zadat poptávku | |
| W03 WHR43956 |
C00509082
482000096048 |
Motor fan | Na dotaz | Zadat poptávku | |
| W04 WHR43956 |
C00507154
482000095366 |
Cover lamp | Na dotaz | Zadat poptávku | |
| W05 WHR43956 |
C00509081
482000096047 |
Fan assembly | Na dotaz | Zadat poptávku | |
| Z01 WHR43956 |
C00507157
482000095369 |
Holder | Na dotaz | Zadat poptávku | |
| Z22 WHR43956 |
C00509083
482000096049 |
Sponge | Na dotaz | Zadat poptávku | |
| Z24 WHR43956 |
C00509084
482000096050 |
Case | Na dotaz | Zadat poptávku | |
