BAUKNECHT MW 304 M
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | MW 304 M |
| Kód 12NC: | 859991537140 |
| Značka: | BAUKNECHT |
| Typ produktu: | Mikrovlnné trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

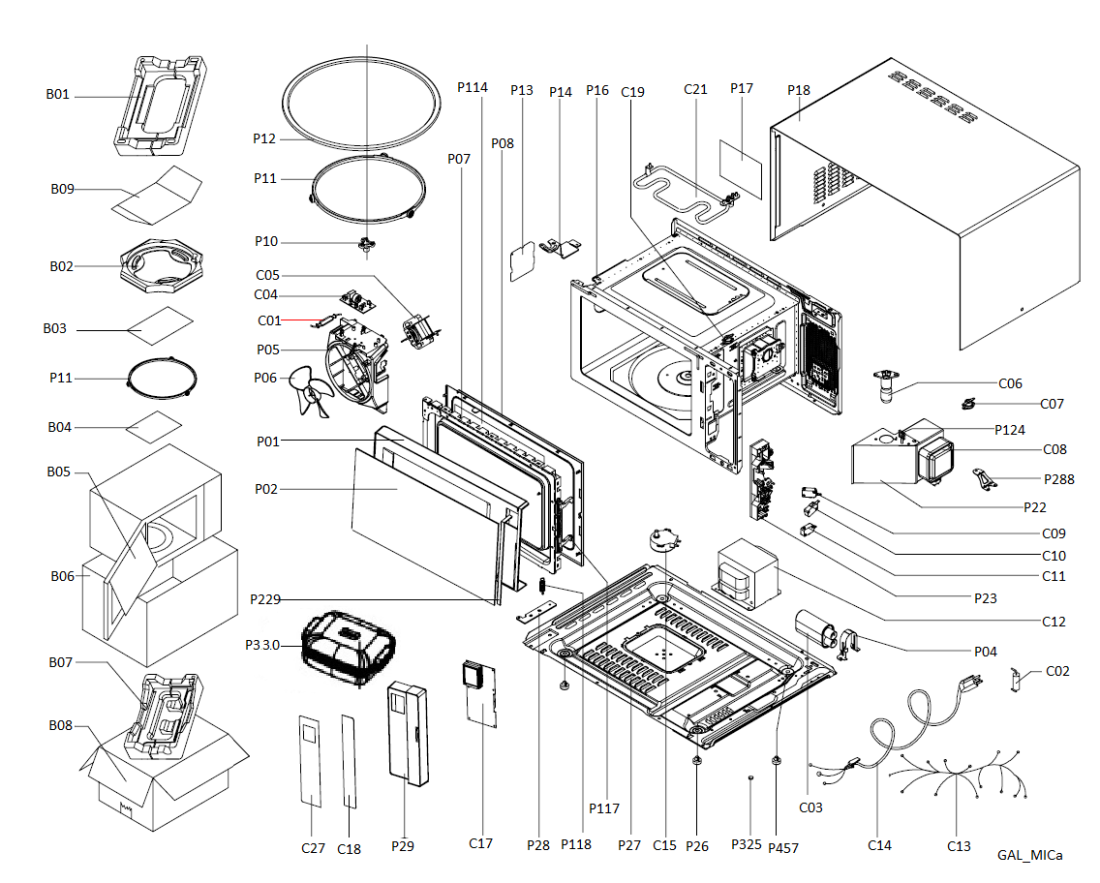

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| B001 WHR38764 |
C00514183
482000097147 |
Turntable cushion | Na dotaz | Zadat poptávku | |
| B002 WHR38764 |
C00514184
482000097148 |
Plastic bag | Na dotaz | Zadat poptávku | |
| B003 WHR38764 |
C00514185
482000097149 |
Bag (Pap.Plast) | Na dotaz | Zadat poptávku | |
| B004 WHR38764 |
C00514186
482000097150 |
Manual | Na dotaz | Zadat poptávku | |
| B005 WHR38764 |
C00514187
482000097151 |
Cover protection | Na dotaz | Zadat poptávku | |
| B006 WHR38764 |
C00514188
482000097152 |
Bag (Pap.Plast) | Na dotaz | Zadat poptávku | |
| B007,B009 WHR38764 |
C00514189
482000097153 |
Cushion lower | Na dotaz | Zadat poptávku | |
| C001 WHR38764 |
C00514163
482000097127 |
VN pojistka | Na dotaz | Zadat poptávku | |
| C002 WHR38764 |
C00514164
482000097128 |
VN dioda | Na dotaz | Zadat poptávku | |
| C003 WHR38764 |
C00514165
482000097129 |
Capacitor h v | Na dotaz | Zadat poptávku | |
| C004 WHR38764 |
C00514166
482000097130 |
Damper | Na dotaz | Zadat poptávku | |
| C005 WHR38764 |
C00514167
482000097131 |
Motor fan | Na dotaz | Zadat poptávku | |
| C006 WHR38764 |
C00514168
482000097132 |
Žárovka 230V 20W | 217 Kč
€ 8.60 |
||
| C007 WHR38764 |
C00514169
482000097133 |
Thermostat 1 | Na dotaz | Zadat poptávku | |
| C008 WHR38764 |
C00514170
482000097134 |
Magnetron | 3 283 Kč
€ 129.50 |
||
| C009 WHR38764 |
C00514171
482000097135 |
Microswitch | Na dotaz | Zadat poptávku | |
| C010 WHR38764 |
C00514172
482000097136 |
Microswitch | Na dotaz | Zadat poptávku | |
| C011 WHR38764 |
C00514173
482000097137 |
TRANSFORMER | Na dotaz | Zadat poptávku | |
| C012 WHR38764 |
C00514174
482000097138 |
Wiring | Na dotaz | Zadat poptávku | |
| C013 WHR38764 |
C00514175
482000097139 |
Cable harness wiring | Na dotaz | Zadat poptávku | |
| C014 WHR38764 |
C00514176
482000097140 |
Turntable motor | Na dotaz | Zadat poptávku | |
| C015 WHR38764 |
C00515791
482000097511 |
p.c. rady | Na dotaz | Zadat poptávku | |
| C017 WHR38764 |
C00515792
482000097512 |
přepínač tenkého filmu | Na dotaz | Zadat poptávku | |
| C018 WHR38764 |
C00515797
482000097517 |
Switch thin film | Na dotaz | Zadat poptávku | |
| C019 WHR38764 |
C00514180
482000097144 |
Heater | Na dotaz | Zadat poptávku | |
| C021 WHR38764 |
C00515793
482000097513 |
Vnitřní film | Na dotaz | Zadat poptávku | |
| C027 WHR38764 |
C00515798
482000097518 |
Diaphragm inner | Na dotaz | Zadat poptávku | |
| P001 WHR38764 |
C00514134
482000097098 |
Door frame | Na dotaz | Zadat poptávku | |
| P002 WHR38764 |
C00515795
482000097515 |
Door frame window | Na dotaz | Zadat poptávku | |
| P004 WHR38764 |
C00514136
482000097100 |
Holder capacitor | Na dotaz | Zadat poptávku | |
| P005 WHR38764 |
C00514137
482000097101 |
Bracket fan | Na dotaz | Zadat poptávku | |
| P006 WHR38764 |
C00514138
482000097102 |
Fan blade | Na dotaz | Zadat poptávku | |
| P007 WHR38764 |
C00514139
482000097103 |
Door inner metal body | Na dotaz | Zadat poptávku | |
| P008 WHR38764 |
C00514140
482000097104 |
Shield | Na dotaz | Zadat poptávku | |
| P010 WHR38764 |
C00514141
482000097105 |
unasec talíře středový mikrovlnné trouby Whirlpool | 595 Kč
€ 23.50 |
||
| P011 WHR38764 |
C00514142
482000097106 |
Ring roller | Na dotaz | Zadat poptávku | |
| P012 WHR38764 |
C00514143
482000097107 |
Skleněný otočný talíř do mikrovlnné trouby Whirlpool | 866 Kč
€ 34.20 |
||
| P013 WHR38764 |
C00514144
482000097108 |
Shield splash mica sheer | Na dotaz | Zadat poptávku | |
| P014 WHR38764 |
C00514145
482000097109 |
Hinge upper | Na dotaz | Zadat poptávku | |
| P016 WHR38764 |
C00514146
482000097110 |
Oven cavity | Na dotaz | Zadat poptávku | |
| P017 WHR38764 |
C00514147
482000097111 |
Nameplate rear | Na dotaz | Zadat poptávku | |
| P018 WHR38764 |
C00514148
482000097112 |
Cover outer | Na dotaz | Zadat poptávku | |
| P022 WHR38764 |
C00514149
482000097113 |
Bracket air duct | Na dotaz | Zadat poptávku | |
| P023 WHR38764 |
C00514228
482000097161 |
Switch mount | Na dotaz | Zadat poptávku | |
| P026 WHR38764 |
C00514151
482000097115 |
Foot | Na dotaz | Zadat poptávku | |
| P027 WHR38764 |
C00514152
482000097116 |
Plate base | Na dotaz | Zadat poptávku | |
| P028 WHR38764 |
C00514153
482000097117 |
Hinge lower | Na dotaz | Zadat poptávku | |
| P029 WHR38764 |
C00514160
482000097124 |
Kontrolní panel | Na dotaz | Zadat poptávku | |
| P114 WHR38764 |
C00514154
482000097118 |
Cover inlaid | Na dotaz | Zadat poptávku | |
| P117 WHR38764 |
C00514155
482000097119 |
Hinge door | Na dotaz | Zadat poptávku | |
| P118 WHR38764 |
C00514156
482000097120 |
Spring hinge door | Na dotaz | Zadat poptávku | |
| P124 WHR38764 |
C00514157
482000097121 |
Holder lens clamp | Na dotaz | Zadat poptávku | |
| P229 WHR38764 |
C00515796
482000097516 |
Door frame decor SS blade | Na dotaz | Zadat poptávku | |
| P288 WHR38764 |
C00514159
482000097123 |
Bracket magnetron | Na dotaz | Zadat poptávku | |
| P325 WHR38764 |
C00514161
482000097125 |
Foot defend slip mat | Na dotaz | Zadat poptávku | |
| P330 WHR38764 |
C00515799
482000097519 |
Pot Steamer BK | Na dotaz | Zadat poptávku | |
| P457 WHR38764 |
C00514162
482000097126 |
Foot microvawe oven | Na dotaz | Zadat poptávku | |
