| Komerční kód: | ACM 342 G |
| Kód 12NC: | 857634261010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

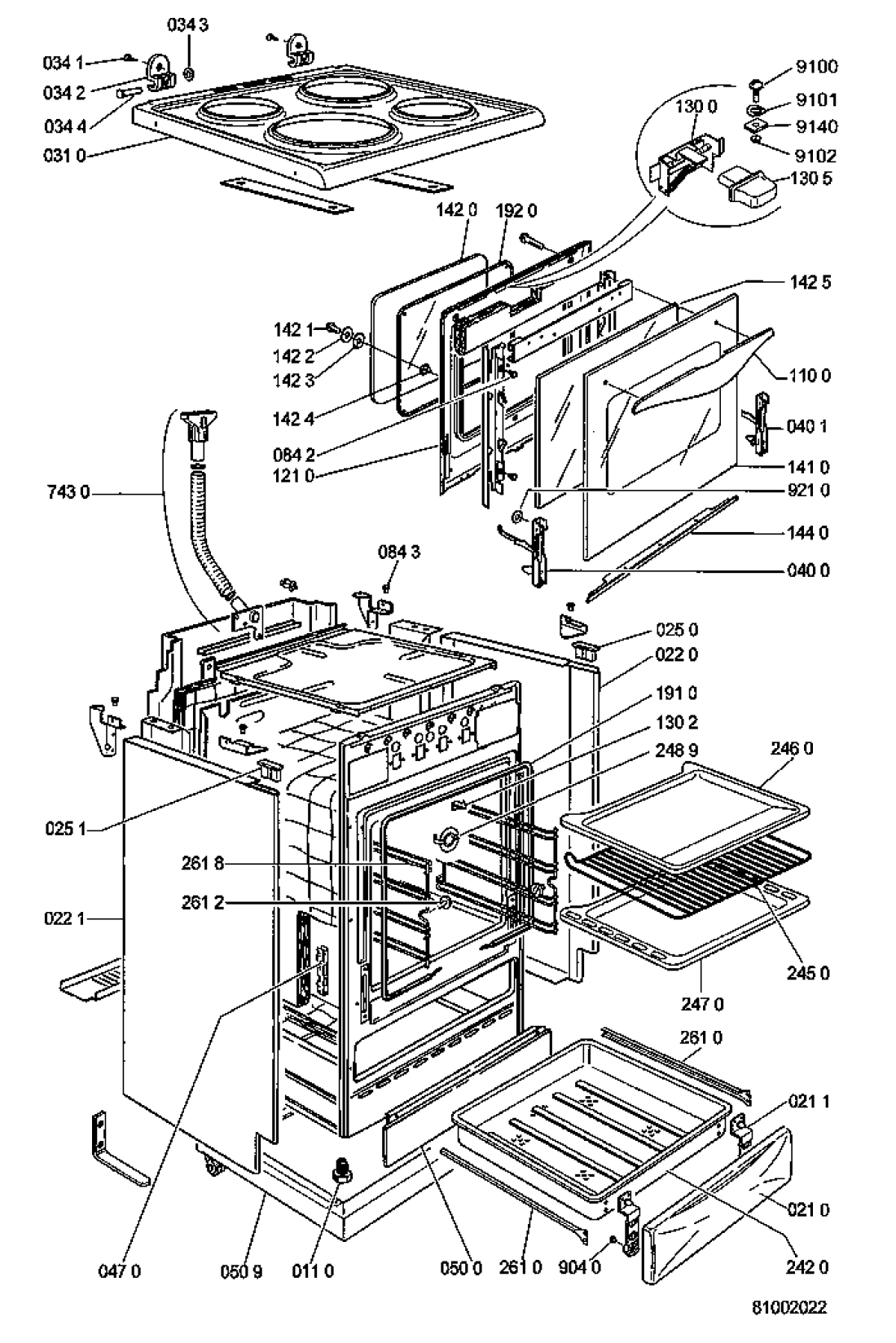

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR47423 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR47423 |
C00485121
481244058218 |
Drawer front panel | Na dotaz | Zadat poptávku | |
| 021 1 WHR47423 |
C00484760
481240418164 |
Drawer fixing bracket | Na dotaz | Zadat poptávku | |
| 022 0 WHR47423 |
C00491705
481244010453 |
Panel right side | Na dotaz | Zadat poptávku | |
| 022 1 WHR47423 |
C00491704
481244010452 |
Panel left side | Na dotaz | Zadat poptávku | |
| 025 0 WHR47423 |
C00492453
481946279657 |
Cap right | Na dotaz | Zadat poptávku | |
| 025 1 WHR47423 |
C00492454
481946279658 |
Cap left | Na dotaz | Zadat poptávku | |
| 031 0 WHR47423 |
C00596708
481944239479 |
Hob. | Na dotaz | Zadat poptávku | |
| 034 1 WHR47423 |
C00492027
481250218517 |
Screw | Na dotaz | Zadat poptávku | |
| 034 2 WHR47423 |
C00492104
481253258017 |
Spacer rear | Na dotaz | Zadat poptávku | |
| 034 3 WHR47423 |
C00598774
481246818106 |
Ring snap. | Na dotaz | Zadat poptávku | |
| 034 4 WHR47423 |
C00598802
481253258018 |
Pivot. | Na dotaz | Zadat poptávku | |
| 040 0 WHR47423 |
C00490611
481941719649 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 1 WHR47423 |
C00598874
481941719651 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR47423 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 050 0 WHR47423 |
C00490674
481944059816 |
Plinth | Na dotaz | Zadat poptávku | |
| 050 9 WHR47423 |
C00598532
481244088978 |
Plinth. | Na dotaz | Zadat poptávku | |
| 084 2 WHR47423 |
C00129135
481946818364 |
DRAIN SUPPORT ML45-I | Na dotaz | Zadat poptávku | |
| 084 3 WHR47423 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 110 0 WHR47423 |
C00598776
481249858191 |
Door handle. | Na dotaz | Zadat poptávku | |
| 121 0 WHR47423 |
C00598885
481944239481 |
Innerdoor,oven. | Na dotaz | Zadat poptávku | |
| 130 0 WHR47423 |
C00597283
481953538166 |
Child-prooflock oven door | Na dotaz | Zadat poptávku | |
| 130 2 WHR47423 |
C00490839
481953538167 |
Hook | Na dotaz | Zadat poptávku | |
| 130 5 WHR47423 |
C00488082
481941129668 |
Knob child security | Na dotaz | Zadat poptávku | |
| 141 0 WHR47423 |
C00487595
481245058538 |
Door glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR47423 |
C00598543
481245058528 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 1 WHR47423 |
C00492028
481250218528 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR47423 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR47423 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR47423 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 142 5 WHR47423 |
C00598544
481245058539 |
Door third glass. | Na dotaz | Zadat poptávku | |
| 144 0 WHR47423 |
C00486688
481946078823 |
Trim lower | Na dotaz | Zadat poptávku | |
| 191 0 WHR47423 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR47423 |
C00486147
481246668685 |
Gasket Oven | Na dotaz | Zadat poptávku | |
| 242 0 WHR47423 |
C00598496
481241868237 |
Drawer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR47423 |
C00490756
481945819959 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 246 0 WHR47423 |
C00596692
481941838341 |
FAT PAN. | Na dotaz | Zadat poptávku | |
| 247 0 WHR47423 |
C00598875
481941838403 |
BAKING TRAY | Na dotaz | Zadat poptávku | |
| 248 9 WHR47423 |
C00582221
481246279785 |
Plug rotisserie hole plug. | Na dotaz | Zadat poptávku | |
| 261 0 WHR47423 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 261 2 WHR47423 |
C00597268
481950218394 |
Screw | Na dotaz | Zadat poptávku | |
| 261 8 WHR47423 |
C00597152
481940478734 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 320 0 WHR47423 |
C00598730
481245310022 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR47423 |
C00598480
481241128785 |
Knob oven switch. | Na dotaz | Zadat poptávku | |
| 331 1 WHR47423 |
C00598478
481241128741 |
Knob oven thermostat. | Na dotaz | Zadat poptávku | |
| 334 2 WHR47423 |
C00598479
481241128743 |
Knob electric plate | Na dotaz | Zadat poptávku | |
| 351 0 WHR47423 |
C00399836
481213448398 |
Pilot lamp | Na dotaz | Zadat poptávku | |
| 354 0 WHR47423 |
C00488698
481238118271 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR47423 |
C00610502
481246279786 |
Lens orange. | Na dotaz | Zadat poptávku | |
| 452 0 WHR47423 |
C00316357
481925928758 |
Heating element top + grill | Na dotaz | Zadat poptávku | |
| 454 1 WHR47423 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 454 2 WHR47423 |
C00597253
481946689389 |
CLAMPING PIECE. | Na dotaz | Zadat poptávku | |
| 456 0 WHR47423 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 461 0 WHR47423 |
C00598824
481925998559 |
Cooking plate d.145 1000 W. | Na dotaz | Zadat poptávku | |
| 461 1 WHR47423 |
C00499869
481925998646 |
Cooking plate d=180 1 d=180 1500 W | Na dotaz | Zadat poptávku | |
| 461 5 WHR47423 |
C00598825
481925998562 |
Cooking plate d=145 1500 W. | Na dotaz | Zadat poptávku | |
| 461 6 WHR47423 |
C00555753
481925998563 |
Cooking plate d=180 2.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR47423 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR47423 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR47423 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR47423 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 1 WHR47423 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR47423 |
C00597117
481927129102 |
Thermostat cut-off. | Na dotaz | Zadat poptávku | |
| 620 0 WHR47423 |
C00599378
481927328493 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 622 0 WHR47423 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR47423 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR47423 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR47423 |
C00493763
481253048357 |
Pipe steam exhaust | Na dotaz | Zadat poptávku | |
| 904 0 WHR47423 |
C00599331
481246258051 |
Buffer. | Na dotaz | Zadat poptávku | |
| 910 0 WHR47423 |
C00390546
480121102264 |
Screw | Na dotaz | Zadat poptávku | |
| 910 1 WHR47423 |
C00502134
480121102265 |
Spring | Na dotaz | Zadat poptávku | |
| 910 2 WHR47423 |
C00502135
480121102268 |
Ring | Na dotaz | Zadat poptávku | |
| 914 0 WHR47423 |
C00390548
480121102267 |
Nut M5 | Na dotaz | Zadat poptávku | |
| 921 0 WHR47423 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
