Komerční kód: | ACM347WH FREESTD. COOKER CRM UK |
Kód 12NC: | 857634726000 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

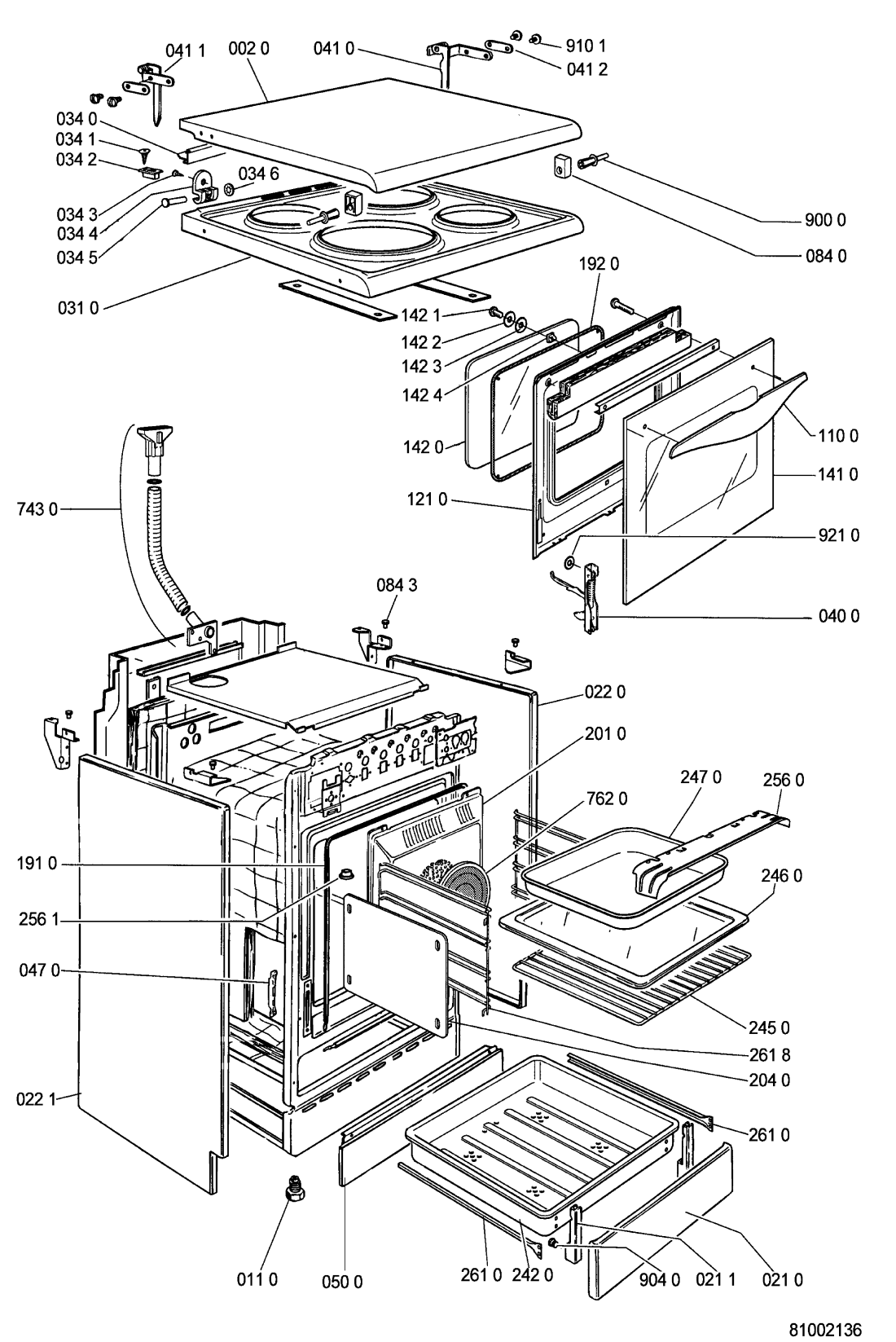

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
002 0 WHR105885 |
C00598876
481944059768 |
LID. | Na dotaz | Zadat poptávku | |
011 0 WHR105885 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
021 0 WHR105885 |
C00597189
481944059773 |
Panel front ,Drawer. | Na dotaz | Zadat poptávku | |
021 1 WHR105885 |
C00596665
481940254004 |
Bracket ,drawer. | Na dotaz | Zadat poptávku | |
022 0 WHR105885 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
022 1 WHR105885 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
031 0 WHR105885 |
C00599246
481245058325 |
Hob. | Na dotaz | Zadat poptávku | |
034 0 WHR105885 |
C00598895
481946238883 |
GUIDE. | Na dotaz | Zadat poptávku | |
034 1 WHR105885 |
C00336753
481950219456 |
SCREW | Na dotaz | Zadat poptávku | |
034 2 WHR105885 |
C00622691
481946238717 |
GUIDE | Na dotaz | Zadat poptávku | |
034 3 WHR105885 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
034 4 WHR105885 |
C00492104
481253258017 |
Spacer rear | Na dotaz | Zadat poptávku | |
034 5 WHR105885 |
C00598802
481253258018 |
Pivot. | Na dotaz | Zadat poptávku | |
034 6 WHR105885 |
C00598774
481246818106 |
Ring snap. | Na dotaz | Zadat poptávku | |
040 0 WHR105885 |
C00481272
481241718882 |
Hinge | Na dotaz | Zadat poptávku | |
041 0 WHR105885 |
C00599345
481249298015 |
Spring right. | Na dotaz | Zadat poptávku | |
041 1 WHR105885 |
C00599346
481249298016 |
Spring left. | Na dotaz | Zadat poptávku | |
041 2 WHR105885 |
C00597257
481946818283 |
Plate hinge. | Na dotaz | Zadat poptávku | |
047 0 WHR105885 |
C00480937
481941719509 |
ZAVES | Na dotaz | Zadat poptávku | |
050 0 WHR105885 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
084 0 WHR105885 |
C00599336
481246279708 |
Buffer. | Na dotaz | Zadat poptávku | |
084 3 WHR105885 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
110 0 WHR105885 |
C00598776
481249858191 |
Door handle. | Na dotaz | Zadat poptávku | |
121 0 WHR105885 |
C00599431
481944059775 |
Door inner. | Na dotaz | Zadat poptávku | |
141 0 WHR105885 |
C00599255
481245058563 |
Door glass. | Na dotaz | Zadat poptávku | |
142 0 WHR105885 |
C00599266
481245068273 |
Oven glass inner. | Na dotaz | Zadat poptávku | |
142 1 WHR105885 |
C00492028
481250218528 |
Screw | Na dotaz | Zadat poptávku | |
142 2 WHR105885 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
142 3 WHR105885 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
142 4 WHR105885 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
191 0 WHR105885 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
192 0 WHR105885 |
C00481282
481246668653 |
Gasket inner door/glass | Na dotaz | Zadat poptávku | |
201 0 WHR105885 |
C00492373
481944059783 |
Panel rear | Na dotaz | Zadat poptávku | |
204 0 WHR105885 |
C00597190
481944059778 |
Side panel catalytic. | Na dotaz | Zadat poptávku | |
242 0 WHR105885 |
C00597181
481941838343 |
Drawer. | Na dotaz | Zadat poptávku | |
245 0 WHR105885 |
C00496490
481990704917 |
Grid | Na dotaz | Zadat poptávku | |
246 0 WHR105885 |
C00481866
481941838358 |
Baking tray | Na dotaz | Zadat poptávku | |
247 0 WHR105885 |
C00548541
481241838075 |
Tray oven | Na dotaz | Zadat poptávku | |
256 0 WHR105885 |
C00486830
481946689391 |
Knob protection | Na dotaz | Zadat poptávku | |
256 1 WHR105885 |
C00597256
481946698889 |
Spacer. | Na dotaz | Zadat poptávku | |
261 0 WHR105885 |
C00599465
481946238709 |
Rail. | Na dotaz | Zadat poptávku | |
261 8 WHR105885 |
C00596669
481940478715 |
Support oven shelf. | Na dotaz | Zadat poptávku | |
320 0 WHR105885 |
C00599300
481245359535 |
Control panel. | Na dotaz | Zadat poptávku | |
331 0 WHR105885 |
C00599134
481241128798 |
Knob oven switch | Na dotaz | Zadat poptávku | |
331 1 WHR105885 |
C00636044
481241128797 |
Knob oven thermostat. | Na dotaz | Zadat poptávku | |
331 2 WHR105885 |
C00599133
481241128796 |
Knob electric plate. | Na dotaz | Zadat poptávku | |
332 0 WHR105885 |
C00599402
481941228003 |
Knob timer. | Na dotaz | Zadat poptávku | |
341 0 WHR105885 |
C00490527
481941379177 |
Indication disc | Na dotaz | Zadat poptávku | |
351 0 WHR105885 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
351 1 WHR105885 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
354 0 WHR105885 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
354 1 WHR105885 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
440 0 WHR105885 |
C00373292
481963118346 |
Motor fan complete | Na dotaz | Zadat poptávku | |
451 0 WHR105885 |
C00375163
481925928759 |
Heating element forced air | Na dotaz | Zadat poptávku | |
452 0 WHR105885 |
C00598819
481925928811 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
456 0 WHR105885 |
C00481291
481925928812 |
OHRIEVACIE TELESO | Na dotaz | Zadat poptávku | |
461 0 WHR105885 |
C00344941
481925998508 |
plotna varna 145 mm | 1 408 Kč
€ 55.60 |
||
461 1 WHR105885 |
C00599370
481925998348 |
Cooking plate dia 180, 1500W | Na dotaz | Zadat poptávku | |
461 2 WHR105885 |
C00599373
481925998561 |
Cooking plate dia 220 - 2000W. | Na dotaz | Zadat poptávku | |
461 5 WHR105885 |
C00531276
481925998469 |
Cooking plate | Na dotaz | Zadat poptávku | |
491 0 WHR105885 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
491 1 WHR105885 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
491 3 WHR105885 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
500 0 WHR105885 |
C00599380
481928218745 |
AUTOTIMER | Na dotaz | Zadat poptávku | |
500 1 WHR105885 |
C00492322
481940479515 |
HOLDER | Na dotaz | Zadat poptávku | |
554 0 WHR105885 |
C00496064
481927128853 |
Thermostat | Na dotaz | Zadat poptávku | |
554 1 WHR105885 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
562 0 WHR105885 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
620 0 WHR105885 |
C00481296
481927328386 |
Switch,oven | Na dotaz | Zadat poptávku | |
622 0 WHR105885 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
651 0 WHR105885 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
652 0 WHR105885 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
743 0 WHR105885 |
C00493763
481253048357 |
Pipe steam exhaust | Na dotaz | Zadat poptávku | |
762 0 WHR105885 |
C00597099
481912118212 |
filtr tukovy | Na dotaz | Zadat poptávku | |
900 0 WHR105885 |
C00599369
481253578046 |
Pin. | Na dotaz | Zadat poptávku | |
904 0 WHR105885 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
910 1 WHR105885 |
C00599476
481950218472 |
Screw | Na dotaz | Zadat poptávku | |
921 0 WHR105885 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku |
