| Komerční kód: | ACM 350 G |
| Kód 12NC: | 857635061010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

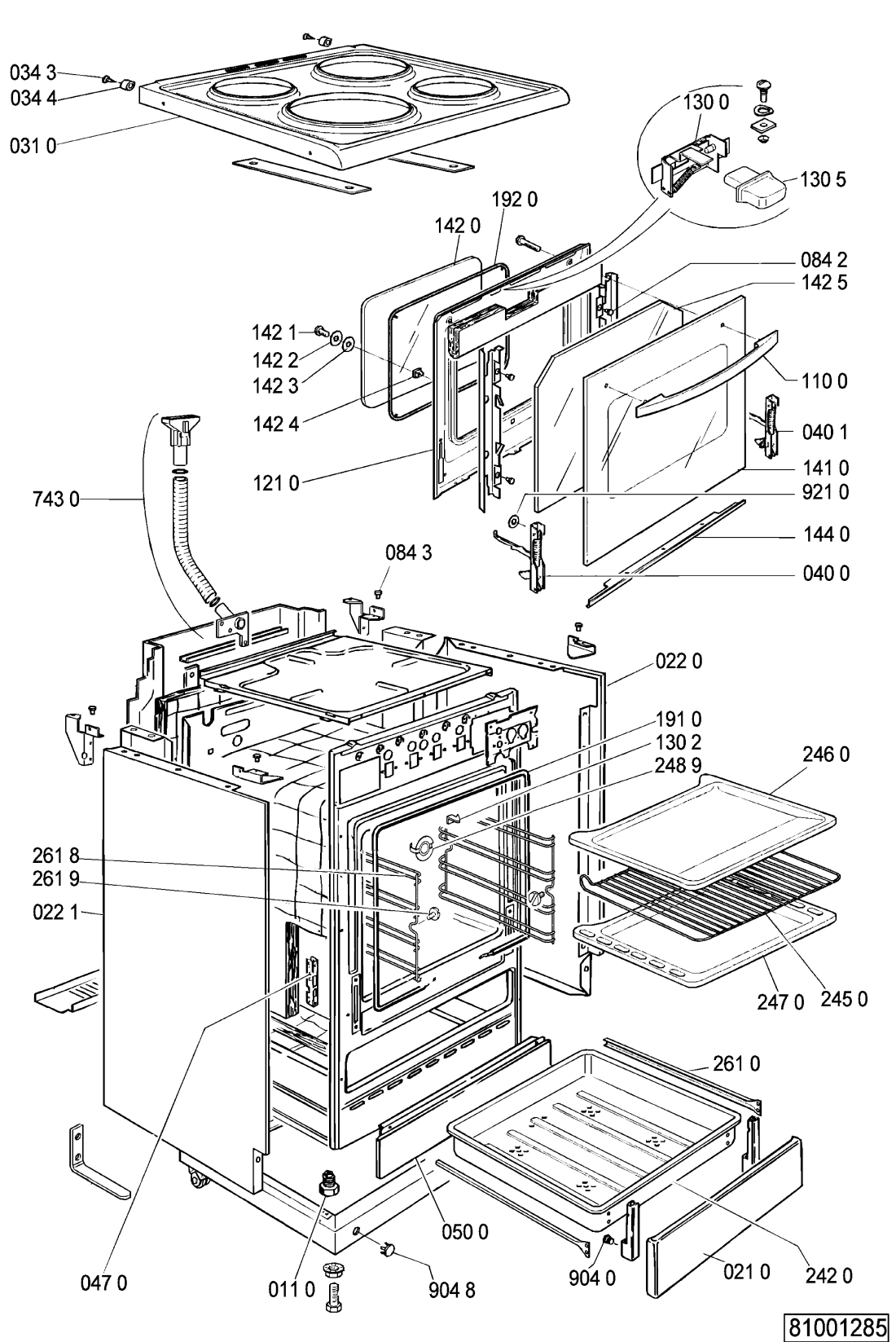

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR103324 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR103324 |
C00499250
481945349622 |
Front panel | Na dotaz | Zadat poptávku | |
| 022 0 WHR103324 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR103324 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR103324 |
C00596708
481944239479 |
Hob. | Na dotaz | Zadat poptávku | |
| 034 3 WHR103324 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 034 4 WHR103324 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
| 040 0 WHR103324 |
C00490611
481941719649 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 1 WHR103324 |
C00598874
481941719651 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR103324 |
C00339880
481941719352 |
HINGE | Na dotaz | Zadat poptávku | |
| 050 0 WHR103324 |
C00490674
481944059816 |
Plinth | Na dotaz | Zadat poptávku | |
| 084 2 WHR103324 |
C00129135
481946818364 |
DRAIN SUPPORT ML45-I | Na dotaz | Zadat poptávku | |
| 084 3 WHR103324 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 110 0 WHR103324 |
C00499505
481949858532 |
RUKOVAT DVERI | Na dotaz | Zadat poptávku | |
| 121 0 WHR103324 |
C00598885
481944239481 |
Innerdoor,oven. | Na dotaz | Zadat poptávku | |
| 130 0 WHR103324 |
C00597283
481953538166 |
Child-prooflock oven door | Na dotaz | Zadat poptávku | |
| 130 2 WHR103324 |
C00490839
481953538167 |
Hook | Na dotaz | Zadat poptávku | |
| 130 5 WHR103324 |
C00488082
481941129668 |
Knob child security | Na dotaz | Zadat poptávku | |
| 141 0 WHR103324 |
C00758375
481945058472 |
Oven door | Na dotaz | Zadat poptávku | |
| 142 0 WHR103324 |
C00755972
481945058304 |
Inner glass | Na dotaz | Zadat poptávku | |
| 142 1 WHR103324 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR103324 |
C00337256
481953258272 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR103324 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR103324 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 142 5 WHR103324 |
C00758376
481945058473 |
Door glass | Na dotaz | Zadat poptávku | |
| 144 0 WHR103324 |
C00337465
481946078082 |
TRIM,DOOR | Na dotaz | Zadat poptávku | |
| 191 0 WHR103324 |
C00340467
481946669984 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR103324 |
C00556211
481946669985 |
SEAL,GLASS INNER DOOR.. | Na dotaz | Zadat poptávku | |
| 242 0 WHR103324 |
C00499128
481941879661 |
DRAWER | Na dotaz | Zadat poptávku | |
| 245 0 WHR103324 |
C00490756
481945819959 |
Oven shelf | Na dotaz | Zadat poptávku | |
| 246 0 WHR103324 |
C00598875
481941838403 |
BAKING TRAY | Na dotaz | Zadat poptávku | |
| 247 0 WHR103324 |
C00596692
481941838341 |
FAT PAN. | Na dotaz | Zadat poptávku | |
| 248 9 WHR103324 |
C00499373
481946248436 |
CAP | Na dotaz | Zadat poptávku | |
| 261 0 WHR103324 |
C00336960
481946238718 |
RAIL | Na dotaz | Zadat poptávku | |
| 261 8 WHR103324 |
C00597152
481940478734 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 261 9 WHR103324 |
C00597268
481950218394 |
Screw | Na dotaz | Zadat poptávku | |
| 320 0 WHR103324 |
C00499260
481945358928 |
CONTROL PANEL | Na dotaz | Zadat poptávku | |
| 331 0 WHR103324 |
C00531669
481941129677 |
Knob hot plate hot plate | Na dotaz | Zadat poptávku | |
| 331 1 WHR103324 |
C00758378
481941129676 |
Knob oven switch | Na dotaz | Zadat poptávku | |
| 331 2 WHR103324 |
C00488084
481941129675 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 351 0 WHR103324 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR103324 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR103324 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR103324 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 452 0 WHR103324 |
C00316357
481925928758 |
Heating element top + grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR103324 |
C00319652
481925928757 |
Heating element lower | Na dotaz | Zadat poptávku | |
| 456 1 WHR103324 |
C00335920
481940478722 |
SUPPORT | Na dotaz | Zadat poptávku | |
| 456 2 WHR103324 |
C00597253
481946689389 |
CLAMPING PIECE. | Na dotaz | Zadat poptávku | |
| 461 0 WHR103324 |
C00598824
481925998559 |
Cooking plate d.145 1000 W. | Na dotaz | Zadat poptávku | |
| 461 1 WHR103324 |
C00499869
481925998646 |
Cooking plate d=180 1 d=180 1500 W | Na dotaz | Zadat poptávku | |
| 461 6 WHR103324 |
C00555753
481925998563 |
Cooking plate d=180 2.. | Na dotaz | Zadat poptávku | |
| 483 0 WHR103324 |
C00498931
481932058338 |
Connect.cable elec.plate | Na dotaz | Zadat poptávku | |
| 491 0 WHR103324 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR103324 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR103324 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR103324 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 1 WHR103324 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR103324 |
C00597117
481927129102 |
Thermostat cut-off. | Na dotaz | Zadat poptávku | |
| 620 0 WHR103324 |
C00599378
481927328493 |
Switch,oven. | Na dotaz | Zadat poptávku | |
| 622 0 WHR103324 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103324 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR103324 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR103324 |
C00556328
481953048845 |
Conveyor.. | Na dotaz | Zadat poptávku | |
| 904 0 WHR103324 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 904 8 WHR103324 |
C00756100
481946288152 |
Cap for hole | Na dotaz | Zadat poptávku | |
| 921 0 WHR103324 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
