WHIRLPOOL ACM 359 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 359 WH |
| Kód 12NC: | 857635926000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

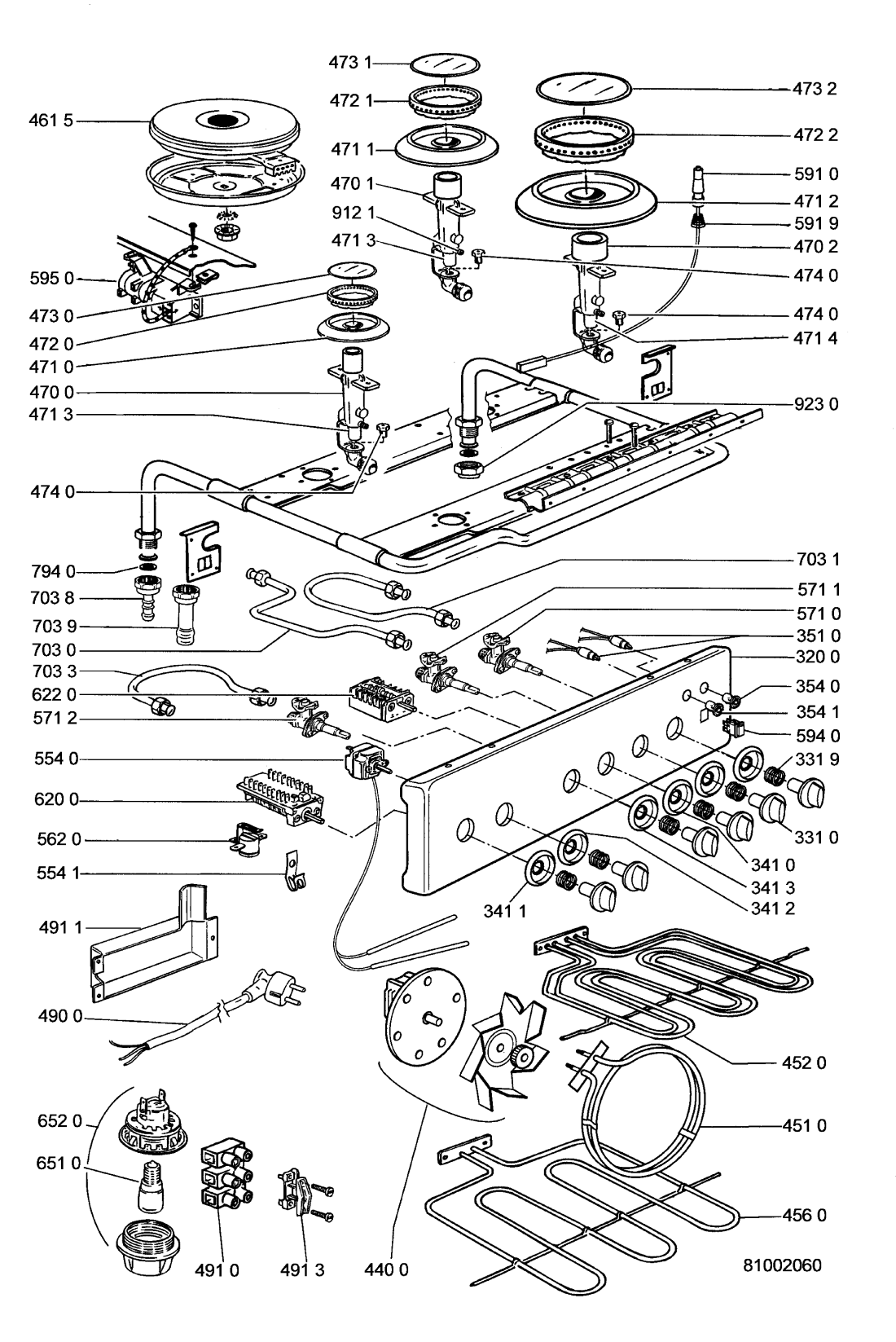

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR97405 |
C00598876
481944059768 |
LID. | Na dotaz | Zadat poptávku | |
| 011 0 WHR97405 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR97405 |
C00597189
481944059773 |
Panel front ,Drawer. | Na dotaz | Zadat poptávku | |
| 021 1 WHR97405 |
C00596887
481240118551 |
Bracket. | Na dotaz | Zadat poptávku | |
| 022 0 WHR97405 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR97405 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR97405 |
C00599050
481225998371 |
Hob cooktop. | Na dotaz | Zadat poptávku | |
| 034 1 WHR97405 |
C00336753
481950219456 |
SCREW | Na dotaz | Zadat poptávku | |
| 034 2 WHR97405 |
C00622691
481946238717 |
GUIDE | Na dotaz | Zadat poptávku | |
| 034 3 WHR97405 |
C00596793
481950218418 |
SCREW. | Na dotaz | Zadat poptávku | |
| 034 4 WHR97405 |
C00599469
481946698876 |
SPACER. | Na dotaz | Zadat poptávku | |
| 034 5 WHR97405 |
C00499628
481953598492 |
PIN | Na dotaz | Zadat poptávku | |
| 040 0 WHR97405 |
C00481272
481241718882 |
Hinge | Na dotaz | Zadat poptávku | |
| 041 0 WHR97405 |
C00490598
481941719549 |
Hinge right | Na dotaz | Zadat poptávku | |
| 041 1 WHR97405 |
C00598873
481941719551 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 041 2 WHR97405 |
C00597257
481946818283 |
Plate hinge. | Na dotaz | Zadat poptávku | |
| 047 0 WHR97405 |
C00480937
481941719509 |
ZAVES | Na dotaz | Zadat poptávku | |
| 050 0 WHR97405 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 084 0 WHR97405 |
C00598899
481946699081 |
BUFFER. | Na dotaz | Zadat poptávku | |
| 110 0 WHR97405 |
C00599347
481249878599 |
Handle door. | Na dotaz | Zadat poptávku | |
| 110 1 WHR97405 |
C00599348
481249878601 |
Handle support. | Na dotaz | Zadat poptávku | |
| 121 0 WHR97405 |
C00599431
481944059775 |
Door inner. | Na dotaz | Zadat poptávku | |
| 141 0 WHR97405 |
C00599262
481245058881 |
Door glass. | Na dotaz | Zadat poptávku | |
| 142 0 WHR97405 |
C00599266
481245068273 |
Oven glass inner. | Na dotaz | Zadat poptávku | |
| 142 1 WHR97405 |
C00492028
481250218528 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR97405 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR97405 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR97405 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 191 0 WHR97405 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 192 0 WHR97405 |
C00481282
481246668653 |
Gasket inner door/glass | Na dotaz | Zadat poptávku | |
| 201 0 WHR97405 |
C00492373
481944059783 |
Panel rear | Na dotaz | Zadat poptávku | |
| 204 0 WHR97405 |
C00597190
481944059778 |
Side panel catalytic. | Na dotaz | Zadat poptávku | |
| 241 0 WHR97405 |
C00621579
481945868126 |
Grid for hob gas | Na dotaz | Zadat poptávku | |
| 241 1 WHR97405 |
C00598893
481945868253 |
Grid for hob gas/elec.. | Na dotaz | Zadat poptávku | |
| 242 0 WHR97405 |
C00597181
481941838343 |
Drawer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR97405 |
C00496490
481990704917 |
Grid | Na dotaz | Zadat poptávku | |
| 246 0 WHR97405 |
C00490617
481941838344 |
Fat pan | Na dotaz | Zadat poptávku | |
| 247 0 WHR97405 |
C00548541
481241838075 |
Tray oven | Na dotaz | Zadat poptávku | |
| 256 0 WHR97405 |
C00486830
481946689391 |
Knob protection | Na dotaz | Zadat poptávku | |
| 256 1 WHR97405 |
C00597256
481946698889 |
Spacer. | Na dotaz | Zadat poptávku | |
| 261 0 WHR97405 |
C00597242
481946238859 |
Rail right. | Na dotaz | Zadat poptávku | |
| 261 1 WHR97405 |
C00597244
481946238861 |
Rail left. | Na dotaz | Zadat poptávku | |
| 261 2 WHR97405 |
C00597240
481946238857 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 3 WHR97405 |
C00597241
481946238858 |
Rail. | Na dotaz | Zadat poptávku | |
| 261 4 WHR97405 |
C00597157
481940479307 |
Support. | Na dotaz | Zadat poptávku | |
| 261 8 WHR97405 |
C00596669
481940478715 |
Support oven shelf. | Na dotaz | Zadat poptávku | |
| 320 0 WHR97405 |
C00599311
481245359896 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 0 WHR97405 |
C00344694
481941129384 |
KNOB | Na dotaz | Zadat poptávku | |
| 331 9 WHR97405 |
C00336134
481949268813 |
Spring | Na dotaz | Zadat poptávku | |
| 341 0 WHR97405 |
C00339133
481941379182 |
Indication disc hot plate | Na dotaz | Zadat poptávku | |
| 341 1 WHR97405 |
C00336835
481941379179 |
RING THERMOSTAT | Na dotaz | Zadat poptávku | |
| 341 2 WHR97405 |
C00599183
481241378739 |
Indicator oven switch knob. | Na dotaz | Zadat poptávku | |
| 341 3 WHR97405 |
C00621392
481241378501 |
Indication disc gas tap. | Na dotaz | Zadat poptávku | |
| 351 0 WHR97405 |
C00341470
481913448464 |
Pilot lamp L= 600 mm | Na dotaz | Zadat poptávku | |
| 351 0 WHR97405 |
C00481287
481913448485 |
Pilot lamp L= 750 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR97405 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR97405 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 440 0 WHR97405 |
C00373292
481963118346 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 451 0 WHR97405 |
C00375163
481925928759 |
Heating element forced air | Na dotaz | Zadat poptávku | |
| 452 0 WHR97405 |
C00598819
481925928811 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR97405 |
C00481291
481925928812 |
OHRIEVACIE TELESO | Na dotaz | Zadat poptávku | |
| 461 5 WHR97405 |
C00333623
481925998498 |
Plotýnka 145mm | 1 666 Kč
€ 65.80 |
||
| 470 0 WHR97405 |
C00236832
481936069404 |
ARTHRITIC KNOB | Na dotaz | Zadat poptávku | |
| 470 1 WHR97405 |
C00481300
481936069405 |
Burner SR | Na dotaz | Zadat poptávku | |
| 470 2 WHR97405 |
C00621558
481936069406 |
Burner R1/DR. | Na dotaz | Zadat poptávku | |
| 471 0 WHR97405 |
C00621564
481936078341 |
Burner body A. | Na dotaz | Zadat poptávku | |
| 471 1 WHR97405 |
C00484345
481936078339 |
Burner body SR | Na dotaz | Zadat poptávku | |
| 471 2 WHR97405 |
C00484344
481936078338 |
Burner body R1 | Na dotaz | Zadat poptávku | |
| 471 3 WHR97405 |
C00481299
481936058537 |
Air adjust.tube A/SR | Na dotaz | Zadat poptávku | |
| 471 4 WHR97405 |
C00621552
481936058538 |
Air adjust.tube R1/DR. | Na dotaz | Zadat poptávku | |
| 472 0 WHR97405 |
C00484313
481936069407 |
Burner crown A | Na dotaz | Zadat poptávku | |
| 472 1 WHR97405 |
C00480484
481936069408 |
Burner crown SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR97405 |
C00621559
481936069409 |
Burner crown R1 | Na dotaz | Zadat poptávku | |
| 473 0 WHR97405 |
C00373926
481936054040 |
Burner cap A/DR | Na dotaz | Zadat poptávku | |
| 473 1 WHR97405 |
C00621549
481936054041 |
Burner cap SR. | Na dotaz | Zadat poptávku | |
| 473 2 WHR97405 |
C00621550
481936054043 |
Burner cap R1. | Na dotaz | Zadat poptávku | |
| 474 0 WHR97405 |
C00484314
481936069417 |
Nozzle 0.67 G30 SR | Na dotaz | Zadat poptávku | |
| 474 0 WHR97405 |
C00484315
481936069418 |
Nozzle 0.86 G30 R/GRILL | Na dotaz | Zadat poptávku | |
| 474 0 WHR97405 |
C00599383
481936069416 |
Nozzle 0.50 G30 A. | Na dotaz | Zadat poptávku | |
| 474 0 WHR97405 |
C00599083
481231038819 |
Nozzle kit G20. | Na dotaz | Zadat poptávku | |
| 490 0 WHR97405 |
C00493140
481232118161 |
Cable mains 3x2,5 | Na dotaz | Zadat poptávku | |
| 491 0 WHR97405 |
C00498898
481929068416 |
TERMINAL BLOCK | Na dotaz | Zadat poptávku | |
| 491 1 WHR97405 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR97405 |
C00492289
481940118716 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR97405 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 1 WHR97405 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
| 562 0 WHR97405 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
| 571 0 WHR97405 |
C00486475
481936058536 |
Gas cock 0.39 | Na dotaz | Zadat poptávku | |
| 571 1 WHR97405 |
C00621551
481936058534 |
Gas cock 0.29. | Na dotaz | Zadat poptávku | |
| 571 2 WHR97405 |
C00486474
481936058535 |
Gas cock 0.27 | Na dotaz | Zadat poptávku | |
| 591 0 WHR97405 |
C00621532
481925268114 |
Spark plug 260 mm | Na dotaz | Zadat poptávku | |
| 591 9 WHR97405 |
C00373299
481949258122 |
Spring | Na dotaz | Zadat poptávku | |
| 594 0 WHR97405 |
C00491028
481227138368 |
Switch ignition | Na dotaz | Zadat poptávku | |
| 595 0 WHR97405 |
C00598345
481213818005 |
Generator ignition. | Na dotaz | Zadat poptávku | |
| 620 0 WHR97405 |
C00495790
481927328438 |
Selector,switch oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR97405 |
C00598829
481927328375 |
Hex.code switch. | Na dotaz | Zadat poptávku | |
| 651 0 WHR97405 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR97405 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 703 0 WHR97405 |
C00494469
481931088619 |
Gas pipe | Na dotaz | Zadat poptávku | |
| 703 1 WHR97405 |
C00598848
481931088621 |
Gas pipe. | Na dotaz | Zadat poptávku | |
| 703 3 WHR97405 |
C00598847
481931088617 |
Gas pipe. | Na dotaz | Zadat poptávku | |
| 703 8 WHR97405 |
C00621601
481953043052 |
Gas connection G30/31 | Na dotaz | Zadat poptávku | |
| 703 9 WHR97405 |
C00582409
481952648321 |
Gas connection NG G20. | Na dotaz | Zadat poptávku | |
| 762 0 WHR97405 |
C00597099
481912118212 |
filtr tukovy | Na dotaz | Zadat poptávku | |
| 794 0 WHR97405 |
C00582424
481953248004 |
Gasket. | Na dotaz | Zadat poptávku | |
| 904 0 WHR97405 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 910 0 WHR97405 |
C00599351
481250218533 |
Screw. | Na dotaz | Zadat poptávku | |
| 910 1 WHR97405 |
C00599476
481950218472 |
Screw | Na dotaz | Zadat poptávku | |
| 912 1 WHR97405 |
C00597267
481950218393 |
Screw. | Na dotaz | Zadat poptávku | |
| 921 0 WHR97405 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
| 923 0 WHR97405 |
C00621596
481950518302 |
Threaded cap. | Na dotaz | Zadat poptávku | |
| 999 WHR97405 |
C00767769 | Gastable WHP | Na dotaz | Zadat poptávku | |
