Komerční kód: | ACM 361 WH |
Kód 12NC: | 857636119000 |
Značka: | WHIRLPOOL |
Typ produktu: |
Potřebujete servis? Jsme tady pro Vás

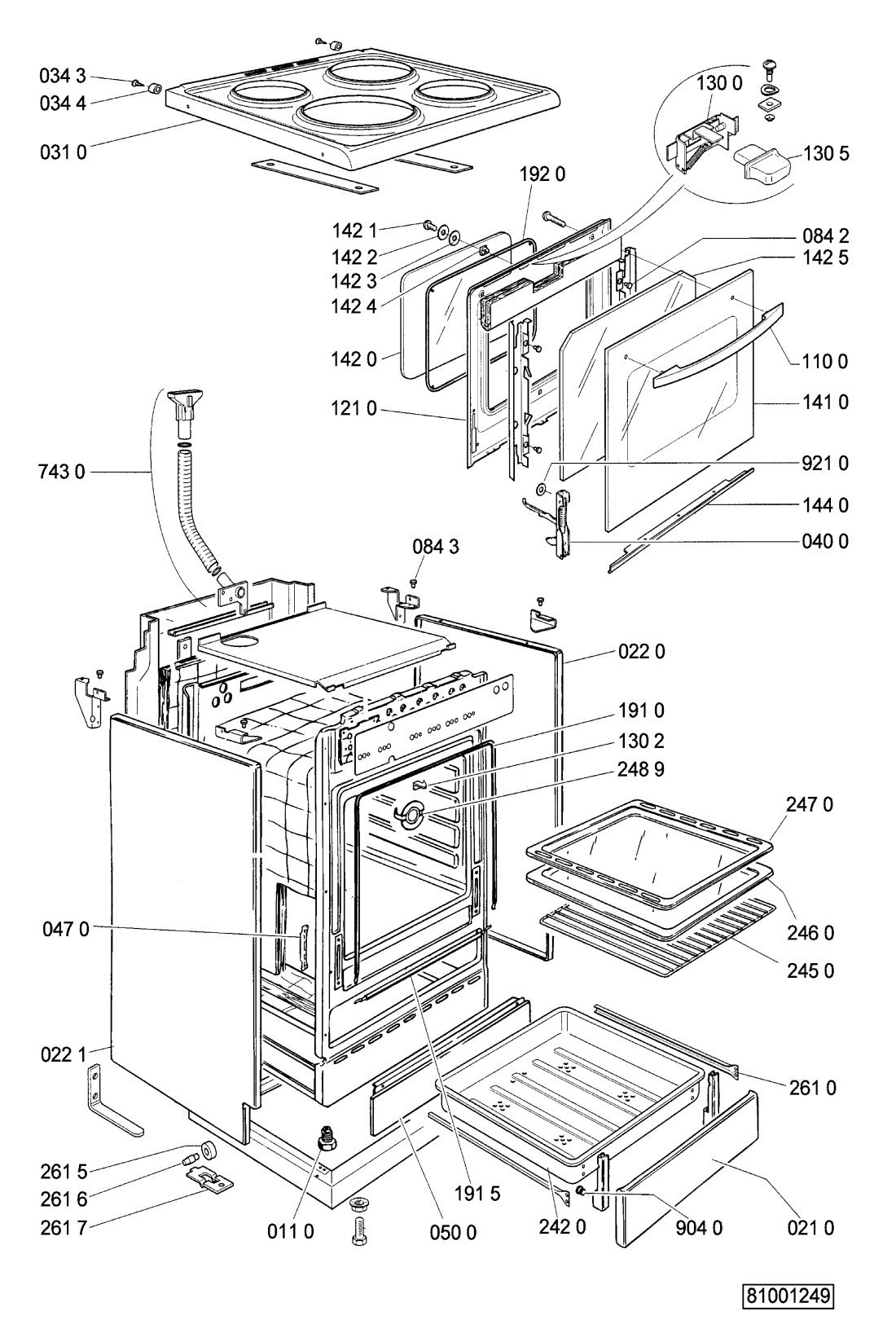

Nabídka náhradních dílů
Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
011 0 WHR115091 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
021 0 WHR115091 |
C00597189
481944059773 |
Panel front ,Drawer. | Na dotaz | Zadat poptávku | |
022 0 WHR115091 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
022 1 WHR115091 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
031 0 WHR115091 |
C00599451
481944239423 |
Hob elec.plattes. | Na dotaz | Zadat poptávku | |
034 3 WHR115091 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
034 4 WHR115091 |
C00336218
481946689136 |
SPACER | Na dotaz | Zadat poptávku | |
040 0 WHR115091 |
C00490609
481941719639 |
Hinge | Na dotaz | Zadat poptávku | |
047 0 WHR115091 |
C00481201
481941719351 |
Hinge ,female | Na dotaz | Zadat poptávku | |
050 0 WHR115091 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
084 2 WHR115091 |
C00129135
481946818364 |
DRAIN SUPPORT ML45-I | Na dotaz | Zadat poptávku | |
084 3 WHR115091 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
110 0 WHR115091 |
C00499893
481949858582 |
Handle door | Na dotaz | Zadat poptávku | |
121 0 WHR115091 |
C00599453
481944239424 |
Door frame inner. | Na dotaz | Zadat poptávku | |
130 0 WHR115091 |
C00597283
481953538166 |
Child-prooflock oven door | Na dotaz | Zadat poptávku | |
130 2 WHR115091 |
C00490838
481953538165 |
Hook | Na dotaz | Zadat poptávku | |
130 5 WHR115091 |
C00488082
481941129668 |
Knob child security | Na dotaz | Zadat poptávku | |
141 0 WHR115091 |
C00599460
481945058431 |
Oven door ,front. | Na dotaz | Zadat poptávku | |
142 0 WHR115091 |
C00556072
481945058268 |
Inner glass.. | Na dotaz | Zadat poptávku | |
142 1 WHR115091 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
142 2 WHR115091 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
142 3 WHR115091 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
142 4 WHR115091 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
142 5 WHR115091 |
C00556077
481945058424 |
Inner glass third glas.. | Na dotaz | Zadat poptávku | |
144 0 WHR115091 |
C00597237
481946078814 |
Trim door. | Na dotaz | Zadat poptávku | |
191 0 WHR115091 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
191 5 WHR115091 |
C00597259
481946818363 |
Gasket. | Na dotaz | Zadat poptávku | |
192 0 WHR115091 |
C00556210
481946669981 |
Gasket door.. | Na dotaz | Zadat poptávku | |
242 0 WHR115091 |
C00597181
481941838343 |
Drawer. | Na dotaz | Zadat poptávku | |
245 0 WHR115091 |
C00599463
481945858729 |
Oven shelf. | Na dotaz | Zadat poptávku | |
246 0 WHR115091 |
C00597182
481941838383 |
Baking tray | Na dotaz | Zadat poptávku | |
247 0 WHR115091 |
C00490617
481941838344 |
Fat pan | Na dotaz | Zadat poptávku | |
248 9 WHR115091 |
C00582377
481946248406 |
Cover. | Na dotaz | Zadat poptávku | |
261 0 WHR115091 |
C00599465
481946238709 |
Rail. | Na dotaz | Zadat poptávku | |
261 5 WHR115091 |
C00599482
481952878114 |
Wheel. | Na dotaz | Zadat poptávku | |
261 6 WHR115091 |
C00599488
481953598673 |
Pivot. | Na dotaz | Zadat poptávku | |
261 7 WHR115091 |
C00599393
481940479512 |
Bracket. | Na dotaz | Zadat poptávku | |
320 0 WHR115091 |
C00758384
481945358853 |
Control panel | Na dotaz | Zadat poptávku | |
331 0 WHR115091 |
C00531669
481941129677 |
Knob hot plate hot plate | Na dotaz | Zadat poptávku | |
331 1 WHR115091 |
C00488084
481941129675 |
Knob thermostat | Na dotaz | Zadat poptávku | |
331 2 WHR115091 |
C00758378
481941129676 |
Knob oven switch | Na dotaz | Zadat poptávku | |
351 0 WHR115091 |
C00758386
481913448534 |
Pilot lamp L=230 mm 400 V | Na dotaz | Zadat poptávku | |
351 1 WHR115091 |
C00758387
481913448535 |
Pilot lamp L=600 mm 400 V | Na dotaz | Zadat poptávku | |
354 0 WHR115091 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
354 1 WHR115091 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
424 0 WHR115091 |
C00621980
481911248029 |
Resistor oven lamp | Na dotaz | Zadat poptávku | |
452 0 WHR115091 |
C00598819
481925928811 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
456 0 WHR115091 |
C00481291
481925928812 |
OHRIEVACIE TELESO | Na dotaz | Zadat poptávku | |
461 0 WHR115091 |
C00500381
481925998434 |
Cooking plate d 145 1000 W | Na dotaz | Zadat poptávku | |
461 2 WHR115091 |
C00599374
481925998643 |
Cooking plate d 220 2000 W. | Na dotaz | Zadat poptávku | |
461 5 WHR115091 |
C00490350
481925998644 |
Cooking plate d 145 rapid 1500 W | Na dotaz | Zadat poptávku | |
461 6 WHR115091 |
C00531272
481925998436 |
Cooking plate d 180 ra d 180 rapid 2000 | Na dotaz | Zadat poptávku | |
490 0 WHR115091 |
C00599381
481932118335 |
Cable mains. | Na dotaz | Zadat poptávku | |
491 0 WHR115091 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
491 1 WHR115091 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
491 3 WHR115091 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
554 0 WHR115091 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
554 1 WHR115091 |
C00343269
481949248166 |
Clip Thermostat | Na dotaz | Zadat poptávku | |
562 0 WHR115091 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
620 0 WHR115091 |
C00599378
481927328493 |
Switch,oven. | Na dotaz | Zadat poptávku | |
622 0 WHR115091 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
651 0 WHR115091 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
652 0 WHR115091 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
743 0 WHR115091 |
C00599486
481953048838 |
Conveyor. | Na dotaz | Zadat poptávku | |
904 0 WHR115091 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
921 0 WHR115091 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku |
