WHIRLPOOL ACM 362 D/WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 362 D/WH |
| Kód 12NC: | 857636217000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

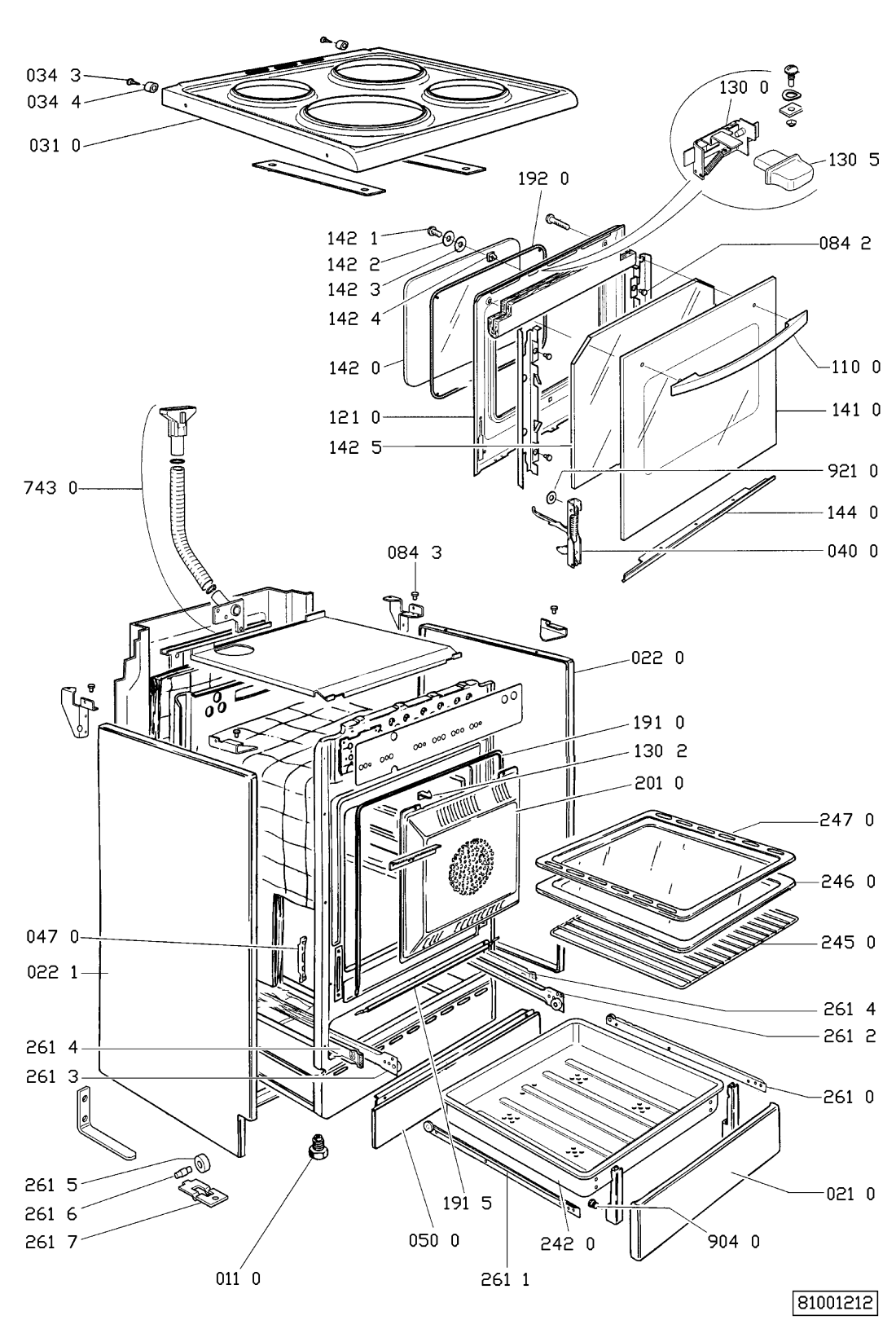

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR103342 |
C00492567
481950018145 |
Foot | Na dotaz | Zadat poptávku | |
| 021 0 WHR103342 |
C00597189
481944059773 |
Panel front ,Drawer. | Na dotaz | Zadat poptávku | |
| 022 0 WHR103342 |
C00499157
481944059772 |
Panel side right | Na dotaz | Zadat poptávku | |
| 022 1 WHR103342 |
C00499158
481944059774 |
Panel side left | Na dotaz | Zadat poptávku | |
| 031 0 WHR103342 |
C00599451
481944239423 |
Hob elec.plattes. | Na dotaz | Zadat poptávku | |
| 034 3 WHR103342 |
C00336754
481950218473 |
Screw | Na dotaz | Zadat poptávku | |
| 034 4 WHR103342 |
C00758389
481953268894 |
Spacer | Na dotaz | Zadat poptávku | |
| 040 0 WHR103342 |
C00490609
481941719639 |
Hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR103342 |
C00481201
481941719351 |
Hinge ,female | Na dotaz | Zadat poptávku | |
| 050 0 WHR103342 |
C00597197
481944238259 |
Plinth cover. | Na dotaz | Zadat poptávku | |
| 084 2 WHR103342 |
C00129135
481946818364 |
DRAIN SUPPORT ML45-I | Na dotaz | Zadat poptávku | |
| 084 3 WHR103342 |
C00582512
481990704928 |
Rubber | Na dotaz | Zadat poptávku | |
| 110 0 WHR103342 |
C00499893
481949858582 |
Handle door | Na dotaz | Zadat poptávku | |
| 121 0 WHR103342 |
C00599453
481944239424 |
Door frame inner. | Na dotaz | Zadat poptávku | |
| 130 0 WHR103342 |
C00597283
481953538166 |
Child-prooflock oven door | Na dotaz | Zadat poptávku | |
| 130 2 WHR103342 |
C00490838
481953538165 |
Hook | Na dotaz | Zadat poptávku | |
| 130 5 WHR103342 |
C00488082
481941129668 |
Knob child security | Na dotaz | Zadat poptávku | |
| 141 0 WHR103342 |
C00599460
481945058431 |
Oven door ,front. | Na dotaz | Zadat poptávku | |
| 142 0 WHR103342 |
C00556072
481945058268 |
Inner glass.. | Na dotaz | Zadat poptávku | |
| 142 1 WHR103342 |
C00336755
481950218392 |
Screw | Na dotaz | Zadat poptávku | |
| 142 2 WHR103342 |
C00494772
481953258274 |
Washer | Na dotaz | Zadat poptávku | |
| 142 3 WHR103342 |
C00337257
481953258271 |
Washer | Na dotaz | Zadat poptávku | |
| 142 4 WHR103342 |
C00338072
481950518303 |
Nut | Na dotaz | Zadat poptávku | |
| 142 5 WHR103342 |
C00556077
481945058424 |
Inner glass third glas.. | Na dotaz | Zadat poptávku | |
| 144 0 WHR103342 |
C00597237
481946078814 |
Trim door. | Na dotaz | Zadat poptávku | |
| 191 0 WHR103342 |
C00481208
481946669979 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 191 5 WHR103342 |
C00597259
481946818363 |
Gasket. | Na dotaz | Zadat poptávku | |
| 192 0 WHR103342 |
C00556210
481946669981 |
Gasket door.. | Na dotaz | Zadat poptávku | |
| 201 0 WHR103342 |
C00599491
481990711425 |
Panel rear. | Na dotaz | Zadat poptávku | |
| 242 0 WHR103342 |
C00597181
481941838343 |
Drawer. | Na dotaz | Zadat poptávku | |
| 245 0 WHR103342 |
C00599463
481945858729 |
Oven shelf. | Na dotaz | Zadat poptávku | |
| 246 0 WHR103342 |
C00597182
481941838383 |
Baking tray | Na dotaz | Zadat poptávku | |
| 247 0 WHR103342 |
C00490617
481941838344 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR103342 |
C00758390
481946238931 |
Rail | Na dotaz | Zadat poptávku | |
| 261 1 WHR103342 |
C00758391
481946238932 |
Rail | Na dotaz | Zadat poptávku | |
| 261 2 WHR103342 |
C00758392
481946238928 |
Rail | Na dotaz | Zadat poptávku | |
| 261 3 WHR103342 |
C00758393
481946238929 |
Rail | Na dotaz | Zadat poptávku | |
| 261 4 WHR103342 |
C00597157
481940479307 |
Support. | Na dotaz | Zadat poptávku | |
| 261 5 WHR103342 |
C00599482
481952878114 |
Wheel. | Na dotaz | Zadat poptávku | |
| 261 6 WHR103342 |
C00599488
481953598673 |
Pivot. | Na dotaz | Zadat poptávku | |
| 261 7 WHR103342 |
C00599393
481940479512 |
Bracket. | Na dotaz | Zadat poptávku | |
| 320 0 WHR103342 |
C00756101
481945358854 |
Control panel | Na dotaz | Zadat poptávku | |
| 331 0 WHR103342 |
C00531669
481941129677 |
Knob hot plate hot plate | Na dotaz | Zadat poptávku | |
| 331 1 WHR103342 |
C00488084
481941129675 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 331 2 WHR103342 |
C00758394
481941129689 |
Knob elec.oven | Na dotaz | Zadat poptávku | |
| 351 0 WHR103342 |
C00481287
481913448485 |
Pilot lamp L= 750 mm | Na dotaz | Zadat poptávku | |
| 351 1 WHR103342 |
C00341471
481913448465 |
pILOT LAMP L= 230 MML= 230 mm | Na dotaz | Zadat poptávku | |
| 354 0 WHR103342 |
C00341776
481938118201 |
Lens red | Na dotaz | Zadat poptávku | |
| 354 1 WHR103342 |
C00341779
481946279854 |
Lens orange | Na dotaz | Zadat poptávku | |
| 440 0 WHR103342 |
C00373292
481963118346 |
Motor fan complete | Na dotaz | Zadat poptávku | |
| 452 0 WHR103342 |
C00598819
481925928811 |
Heating element upper/grill | Na dotaz | Zadat poptávku | |
| 456 0 WHR103342 |
C00481291
481925928812 |
OHRIEVACIE TELESO | Na dotaz | Zadat poptávku | |
| 461 0 WHR103342 |
C00598824
481925998559 |
Cooking plate d.145 1000 W. | Na dotaz | Zadat poptávku | |
| 461 2 WHR103342 |
C00599373
481925998561 |
Cooking plate dia 220 - 2000W. | Na dotaz | Zadat poptávku | |
| 461 5 WHR103342 |
C00598825
481925998562 |
Cooking plate d=145 1500 W. | Na dotaz | Zadat poptávku | |
| 461 6 WHR103342 |
C00555753
481925998563 |
Cooking plate d=180 2.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR103342 |
C00494898
481985023182 |
Connectionblock | Na dotaz | Zadat poptávku | |
| 491 1 WHR103342 |
C00343033
481946698882 |
Cover | Na dotaz | Zadat poptávku | |
| 491 3 WHR103342 |
C00335992
481940118715 |
Strain relief | Na dotaz | Zadat poptávku | |
| 554 0 WHR103342 |
C00335484
481927128855 |
termostat | 2 187 Kč
€ 86.30 |
||
| 554 1 WHR103342 |
C00582291
481940118719 |
Clamp thermostat bulb. | Na dotaz | Zadat poptávku | |
| 554 2 WHR103342 |
C00597151
481940118892 |
Clip front thermostat bulb. | Na dotaz | Zadat poptávku | |
| 562 0 WHR103342 |
C00335671
481928248262 |
Switch,thermal cut-off-thermostat | Na dotaz | Zadat poptávku | |
| 620 0 WHR103342 |
C00745356
481927328494 |
Switch,oven | Na dotaz | Zadat poptávku | |
| 622 0 WHR103342 |
C00498855
481927618267 |
ENERGY REGULAT. | Na dotaz | Zadat poptávku | |
| 651 0 WHR103342 |
C00343122
481913488089 |
COOKING T22 E14 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR103342 |
C00339576
481931038923 |
Holder lamp cpl. | Na dotaz | Zadat poptávku | |
| 743 0 WHR103342 |
C00599486
481953048838 |
Conveyor. | Na dotaz | Zadat poptávku | |
| 904 0 WHR103342 |
C00336358
481946698877 |
SHOCK ABSORBER | Na dotaz | Zadat poptávku | |
| 921 0 WHR103342 |
C00337258
481953258273 |
Washer | Na dotaz | Zadat poptávku | |
