| Komerční kód: | ACM 501/WH/02 COOKERS WP |
| Kód 12NC: | 857650184000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

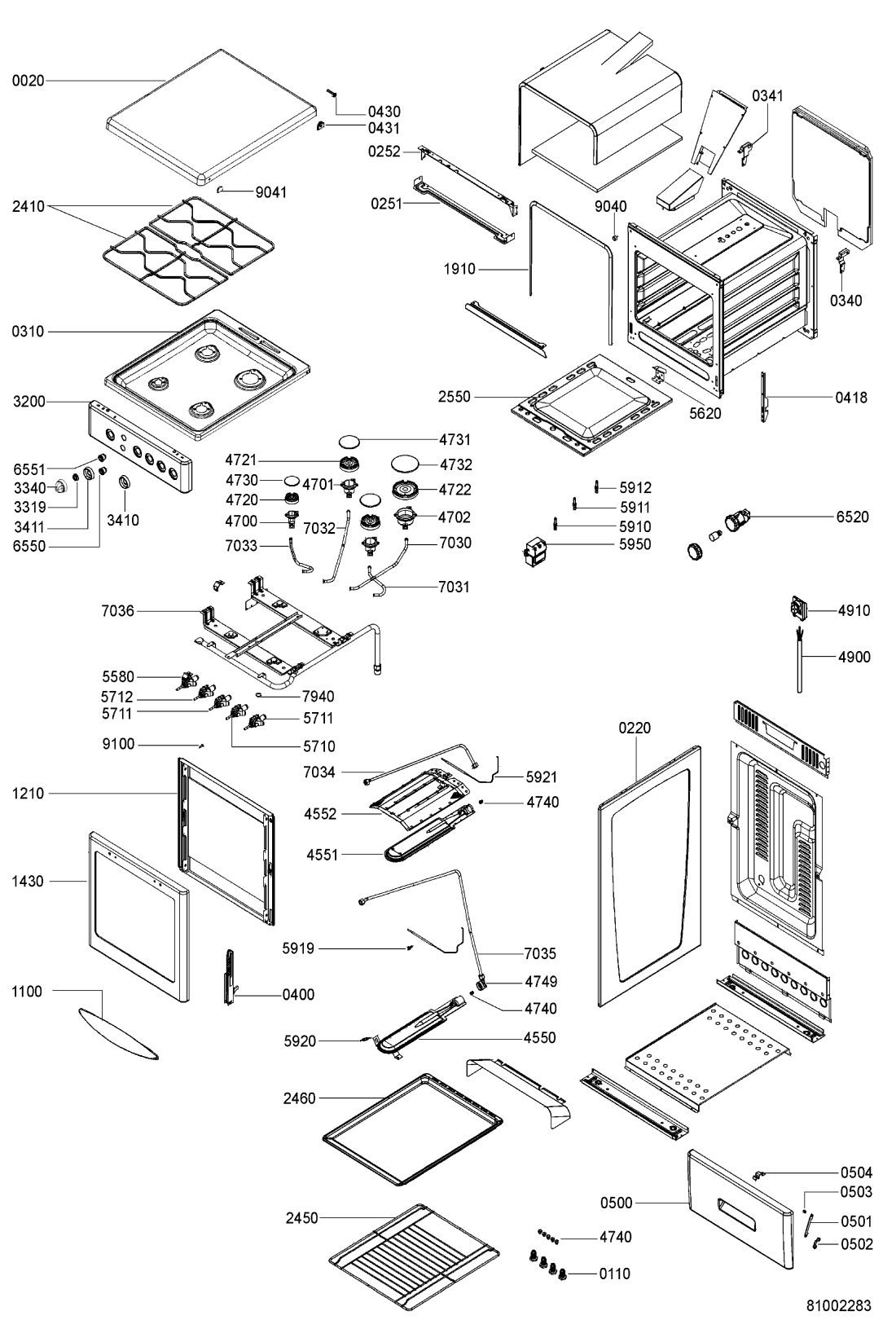

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR59464 |
C00485122
481244058293 |
Lid | Na dotaz | Zadat poptávku | |
| 011 0 WHR59464 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR59464 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 1 WHR59464 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR59464 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 031 0 WHR59464 |
C00488534
481225998373 |
Hob cooktop | Na dotaz | Zadat poptávku | |
| 034 0 WHR59464 |
C00553503
481241719157 |
Hinge | Na dotaz | Zadat poptávku | |
| 034 1 WHR59464 |
C00553504
481241719158 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 0 WHR59464 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 041 8 WHR59464 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 043 0 WHR59464 |
C00493530
481241719159 |
Washer lid | Na dotaz | Zadat poptávku | |
| 043 1 WHR59464 |
C00492111
481253268123 |
Pivot lid | Na dotaz | Zadat poptávku | |
| 050 0 WHR59464 |
C00599242
481244269302 |
Flap. | Na dotaz | Zadat poptávku | |
| 050 1 WHR59464 |
C00493561
481244269303 |
Rod drawer upper | Na dotaz | Zadat poptávku | |
| 050 2 WHR59464 |
C00493562
481244269304 |
Rod drawer lower | Na dotaz | Zadat poptávku | |
| 050 3 WHR59464 |
C00489336
481244269305 |
Bush drawer | Na dotaz | Zadat poptávku | |
| 050 4 WHR59464 |
C00582194
481244269306 |
Spring drawer. | Na dotaz | Zadat poptávku | |
| 110 0 WHR59464 |
C00377807
481246268871 |
Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR59464 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR59464 |
C00582200
481245058777 |
Door frame upper sheet | Na dotaz | Zadat poptávku | |
| 191 0 WHR59464 |
C00377819
481246668715 |
Gasket oven | Na dotaz | Zadat poptávku | |
| 241 0 WHR59464 |
C00487681
481245858341 |
Grid hob | Na dotaz | Zadat poptávku | |
| 245 0 WHR59464 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR59464 |
C00490618
481941838361 |
Baking tray | Na dotaz | Zadat poptávku | |
| 255 0 WHR59464 |
C00492371
481944059561 |
Bottom, oven | Na dotaz | Zadat poptávku | |
| 320 0 WHR59464 |
C00599305
481245359788 |
Control panel. | Na dotaz | Zadat poptávku | |
| 331 9 WHR59464 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR59464 |
C00377616
481241128811 |
knoflik ovladaci | 122 Kč
€ 4.80 |
||
| 341 0 WHR59464 |
C00377635
481241378674 |
krouzek horaku | 111 Kč
€ 4.40 |
||
| 341 1 WHR59464 |
C00377636
481241378675 |
krouzek termostatu | 100 Kč
€ 3.90 |
||
| 455 0 WHR59464 |
C00582130
481236068561 |
Burner oven. | Na dotaz | Zadat poptávku | |
| 455 1 WHR59464 |
C00598857
481936069607 |
Burner grill. | Na dotaz | Zadat poptávku | |
| 455 2 WHR59464 |
C00491442
481236068411 |
Holder grill radiator | Na dotaz | Zadat poptávku | |
| 470 0 WHR59464 |
C00582127
481236068556 |
Burner cup AUX. | Na dotaz | Zadat poptávku | |
| 470 1 WHR59464 |
C00582128
481236068557 |
Burner cup SR. | Na dotaz | Zadat poptávku | |
| 470 2 WHR59464 |
C00582129
481236068558 |
Burner cup R. | Na dotaz | Zadat poptávku | |
| 472 0 WHR59464 |
C00493253
481236068401 |
Distributor AUX | Na dotaz | Zadat poptávku | |
| 472 1 WHR59464 |
C00493254
481236068404 |
Distributor SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR59464 |
C00377582
481236068407 |
Distributor R | Na dotaz | Zadat poptávku | |
| 473 0 WHR59464 |
C00482802
481236078109 |
Burner cap AUX | Na dotaz | Zadat poptávku | |
| 473 1 WHR59464 |
C00482804
481236078112 |
Burner cap SR | Na dotaz | Zadat poptávku | |
| 473 2 WHR59464 |
C00527440
481236068559 |
Burner R | Na dotaz | Zadat poptávku | |
| 474 0 WHR59464 |
C00582108
481231038736 |
Nozzle D 1,45. | Na dotaz | Zadat poptávku | |
| 474 0 WHR59464 |
C00599082
481231038735 |
Nozzle set LPG - G30. | Na dotaz | Zadat poptávku | |
| 474 0 WHR59464 |
C00599104
481236068205 |
Nozzle D 1,40. | Na dotaz | Zadat poptávku | |
| 474 9 WHR59464 |
C00582273
481936061377 |
Injector holder. | Na dotaz | Zadat poptávku | |
| 490 0 WHR59464 |
C00582112
481232118199 |
Cable mains. | Na dotaz | Zadat poptávku | |
| 491 0 WHR59464 |
C00582140
481240118572 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 558 0 WHR59464 |
C00599054
481227128496 |
Thermostat. | Na dotaz | Zadat poptávku | |
| 562 0 WHR59464 |
C00486882
481953041097 |
Fuse | Na dotaz | Zadat poptávku | |
| 571 0 WHR59464 |
C00484727
481236058282 |
Tap R | Na dotaz | Zadat poptávku | |
| 571 1 WHR59464 |
C00484726
481236058281 |
Tap SR | Na dotaz | Zadat poptávku | |
| 571 2 WHR59464 |
C00484732
481236058368 |
Tap gas small 0.29 | Na dotaz | Zadat poptávku | |
| 591 0 WHR59464 |
C00599044
481225268043 |
Spark plug L=190 | Na dotaz | Zadat poptávku | |
| 591 1 WHR59464 |
C00377485
481225268044 |
Spark plug L=320 | Na dotaz | Zadat poptávku | |
| 591 2 WHR59464 |
C00484642
481225268045 |
Spark plug L=240 | Na dotaz | Zadat poptávku | |
| 591 9 WHR59464 |
C00491993
481249248158 |
Spring | Na dotaz | Zadat poptávku | |
| 592 0 WHR59464 |
C00481058
481236068398 |
Thermo couple | Na dotaz | Zadat poptávku | |
| 592 1 WHR59464 |
C00599111
481236068412 |
Thermo couple. | Na dotaz | Zadat poptávku | |
| 595 0 WHR59464 |
C00377400
481214238001 |
Generator ignition | Na dotaz | Zadat poptávku | |
| 652 0 WHR59464 |
C00377486
481225518257 |
Lamp 15W 240V AC | Na dotaz | Zadat poptávku | |
| 655 0 WHR59464 |
C00377509
481227328213 |
Switch | Na dotaz | Zadat poptávku | |
| 655 1 WHR59464 |
C00599060
481227328215 |
Switch. | Na dotaz | Zadat poptávku | |
| 703 0 WHR59464 |
C00582235
481253048391 |
Pipe PB | Na dotaz | Zadat poptávku | |
| 703 1 WHR59464 |
C00493767
481253048389 |
Pipe PF | Na dotaz | Zadat poptávku | |
| 703 2 WHR59464 |
C00493766
481253048388 |
Pipe LB | Na dotaz | Zadat poptávku | |
| 703 3 WHR59464 |
C00493765
481253048387 |
Pipe LF | Na dotaz | Zadat poptávku | |
| 703 4 WHR59464 |
C00599357
481253048393 |
Pipe grill feeder. | Na dotaz | Zadat poptávku | |
| 703 5 WHR59464 |
C00493768
481253048392 |
Pipe oven feeder | Na dotaz | Zadat poptávku | |
| 703 6 WHR59464 |
C00599366
481253048623 |
Pipe main gas connection. | Na dotaz | Zadat poptávku | |
| 794 0 WHR59464 |
C00486890
481953268755 |
Gasket | Na dotaz | Zadat poptávku | |
| 904 0 WHR59464 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 904 1 WHR59464 |
C00491966
481246698998 |
Spacer | Na dotaz | Zadat poptávku | |
| 910 0 WHR59464 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
