WHIRLPOOL ACM 508 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
Komerční kód: | ACM 508 WH |
Kód 12NC: | 857650810000 |
Značka: | WHIRLPOOL |
Typ produktu: |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

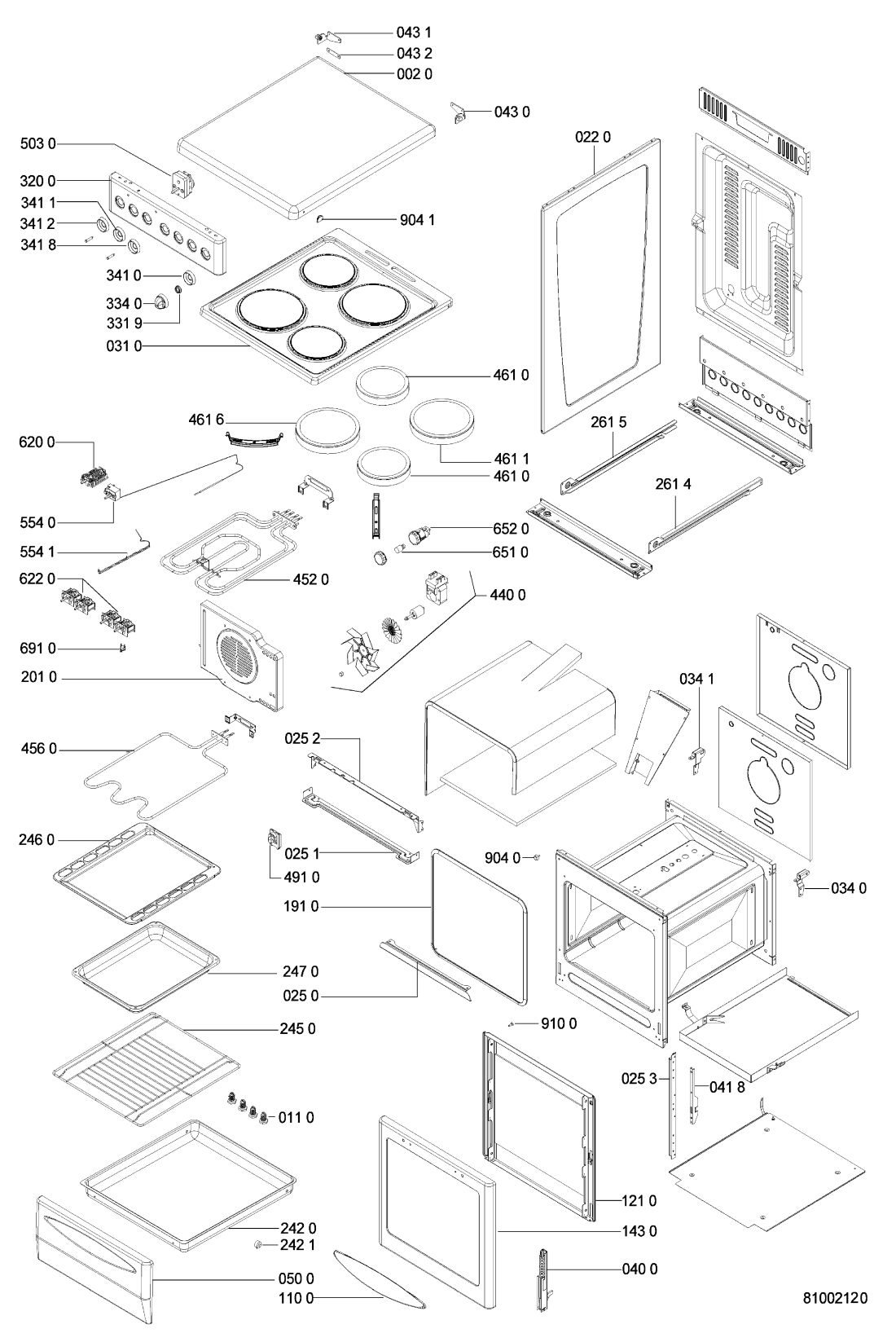

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
002 0 WHR115130 |
C00582181
481244058249 |
Lid. | Na dotaz | Zadat poptávku | |
011 0 WHR115130 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
022 0 WHR115130 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
025 0 WHR115130 |
C00484773
481240478329 |
Trim cover | Na dotaz | Zadat poptávku | |
025 1 WHR115130 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
025 2 WHR115130 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
025 3 WHR115130 |
C00484778
481240478493 |
Trim side | Na dotaz | Zadat poptávku | |
031 0 WHR115130 |
C00488535
481225998374 |
Hob | Na dotaz | Zadat poptávku | |
034 0 WHR115130 |
C00377657
481241719052 |
Hinge hob right | Na dotaz | Zadat poptávku | |
034 1 WHR115130 |
C00488955
481241719053 |
Hinge hob left | Na dotaz | Zadat poptávku | |
040 0 WHR115130 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
041 8 WHR115130 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
043 0 WHR115130 |
C00488957
481241719056 |
Hinge lid right | Na dotaz | Zadat poptávku | |
043 1 WHR115130 |
C00488958
481241719057 |
Hinge lid left | Na dotaz | Zadat poptávku | |
043 2 WHR115130 |
C00582242
481253228935 |
Washer hinge. | Na dotaz | Zadat poptávku | |
050 0 WHR115130 |
C00489330
481244269192 |
Plinth | Na dotaz | Zadat poptávku | |
110 0 WHR115130 |
C00599334
481246268085 |
Handle oven door. | Na dotaz | Zadat poptávku | |
121 0 WHR115130 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
143 0 WHR115130 |
C00599257
481245058588 |
Door inner oven | Na dotaz | Zadat poptávku | |
191 0 WHR115130 |
C00621448
481246668716 |
Gasket oven door. | Na dotaz | Zadat poptávku | |
201 0 WHR115130 |
C00598537
481244528004 |
Air diffuser. | Na dotaz | Zadat poptávku | |
242 0 WHR115130 |
C00548544
481244269193 |
Drawer | Na dotaz | Zadat poptávku | |
242 1 WHR115130 |
C00485205
481244269194 |
Drawer roller | Na dotaz | Zadat poptávku | |
245 0 WHR115130 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
246 0 WHR115130 |
C00597185
481941838415 |
Baking tray. | Na dotaz | Zadat poptávku | |
247 0 WHR115130 |
C00582538
481941838332 |
Fat pan | Na dotaz | Zadat poptávku | |
261 4 WHR115130 |
C00486024
481246238124 |
Rail pilot bar right | Na dotaz | Zadat poptávku | |
261 5 WHR115130 |
C00582217
481246238125 |
Rail pilot bar left. | Na dotaz | Zadat poptávku | |
320 0 WHR115130 |
C00758643
481245359472 |
Control panel | Na dotaz | Zadat poptávku | |
331 9 WHR115130 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
334 0 WHR115130 |
C00380472
481241128809 |
Knob control | Na dotaz | Zadat poptávku | |
341 0 WHR115130 |
C00599173
481241378668 |
Collar control 1-6. | Na dotaz | Zadat poptávku | |
341 1 WHR115130 |
C00599176
481241378672 |
Collar thermostat. | Na dotaz | Zadat poptávku | |
341 2 WHR115130 |
C00599175
481241378671 |
Collar oven. | Na dotaz | Zadat poptávku | |
341 8 WHR115130 |
C00758641
481241378677 |
Collar timer | Na dotaz | Zadat poptávku | |
440 0 WHR115130 |
C00556776
481236158345 |
Fan motor complete.. | Na dotaz | Zadat poptávku | |
452 0 WHR115130 |
C00318916
481225928817 |
Heating element upper+grill 750/1850 W | Na dotaz | Zadat poptávku | |
456 0 WHR115130 |
C00582050
481225928818 |
Heating element lower lower 1100W 230V. | Na dotaz | Zadat poptávku | |
461 0 WHR115130 |
C00377498
481225998379 |
Hotplate dia 145, 230V, 1000W | Na dotaz | Zadat poptávku | |
461 1 WHR115130 |
C00377499
481225998381 |
Hotplate dia 180, 230V, 1500W | Na dotaz | Zadat poptávku | |
461 6 WHR115130 |
C00377497
481225998378 |
Hotplate dia 180, 230V, 2000W | Na dotaz | Zadat poptávku | |
491 0 WHR115130 |
C00377601
481240118573 |
Terminal Board | Na dotaz | Zadat poptávku | |
503 0 WHR115130 |
C00556769
481228219222 |
Timer mechanical.. | Na dotaz | Zadat poptávku | |
554 0 WHR115130 |
C00377501
481227128493 |
Termostat | 2 634 Kč
€ 103.90 |
||
554 1 WHR115130 |
C00491347
481228238097 |
termostat | 451 Kč
€ 17.80 |
||
620 0 WHR115130 |
C00491098
481227618385 |
Switch oven rotary | Na dotaz | Zadat poptávku | |
622 0 WHR115130 |
C00377522
481227618384 |
Switch rotary DUO | Na dotaz | Zadat poptávku | |
651 0 WHR115130 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
652 0 WHR115130 |
C00582091
481225518245 |
Lamp. | Na dotaz | Zadat poptávku | |
691 0 WHR115130 |
C00491014
481227128494 |
Sensor limiter assy. | Na dotaz | Zadat poptávku | |
904 0 WHR115130 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
904 1 WHR115130 |
C00491966
481246698998 |
Spacer | Na dotaz | Zadat poptávku | |
910 0 WHR115130 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku |
