| Komerční kód: | ACM 562 WH COOKERS WP |
| Kód 12NC: | 857656210000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

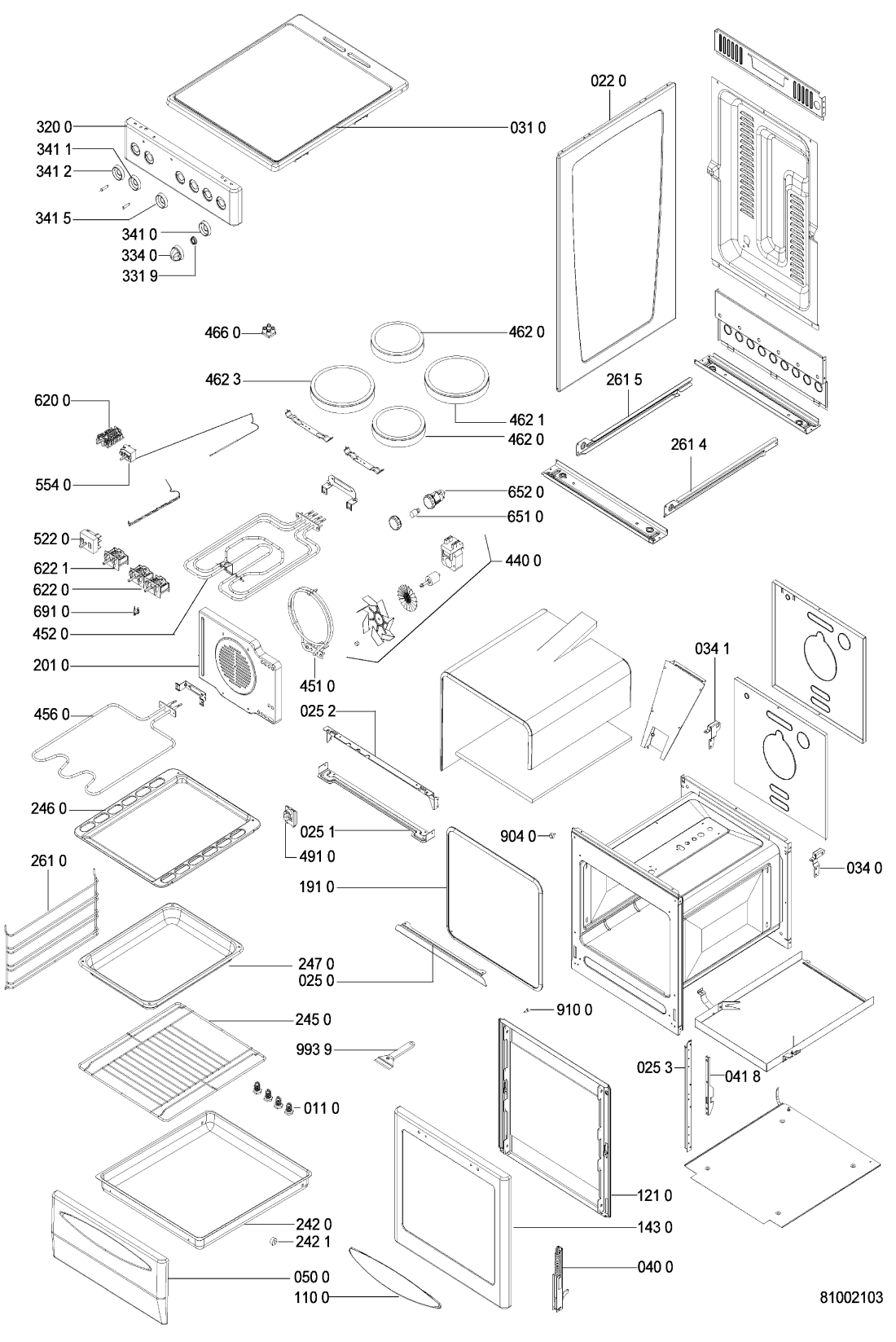

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR65296 |
C00377605
481240478331 |
Screw foot adjustable | Na dotaz | Zadat poptávku | |
| 022 0 WHR65296 |
C00582175
481244039209 |
Side panel | Na dotaz | Zadat poptávku | |
| 025 0 WHR65296 |
C00484773
481240478329 |
Trim cover | Na dotaz | Zadat poptávku | |
| 025 1 WHR65296 |
C00582144
481240478494 |
Trim lower | Na dotaz | Zadat poptávku | |
| 025 2 WHR65296 |
C00484779
481240478495 |
Trim upper | Na dotaz | Zadat poptávku | |
| 025 3 WHR65296 |
C00484778
481240478493 |
Trim side | Na dotaz | Zadat poptávku | |
| 031 0 WHR65296 |
C00599051
481225998375 |
Hotplate cooktop. | Na dotaz | Zadat poptávku | |
| 034 0 WHR65296 |
C00377657
481241719052 |
Hinge hob right | Na dotaz | Zadat poptávku | |
| 034 1 WHR65296 |
C00488955
481241719053 |
Hinge hob left | Na dotaz | Zadat poptávku | |
| 040 0 WHR65296 |
C00582243
481253548018 |
Hinge oven door. | Na dotaz | Zadat poptávku | |
| 041 8 WHR65296 |
C00582165
481241719051 |
Hinge | Na dotaz | Zadat poptávku | |
| 050 0 WHR65296 |
C00489330
481244269192 |
Plinth | Na dotaz | Zadat poptávku | |
| 110 0 WHR65296 |
C00599334
481246268085 |
Handle oven door. | Na dotaz | Zadat poptávku | |
| 121 0 WHR65296 |
C00500894
481246418076 |
Door frame inner | Na dotaz | Zadat poptávku | |
| 143 0 WHR65296 |
C00599257
481245058588 |
Door inner oven | Na dotaz | Zadat poptávku | |
| 191 0 WHR65296 |
C00621448
481246668716 |
Gasket oven door. | Na dotaz | Zadat poptávku | |
| 201 0 WHR65296 |
C00599245
481244528017 |
Fan distributing cover. | Na dotaz | Zadat poptávku | |
| 242 0 WHR65296 |
C00548544
481244269193 |
Drawer | Na dotaz | Zadat poptávku | |
| 242 1 WHR65296 |
C00485205
481244269194 |
Drawer roller | Na dotaz | Zadat poptávku | |
| 245 0 WHR65296 |
C00378088
481945868246 |
Grid oven | Na dotaz | Zadat poptávku | |
| 246 0 WHR65296 |
C00597185
481941838415 |
Baking tray. | Na dotaz | Zadat poptávku | |
| 247 0 WHR65296 |
C00582538
481941838332 |
Fat pan | Na dotaz | Zadat poptávku | |
| 261 0 WHR65296 |
C00548555
481246238123 |
Inset grid. | Na dotaz | Zadat poptávku | |
| 261 4 WHR65296 |
C00486024
481246238124 |
Rail pilot bar right | Na dotaz | Zadat poptávku | |
| 261 5 WHR65296 |
C00582217
481246238125 |
Rail pilot bar left. | Na dotaz | Zadat poptávku | |
| 320 0 WHR65296 |
C00599219
481244058251 |
Panel control. | Na dotaz | Zadat poptávku | |
| 331 9 WHR65296 |
C00377834
481249268169 |
Spring | Na dotaz | Zadat poptávku | |
| 334 0 WHR65296 |
C00380472
481241128809 |
Knob control | Na dotaz | Zadat poptávku | |
| 341 0 WHR65296 |
C00599173
481241378668 |
Collar control 1-6. | Na dotaz | Zadat poptávku | |
| 341 1 WHR65296 |
C00599176
481241378672 |
Collar thermostat. | Na dotaz | Zadat poptávku | |
| 341 2 WHR65296 |
C00599175
481241378671 |
Collar oven. | Na dotaz | Zadat poptávku | |
| 341 5 WHR65296 |
C00599174
481241378669 |
Collar energy regulator. | Na dotaz | Zadat poptávku | |
| 440 0 WHR65296 |
C00556776
481236158345 |
Fan motor complete.. | Na dotaz | Zadat poptávku | |
| 451 0 WHR65296 |
C00599047
481225928821 |
Heating element circular 2000W 230V. | Na dotaz | Zadat poptávku | |
| 452 0 WHR65296 |
C00318916
481225928817 |
Heating element upper+grill 750/1850 W | Na dotaz | Zadat poptávku | |
| 456 0 WHR65296 |
C00582050
481225928818 |
Heating element lower lower 1100W 230V. | Na dotaz | Zadat poptávku | |
| 462 0 WHR65296 |
C00557945
481225998376 |
Heating element radian | Na dotaz | Zadat poptávku | |
| 462 1 WHR65296 |
C00221422
481225998377 |
HARVEST 2.10132G/37G | Na dotaz | Zadat poptávku | |
| 462 3 WHR65296 |
C00597115
481925998629 |
Heating element radiant D180/120 1700W | Na dotaz | Zadat poptávku | |
| 466 0 WHR65296 |
C00597104
481913448528 |
Indicator for rest.heat. | Na dotaz | Zadat poptávku | |
| 491 0 WHR65296 |
C00377601
481240118573 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 522 0 WHR65296 |
C00377510
481227328214 |
Energy Regulat. | Na dotaz | Zadat poptávku | |
| 554 0 WHR65296 |
C00377501
481227128493 |
Termostat | 2 634 Kč
€ 103.90 |
||
| 620 0 WHR65296 |
C00491098
481227618385 |
Switch oven rotary | Na dotaz | Zadat poptávku | |
| 622 0 WHR65296 |
C00377522
481227618384 |
Switch rotary DUO | Na dotaz | Zadat poptávku | |
| 622 1 WHR65296 |
C00599065
481227618386 |
Switch rotary. | Na dotaz | Zadat poptávku | |
| 651 0 WHR65296 |
C00311277
481913488135 |
BULB LED E14 T25 - 15W - 220V | Na dotaz | Zadat poptávku | |
| 652 0 WHR65296 |
C00582091
481225518245 |
Lamp. | Na dotaz | Zadat poptávku | |
| 691 0 WHR65296 |
C00491014
481227128494 |
Sensor limiter assy. | Na dotaz | Zadat poptávku | |
| 904 0 WHR65296 |
C00486037
481246248095 |
Damper oven door | Na dotaz | Zadat poptávku | |
| 910 0 WHR65296 |
C00492044
481250218569 |
Screw | Na dotaz | Zadat poptávku | |
| 993 9 WHR65296 |
C00598461
481239598012 |
Scraper. | Na dotaz | Zadat poptávku | |
