| Komerční kód: | ACM 840/WH COOKERS WP |
| Kód 12NC: | 857684020000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

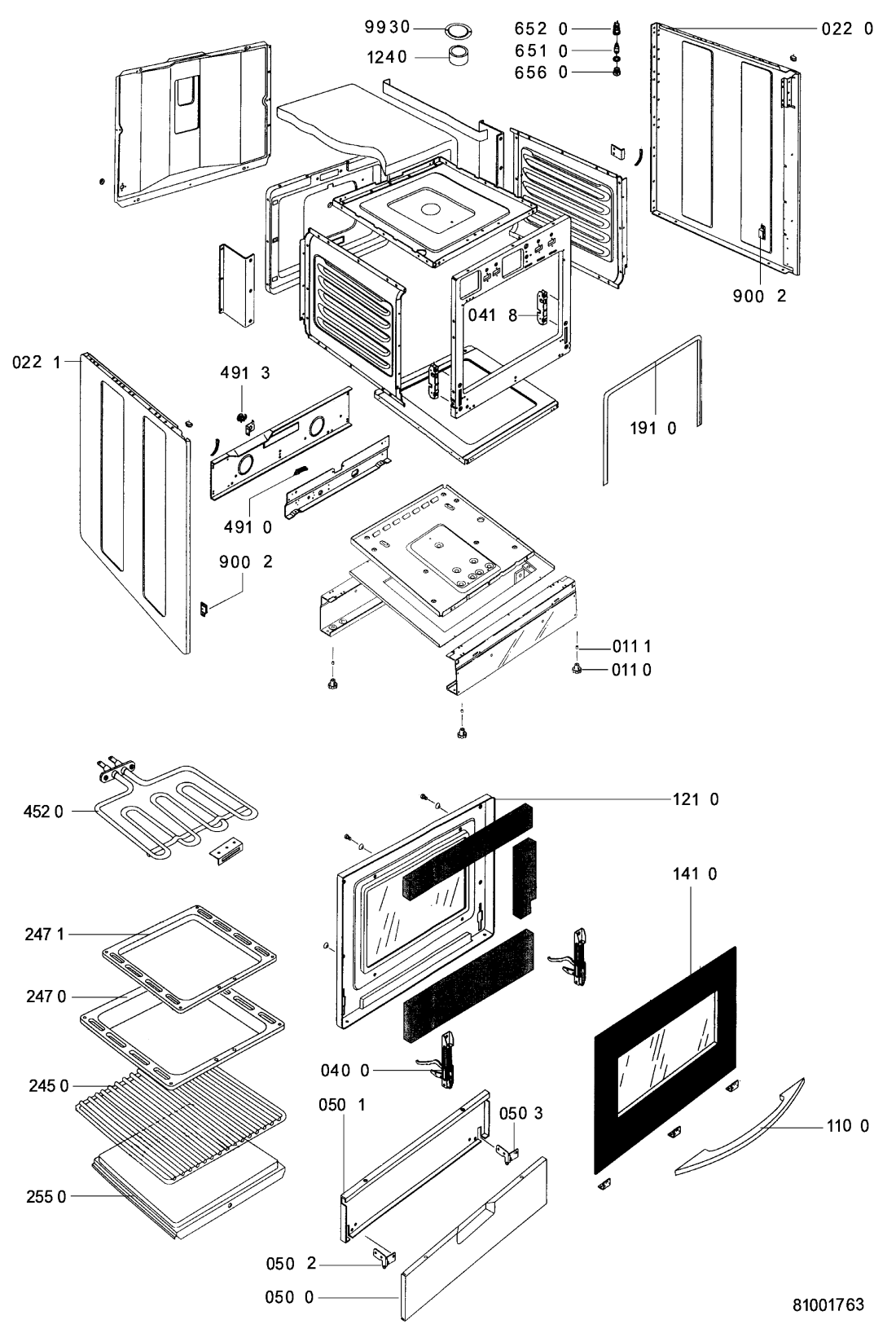

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR75987 |
C00599439
481944238679 |
Lid. | Na dotaz | Zadat poptávku | |
| 011 0 WHR75987 |
C00492565
481950018142 |
noha nastavitelna | 178 Kč
€ 7.00 |
||
| 011 1 WHR75987 |
C00492695
481953538113 |
NIT SO ZAVITOM N | Na dotaz | Zadat poptávku | |
| 022 0 WHR75987 |
C00152196
481944238681 |
HOSE -SOAP BOX TO COLD WATER V | Na dotaz | Zadat poptávku | |
| 022 1 WHR75987 |
C00152197
481944238682 |
CLAMP - FILTER DUCT INLET HOSE | Na dotaz | Zadat poptávku | |
| 031 0 WHR75987 |
C00599198
481244038792 |
Hob. | Na dotaz | Zadat poptávku | |
| 032 3 WHR75987 |
C00599408
481941719515 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 032 4 WHR75987 |
C00636173
481941719516 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 034 8 WHR75987 |
C00492500
481946698874 |
Spacer hob rear | Na dotaz | Zadat poptávku | |
| 034 9 WHR75987 |
C00492499
481946698873 |
doraz | 111 Kč
€ 4.40 |
||
| 040 0 WHR75987 |
C00599411
481941719545 |
ZAVES DVIER RURY ACM251 KOV. N | Na dotaz | Zadat poptávku | |
| 040 8 WHR75987 |
C00582883
481941719257 |
Z?VES HORNEJ DOSKY - PRAV# N | Na dotaz | Zadat poptávku | |
| 040 9 WHR75987 |
C00582682
481241718842 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 041 8 WHR75987 |
C00333001
481941758151 |
Hinge run.mech. | Na dotaz | Zadat poptávku | |
| 043 0 WHR75987 |
C00582885
481941719344 |
Hinge f. hob right. | Na dotaz | Zadat poptávku | |
| 043 1 WHR75987 |
C00582886
481941719345 |
Hinge f.hob left. | Na dotaz | Zadat poptávku | |
| 047 0 WHR75987 |
C00621583
481946258287 |
Cover. | Na dotaz | Zadat poptávku | |
| 047 5 WHR75987 |
C00621571
481941719517 |
Hinge. | Na dotaz | Zadat poptávku | |
| 050 0 WHR75987 |
C00599434
481944238518 |
Plinth | Na dotaz | Zadat poptávku | |
| 050 1 WHR75987 |
C00599436
481944238522 |
Panel rear | Na dotaz | Zadat poptávku | |
| 050 2 WHR75987 |
C00490568
481941719255 |
Z?VES SPODNŚCH DVIEROK - UAVŚ N | Na dotaz | Zadat poptávku | |
| 050 3 WHR75987 |
C00582882
481941719254 |
Z?VES SPODNŚCH DVIEROK - PRAVŚ N | Na dotaz | Zadat poptávku | |
| 110 0 WHR75987 |
C00378103
481949878179 |
Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR75987 |
C00599441
481944238683 |
INNERDOOR,OVEN | Na dotaz | Zadat poptávku | |
| 124 0 WHR75987 |
C00585207
481953048523 |
Tube for smoke.. | Na dotaz | Zadat poptávku | |
| 141 0 WHR75987 |
C00528264
481245058399 |
Glass oven door | Na dotaz | Zadat poptávku | |
| 191 0 WHR75987 |
C00585182
481946818013 |
Gasket oven.. | Na dotaz | Zadat poptávku | |
| 241 0 WHR75987 |
C00599322
481245858114 |
Grid for hob. | Na dotaz | Zadat poptávku | |
| 245 0 WHR75987 |
C00488244
481945819892 |
GRILOVACI ROST N | Na dotaz | Zadat poptávku | |
| 247 0 WHR75987 |
C00582895
481941838369 |
plech na peceni | 1 704 Kč
€ 67.30 |
||
| 247 1 WHR75987 |
C00490670
481944059681 |
plechna peceni | 2 105 Kč
€ 83.10 |
||
| 255 0 WHR75987 |
C00599438
481944238523 |
Bottom. | Na dotaz | Zadat poptávku | |
| 256 0 WHR75987 |
C00621110
481944238257 |
kryt knofliku | 935 Kč
€ 36.90 |
||
| 256 1 WHR75987 |
C00492648
481953258252 |
podlozka distancni | 100 Kč
€ 3.90 |
||
| 320 0 WHR75987 |
C00599280
481245319856 |
Control panel. | Na dotaz | Zadat poptávku | |
| 324 0 WHR75987 |
C00599390
481940478804 |
Trim, lower | Na dotaz | Zadat poptávku | |
| 331 0 WHR75987 |
C00487248
481241278659 |
Knob | Na dotaz | Zadat poptávku | |
| 331 9 WHR75987 |
C00378100
481949258065 |
pruzina knofliku | 100 Kč
€ 3.90 |
||
| 332 0 WHR75987 |
C00599387
481938118274 |
SWITCH CAP. | Na dotaz | Zadat poptávku | |
| 334 1 WHR75987 |
C00599150
481241278719 |
Knob thermostat. | Na dotaz | Zadat poptávku | |
| 341 0 WHR75987 |
C00488842
481241378561 |
Indication disc | Na dotaz | Zadat poptávku | |
| 341 1 WHR75987 |
C00599158
481241378576 |
Indication disc thermostat/grill | Na dotaz | Zadat poptávku | |
| 351 0 WHR75987 |
C00332811
481913448486 |
signalka | 337 Kč
€ 13.30 |
||
| 354 0 WHR75987 |
C00555905
481938118232 |
KRYTKA SIGN?LKY ACM251 N | Na dotaz | Zadat poptávku | |
| 452 0 WHR75987 |
C00585065
481925928832 |
Heating element grill.. | Na dotaz | Zadat poptávku | |
| 455 0 WHR75987 |
C00585103
481936069344 |
Burner oven.. | Na dotaz | Zadat poptávku | |
| 470 0 WHR75987 |
C00599384
481936069858 |
Burner A. | Na dotaz | Zadat poptávku | |
| 470 1 WHR75987 |
C00599385
481936069859 |
Burner SR. | Na dotaz | Zadat poptávku | |
| 470 2 WHR75987 |
C00599386
481936069861 |
Burner R. | Na dotaz | Zadat poptávku | |
| 470 6 WHR75987 |
C00620687
481936069338 |
Support oven burner. | Na dotaz | Zadat poptávku | |
| 472 0 WHR75987 |
C00531598
481936069862 |
BURNER CAP A A | Na dotaz | Zadat poptávku | |
| 472 1 WHR75987 |
C00531599
481936069863 |
KRYT HORAKA SR | Na dotaz | Zadat poptávku | |
| 472 2 WHR75987 |
C00381034
481936069864 |
BURNER CAP RR | Na dotaz | Zadat poptávku | |
| 472 6 WHR75987 |
C00620691
481936069339 |
Spreader,burner Oven. | Na dotaz | Zadat poptávku | |
| 473 0 WHR75987 |
C00075996
481936069855 |
FLAME SPLITTER - SMALL BURNER | Na dotaz | Zadat poptávku | |
| 473 1 WHR75987 |
C00075968
481936069857 |
BURNER BASE - MEDIUM BURNER | Na dotaz | Zadat poptávku | |
| 473 2 WHR75987 |
C00075967
481936069856 |
FLAME SPLITTER - LARGE BURNER | Na dotaz | Zadat poptávku | |
| 474 0 WHR75987 |
C00599074
481231038455 |
Set of nozzles metan G20/G25 | Na dotaz | Zadat poptávku | |
| 474 0 WHR75987 |
C00383113
481231038364 |
Set of nozzles LPG G30/G31 | Na dotaz | Zadat poptávku | |
| 491 0 WHR75987 |
C00343507
481929068173 |
svorkovnice | 192 Kč
€ 7.60 |
||
| 491 3 WHR75987 |
C00582853
481940118714 |
STRAIN RELIEF. | Na dotaz | Zadat poptávku | |
| 554 1 WHR75987 |
C00492549
481949268652 |
PRUZINA | 145 Kč
€ 5.70 |
||
| 558 0 WHR75987 |
C00620489
481927129033 |
Thermostat. | Na dotaz | Zadat poptávku | |
| 571 0 WHR75987 |
C00621557
481936058766 |
Tap burner R. | Na dotaz | Zadat poptávku | |
| 571 1 WHR75987 |
C00063481
481936058512 |
VENTIL STREDNY ACM22 | 1 125 Kč
€ 44.40 |
||
| 571 2 WHR75987 |
C00557417
481936058765 |
TAP BURNER A.. | Na dotaz | Zadat poptávku | |
| 592 0 WHR75987 |
C00627163
481921078069 |
Thermo couple oven burner. | Na dotaz | Zadat poptávku | |
| 592 1 WHR75987 |
C00776587
481946698757 |
podlozka pojistky | 134 Kč
€ 5.30 |
||
| 633 0 WHR75987 |
C00621541
481927138266 |
Microswitch grill | Na dotaz | Zadat poptávku | |
| 651 0 WHR75987 |
C00490311
481913488138 |
YIAROVKA OSVETLENIA 15W N | Na dotaz | Zadat poptávku | |
| 652 0 WHR75987 |
C00332821
481925518162 |
objimka zarovky | 883 Kč
€ 34.90 |
||
| 655 0 WHR75987 |
C00378025
481927328357 |
Microswitch light/turnspit | Na dotaz | Zadat poptávku | |
| 656 0 WHR75987 |
C00582356
481945069999 |
KRYT ZIAROVKY kov N | Na dotaz | Zadat poptávku | |
| 703 0 WHR75987 |
C00599101
481236068063 |
Pipe rear right. | Na dotaz | Zadat poptávku | |
| 703 1 WHR75987 |
C00599102
481236068064 |
Pipe front right. | Na dotaz | Zadat poptávku | |
| 703 2 WHR75987 |
C00527402
481236068065 |
PIPE REAR LEFT | Na dotaz | Zadat poptávku | |
| 703 3 WHR75987 |
C00599103
481236068066 |
Pipe front left. | Na dotaz | Zadat poptávku | |
| 703 4 WHR75987 |
C00599484
481953048734 |
Gas pipe. | Na dotaz | Zadat poptávku | |
| 703 8 WHR75987 |
C00333268
481952648224 |
Gas connection G30/G31 | Na dotaz | Zadat poptávku | |
| 703 9 WHR75987 |
C00492601
481952648342 |
Holder hose | Na dotaz | Zadat poptávku | |
| 900 0 WHR75987 |
C00585119
481940479409 |
HOLDER | Na dotaz | Zadat poptávku | |
| 900 2 WHR75987 |
C00599479
481952628011 |
Magnet. | Na dotaz | Zadat poptávku | |
| 900 5 WHR75987 |
C00488329
481952838456 |
Knob cam | Na dotaz | Zadat poptávku | |
| 904 0 WHR75987 |
C00599471
481946699088 |
Cover rubber Lid. | Na dotaz | Zadat poptávku | |
| 904 5 WHR75987 |
C00583014
481953268838 |
Spacer. | Na dotaz | Zadat poptávku | |
| 993 0 WHR75987 |
C00526924
481222178001 |
RING Exhaust | Na dotaz | Zadat poptávku | |
