WHIRLPOOL ACM 950/BB
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ACM 950/BB |
| Kód 12NC: | 857695029000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící sporáky a trouby |
Potřebujete servis? Jsme tady pro Vás

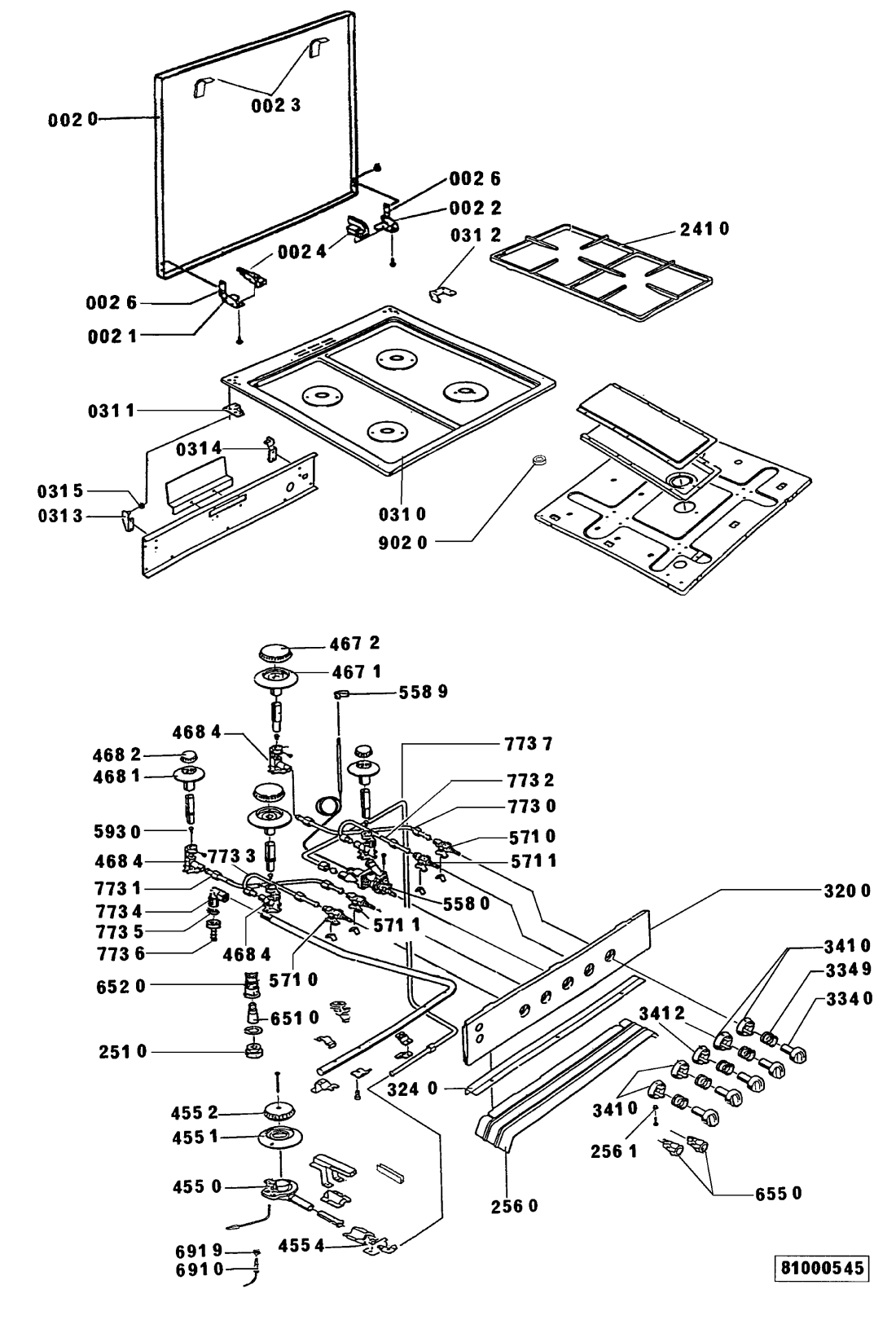

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 002 0 WHR103457 |
C00599439
481944238679 |
Lid. | Na dotaz | Zadat poptávku | |
| 002 1 WHR103457 |
C00636173
481941719516 |
Hinge left. | Na dotaz | Zadat poptávku | |
| 002 2 WHR103457 |
C00599408
481941719515 |
Hinge right. | Na dotaz | Zadat poptávku | |
| 002 3 WHR103457 |
C00599471
481946699088 |
Cover rubber Lid. | Na dotaz | Zadat poptávku | |
| 002 4 WHR103457 |
C00621583
481946258287 |
Cover. | Na dotaz | Zadat poptávku | |
| 002 6 WHR103457 |
C00621571
481941719517 |
Hinge. | Na dotaz | Zadat poptávku | |
| 011 0 WHR103457 |
C00492565
481950018142 |
noha nastavitelna | 178 Kč
€ 7.00 |
||
| 022 0 WHR103457 |
C00152197
481944238682 |
CLAMP - FILTER DUCT INLET HOSE | Na dotaz | Zadat poptávku | |
| 022 1 WHR103457 |
C00152196
481944238681 |
HOSE -SOAP BOX TO COLD WATER V | Na dotaz | Zadat poptávku | |
| 022 8 WHR103457 |
C00599963
481946279942 |
KOLIK PLASTOVY PRAVY ACH846 N | Na dotaz | Zadat poptávku | |
| 022 9 WHR103457 |
C00599964
481946279943 |
KOLIK PLASTOVY LAVY ACH846 N | Na dotaz | Zadat poptávku | |
| 031 0 WHR103457 |
C00758760
481925998522 |
Hob | Na dotaz | Zadat poptávku | |
| 031 1 WHR103457 |
C00582886
481941719345 |
Hinge f.hob left. | Na dotaz | Zadat poptávku | |
| 031 2 WHR103457 |
C00582885
481941719344 |
Hinge f. hob right. | Na dotaz | Zadat poptávku | |
| 031 3 WHR103457 |
C00040678
481941719256 |
BOTTOM DOOR HINGE | Na dotaz | Zadat poptávku | |
| 031 4 WHR103457 |
C00582883
481941719257 |
Z?VES HORNEJ DOSKY - PRAV# N | Na dotaz | Zadat poptávku | |
| 031 5 WHR103457 |
C00747005
481953258233 |
Spacer | Na dotaz | Zadat poptávku | |
| 041 0 WHR103457 |
C00747006
481941719253 |
Hinge kit | Na dotaz | Zadat poptávku | |
| 051 0 WHR103457 |
C00747007
481944238521 |
Plinth | Na dotaz | Zadat poptávku | |
| 053 0 WHR103457 |
C00599434
481944238518 |
Plinth | Na dotaz | Zadat poptávku | |
| 053 1 WHR103457 |
C00599436
481944238522 |
Panel rear | Na dotaz | Zadat poptávku | |
| 053 2 WHR103457 |
C00490568
481941719255 |
Z?VES SPODNŚCH DVIEROK - UAVŚ N | Na dotaz | Zadat poptávku | |
| 053 2 WHR103457 |
C00582882
481941719254 |
Z?VES SPODNŚCH DVIEROK - PRAVŚ N | Na dotaz | Zadat poptávku | |
| 053 3 WHR103457 |
C00492599
481952628004 |
magnet zasuvky | 277 Kč
€ 10.90 |
||
| 053 4 WHR103457 |
C00599990
481953258253 |
Spacer. | Na dotaz | Zadat poptávku | |
| 111 0 WHR103457 |
C00378103
481949878179 |
Handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR103457 |
C00758926
481944238678 |
Innerdoor,oven | Na dotaz | Zadat poptávku | |
| 121 1 WHR103457 |
C00494654
481950218439 |
Washer | Na dotaz | Zadat poptávku | |
| 141 0 WHR103457 |
C00758761
481945058096 |
Oven glass | Na dotaz | Zadat poptávku | |
| 191 0 WHR103457 |
C00585182
481946818013 |
Gasket oven.. | Na dotaz | Zadat poptávku | |
| 241 0 WHR103457 |
C00758762
481945858716 |
Grid for hob | Na dotaz | Zadat poptávku | |
| 245 0 WHR103457 |
C00488244
481945819892 |
GRILOVACI ROST N | Na dotaz | Zadat poptávku | |
| 246 0 WHR103457 |
C00599425
481941838355 |
BAKING TRAY. | Na dotaz | Zadat poptávku | |
| 247 0 WHR103457 |
C00582895
481941838369 |
plech na peceni | 1 704 Kč
€ 67.30 |
||
| 251 0 WHR103457 |
C00582356
481945069999 |
KRYT ZIAROVKY kov N | Na dotaz | Zadat poptávku | |
| 255 0 WHR103457 |
C00599438
481944238523 |
Bottom. | Na dotaz | Zadat poptávku | |
| 256 0 WHR103457 |
C00621110
481944238257 |
kryt knofliku | 935 Kč
€ 36.90 |
||
| 256 1 WHR103457 |
C00492648
481953258252 |
podlozka distancni | 100 Kč
€ 3.90 |
||
| 320 0 WHR103457 |
C00758927
481945358542 |
Control panel | Na dotaz | Zadat poptávku | |
| 324 0 WHR103457 |
C00599390
481940478804 |
Trim, lower | Na dotaz | Zadat poptávku | |
| 334 0 WHR103457 |
C00378073
481941258556 |
knoflik sporáku | Na dotaz | Zadat poptávku | |
| 334 9 WHR103457 |
C00378100
481949258065 |
pruzina knofliku | 100 Kč
€ 3.90 |
||
| 341 0 WHR103457 |
C00758105
481941379131 |
Indication disc gas | Na dotaz | Zadat poptávku | |
| 341 2 WHR103457 |
C00758436
481941379132 |
Scale thermostat | Na dotaz | Zadat poptávku | |
| 452 0 WHR103457 |
C00747011
481936069457 |
Burner grill | Na dotaz | Zadat poptávku | |
| 452 2 WHR103457 |
C00757160
481931088642 |
Gas pipe grill | Na dotaz | Zadat poptávku | |
| 455 0 WHR103457 |
C00585103
481936069344 |
Burner oven.. | Na dotaz | Zadat poptávku | |
| 455 1 WHR103457 |
C00620687
481936069338 |
Support oven burner. | Na dotaz | Zadat poptávku | |
| 455 2 WHR103457 |
C00620691
481936069339 |
Spreader,burner Oven. | Na dotaz | Zadat poptávku | |
| 455 4 WHR103457 |
C00585083
481931039162 |
Injector holder.. | Na dotaz | Zadat poptávku | |
| 455 9 WHR103457 |
C00757149
481940479155 |
Support | Na dotaz | Zadat poptávku | |
| 467 1 WHR103457 |
C00040698
481936078327 |
RAPID VENTURI HEAD | Na dotaz | Zadat poptávku | |
| 467 2 WHR103457 |
C00582833
481936069664 |
Spreader,burner R. | Na dotaz | Zadat poptávku | |
| 468 1 WHR103457 |
C00040694
481936078204 |
SEMIRAPID VENTURI HEAD | Na dotaz | Zadat poptávku | |
| 468 2 WHR103457 |
C00582825
481936069304 |
Spreader,burner SR | Na dotaz | Zadat poptávku | |
| 468 4 WHR103457 |
C00582561
481936078198 |
DRZIAK HORAKA KOV N | Na dotaz | Zadat poptávku | |
| 558 0 WHR103457 |
C00378018
481927128877 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 558 9 WHR103457 |
C00492549
481949268652 |
PRUZINA | 145 Kč
€ 5.70 |
||
| 571 0 WHR103457 |
C00063480
481936058513 |
ventil velky | 839 Kč
€ 33.10 |
||
| 571 1 WHR103457 |
C00063481
481936058512 |
VENTIL STREDNY ACM22 | 1 125 Kč
€ 44.40 |
||
| 593 0 WHR103457 |
C00598839
481931038822 |
Set of nozzles G30/31. | Na dotaz | Zadat poptávku | |
| 593 0 WHR103457 |
C00598844
481931038823 |
Set of nozzles G20/G25. | Na dotaz | Zadat poptávku | |
| 593 0 WHR103457 |
C00747015
481931038854 |
Set of nozzles G130/131 | Na dotaz | Zadat poptávku | |
| 651 0 WHR103457 |
C00341822
481913488106 |
Lamp E14-240V 15W | Na dotaz | Zadat poptávku | |
| 652 0 WHR103457 |
C00332821
481925518162 |
objimka zarovky | 883 Kč
€ 34.90 |
||
| 655 0 WHR103457 |
C00378025
481927328357 |
Microswitch light/turnspit | Na dotaz | Zadat poptávku | |
| 691 0 WHR103457 |
C00627163
481921078069 |
Thermo couple oven burner. | Na dotaz | Zadat poptávku | |
| 691 1 WHR103457 |
C00757152
481913838091 |
Thermo couple grill burner | Na dotaz | Zadat poptávku | |
| 691 9 WHR103457 |
C00776587
481946698757 |
podlozka pojistky | 134 Kč
€ 5.30 |
||
| 773 0 WHR103457 |
C00494519
481936069349 |
Pipe, burner rear right | Na dotaz | Zadat poptávku | |
| 773 1 WHR103457 |
C00747017
481936069351 |
Pipe, burner rear left | Na dotaz | Zadat poptávku | |
| 773 2 WHR103457 |
C00747019
481936069352 |
Pipe, burner front right | Na dotaz | Zadat poptávku | |
| 773 3 WHR103457 |
C00747018
481936069353 |
Pipe, burner front left | Na dotaz | Zadat poptávku | |
| 773 4 WHR103457 |
C00582569
481953048458 |
spojka hadice | 651 Kč
€ 25.70 |
||
| 773 5 WHR103457 |
C00333317
481953258189 |
Gasket | Na dotaz | Zadat poptávku | |
| 773 6 WHR103457 |
C00333268
481952648224 |
Gas connection G30/G31 | Na dotaz | Zadat poptávku | |
| 773 6 WHR103457 |
C00494670
481952648301 |
Gas connection natural | Na dotaz | Zadat poptávku | |
| 773 7 WHR103457 |
C00757159
481931088596 |
Gas pipe oven | Na dotaz | Zadat poptávku | |
| 901 0 WHR103457 |
C00040792
481940118676 |
CABLE HOLDER TERMINAL STRIP | Na dotaz | Zadat poptávku | |
| 902 0 WHR103457 |
C00747175
481940118721 |
Cable clamp | Na dotaz | Zadat poptávku | |
