IGNIS ADL 334 WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADL 334 WH |
| Kód 12NC: | 854533415010 |
| Značka: | IGNIS |
| Typ produktu: | |
| Další podobné modely: | 854533401010, 854533401310 |
Potřebujete servis? Jsme tady pro Vás

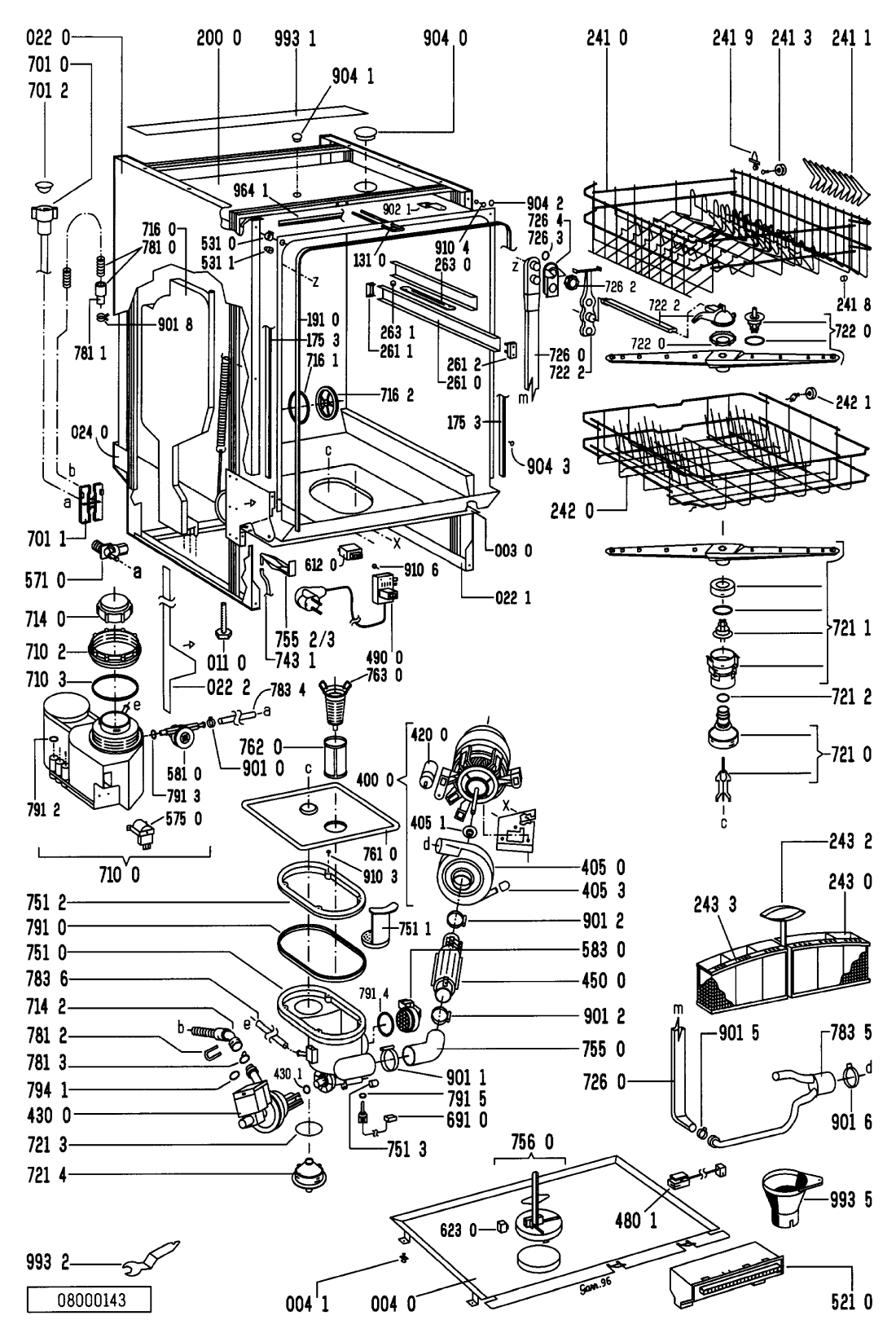

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR112264 |
C00335371
481244019382 |
Traverse | Na dotaz | Zadat poptávku | |
| 003 0 WHR112264 |
C00335369
481244018947 |
TRAVERSE | Na dotaz | Zadat poptávku | |
| 004 0 WHR112264 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR112264 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR112264 |
C00318437
481250518369 |
Foot long | Na dotaz | Zadat poptávku | |
| 022 0 WHR112264 |
C00336326
481244019398 |
stena bocni leva | 2 048 Kč
€ 80.80 |
||
| 022 0 WHR112264 |
C00336322
481244019362 |
SIDE PANEL LEFT | Na dotaz | Zadat poptávku | |
| 022 1 WHR112264 |
C00336308
481244019397 |
stena bocni prava | 1 522 Kč
€ 60.00 |
||
| 022 1 WHR112264 |
C00336310
481244019361 |
Side panel right | Na dotaz | Zadat poptávku | |
| 022 2 WHR112264 |
C00336213
481244018953 |
Spacer | Na dotaz | Zadat poptávku | |
| 024 0 WHR112264 |
C00341520
481244018948 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 040 1 WHR112264 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR112264 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 044 0 WHR112264 |
C00311639
481249238362 |
Pružina Dveří | 1 514 Kč
€ 59.70 |
||
| 044 1 WHR112264 |
C00336088
481249238356 |
Spring f.cap | Na dotaz | Zadat poptávku | |
| 047 0 WHR112264 |
C00312008
481240448591 |
Brake f.door | Na dotaz | Zadat poptávku | |
| 047 1 WHR112264 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR112264 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR112264 |
C00337690
481244088875 |
Plinth | Na dotaz | Zadat poptávku | |
| 053 0 WHR112264 |
C00337715
481244088106 |
Plinth | Na dotaz | Zadat poptávku | |
| 103 0 WHR112264 |
C00338986
481244018986 |
Door outer | Na dotaz | Zadat poptávku | |
| 105 0 WHR112264 |
C00311337
481240448611 |
Držák dveří dekoru | 428 Kč
€ 16.90 |
||
| 105 2 WHR112264 |
C00498573
481250568004 |
PR?CHYTKA KOV N | Na dotaz | Zadat poptávku | |
| 120 0 WHR112264 |
C00341323
481244018961 |
Door,inner | Na dotaz | Zadat poptávku | |
| 120 1 WHR112264 |
C00497922
481244018955 |
Batten | Na dotaz | Zadat poptávku | |
| 130 0 WHR112264 |
C00335456
481241758361 |
Tilt lock cpl. wh | Na dotaz | Zadat poptávku | |
| 131 0 WHR112264 |
C00339492
481240118403 |
HOOK LOCK | Na dotaz | Zadat poptávku | |
| 175 3 WHR112264 |
C00344416
481246668532 |
Batten whwh | Na dotaz | Zadat poptávku | |
| 191 0 WHR112264 |
C00319751
481246668534 |
Gasket door | Na dotaz | Zadat poptávku | |
| 192 0 WHR112264 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 200 0 WHR112264 |
C00497802
481241818183 |
nadrz mycky | 5 919 Kč
€ 233.40 |
||
| 241 0 WHR112264 |
C00555435
481245818273 |
Basket upper straight.. | Na dotaz | Zadat poptávku | |
| 241 1 WHR112264 |
C00339630
481245818283 |
Holder cups right WH | Na dotaz | Zadat poptávku | |
| 241 3 WHR112264 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 241 8 WHR112264 |
C00336188
481246668482 |
SPACER CAP SET | Na dotaz | Zadat poptávku | |
| 241 9 WHR112264 |
C00337177
481252888075 |
Wheel,basket basket up | Na dotaz | Zadat poptávku | |
| 241 9 WHR112264 |
C00556838
481252888071 |
Wheel,basket basket up.. | Na dotaz | Zadat poptávku | |
| 242 0 WHR112264 |
C00555434
481245818271 |
Basket lower cpl... | Na dotaz | Zadat poptávku | |
| 242 1 WHR112264 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 243 0 WHR112264 |
C00344485
481245818296 |
Basket cutlery | Na dotaz | Zadat poptávku | |
| 243 2 WHR112264 |
C00555144
481240448627 |
Grip cutlery basket pi.. | Na dotaz | Zadat poptávku | |
| 243 3 WHR112264 |
C00556591
481245958006 |
Holder spoon.. | Na dotaz | Zadat poptávku | |
| 261 0 WHR112264 |
C00336926
481946238271 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR112264 |
C00316779
481940448819 |
Cap rail | Na dotaz | Zadat poptávku | |
| 261 2 WHR112264 |
C00312762
481246278995 |
Cap rail ahead | Na dotaz | Zadat poptávku | |
| 263 0 WHR112264 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR112264 |
C00332297
481252048001 |
Ball Niro 8 D | Na dotaz | Zadat poptávku | |
| 301 0 WHR112264 |
C00742281
481245379673 |
panel | 1 774 Kč
€ 70.00 |
||
| 303 1 WHR112264 |
C00587816
481246038051 |
kryt rukojete | 373 Kč
€ 14.70 |
||
| 305 0 WHR112264 |
C00588604
481244019378 |
Batten WH. | Na dotaz | Zadat poptávku | |
| 305 1 WHR112264 |
C00333202
481950218241 |
Screw synthetic | Na dotaz | Zadat poptávku | |
| 305 2 WHR112264 |
C00333238
481950518191 |
matice | 364 Kč
€ 14.40 |
||
| 305 3 WHR112264 |
C00555290
481244019348 |
LI?TA N | Na dotaz | Zadat poptávku | |
| 305 4 WHR112264 |
C00316128
481244019349 |
lista nastav.10mm WH | 353 Kč
€ 13.90 |
||
| 331 0 WHR112264 |
C00373961
481241358848 |
knoflik programatoru | Na dotaz | Zadat poptávku | |
| 332 0 WHR112264 |
C00587533
481241028527 |
Push button cap WH. | Na dotaz | Zadat poptávku | |
| 350 0 WHR112264 |
C00588503
481227658036 |
ELECTR. UNITS. N | Na dotaz | Zadat poptávku | |
| 351 1 WHR112264 |
C00497541
481238128019 |
Guide,light | Na dotaz | Zadat poptávku | |
| 400 0 WHR112264 |
C00341652
481225928654 |
Motor with spray pump | Na dotaz | Zadat poptávku | |
| 405 0 WHR112264 |
C00336145
481236018358 |
Spray pump | Na dotaz | Zadat poptávku | |
| 405 1 WHR112264 |
C00333259
481951528158 |
podlozka | 585 Kč
€ 23.10 |
||
| 405 3 WHR112264 |
C00335470
481246278999 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 420 0 WHR112264 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 430 0 WHR112264 |
C00497493
481236018357 |
V#TOKOV? CERPADLO ADG9540 lop. N | Na dotaz | Zadat poptávku | |
| 430 1 WHR112264 |
C00498457
481246668506 |
KRUZOK TESNIACI | Na dotaz | Zadat poptávku | |
| 450 0 WHR112264 |
C00339931
481225928655 |
Heating element | Na dotaz | Zadat poptávku | |
| 480 0 WHR112264 |
C00343769
481232128364 |
vodice svazek | 3 472 Kč
€ 136.90 |
||
| 480 1 WHR112264 |
C00343881
481232128371 |
vodic spojovaci | 581 Kč
€ 22.90 |
||
| 490 0 WHR112264 |
C00342888
481232118019 |
Cable,mains 5m (withou | Na dotaz | Zadat poptávku | |
| 490 0 WHR112264 |
C00342889
481232118026 |
Cable,mains 3m | Na dotaz | Zadat poptávku | |
| 490 0 WHR112264 |
C00742090
481232118028 |
Cable mains 1,6m | Na dotaz | Zadat poptávku | |
| 521 0 WHR112264 |
C00620323
481221478152 |
programator mycky | Na dotaz | Zadat poptávku | |
| 531 0 WHR112264 |
C00335713
481227318051 |
Switch waterhardness | Na dotaz | Zadat poptávku | |
| 531 1 WHR112264 |
C00337181
481227318052 |
Wheel,fingertip | Na dotaz | Zadat poptávku | |
| 571 0 WHR112264 |
C00554970
481228128365 |
NAHRADENE 481228128379 N | Na dotaz | Zadat poptávku | |
| 575 0 WHR112264 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 581 0 WHR112264 |
C00343107
481234928003 |
prutokomer mycky | 1 606 Kč
€ 63.30 |
||
| 583 0 WHR112264 |
C00317341
481227128355 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 612 0 WHR112264 |
C00336875
481228058018 |
Relay heating | Na dotaz | Zadat poptávku | |
| 620 0 WHR112264 |
C00588492
481221838018 |
OVLADACIA JEDNOTKA ADL331 *** N | Na dotaz | Zadat poptávku | |
| 623 0 WHR112264 |
C00338099
481227138356 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 0 WHR112264 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR112264 |
C00555252
481241868134 |
Combidosage.. | Na dotaz | Zadat poptávku | |
| 680 1 WHR112264 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 681 0 WHR112264 |
C00555516
481246279634 |
Threaded cap cpl... | Na dotaz | Zadat poptávku | |
| 681 1 WHR112264 |
C00340489
481246668499 |
Gasket 30x3 | Na dotaz | Zadat poptávku | |
| 681 2 WHR112264 |
C00340873
481244018974 |
FLAP | Na dotaz | Zadat poptávku | |
| 682 0 WHR112264 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR112264 |
C00315181
481228268012 |
Feeler NTC NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR112264 |
C00339222
481953028283 |
Hose, inlet.2m | Na dotaz | Zadat poptávku | |
| 701 1 WHR112264 |
C00319991
481231018302 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 701 2 WHR112264 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 0 WHR112264 |
C00319374
481241868128 |
Monoblock | Na dotaz | Zadat poptávku | |
| 710 2 WHR112264 |
C00319772
481931038536 |
matice upevnovaci-náhrada 481231038896 | 410 Kč
€ 16.20 |
||
| 710 3 WHR112264 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR112264 |
C00312764
481246279643 |
uzaver zasob. soli | Na dotaz | Zadat poptávku | |
| 714 2 WHR112264 |
C00343888
481244018963 |
hadice | 151 Kč
€ 6.00 |
||
| 716 0 WHR112264 |
C00336902
481241868141 |
REG.DOSAGE | Na dotaz | Zadat poptávku | |
| 716 1 WHR112264 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR112264 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 721 0 WHR112264 |
C00382410
481236068051 |
Hub lower cpl. | Na dotaz | Zadat poptávku | |
| 721 1 WHR112264 |
C00336158
481236068047 |
Spray arm lower cpl. | Na dotaz | Zadat poptávku | |
| 721 2 WHR112264 |
C00498455
481246668491 |
TESNENIE ADL331 GUM./PLOCHE | Na dotaz | Zadat poptávku | |
| 721 3 WHR112264 |
C00340487
481246668489 |
Gasket 76x2,5 | Na dotaz | Zadat poptávku | |
| 721 4 WHR112264 |
C00493547
481244018977 |
Flange | Na dotaz | Zadat poptávku | |
| 722 0 WHR112264 |
C00312287
481236068044 |
Rameno mycí střední | 1 468 Kč
€ 57.90 |
||
| 722 2 WHR112264 |
C00339169
481236068048 |
HUB UPPER STRAIGHT CPL | Na dotaz | Zadat poptávku | |
| 726 0 WHR112264 |
C00498612
481253028786 |
PRIVOD K STREDNEMU R | Na dotaz | Zadat poptávku | |
| 726 2 WHR112264 |
C00498571
481250518358 |
MATICA TRYSKY ADL331 PLAST. N | Na dotaz | Zadat poptávku | |
| 726 3 WHR112264 |
C00340575
481246668512 |
tesneni naboje | 150 Kč
€ 5.90 |
||
| 726 4 WHR112264 |
C00319575
481246279633 |
spojka stred ramene | 283 Kč
€ 11.20 |
||
| 743 1 WHR112264 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR112264 |
C00337209
481241818169 |
Water collector | Na dotaz | Zadat poptávku | |
| 751 1 WHR112264 |
C00337195
481241818171 |
WATER GUIDE | Na dotaz | Zadat poptávku | |
| 751 2 WHR112264 |
C00340994
481244018954 |
Fastener frame | Na dotaz | Zadat poptávku | |
| 751 3 WHR112264 |
C00620438
481246278997 |
Threaded cap. | Na dotaz | Zadat poptávku | |
| 755 0 WHR112264 |
C00498611
481253028785 |
Bend | Na dotaz | Zadat poptávku | |
| 755 2 WHR112264 |
C00335313
481253048136 |
Tray,leak left | Na dotaz | Zadat poptávku | |
| 755 3 WHR112264 |
C00498635
481253048137 |
Tray leak right | Na dotaz | Zadat poptávku | |
| 756 0 WHR112264 |
C00340827
481236058099 |
Floater | Na dotaz | Zadat poptávku | |
| 761 0 WHR112264 |
C00336296
481248058061 |
SITKO | 1 472 Kč
€ 58.10 |
||
| 762 0 WHR112264 |
C00555570
481248058062 |
MIKROFILTER N | Na dotaz | Zadat poptávku | |
| 763 0 WHR112264 |
C00336301
481248058057 |
Sieve coarse | Na dotaz | Zadat poptávku | |
| 781 0 WHR112264 |
C00314840
481253028737 |
hadice vytok. mycky | 581 Kč
€ 22.90 |
||
| 781 1 WHR112264 |
C00336274
481953028286 |
Sleeve hose | Na dotaz | Zadat poptávku | |
| 781 2 WHR112264 |
C00343290
481949268405 |
Clip f.non-return valv - 6234.45485 | Na dotaz | Zadat poptávku | |
| 781 3 WHR112264 |
C00340834
481228128364 |
klapka zpetna | 783 Kč
€ 30.90 |
||
| 783 4 WHR112264 |
C00339399
481253028793 |
Hose 10x3x230 | Na dotaz | Zadat poptávku | |
| 783 5 WHR112264 |
C00588878
481253078027 |
Distributor. | Na dotaz | Zadat poptávku | |
| 783 6 WHR112264 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR112264 |
C00498664
481253268067 |
TESNENIE ADP941 GUM. PLOCH N | Na dotaz | Zadat poptávku | |
| 791 2 WHR112264 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 3 WHR112264 |
C00340490
481246668502 |
Těsnění zásobníku soli | 183 Kč
€ 7.20 |
||
| 791 4 WHR112264 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.20 |
||
| 791 5 WHR112264 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 794 1 WHR112264 |
C00337981
481953058032 |
tesnici O krouzek | 605 Kč
€ 23.90 |
||
| 901 0 WHR112264 |
C00335972
481240118191 |
Strap 017,8 | Na dotaz | Zadat poptávku | |
| 901 1 WHR112264 |
C00335981
481240118396 |
Strap | Na dotaz | Zadat poptávku | |
| 901 2 WHR112264 |
C00335973
481240118401 |
Strap | Na dotaz | Zadat poptávku | |
| 901 5 WHR112264 |
C00335970
481240118406 |
spona | 44 Kč
€ 1.70 |
||
| 901 6 WHR112264 |
C00335968
481240118408 |
Strap 038,1-708Z | Na dotaz | Zadat poptávku | |
| 901 8 WHR112264 |
C00335960
481240118393 |
Strap 20-32/9 | Na dotaz | Zadat poptávku | |
| 902 0 WHR112264 |
C00343321
481240118195 |
Clip | Na dotaz | Zadat poptávku | |
| 902 1 WHR112264 |
C00491959
481246678361 |
uhelnik upevnovaci | 394 Kč
€ 15.50 |
||
| 902 2 WHR112264 |
C00497604
481240478239 |
PRICHYTKA ADG957 | 178 Kč
€ 7.00 |
||
| 904 0 WHR112264 |
C00313055
481246278998 |
Záslepka (zátka) vany myčky | 547 Kč
€ 21.60 |
||
| 904 1 WHR112264 |
C00313424
481246278996 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 904 2 WHR112264 |
C00342337
481246279635 |
krytka | 104 Kč
€ 4.10 |
||
| 904 3 WHR112264 |
C00330743
481246279636 |
krytka | 42 Kč
€ 1.70 |
||
| 910 1 WHR112264 |
C00336679
481250218019 |
Screw | Na dotaz | Zadat poptávku | |
| 910 2 WHR112264 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR112264 |
C00336628
481250218364 |
Screw 5x20-TORX | Na dotaz | Zadat poptávku | |
| 910 4 WHR112264 |
C00498555
481250218365 |
Screw 3,5x5,5-TORX | Na dotaz | Zadat poptávku | |
| 910 5 WHR112264 |
C00336639
481250218367 |
Screw 3,5x8-TORX T15 | Na dotaz | Zadat poptávku | |
| 910 6 WHR112264 |
C00336600
481250218369 |
Screw A2F M4x6 | Na dotaz | Zadat poptávku | |
| 910 7 WHR112264 |
C00336590
481250238132 |
Screw DIN 965 | Na dotaz | Zadat poptávku | |
| 964 1 WHR112264 |
C00498458
481246668511 |
Gasket housing upper housing upper | Na dotaz | Zadat poptávku | |
| 993 1 WHR112264 |
C00340818
481246678018 |
Foil protection | Na dotaz | Zadat poptávku | |
| 993 2 WHR112264 |
C00336235
481240448609 |
Socket wrench foot | Na dotaz | Zadat poptávku | |
| 993 5 WHR112264 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
