WHIRLPOOL ADN 200/1
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADN 200/1 |
| Kód 12NC: | 854420001010 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální lednice a mrazáky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

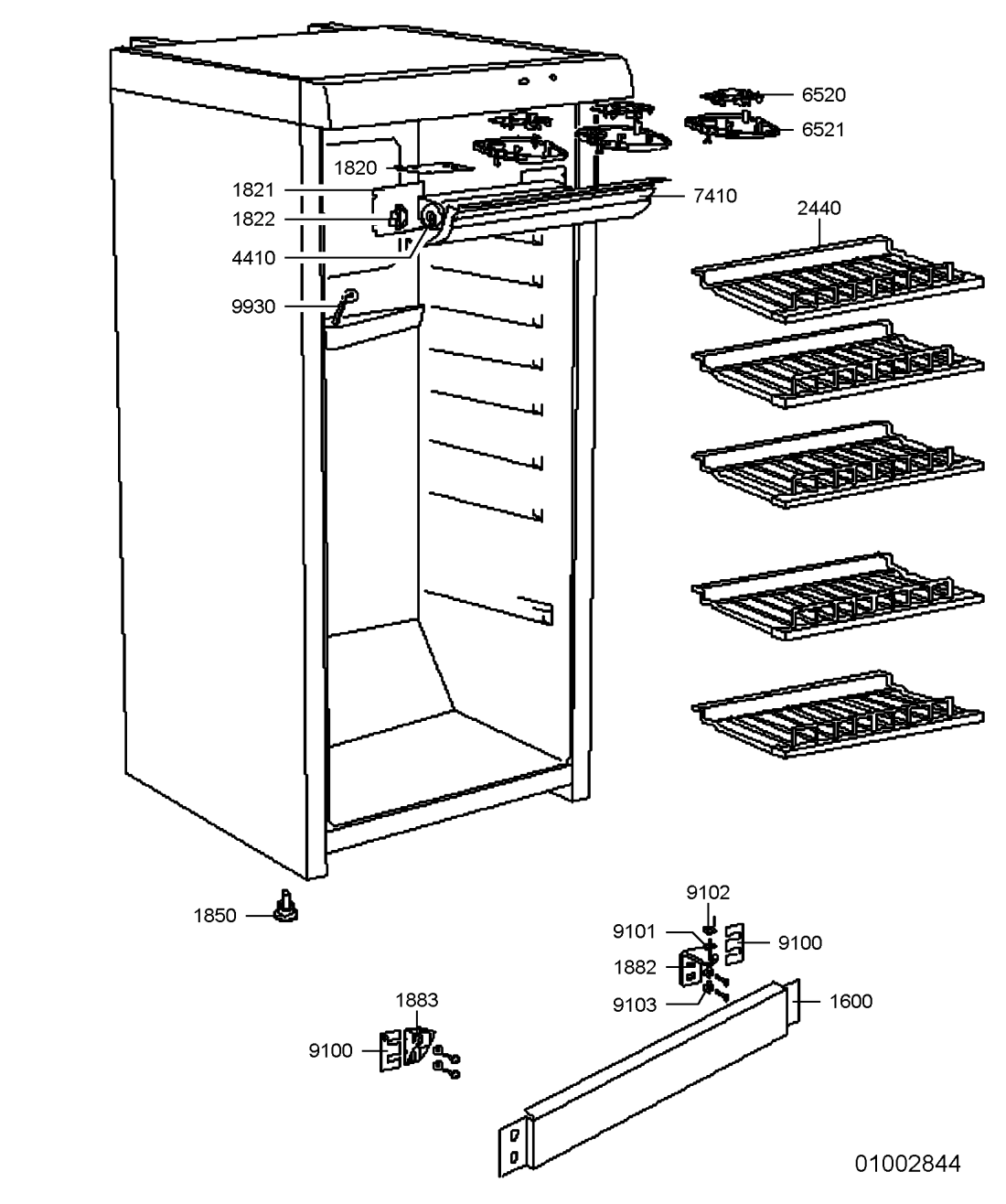

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 1040 WHR24581 |
C00424090
483286011999 |
Door | Na dotaz | Zadat poptávku | |
| 1100 WHR24581 |
C00407084
482000000673 |
Door handle | Na dotaz | Zadat poptávku | |
| 1310 WHR24581 |
C00407085
482000000674 |
Door lock | Na dotaz | Zadat poptávku | |
| 1600 WHR24581 |
C00424087
483286011996 |
Panel | Na dotaz | Zadat poptávku | |
| 1610 WHR24581 |
C00424058
483286011964 |
Plate | Na dotaz | Zadat poptávku | |
| 1620 WHR24581 |
C00424060
483286011966 |
Holder top left | Na dotaz | Zadat poptávku | |
| 1621 WHR24581 |
C00424061
483286011967 |
Holder top right | Na dotaz | Zadat poptávku | |
| 1630 WHR24581 |
C00424091
483286012001 |
Cover plate | Na dotaz | Zadat poptávku | |
| 1640 WHR24581 |
C00424071
483286011978 |
Panel | Na dotaz | Zadat poptávku | |
| 1700 WHR24581 |
C00424092
483286012002 |
Panel | Na dotaz | Zadat poptávku | |
| 1730 WHR24581 |
C00421532
483286003442 |
Cover thermostat | Na dotaz | Zadat poptávku | |
| 1731 WHR24581 |
C00424093
483286012003 |
Cover of green signal lamp | Na dotaz | Zadat poptávku | |
| 1732 WHR24581 |
C00424063
483286011969 |
Cover | Na dotaz | Zadat poptávku | |
| 1740 WHR24581 |
C00421548
483286003459 |
Tube compressor | Na dotaz | Zadat poptávku | |
| 1820 WHR24581 |
C00421522
483286003431 |
Plate fan | Na dotaz | Zadat poptávku | |
| 1821 WHR24581 |
C00421565
483286003478 |
Plate fan rear | Na dotaz | Zadat poptávku | |
| 1822 WHR24581 |
C00421520
483286003428 |
Holder | Na dotaz | Zadat poptávku | |
| 1823 WHR24581 |
C00424070
483286011977 |
Holder | Na dotaz | Zadat poptávku | |
| 1824 WHR24581 |
C00422450
483286010079 |
Fastener | Na dotaz | Zadat poptávku | |
| 1825 WHR24581 |
C00421540
483286003451 |
Holder signal lamp | Na dotaz | Zadat poptávku | |
| 1826 WHR24581 |
C00424079
483286011987 |
Support | Na dotaz | Zadat poptávku | |
| 1827 WHR24581 |
C00421554
483286003466 |
Plate mounting panel | Na dotaz | Zadat poptávku | |
| 1840 WHR24581 |
C00422445
483286010074 |
Base | Na dotaz | Zadat poptávku | |
| 1850 WHR24581 |
C00421517
483286003425 |
Foot front | Na dotaz | Zadat poptávku | |
| 1880 WHR24581 |
C00421536
483286003446 |
Hinge door top left | Na dotaz | Zadat poptávku | |
| 1881 WHR24581 |
C00421535
483286003445 |
Hinge door top right | Na dotaz | Zadat poptávku | |
| 1882 WHR24581 |
C00424089
483286011998 |
Hinge | Na dotaz | Zadat poptávku | |
| 1883 WHR24581 |
C00421564
483286003477 |
Hinge door bottom left | Na dotaz | Zadat poptávku | |
| 2110 WHR24581 |
C00421561
483286003474 |
Wheel | Na dotaz | Zadat poptávku | |
| 2120 WHR24581 |
C00421562
483286003475 |
Axle | Na dotaz | Zadat poptávku | |
| 2440 WHR24581 |
C00421563
483286003476 |
Shelf metal | Na dotaz | Zadat poptávku | |
| 3510 WHR24581 |
C00424069
483286011976 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 4020 WHR24581 |
C00522448
482000099010 |
Compressor | Na dotaz | Zadat poptávku | |
| 4021 WHR24581 |
C00522447
482000099009 |
Relay KRNLE13KK4 | Na dotaz | Zadat poptávku | |
| 4410 WHR24581 |
C00421519
483286003427 |
ventilátor 483286011961 | Na dotaz | Zadat poptávku | |
| 5540 WHR24581 |
C00424095
483286012005 |
Thermostat | Na dotaz | Zadat poptávku | |
| 6220 WHR24581 |
C00424066
483286011973 |
Wheel of thermostat dial | Na dotaz | Zadat poptávku | |
| 6221 WHR24581 |
C00424065
483286011972 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 6222 WHR24581 |
C00421542
483286003453 |
Switch light | Na dotaz | Zadat poptávku | |
| 6520 WHR24581 |
C00424049
483286011954 |
Plate LED | Na dotaz | Zadat poptávku | |
| 6521 WHR24581 |
C00424050
483286011955 |
Cover | Na dotaz | Zadat poptávku | |
| 7400 WHR24581 |
C00421571
483286003485 |
Condenser | Na dotaz | Zadat poptávku | |
| 7401 WHR24581 |
C00421550
483286003462 |
Condenser grip | Na dotaz | Zadat poptávku | |
| 7402 WHR24581 |
C00422439
483286010067 |
Bracket Condenser | Na dotaz | Zadat poptávku | |
| 7403 WHR24581 |
C00421551
483286003463 |
Condenser washer | Na dotaz | Zadat poptávku | |
| 7410 WHR24581 |
C00421518
483286003426 |
Cover fan | Na dotaz | Zadat poptávku | |
| 7450 WHR24581 |
C00424104
483286012015 |
výparník | 2 959 Kč
€ 116.80 |
||
| 7451 WHR24581 |
C00421568
483286003482 |
Evaporator fixing pin | Na dotaz | Zadat poptávku | |
| 7452 WHR24581 |
C00421523
483286003432 |
Bushing evaporator | Na dotaz | Zadat poptávku | |
| 7630 WHR24581 |
C00421559
483286003472 |
Filter | Na dotaz | Zadat poptávku | |
| 7810 WHR24581 |
C00421558
483286003471 |
Tube | Na dotaz | Zadat poptávku | |
| 7811 WHR24581 |
C00421569
483286003483 |
Pipe drainage water | Na dotaz | Zadat poptávku | |
| 7812 WHR24581 |
C00421570
483286003484 |
Pipe pin | Na dotaz | Zadat poptávku | |
| 9100 WHR24581 |
C00424088
483286011997 |
Washer of bottom bracket | Na dotaz | Zadat poptávku | |
| 9101 WHR24581 |
C00424052
483286011957 |
Washer of bracket | Na dotaz | Zadat poptávku | |
| 9102 WHR24581 |
C00424053
483286011958 |
Washer | Na dotaz | Zadat poptávku | |
| 9103 WHR24581 |
C00424051
483286011956 |
Washer | Na dotaz | Zadat poptávku | |
| 9930 WHR24581 |
C00421524
483286003433 |
Tube drainage | Na dotaz | Zadat poptávku | |
