WHIRLPOOL ADN 408/2 Frontal DW 400V/3+N 50
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADN 408/2 Frontal DW 400V/3+N 50 |
| Kód 12NC: | 854440801020 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální domácí čištění |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

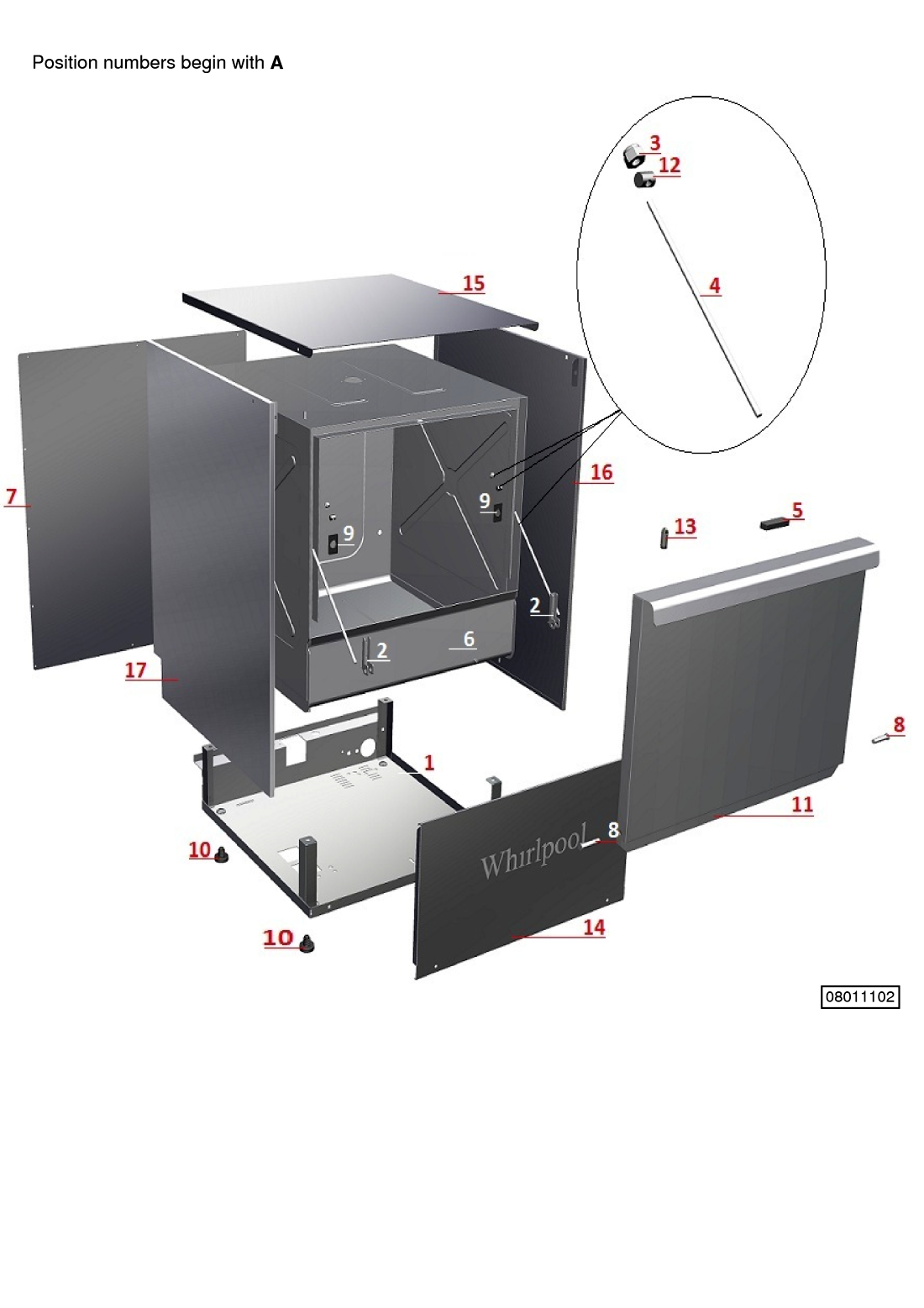

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A01 WHR24617 |
C00423470
483286011295 |
Frame kickplate | Na dotaz | Zadat poptávku | |
| A02 WHR24617 |
C00339856
483286008122 |
Hinge | Na dotaz | Zadat poptávku | |
| A03 WHR24617 |
C00338037
483286008135 |
Nut | Na dotaz | Zadat poptávku | |
| A04 WHR24617 |
C00335460
483286008131 |
tyč spojovací | 1 315 Kč
€ 51.90 |
||
| A05 WHR24617 |
C00338315
483286008861 |
Magnet ,cover | Na dotaz | Zadat poptávku | |
| A06 WHR24617 |
C00501115
483286008858 |
Tank | Na dotaz | Zadat poptávku | |
| A07 WHR24617 |
C00423474
483286011299 |
Panel rear | Na dotaz | Zadat poptávku | |
| A08 WHR24617 |
C00341442
483286008121 |
Pin hinge | Na dotaz | Zadat poptávku | |
| A09 WHR24617 |
C00337753
483286008133 |
Plate tie rod | Na dotaz | Zadat poptávku | |
| A10 WHR24617 |
C00423471
483286011296 |
Fastener Rubber leg | Na dotaz | Zadat poptávku | |
| A11 WHR24617 |
C00423265
483286011067 |
Door | Na dotaz | Zadat poptávku | |
| A12 WHR24617 |
C00344331
483286008134 |
Bolt | Na dotaz | Zadat poptávku | |
| A13 WHR24617 |
C00342109
483286008118 |
Door catch | Na dotaz | Zadat poptávku | |
| A14 WHR24617 |
C00423475
483286011301 |
Panel front | Na dotaz | Zadat poptávku | |
| A15 WHR24617 |
C00423268
483286011071 |
Panel top | Na dotaz | Zadat poptávku | |
| A16 WHR24617 |
C00423472
483286011297 |
Panel side , right | Na dotaz | Zadat poptávku | |
| A17 WHR24617 |
C00423473
483286011298 |
Panel side , left | Na dotaz | Zadat poptávku | |
| B01 WHR24617 |
C00423478
483286011304 |
Boiler | Na dotaz | Zadat poptávku | |
| B02 WHR24617 |
C00318788
483286008816 |
Dávkovač oplachu | 2 405 Kč
€ 94.90 |
||
| B03 WHR24617 |
C00339444
483286008155 |
TRANSPARENT HOSE 4X7 | Na dotaz | Zadat poptávku | |
| B04 WHR24617 |
C00337304
483286008141 |
1-WAY SOLENOID VALVE D10 | Na dotaz | Zadat poptávku | |
| B05 WHR24617 |
C00335965
483286008156 |
Strap 13 - 20mm | Na dotaz | Zadat poptávku | |
| B06 WHR24617 |
C00338536
483286008153 |
Knob | Na dotaz | Zadat poptávku | |
| B07 WHR24617 |
C00337970
483286008137 |
O-Ring | Na dotaz | Zadat poptávku | |
| B08 WHR24617 |
C00335614
483286008166 |
T-adapter | Na dotaz | Zadat poptávku | |
| B09 WHR24617 |
C00423477
483286011303 |
T-adapter | Na dotaz | Zadat poptávku | |
| B10 WHR24617 |
C00406905
482000000369 |
Heating element, 400V tri+N | Na dotaz | Zadat poptávku | |
| B11 WHR24617 |
C00423467
483286011292 |
Thermostat | Na dotaz | Zadat poptávku | |
| B12 WHR24617 |
C00423469
483286011294 |
Thermostat | Na dotaz | Zadat poptávku | |
| B13 WHR24617 |
C00339400
483286008798 |
Hose ,pressostat | Na dotaz | Zadat poptávku | |
| B14 WHR24617 |
C00339249
483286008167 |
Hose rubber | Na dotaz | Zadat poptávku | |
| B15 WHR24617 |
C00337387
483286008163 |
Tube bend inlet | Na dotaz | Zadat poptávku | |
| B16 WHR24617 |
C00336567
483286008138 |
Screw M8x12 | Na dotaz | Zadat poptávku | |
| B17 WHR24617 |
C00337971
483286008139 |
Těsnění, O kroužek topení profesionální myčky Whirlpool | 966 Kč
€ 38.10 |
||
| B18 WHR24617 |
C00335524
483286008871 |
Thermostat 0 - 90°C | 1 642 Kč
€ 64.80 |
||
| B19 WHR24617 |
C00337307
483286008154 |
Valve | Na dotaz | Zadat poptávku | |
| C01 WHR24617 |
C00500404
483286008895 |
Cover ,Tube bend | Na dotaz | Zadat poptávku | |
| C02 WHR24617 |
C00338016
483286008172 |
Nut 1" | Na dotaz | Zadat poptávku | |
| C03 WHR24617 |
C00517739
483286008893 |
Nut 1"3/4 | Na dotaz | Zadat poptávku | |
| C04 WHR24617 |
C00406906
482000000370 |
Nut | Na dotaz | Zadat poptávku | |
| C05 WHR24617 |
C00373912
483286008878 |
Čerpadlo | 7 916 Kč
€ 312.50 |
||
| C06 WHR24617 |
C00406907
482000000371 |
Clamp ring | Na dotaz | Zadat poptávku | |
| C07 WHR24617 |
C00421825
483286003821 |
Filter | Na dotaz | Zadat poptávku | |
| C08 WHR24617 |
C00337986
483286008176 |
Nut ring | Na dotaz | Zadat poptávku | |
| C09 WHR24617 |
C00340540
483286008162 |
Gasket | Na dotaz | Zadat poptávku | |
| C10 WHR24617 |
C00500305
483286008897 |
Gasket | Na dotaz | Zadat poptávku | |
| C11 WHR24617 |
C00517733
483286008881 |
Pipe | Na dotaz | Zadat poptávku | |
| C12 WHR24617 |
C00421388
483286003278 |
Inlet ,ELBOW | Na dotaz | Zadat poptávku | |
| C13 WHR24617 |
C00406908
482000000372 |
Clamp ring | Na dotaz | Zadat poptávku | |
| C14 WHR24617 |
C00337973
483286008173 |
O-Ring | Na dotaz | Zadat poptávku | |
| C15 WHR24617 |
C00517736
483286008887 |
Pin ,rinse | Na dotaz | Zadat poptávku | |
| C17 WHR24617 |
C00341423
483286008811 |
Pipe ,fitting | Na dotaz | Zadat poptávku | |
| C18 WHR24617 |
C00500403
483286008894 |
Tube bend | Na dotaz | Zadat poptávku | |
| C19 WHR24617 |
C00339181
483286008806 |
Hub ,washing/rinse | Na dotaz | Zadat poptávku | |
| C20 WHR24617 |
C00373911
483286008891 |
Nátrubek myčky | 1 108 Kč
€ 43.70 |
||
| C21 WHR24617 |
C00495326
483286001391 |
Heating element 2000 W | Na dotaz | Zadat poptávku | |
| C22 WHR24617 |
C00337242
483286008809 |
Washer | Na dotaz | Zadat poptávku | |
| C23 WHR24617 |
C00517737
483286008888 |
Tube bend 1¼'' | Na dotaz | Zadat poptávku | |
| C24 WHR24617 |
C00344555
483286008161 |
Airtrap-náhrada 482000020120 | Na dotaz | Zadat poptávku | |
| C25 WHR24617 |
C00339377
483286008788 |
hadice | 2 164 Kč
€ 85.40 |
||
| C26 WHR24617 |
C00500314
483286008956 |
Flange | Na dotaz | Zadat poptávku | |
| C27 WHR24617 |
C00340175
483286008807 |
Guide | Na dotaz | Zadat poptávku | |
| C28 WHR24617 |
C00336918
483286008855 |
Reductor | Na dotaz | Zadat poptávku | |
| C29 WHR24617 |
C00500555
483286008886 |
Pipe ,outlet upper | Na dotaz | Zadat poptávku | |
| C30 WHR24617 |
C00500402
483286008889 |
Spacer | Na dotaz | Zadat poptávku | |
| C31 WHR24617 |
C00501118
483286008884 |
Stopper | Na dotaz | Zadat poptávku | |
| C32 WHR24617 |
C00517713
483286000142 |
Outlet elbow | Na dotaz | Zadat poptávku | |
| D01 WHR24617 |
C00336816
483286008418 |
Tryska mycího ramene poloprofesionální myčky | 825 Kč
€ 32.60 |
||
| D02 WHR24617 |
C00337987
483286008323 |
Šroub ramene | 1 176 Kč
€ 46.40 |
||
| D03,D12 WHR24617 |
C00336822
483286008833 |
Rinse arm ,cpl. | Na dotaz | Zadat poptávku | |
| D04 WHR24617 |
C00337265
483286008832 |
Rameno mycí | 7 762 Kč
€ 306.40 |
||
| D05 WHR24617 |
C00339185
483286008192 |
Hub | Na dotaz | Zadat poptávku | |
| D06 WHR24617 |
C00337974
483286008318 |
O-RING3 | 1 192 Kč
€ 47.10 |
||
| D07 WHR24617 |
C00337975
483286008324 |
Těsnění | 852 Kč
€ 33.60 |
||
| D08 WHR24617 |
C00340917
483286008179 |
naboj | 2 180 Kč
€ 86.10 |
||
| D09 WHR24617 |
C00335606
483286008322 |
Tailpiece rinse arm | Na dotaz | Zadat poptávku | |
| D10 WHR24617 |
C00336575
483286008317 |
Screw M4 X 8 | Na dotaz | Zadat poptávku | |
| D11 WHR24617 |
C00336820
483286008829 |
Rinse arm ,right | Na dotaz | Zadat poptávku | |
| E01 WHR24617 |
C00340952
483286008841 |
Filter ,noise. | Na dotaz | Zadat poptávku | |
| E02 WHR24617 |
C00517721
483286001706 |
Cable holder | Na dotaz | Zadat poptávku | |
| E03 WHR24617 |
C00406909
482000000373 |
Pilot lamp ORANGE | Na dotaz | Zadat poptávku | |
| E04 WHR24617 |
C00406910
482000000374 |
Pilot lamp ORANGE | Na dotaz | Zadat poptávku | |
| E05 WHR24617 |
C00406911
482000000375 |
Pilot lamp GREEN | Na dotaz | Zadat poptávku | |
| E06 WHR24617 |
C00384761
483286008913 |
Terminal Board | Na dotaz | Zadat poptávku | |
| E07 WHR24617 |
C00423488
483286011315 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E08 WHR24617 |
C00337564
483286008334 |
Pressostat | Na dotaz | Zadat poptávku | |
| E09 WHR24617 |
C00423485
483286011312 |
Button press , cycle | Na dotaz | Zadat poptávku | |
| E10 WHR24617 |
C00344959
482000000376 |
Switch | Na dotaz | Zadat poptávku | |
| E11 WHR24617 |
C00342723
483286008836 |
stykač | 3 654 Kč
€ 144.30 |
||
| E12 WHR24617 |
C00423489
483286011316 |
Fuse | Na dotaz | Zadat poptávku | |
| E13 WHR24617 |
C00423490
483286011317 |
Holder fuse | Na dotaz | Zadat poptávku | |
| E14 WHR24617 |
C00386376
483286003282 |
Timer Electronic | Na dotaz | Zadat poptávku | |
| E15 WHR24617 |
C00517730
483286008876 |
Power cable | Na dotaz | Zadat poptávku | |
| E16 WHR24617 |
C00344047
483286008921 |
tlačítko | 965 Kč
€ 38.10 |
||
| E17 WHR24617 |
C00341012
483286008922 |
pouzdro tlacitka | 1 042 Kč
€ 41.10 |
||
| E18 WHR24617 |
C00423480
483286011306 |
Small plate,mid | Na dotaz | Zadat poptávku | |
| E19 WHR24617 |
C00423483
483286011309 |
Coil,reed relay | Na dotaz | Zadat poptávku | |
| E20 WHR24617 |
C00423479
483286011305 |
Plate contr.pan | Na dotaz | Zadat poptávku | |
| C16 WHR24618 |
C00420507
483286002285 |
Pressostat | Na dotaz | Zadat poptávku | |
| C16 WHR24619 |
C00423493
483286011321 |
Kolík | 1 845 Kč
€ 72.80 |
||
