| Komerční kód: | ADN 485 |
| Kód 12NC/I.C. kód: | 854448501000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás

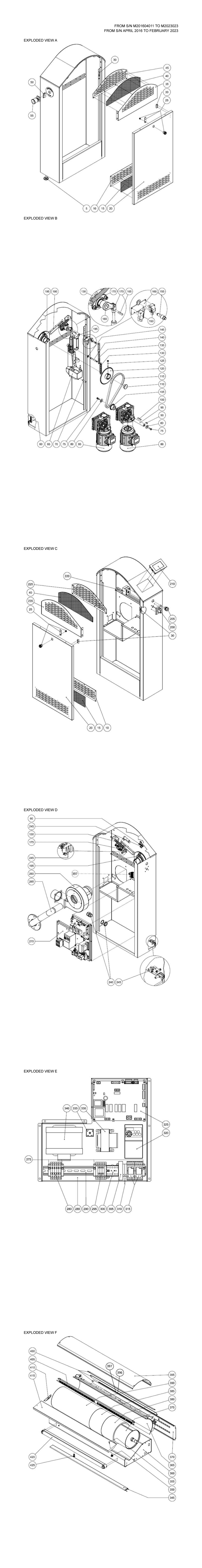

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A05 ADN 485_REV_3 |
C00524954
483286009771 |
Foot Rubber | Na dotaz | Zadat poptávku | |
| A10,C10 ADN 485_REV_3 |
C00421630
483286003602 |
Filter inner | Na dotaz | Zadat poptávku | |
| A15,C15 ADN 485_REV_3 |
C00862094
488000862094 |
BOTTOM FILTER FI/25/33 - MC/A | Na dotaz | Zadat poptávku | |
| A20,C20 ADN 485_REV_3 |
C00862095
488000862095 |
SIDE PANEL MC/A + M25/33 FI | Na dotaz | Zadat poptávku | |
| A25,C25 ADN 485_REV_3 |
C00524927
483286009608 |
Rotary locking | Na dotaz | Zadat poptávku | |
| A25,C25 ADN 485_REV_3 |
C00729623
488000729623 |
LOCKING LEVER ( A ) | Na dotaz | Zadat poptávku | |
| A30,C30 ADN 485_REV_3 |
C00524641
483286008369 |
Sensor Magnet | Na dotaz | Zadat poptávku | |
| A30,C30 ADN 485_REV_3 |
C00501090
483286008354 |
Magnet M302 AA | Na dotaz | Zadat poptávku | |
| A35 ADN 485_REV_3 |
C00862096
488000862096 |
UPPER RIGTH SIDE PANEL FI - MC/A | Na dotaz | Zadat poptávku | |
| A40,C40 ADN 485_REV_3 |
C00862098
488000862098 |
TOP FILTER FI/25/33 - MC/A | Na dotaz | Zadat poptávku | |
| A45 ADN 485_REV_3 |
C00862099
488000862099 |
TOP RIGHT SIDE COUNTER FILTER FI - MC/A | Na dotaz | Zadat poptávku | |
| A50 ADN 485_REV_3 |
C00581002
483286008248 |
Switch | Na dotaz | Zadat poptávku | |
| A55 ADN 485_REV_3 |
C00645733
488000645733 |
EMERGENCY STOP-PUSH BUTTON | Na dotaz | Zadat poptávku | |
| B100 ADN 485_REV_3 |
C00862104
488000862104 |
SMALL KEY 6X6X40 | Na dotaz | Zadat poptávku | |
| B105 ADN 485_REV_3 |
C00423020
483286010738 |
Pinion | Na dotaz | Zadat poptávku | |
| B110 ADN 485_REV_3 |
C00422190
483286004228 |
Stopper | Na dotaz | Zadat poptávku | |
| B115 ADN 485_REV_3 |
C00422189
483286004227 |
Chain | Na dotaz | Zadat poptávku | |
| B120 ADN 485_REV_3 |
C00422857
483286010553 |
Wheel cog | Na dotaz | Zadat poptávku | |
| B125 ADN 485_REV_3 |
C00423001
483286010717 |
Screw M6x50 | Na dotaz | Zadat poptávku | |
| B130,D130 ADN 485_REV_3 |
C00422997
483286010713 |
Spring | Na dotaz | Zadat poptávku | |
| B135 ADN 485_REV_3 |
C00422860
483286010556 |
Guide | Na dotaz | Zadat poptávku | |
| B140 ADN 485_REV_3 |
C00422862
483286010558 |
Dowel,spring | Na dotaz | Zadat poptávku | |
| B145 ADN 485_REV_3 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| B150 ADN 485_REV_3 |
C00862106
488000862106 |
MICROSWITCH FOR IRONING PLATE | Na dotaz | Zadat poptávku | |
| B150,D245 ADN 485_REV_3 |
C00862083
488000862083 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| B155 ADN 485_REV_3 |
C00422861
483286010557 |
Spring Pin | Na dotaz | Zadat poptávku | |
| B160 ADN 485_REV_3 |
C00422859
483286010555 |
Fastener | Na dotaz | Zadat poptávku | |
| B165 ADN 485_REV_3 |
C00524190
483286000879 |
Dowel 6X6X25 | Na dotaz | Zadat poptávku | |
| B170 ADN 485_REV_3 |
C00423055
483286010777 |
Spring,compres. | Na dotaz | Zadat poptávku | |
| B170 ADN 485_REV_3 |
C00422998
483286010714 |
Spring,compres. | Na dotaz | Zadat poptávku | |
| B175,D175 ADN 485_REV_3 |
C00422851
483286010546 |
Bearing flange | Na dotaz | Zadat poptávku | |
| B180 ADN 485_REV_3 |
C00862107
488000862107 |
CONNECTING ROD FOR FLATWORK | Na dotaz | Zadat poptávku | |
| B185 ADN 485_REV_3 |
C00421660
483286003635 |
Ring,locking d20 | Na dotaz | Zadat poptávku | |
| B190 ADN 485_REV_3 |
C00422187
483286004225 |
Guide | Na dotaz | Zadat poptávku | |
| B195,D195 ADN 485_REV_3 |
C00862084
488000862084 |
MICROSWITCH | Na dotaz | Zadat poptávku | |
| B195,D195 ADN 485_REV_3 |
C00862109
488000862109 |
FLANGE PF 208 | Na dotaz | Zadat poptávku | |
| B60 ADN 485_REV_3 |
C00524898
483286009522 |
Spring TRZ 136 | Na dotaz | Zadat poptávku | |
| B65 ADN 485_REV_3 |
C00422996
483286010712 |
Contactor | Na dotaz | Zadat poptávku | |
| B70 ADN 485_REV_3 |
C00422863
483286010559 |
Pin | Na dotaz | Zadat poptávku | |
| B75 ADN 485_REV_3 |
C00524734
483286008547 |
Screw M8x20 hexa. | Na dotaz | Zadat poptávku | |
| B80 ADN 485_REV_3 |
C00524233
483286000978 |
Ring,protecting 8X32 Motor | Na dotaz | Zadat poptávku | |
| B80 ADN 485_REV_3 |
C00862100
488000862100 |
WASHER 8x24x2 ZN | Na dotaz | Zadat poptávku | |
| B85 ADN 485_REV_3 |
C00862079
488000862079 |
GEAR MOTOR | Na dotaz | Zadat poptávku | |
| B86 ADN 485_REV_3 |
C00423021
483286010739 |
Motor | Na dotaz | Zadat poptávku | |
| B86 ADN 485_REV_3 |
C00524913
483286009561 |
Gear reduction NMRV 40 | Na dotaz | Zadat poptávku | |
| B90 ADN 485_REV_3 |
C00862103
488000862103 |
SMALL KEY 6X6X20 | Na dotaz | Zadat poptávku | |
| B95 ADN 485_REV_3 |
C00422241
483286004285 |
Shaft gear | Na dotaz | Zadat poptávku | |
| C200 ADN 485_REV_3 |
C00729662
488000729662 |
HANDLE SWITCH | Na dotaz | Zadat poptávku | |
| C205 ADN 485_REV_3 |
C00862110
488000862110 |
BUTTON DT3LR RED 800FM-LF4 | Na dotaz | Zadat poptávku | |
| C210 ADN 485_REV_3 |
C00847133
488000847133 |
Keyboard LOGICA IM10 NERO RAL9005 | Na dotaz | Zadat poptávku | |
| C220 ADN 485_REV_3 |
C00524766
483286008617 |
Rectifier OT 16 steam | Na dotaz | Zadat poptávku | |
| C225 ADN 485_REV_3 |
C00862111
488000862111 |
TOP LEFT SIDER COUNTER FILTER FI - MC/A | Na dotaz | Zadat poptávku | |
| C235 ADN 485_REV_3 |
C00862112
488000862112 |
UPPER LEFT SIDE PANEL FI - MC/A | Na dotaz | Zadat poptávku | |
| D240 ADN 485_REV_3 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| D245 ADN 485_REV_3 |
C00862113
488000862113 |
FLAT LEVER 161A R25,4 | Na dotaz | Zadat poptávku | |
| D260 ADN 485_REV_3 |
C00862114
488000862114 |
FAN MAP 160 | Na dotaz | Zadat poptávku | |
| D265 ADN 485_REV_3 |
C00422991
483286010706 |
Fitting cpl. | Na dotaz | Zadat poptávku | |
| E275 ADN 485_REV_3 |
C00524735
483286008548 |
Lock | Na dotaz | Zadat poptávku | |
| E285 ADN 485_REV_3 |
C00862116
488000862116 |
ELECTRIC PLANT SUPPORT FI | Na dotaz | Zadat poptávku | |
| E290 ADN 485_REV_3 |
C00862117
488000862117 |
OMEGA GUIDE 35X7,5 L=375 | Na dotaz | Zadat poptávku | |
| E295 ADN 485_REV_3 |
C00862118
488000862118 |
CONTACTOR AS 09-30-01 230V50/60HZ 4kW | Na dotaz | Zadat poptávku | |
| E300 ADN 485_REV_3 |
C00421016
483286002862 |
Contactor B6-30-01 | Na dotaz | Zadat poptávku | |
| E305 ADN 485_REV_3 |
C00423385
483286011201 |
Contact | Na dotaz | Zadat poptávku | |
| E305 ADN 485_REV_3 |
C00520581
488000520581 |
SAFETY MODULE CS AR-41V024 | Na dotaz | Zadat poptávku | |
| E310 ADN 485_REV_3 |
C00411457
482000009225 |
Fuse | Na dotaz | Zadat poptávku | |
| E310 ADN 485_REV_3 |
C00524925
483286009583 |
Lock | Na dotaz | Zadat poptávku | |
| E310 ADN 485_REV_3 |
C00862119
488000862119 |
FUSE 1,6 A 5x20 | Na dotaz | Zadat poptávku | |
| E315 ADN 485_REV_3 |
C00422845
483286010539 |
Relay | Na dotaz | Zadat poptávku | |
| E315 ADN 485_REV_3 |
C00423444
483286011266 |
Pedestal Relay | Na dotaz | Zadat poptávku | |
| E320 ADN 485_REV_3 |
C00415420
482000017744 |
Transf current MITSUBISHI 1,4A FR-D720S- | Na dotaz | Zadat poptávku | |
| E325 ADN 485_REV_3 |
C00514923
488000514923 |
SCHEDA POTENZA IM10 | Na dotaz | Zadat poptávku | |
| E330 ADN 485_REV_3 |
C00422846
483286010541 |
Transformer | Na dotaz | Zadat poptávku | |
| E335 ADN 485_REV_3 |
C00423030
483286010749 |
Plate contact | Na dotaz | Zadat poptávku | |
| E340 ADN 485_REV_3 |
C00422204
483286004244 |
Transformer | Na dotaz | Zadat poptávku | |
| F350 ADN 485_REV_3 |
C00862121
488000862121 |
LB/30 SIX ARMS HAND WHEEL | Na dotaz | Zadat poptávku | |
| F355 ADN 485_REV_3 |
C00524891
483286009504 |
Bolt 4,8 M5 | Na dotaz | Zadat poptávku | |
| F355 ADN 485_REV_3 |
C00862122
488000862122 |
BOLT ZN TT M5X40 4.8 | Na dotaz | Zadat poptávku | |
| F360 ADN 485_REV_3 |
C00862125
488000862125 |
SLIDE FOR FI 1000/25 | Na dotaz | Zadat poptávku | |
| F365 ADN 485_REV_3 |
C00423004
483286010721 |
Cover frame | Na dotaz | Zadat poptávku | |
| F370 ADN 485_REV_3 |
C00862126
488000862126 |
REAR PANEL FI 1000/25 | Na dotaz | Zadat poptávku | |
| F375 ADN 485_REV_3 |
C00423002
483286010718 |
Roll cpl. | Na dotaz | Zadat poptávku | |
| F380 ADN 485_REV_3 |
C00422175
483286004212 |
Steel wool | Na dotaz | Zadat poptávku | |
| F385 ADN 485_REV_3 |
C00501164
483286009599 |
Roller cover | Na dotaz | Zadat poptávku | |
| F390 ADN 485_REV_3 |
C00501165
483286009601 |
Cover cotton | Na dotaz | Zadat poptávku | |
| F395 ADN 485_REV_3 |
C00422850
483286010545 |
Cover top | Na dotaz | Zadat poptávku | |
| F396 ADN 485_REV_3 |
C00423009
483286010726 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| F397 ADN 485_REV_3 |
C00503442
483286000956 |
Safety Thermos. Gas | Na dotaz | Zadat poptávku | |
| F400 ADN 485_REV_3 |
C00496300
483286009492 |
Heating element 1500 Watt, 240 V | Na dotaz | Zadat poptávku | |
| F405 ADN 485_REV_3 |
C00862128
488000862128 |
COMPLETE HAND-SAFETY FI 1000/25 | Na dotaz | Zadat poptávku | |
| F410 ADN 485_REV_3 |
C00423038
483286010758 |
Fastener right | Na dotaz | Zadat poptávku | |
| F410 ADN 485_REV_3 |
C00423061
483286010784 |
Fastener left | Na dotaz | Zadat poptávku | |
| F410 ADN 485_REV_3 |
C00422989
483286010704 |
Fastener right | Na dotaz | Zadat poptávku | |
| F410 ADN 485_REV_3 |
C00423016
483286010734 |
Fastener left | Na dotaz | Zadat poptávku | |
| F415 ADN 485_REV_3 |
C00862129
488000862129 |
INTRODUCTION WOODEN TABLE FI 1000 | Na dotaz | Zadat poptávku | |
| F420 ADN 485_REV_3 |
C00422995
483286010711 |
Bar | Na dotaz | Zadat poptávku | |
| F420 ADN 485_REV_3 |
C00862131
488000862131 |
SAFETY BUTTON MICROSWITCH SUPPORT PLATE | Na dotaz | Zadat poptávku | |
| F420 ADN 485_REV_3 |
C00862130
488000862130 |
SAFETY BUTTON SUPPORT PLATE FI | Na dotaz | Zadat poptávku | |
| F425 ADN 485_REV_3 |
C00422994
483286010709 |
Stopper | Na dotaz | Zadat poptávku | |
| 01A,A01 ADN 485_REV_4 |
C00862070
488000862070 |
FAN CONNECTOR | Na dotaz | Zadat poptávku | |
| 01B,B01 ADN 485_REV_4 |
C00862073
488000862073 |
ELECTRICAL RESISTANCE | Na dotaz | Zadat poptávku | |
| 01D,D01 ADN 485_REV_4 |
C00862082
488000862082 |
RIGHT SIDE | Na dotaz | Zadat poptávku | |
| 02A,A02 ADN 485_REV_4 |
C00862071
488000862071 |
FAN | Na dotaz | Zadat poptávku | |
| 02B,B02 ADN 485_REV_4 |
C00862078
488000862078 |
TEMPERATURE PROBE | Na dotaz | Zadat poptávku | |
| 02B,B02 ADN 485_REV_4 |
C00862074
488000862074 |
TEMPERATURE PROBE | Na dotaz | Zadat poptávku | |
| 02D,D02 ADN 485_REV_4 |
C00862081
488000862081 |
LEFT SIDE | Na dotaz | Zadat poptávku | |
| 03A,A03 ADN 485_REV_4 |
C00862072
488000862072 |
FAN COVER | Na dotaz | Zadat poptávku | |
| 03B,B03 ADN 485_REV_4 |
C00862075
488000862075 |
CONCA GUIDE | Na dotaz | Zadat poptávku | |
| 03E,E03 ADN 485_REV_4 |
C00862087
488000862087 |
NOMEX COVER | Na dotaz | Zadat poptávku | |
| 04C,C04 ADN 485_REV_4 |
C00862085
488000862085 |
CHAIN | Na dotaz | Zadat poptávku | |
| 04E,E04 ADN 485_REV_4 |
C00862088
488000862088 |
FULL ROLL | Na dotaz | Zadat poptávku | |
| 05B,B05 ADN 485_REV_4 |
C00862076
488000862076 |
INTRODUCTION TABLE | Na dotaz | Zadat poptávku | |
| 06B,B06 ADN 485_REV_4 |
C00862077
488000862077 |
COMPLETE HAND-SAFETY | Na dotaz | Zadat poptávku | |
| 10C,C010 ADN 485_REV_4 |
C00862080
488000862080 |
MICRO CONCH KIT | Na dotaz | Zadat poptávku | |
| F02 ADN 485_REV_4 |
C00862200
488000862200 |
RED LED | Na dotaz | Zadat poptávku | |
| F03 ADN 485_REV_4 |
C00862201
488000862201 |
RED LED | Na dotaz | Zadat poptávku | |
| F04 ADN 485_REV_4 |
C00862202
488000862202 |
CONTACT HOLDER | Na dotaz | Zadat poptávku | |
| F07 ADN 485_REV_4 |
C00862203
488000862203 |
CONTACT NO | Na dotaz | Zadat poptávku | |
| F14 ADN 485_REV_4 |
C00862204
488000862204 |
POWER SUPPLY | Na dotaz | Zadat poptávku | |
| F17 ADN 485_REV_4 |
C00409232
482000005184 |
Fuse | Na dotaz | Zadat poptávku | |
| F18 ADN 485_REV_4 |
C00862206
488000862206 |
SECURITY MODULE | Na dotaz | Zadat poptávku | |
| F21 ADN 485_REV_4 |
C00862207
488000862207 |
EARTH TERMINAL | Na dotaz | Zadat poptávku | |
| A01 WHR42352 |
C00422847
483286010542 |
Side panel upper right | Na dotaz | Zadat poptávku | |
| A02 WHR42352 |
C00422848
483286010543 |
Side panel upper left | Na dotaz | Zadat poptávku | |
| A04 WHR42352 |
C00422849
483286010544 |
Rear panel | Na dotaz | Zadat poptávku | |
| A07 WHR42352 |
C00422981
483286010695 |
Keyboard IM 7 | Na dotaz | Zadat poptávku | |
| B01 WHR42352 |
C00524908
483286009546 |
Lever 46 mm | Na dotaz | Zadat poptávku | |
| B02 WHR42352 |
C00421628
483286003599 |
Holder Magnet | Na dotaz | Zadat poptávku | |
| B03 WHR42352 |
C00421629
483286003601 |
Side panel cpl. | Na dotaz | Zadat poptávku | |
| B05 WHR42352 |
C00421631
483286003603 |
Filter Door | Na dotaz | Zadat poptávku | |
| B08 WHR42352 |
C00524212
483286000936 |
Nut M4 | Na dotaz | Zadat poptávku | |
| B09 WHR42352 |
C00524264
483286001064 |
Rosette 4X9 | Na dotaz | Zadat poptávku | |
| B10 WHR42352 |
C00524900
483286009524 |
Screw cylindric cross M5X8 | Na dotaz | Zadat poptávku | |
| B11 WHR42352 |
C00524636
483286008362 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
| C02 WHR42352 |
C00422177
483286004214 |
Bearing flange | Na dotaz | Zadat poptávku | |
| C03 WHR42352 |
C00422982
483286010696 |
Holder | Na dotaz | Zadat poptávku | |
| C04 WHR42352 |
C00422983
483286010697 |
Side block right | Na dotaz | Zadat poptávku | |
| C05 WHR42352 |
C00422984
483286010698 |
Fastener Connector | Na dotaz | Zadat poptávku | |
| C06 WHR42352 |
C00422985
483286010699 |
Fastener Spring | Na dotaz | Zadat poptávku | |
| C07 WHR42352 |
C00422986
483286010701 |
Guide | Na dotaz | Zadat poptávku | |
| C08 WHR42352 |
C00422987
483286010702 |
Fastener right | Na dotaz | Zadat poptávku | |
| C09 WHR42352 |
C00422988
483286010703 |
Fastener left | Na dotaz | Zadat poptávku | |
| C11 WHR42352 |
C00422990
483286010705 |
Fastener Spring | Na dotaz | Zadat poptávku | |
| C12 WHR42352 |
C00524246
483286001023 |
Connector 2 way | Na dotaz | Zadat poptávku | |
| C13 WHR42352 |
C00422852
483286010547 |
Connector 12 way | Na dotaz | Zadat poptávku | |
| C14 WHR42352 |
C00422258
483286004304 |
Clamp | Na dotaz | Zadat poptávku | |
| C15 WHR42352 |
C00524907
483286009544 |
Cable clamp | Na dotaz | Zadat poptávku | |
| C16 WHR42352 |
C00501083
483286008247 |
Button press Emergency red | Na dotaz | Zadat poptávku | |
| C17 WHR42352 |
C00581486
483286009529 |
Contact NA for button | Na dotaz | Zadat poptávku | |
| C20 WHR42352 |
C00422853
483286010548 |
Clip | Na dotaz | Zadat poptávku | |
| C22 WHR42352 |
C00581003
483286008264 |
Disc Emergency | Na dotaz | Zadat poptávku | |
| C23 WHR42352 |
C00524649
483286008388 |
Counternut M12 | Na dotaz | Zadat poptávku | |
| C25 WHR42352 |
C00524655
483286008395 |
Rosette 12x24 | Na dotaz | Zadat poptávku | |
| C27 WHR42352 |
C00524762
483286008607 |
Screw Hexa. 12x30 | Na dotaz | Zadat poptávku | |
| D08 WHR42352 |
C00422854
483286010549 |
Pedal cpl. | Na dotaz | Zadat poptávku | |
| D09 WHR42352 |
C00422188
483286004226 |
Microswitch | Na dotaz | Zadat poptávku | |
| D11 WHR42352 |
C00422855
483286010551 |
Guide cpl. | Na dotaz | Zadat poptávku | |
| D12 WHR42352 |
C00422856
483286010552 |
Fastener | Na dotaz | Zadat poptávku | |
| D14 WHR42352 |
C00422858
483286010554 |
Distance washer | Na dotaz | Zadat poptávku | |
| D20 WHR42352 |
C00422864
483286010561 |
Push arm | Na dotaz | Zadat poptávku | |
| D22 WHR42352 |
C00422992
483286010707 |
Crank | Na dotaz | Zadat poptávku | |
| D23 WHR42352 |
C00422993
483286010708 |
Grommet cable | Na dotaz | Zadat poptávku | |
| D31 WHR42352 |
C00524926
483286009598 |
Wheel hand | Na dotaz | Zadat poptávku | |
| D32 WHR42352 |
C00422999
483286010715 |
Rail Guide | Na dotaz | Zadat poptávku | |
| D34 WHR42352 |
C00524628
483286008347 |
Nut M5 self-blocking | Na dotaz | Zadat poptávku | |
| D35 WHR42352 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| D36 WHR42352 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| D38 WHR42352 |
C00524892
483286009507 |
Washer 8X24 Zn UNI 6592 | Na dotaz | Zadat poptávku | |
| D41 WHR42352 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| D42 WHR42352 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| D43 WHR42352 |
C00423000
483286010716 |
Screw M5x20 | Na dotaz | Zadat poptávku | |
| F01 WHR42352 |
C00423003
483286010719 |
Nut 1/2 " | Na dotaz | Zadat poptávku | |
| F03 WHR42352 |
C00423005
483286010722 |
Pate | Na dotaz | Zadat poptávku | |
| F04 WHR42352 |
C00422172
483286004208 |
Fastener Probe | Na dotaz | Zadat poptávku | |
| F05 WHR42352 |
C00423006
483286010723 |
Rail Guide | Na dotaz | Zadat poptávku | |
| F06 WHR42352 |
C00423007
483286010724 |
Ledge | Na dotaz | Zadat poptávku | |
| F07 WHR42352 |
C00423008
483286010725 |
Cover probe | Na dotaz | Zadat poptávku | |
| F10 WHR42352 |
C00423010
483286010727 |
Tube of cable | Na dotaz | Zadat poptávku | |
| F11 WHR42352 |
C00423011
483286010728 |
Hinge | Na dotaz | Zadat poptávku | |
| F12 WHR42352 |
C00423012
483286010729 |
Screw M5x16 | Na dotaz | Zadat poptávku | |
| F13 WHR42352 |
C00524174
483286000779 |
Nut M5 | Na dotaz | Zadat poptávku | |
| F14 WHR42352 |
C00524213
483286000937 |
Nut M6 | Na dotaz | Zadat poptávku | |
| F15 WHR42352 |
C00524899
483286009523 |
Nut M8 Zn UNI 5588 | Na dotaz | Zadat poptávku | |
| F18 WHR42352 |
C00524175
483286000781 |
Screw cap. M8X20 | Na dotaz | Zadat poptávku | |
| F19 WHR42352 |
C00524422
483286001482 |
Screw M 6X16 | Na dotaz | Zadat poptávku | |
| G02 WHR42352 |
C00423013
483286010731 |
Ventilator | Na dotaz | Zadat poptávku | |
| G03 WHR42352 |
C00524905
483286009539 |
Microswitch safe hand | Na dotaz | Zadat poptávku | |
| G07 WHR42352 |
C00423014
483286010732 |
Side block left | Na dotaz | Zadat poptávku | |
| G09 WHR42352 |
C00423015
483286010733 |
Fastener | Na dotaz | Zadat poptávku | |
| G13 WHR42352 |
C00524944
483286009735 |
Connection 12 way | Na dotaz | Zadat poptávku | |
| G16 WHR42352 |
C00524943
483286009734 |
Connection 6 way | Na dotaz | Zadat poptávku | |
| G17 WHR42352 |
C00524701
483286008475 |
Distance sleeve | Na dotaz | Zadat poptávku | |
| G18 WHR42352 |
C00423018
483286010736 |
Displej | 6 955 Kč
€ 279.10 |
||
| G22 WHR42352 |
C00524610
483286008302 |
Grommet cable gum | Na dotaz | Zadat poptávku | |
| G24 WHR42352 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
| G26 WHR42352 |
C00524667
483286008411 |
Switch OT25 | Na dotaz | Zadat poptávku | |
| G27 WHR42352 |
C00501162
483286009535 |
Switch,rotary red yellow | Na dotaz | Zadat poptávku | |
| G28 WHR42352 |
C00422185
483286004223 |
Clip | Na dotaz | Zadat poptávku | |
| G31 WHR42352 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| H01 WHR42352 |
C00524909
483286009552 |
Insert 6X6X20 | Na dotaz | Zadat poptávku | |
| H02 WHR42352 |
C00524910
483286009553 |
Insert 6X6X40 | Na dotaz | Zadat poptávku | |
| H04 WHR42352 |
C00423019
483286010737 |
Plate | Na dotaz | Zadat poptávku | |
| H11 WHR42352 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| H13 WHR42352 |
C00422245
483286004289 |
Screw M6X25 | Na dotaz | Zadat poptávku | |
| I01 WHR42352 |
C00423022
483286010741 |
Bar | Na dotaz | Zadat poptávku | |
| I02 WHR42352 |
C00423023
483286010742 |
Bolt | Na dotaz | Zadat poptávku | |
| I03 WHR42352 |
C00524896
483286009513 |
Screw M8X20 exagonal | Na dotaz | Zadat poptávku | |
| J02 WHR42352 |
C00423024
483286010743 |
Pin | Na dotaz | Zadat poptávku | |
| J03 WHR42352 |
C00423025
483286010744 |
Pin | Na dotaz | Zadat poptávku | |
| J04 WHR42352 |
C00423026
483286010745 |
Fastener right | Na dotaz | Zadat poptávku | |
| J05 WHR42352 |
C00423027
483286010746 |
Fastener left | Na dotaz | Zadat poptávku | |
| J10 WHR42352 |
C00423028
483286010747 |
Screw M6x30 | Na dotaz | Zadat poptávku | |
| J11 WHR42352 |
C00420919
483286002746 |
Screw hexa. M8X50 | Na dotaz | Zadat poptávku | |
| K03 WHR42352 |
C00423029
483286010748 |
Holder cpl. | Na dotaz | Zadat poptávku | |
| K06 WHR42352 |
C00524736
483286008554 |
Clamp blue 6 mm | Na dotaz | Zadat poptávku | |
| K07 WHR42352 |
C00524737
483286008555 |
Clamp yellow 6 mm | Na dotaz | Zadat poptávku | |
| K08 WHR42352 |
C00524738
483286008556 |
Clamp brown 6 mm | Na dotaz | Zadat poptávku | |
| K09 WHR42352 |
C00524739
483286008557 |
Plate | Na dotaz | Zadat poptávku | |
| K14 WHR42352 |
C00524247
483286001026 |
Pedestal Relay | Na dotaz | Zadat poptávku | |
| K15 WHR42352 |
C00524271
483286001103 |
Timer | Na dotaz | Zadat poptávku | |
| K16 WHR42352 |
C00422205
483286004245 |
Contactor LG SV004I5-1F | Na dotaz | Zadat poptávku | |
| K17 WHR42352 |
C00524130
483286000684 |
Spacer | Na dotaz | Zadat poptávku | |
| 999 WHR42362 |
C00617322 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
