WHIRLPOOL ADN 501 oven combi dir+an 11xGN1/1 CP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADN 501 oven combi dir+an 11xGN1/1 CP |
| Kód 12NC: | 854450101000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|

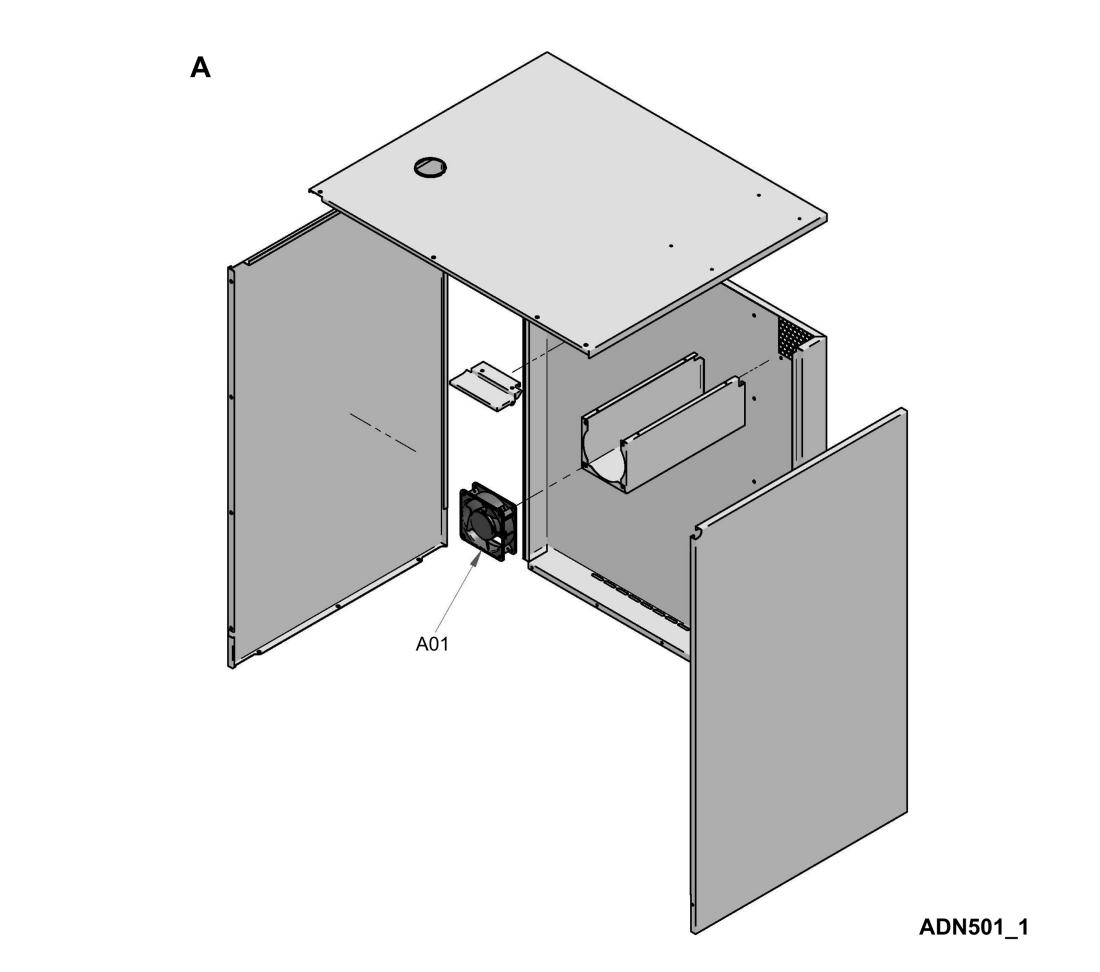

| A01 WHR47010 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| A02 WHR47010 |
C00581916
483286008224 |
Regulator energy | Na dotaz | Zadat poptávku | |
| A03 WHR47010 |
C00420688
483286002489 |
Switch ,11 positions 16A 600V | Na dotaz | Zadat poptávku | |
| A04 WHR47010 |
C00381037
483286010465 |
Thermostat ,COOKING CHAMBER | Na dotaz | Zadat poptávku | |
| A05 WHR47010 |
C00621632
483286008209 |
Timer | Na dotaz | Zadat poptávku | |
| A06 WHR47010 |
C00424105
483286012016 |
Sensor magnetic | Na dotaz | Zadat poptávku | |
| A07 WHR47010 |
C00423199
483286010938 |
Gasket | Na dotaz | Zadat poptávku | |
| A09 WHR47010 |
C00581902
483286008203 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| A10 WHR47010 |
C00424106
483286012017 |
Knob | Na dotaz | Zadat poptávku | |
| A11 WHR47010 |
C00581901
483286008202 |
Pilot lamp orange | Na dotaz | Zadat poptávku | |
| A12 WHR47010 |
C00420630
483286002425 |
Switch ,backlighted black | Na dotaz | Zadat poptávku | |
| A13 WHR47010 |
C00424117
483286012029 |
Hinge upper | Na dotaz | Zadat poptávku | |
| A14 WHR47010 |
C00424111
483286012023 |
Hinge lower | Na dotaz | Zadat poptávku | |
| A15 WHR47010 |
C00406944
482000000450 |
Gasket | Na dotaz | Zadat poptávku | |
| A16 WHR47010 |
C00424109
483286012021 |
Lock handle | Na dotaz | Zadat poptávku | |
| A17 WHR47010 |
C00406945
482000000451 |
Plate UPPER DOOR | Na dotaz | Zadat poptávku | |
| A18 WHR47010 |
C00422788
483286010461 |
Rukojeť konvektomatu | 21 344 Kč
€ 841.80 |
||
| A19 WHR47010 |
C00406946
482000000452 |
Door glass EXTERNAL | Na dotaz | Zadat poptávku | |
| A20 WHR47010 |
C00423196
483286010935 |
Gasket ,ext, door | Na dotaz | Zadat poptávku | |
| A21 WHR47010 |
C00406947
482000000453 |
Door glass INTERNAL | Na dotaz | Zadat poptávku | |
| A22 WHR47010 |
C00406948
482000000454 |
Profile door | Na dotaz | Zadat poptávku | |
| A23 WHR47010 |
C00406949
482000000455 |
Bushing DOOR | Na dotaz | Zadat poptávku | |
| A24 WHR47010 |
C00406950
482000000456 |
Hinge DOOR GLAS | Na dotaz | Zadat poptávku | |
| A25 WHR47010 |
C00424110
483286012022 |
Spring | Na dotaz | Zadat poptávku | |
| A26 WHR47010 |
C00406951
482000000457 |
Pin | Na dotaz | Zadat poptávku | |
| A27 WHR47010 |
C00406952
482000000458 |
Holder | Na dotaz | Zadat poptávku | |
| B01 WHR47010 |
C00381036
483286008707 |
Thermostat steam cycle 100 #C | Na dotaz | Zadat poptávku | |
| B02 WHR47010 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| B03 WHR47010 |
C00422475
483286010107 |
Relay SCHRACK 230V | Na dotaz | Zadat poptávku | |
| B04 WHR47010 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| B05 WHR47010 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
| B06 WHR47010 |
C00424112
483286012024 |
Fuse 60 MA 5x20 | Na dotaz | Zadat poptávku | |
| B07 WHR47010 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
| B08 WHR47010 |
C00420619
483286002413 |
Contactor ,mini 10A 230V 50-60Hz | Na dotaz | Zadat poptávku | |
| B09 WHR47010 |
C00422474
483286010106 |
Contactor 9/25A AC3/AC1 BF0310A230 | Na dotaz | Zadat poptávku | |
| B10 WHR47010 |
C00420788
483286002601 |
Holder ,to fasten the clamps | Na dotaz | Zadat poptávku | |
| B11 WHR47010 |
C00420666
483286002465 |
Nozzle ,WATER FOR HUMIDITY 0,40MM | Na dotaz | Zadat poptávku | |
| B12 WHR47010 |
C00421386
483286003276 |
Nozzle ,D=0,6 mm | Na dotaz | Zadat poptávku | |
| B13 WHR47010 |
C00423247
483286010992 |
Nozzle | Na dotaz | Zadat poptávku | |
| B14 WHR47010 |
C00581934
483286008703 |
Valve water filling solenoid | Na dotaz | Zadat poptávku | |
| B15 WHR47010 |
C00373263
483286008681 |
Motor 3-phase 230/400V 50/60 Hz | Na dotaz | Zadat poptávku | |
| B16 WHR47010 |
C00501111
483286008699 |
Lock flange f. enginge shaft | Na dotaz | Zadat poptávku | |
| B17 WHR47010 |
C00420698
483286002501 |
Foot | Na dotaz | Zadat poptávku | |
| B18 WHR47010 |
C00422797
483286010472 |
Reductor ,water flow | Na dotaz | Zadat poptávku | |
| B19 WHR47010 |
C00406953
482000000459 |
Pipe WATER INLET | Na dotaz | Zadat poptávku | |
| B20 WHR47010 |
C00422792
483286010466 |
Handle ,venting | Na dotaz | Zadat poptávku | |
| B21 WHR47010 |
C00422462
483286010093 |
Filter draining | Na dotaz | Zadat poptávku | |
| B22 WHR47010 |
C00406954
482000000460 |
Drainpipe | Na dotaz | Zadat poptávku | |
| B23 WHR47010 |
C00424115
483286012027 |
Nozzle d0,7mm | Na dotaz | Zadat poptávku | |
| B24 WHR47010 |
C00423249
483286010994 |
Frame ,lamp holder | Na dotaz | Zadat poptávku | |
| B25 WHR47010 |
C00424114
483286012026 |
Lamp,halogen 230V 40 | Na dotaz | Zadat poptávku | |
| B26 WHR47010 |
C00424113
483286012025 |
Holder lamp | Na dotaz | Zadat poptávku | |
| B27 WHR47010 |
C00423250
483286010995 |
Gasket ,bulb socket | Na dotaz | Zadat poptávku | |
| B28 WHR47010 |
C00423248
483286010993 |
Glass ,lamp | Na dotaz | Zadat poptávku | |
| B29 WHR47010 |
C00420682
483286002483 |
Nipple ,T type 1/8 of brass | Na dotaz | Zadat poptávku | |
| B30 WHR47010 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| B31 WHR47010 |
C00423198
483286010937 |
Heating element ,16kw 230v | Na dotaz | Zadat poptávku | |
| B32 WHR47010 |
C00406955
482000000461 |
Fan | Na dotaz | Zadat poptávku | |
| B33 WHR47010 |
C00501110
483286008698 |
Flange for engine shaft 17 diam. | Na dotaz | Zadat poptávku | |
| B34 WHR47010 |
C00501109
483286008697 |
Gasket steamtight f.engine shaft | Na dotaz | Zadat poptávku | |
| B35 WHR47010 |
C00424312
483286012291 |
Terminal Board 6-12 | Na dotaz | Zadat poptávku | |
