WHIRLPOOL ADN670
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADN670 |
| Kód 12NC: | 854467001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

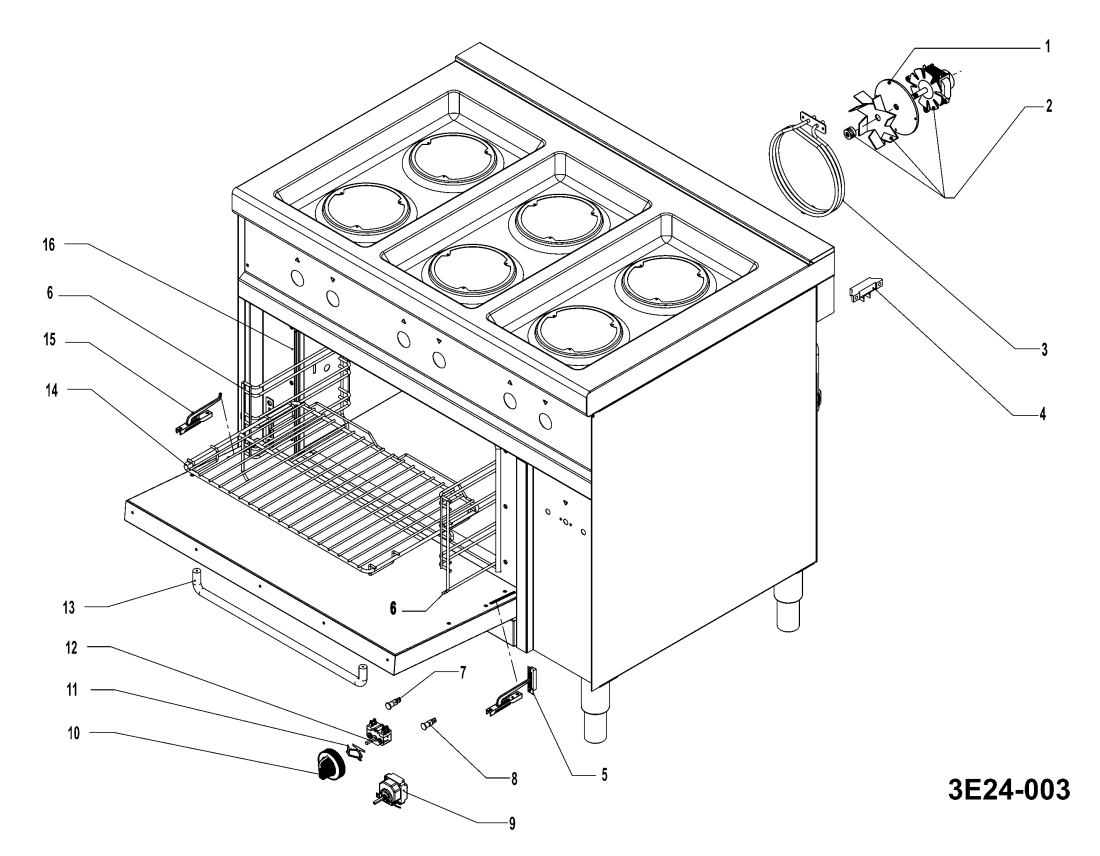

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 01 WHR24662 |
C00495111
483286000389 |
Insulation electric fan | Na dotaz | Zadat poptávku | |
| 01A WHR24662 |
C00501039
483286000191 |
Burner cap 6/7,8 kW | Na dotaz | Zadat poptávku | |
| 02 WHR24662 |
C00495112
483286000397 |
Fan electric oven | Na dotaz | Zadat poptávku | |
| 02A WHR24662 |
C00501148
483286009281 |
Thermo couple rear | Na dotaz | Zadat poptávku | |
| 03 WHR24662 |
C00512852
483286000411 |
Heating element circular | Na dotaz | Zadat poptávku | |
| 03A WHR24662 |
C00517645
483286000186 |
Burner crown 6/7,8 kW | Na dotaz | Zadat poptávku | |
| 04,11 WHR24662 |
C00512854
483286009191 |
Terminal Board | Na dotaz | Zadat poptávku | |
| 04A WHR24662 |
C00500731
483286009273 |
Spark plug | Na dotaz | Zadat poptávku | |
| 05 WHR24662 |
C00495142
483286009243 |
Hinge right side | Na dotaz | Zadat poptávku | |
| 05A WHR24662 |
C00502957
483286009277 |
Regulator burner air | Na dotaz | Zadat poptávku | |
| 06 WHR24662 |
C00422740
483286010407 |
Guidance sheet | Na dotaz | Zadat poptávku | |
| 06A WHR24662 |
C00501142
483286009231 |
Nozzle pilot LPG | Na dotaz | Zadat poptávku | |
| 06B WHR24662 |
C00501147
483286009274 |
Nozzle pilot NG | Na dotaz | Zadat poptávku | |
| 07 WHR24662 |
C00512853
483286009168 |
Signálka zelená | 916 Kč
€ 36.20 |
||
| 07A WHR24662 |
C00373265
483286000188 |
Nozzle LPG 6,0 kW | Na dotaz | Zadat poptávku | |
| 07B WHR24662 |
C00495098
483286000189 |
Nozzle NG 6,0 kW | Na dotaz | Zadat poptávku | |
| 08 WHR24662 |
C00501136
483286009189 |
Signálka žlutá | 653 Kč
€ 25.80 |
||
| 08A WHR24662 |
C00517648
483286009551 |
Burner body 9,5kw | Na dotaz | Zadat poptávku | |
| 09 WHR24662 |
C00512851
483286000407 |
Thermostat oven | Na dotaz | Zadat poptávku | |
| 09A WHR24662 |
C00421623
483286003593 |
Holder ,injector | Na dotaz | Zadat poptávku | |
| 10 WHR24662 |
C00501051
483286000406 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 10A WHR24662 |
C00422745
483286010413 |
Fitting | Na dotaz | Zadat poptávku | |
| 11A WHR24662 |
C00422746
483286010414 |
Gasket | Na dotaz | Zadat poptávku | |
| 12 WHR24662 |
C00497228
483286009351 |
Spínač | Na dotaz | Zadat poptávku | |
| 12A WHR24662 |
C00501149
483286009282 |
Thermo couple front | Na dotaz | Zadat poptávku | |
| 13 WHR24662 |
C00422741
483286010408 |
Door handle | Na dotaz | Zadat poptávku | |
| 13A WHR24662 |
C00422742
483286010409 |
Foot | Na dotaz | Zadat poptávku | |
| 14 WHR24662 |
C00512850
483286000383 |
Grid | Na dotaz | Zadat poptávku | |
| 14A WHR24662 |
C00386713
483286009382 |
Knob gas ring | Na dotaz | Zadat poptávku | |
| 15 WHR24662 |
C00495145
483286009255 |
Hinge left side | Na dotaz | Zadat poptávku | |
| 15A WHR24662 |
C00495149
483286009272 |
VENTIL PLYNOVY | 4 397 Kč
€ 173.60 |
||
| 15X WHR24662 |
C00495154
483286009289 |
Nozzle screw 6,0KW-9,5KW | Na dotaz | Zadat poptávku | |
| 16 WHR24662 |
C00495146
483286009256 |
Gasket oven door | Na dotaz | Zadat poptávku | |
| 16A WHR24662 |
C00422719
483286010381 |
Grid | Na dotaz | Zadat poptávku | |
| 17A WHR24662 |
C00501146
483286009268 |
Burner cap 4,0KW | Na dotaz | Zadat poptávku | |
| 18A WHR24662 |
C00517646
483286009269 |
Burner ring 4,0KW | Na dotaz | Zadat poptávku | |
| 19A WHR24662 |
C00373266
483286000187 |
Tryska LPG 4,0 kW | 1 498 Kč
€ 59.10 |
||
| 19B WHR24662 |
C00495151
483286009284 |
Nozzle burner 4,0KW NG | Na dotaz | Zadat poptávku | |
| 20A WHR24662 |
C00517647
483286009279 |
Burner body 4,0KW | Na dotaz | Zadat poptávku | |
| 21X WHR24662 |
C00495153
483286009288 |
Nozzle screw 4,0KW | Na dotaz | Zadat poptávku | |
