WHIRLPOOL ADP 4602 AL
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADP 4602 AL |
| Kód 12NC: | 851150515840 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
| Další podobné modely: | Q0920310000 |
Potřebujete servis? Jsme tady pro Vás

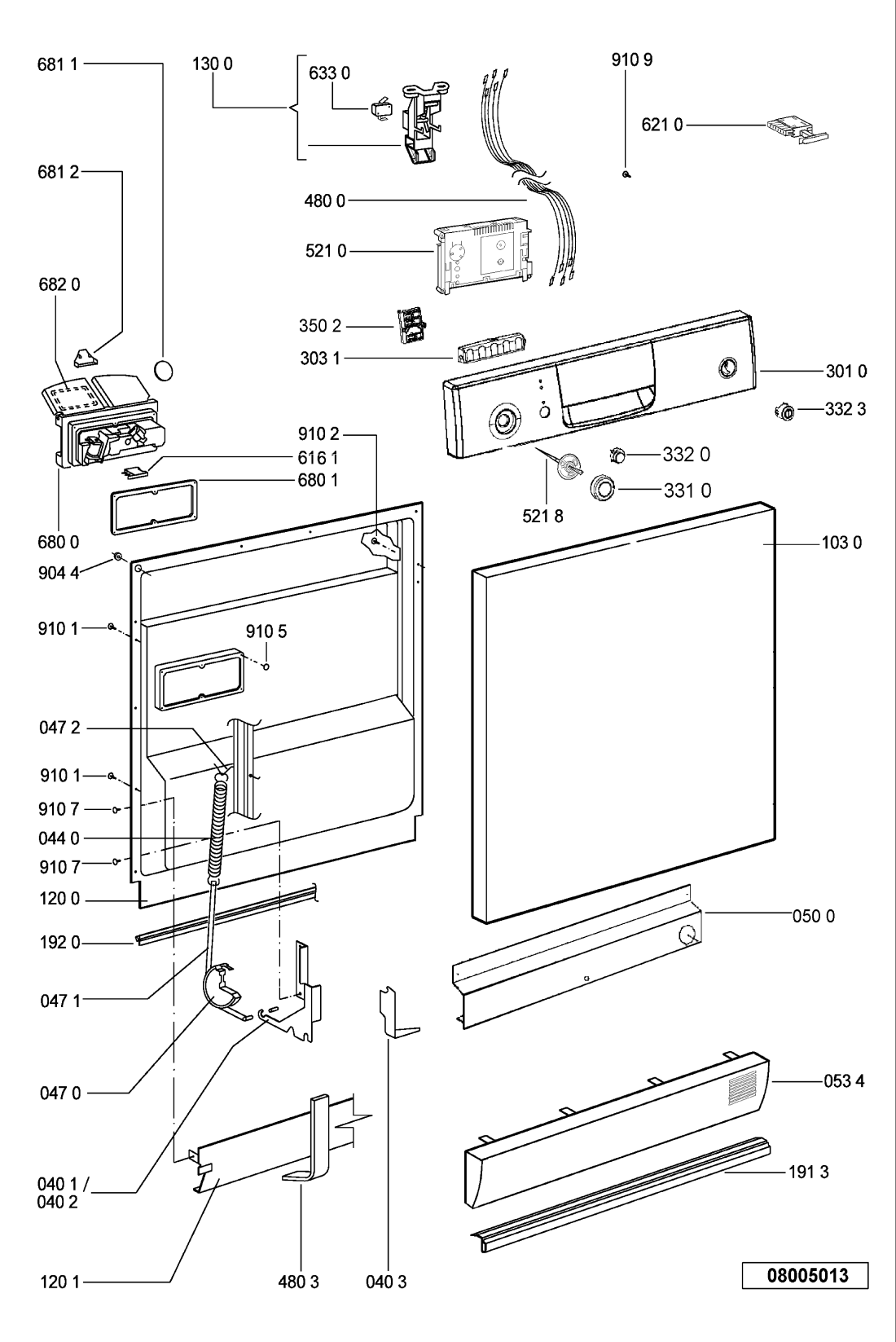

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR05010 |
C00328114 | Traverse | Na dotaz | Zadat poptávku | |
| 004 0 WHR05010 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR05010 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR05010 |
C00332170
481250518357 |
noha | 216 Kč
€ 8.50 |
||
| 022 0 WHR05010 |
C00327981 | Side panel left alu painted | Na dotaz | Zadat poptávku | |
| 022 1 WHR05010 |
C00327982 | Side panel | Na dotaz | Zadat poptávku | |
| 024 0 WHR05010 |
C00327937 | Panel rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR05010 |
C00327346
481231019007 |
Table top alu painted | Na dotaz | Zadat poptávku | |
| 034 0 WHR05010 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 034 1 WHR05010 |
C00329173
481240478247 |
Fastener table top SIL | Na dotaz | Zadat poptávku | |
| 040 1 WHR05010 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR05010 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 040 3 WHR05010 |
C00329700
481241718851 |
Protector f.door set grau | Na dotaz | Zadat poptávku | |
| 044 0 WHR05010 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 047 0 WHR05010 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR05010 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR05010 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 050 0 WHR05010 |
C00337657
481244089092 |
Plinth wh | Na dotaz | Zadat poptávku | |
| 053 4 WHR05010 |
C00337670
481244089066 |
Plinth rounded ALU | Na dotaz | Zadat poptávku | |
| 065 0 WHR05010 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR05010 |
C00327983
481244011125 |
Door outer alu painted | Na dotaz | Zadat poptávku | |
| 120 0 WHR05010 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 1 WHR05010 |
C00328101
481244018969 |
lista | 665 Kč
€ 26.30 |
||
| 130 0 WHR05010 |
C00329789
481241758373 |
Tilt lock cpl. bk | Na dotaz | Zadat poptávku | |
| 131 0 WHR05010 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 191 0 WHR05010 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 191 3 WHR05010 |
C00340530
481246668533 |
Gasket | Na dotaz | Zadat poptávku | |
| 192 0 WHR05010 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR05010 |
C00330027 | Basket upper straight | Na dotaz | Zadat poptávku | |
| 241 1 WHR05010 |
C00319073
481245818324 |
Holder cups right whcups right wh | Na dotaz | Zadat poptávku | |
| 241 3 WHR05010 |
C00315034
481252888068 |
Set of 4 Basket Wheels | Na dotaz | Zadat poptávku | |
| 241 6 WHR05010 |
C00329997 | Holder glasses wh | Na dotaz | Zadat poptávku | |
| 241 8 WHR05010 |
C00314554
481246668553 |
Spacer cap set | Na dotaz | Zadat poptávku | |
| 242 0 WHR05010 |
C00327375
481231028136 |
Basket lower KIT | Na dotaz | Zadat poptávku | |
| 242 1 WHR05010 |
C00314772
481252888069 |
Wheel,basket lower wh | Na dotaz | Zadat poptávku | |
| 242 4 WHR05010 |
C00330894
481246648091 |
Fixation grgr | Na dotaz | Zadat poptávku | |
| 243 5 WHR05010 |
C00312440
481931039859 |
Cutlery basket KIT KIT | Na dotaz | Zadat poptávku | |
| 243 6 WHR05010 |
C00330026 | Grille wh; wh | Na dotaz | Zadat poptávku | |
| 261 0 WHR05010 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR05010 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR05010 |
C00315195
481231018972 |
Cap rail front | Na dotaz | Zadat poptávku | |
| 263 0 WHR05010 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR05010 |
C00311847
481231048026 |
kulicka plastova | 574 Kč
€ 22.70 |
||
| 265 0 WHR05010 |
C00312469
481240448637 |
Basket adjustm. cpl. cpl. | Na dotaz | Zadat poptávku | |
| 265 2 WHR05010 |
C00319167
481240448638 |
Grip basket adjustmentbasket adjustmen | Na dotaz | Zadat poptávku | |
| 301 0 WHR05010 |
C00318975
481245372584 |
Control panel ADP 4602 AL | Na dotaz | Zadat poptávku | |
| 303 1 WHR05010 |
C00315416
481246038154 |
kryt rukojete | 213 Kč
€ 8.40 |
||
| 331 0 WHR05010 |
C00338535
481241359166 |
Knob | Na dotaz | Zadat poptávku | |
| 332 0 WHR05010 |
C00329293
481241029217 |
Button START | Na dotaz | Zadat poptávku | |
| 332 3 WHR05010 |
C00344014
481241029218 |
Button ON/OFF | Na dotaz | Zadat poptávku | |
| 350 2 WHR05010 |
C00317834
481238128068 |
svetlovod | 398 Kč
€ 15.70 |
||
| 400 0 WHR05010 |
C00311248
481236158334 |
Motor + spray pump - PNT permanent | Na dotaz | Zadat poptávku | |
| 405 1 WHR05010 |
C00333259
481951528158 |
podlozka | 585 Kč
€ 23.10 |
||
| 420 0 WHR05010 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR05010 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR05010 |
C00312277
481236018508 |
Pump,draining - 7828.64747 | Na dotaz | Zadat poptávku | |
| 430 1 WHR05010 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 442 0 WHR05010 |
C00344339
481236118196 |
Blower cpl.cpl. | Na dotaz | Zadat poptávku | |
| 450 0 WHR05010 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 480 0 WHR05010 |
C00312437
481232128424 |
vodice svazek | 2 884 Kč
€ 113.90 |
||
| 480 3 WHR05010 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR05010 |
C00314874
481232118049 |
Cable mains UK | Na dotaz | Zadat poptávku | |
| 490 1 WHR05010 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 521 0 WHR05010 |
C00337317 | User board ADP 4601 WH ICRED | Na dotaz | Zadat poptávku | |
| 521 8 WHR05010 |
C00314532
481253078066 |
Osa knoflíku | 680 Kč
€ 26.80 |
||
| 571 0 WHR05010 |
C00312837
481228128379 |
Valve inlet inlet | Na dotaz | Zadat poptávku | |
| 575 0 WHR05010 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 583 0 WHR05010 |
C00311913
481227128407 |
Switch diaphragm | Na dotaz | Zadat poptávku | |
| 616 0 WHR05010 |
C00327505
481228118047 |
Contact reed salt | Na dotaz | Zadat poptávku | |
| 616 1 WHR05010 |
C00327262
481227158161 |
Contact reed rinsing agent | Na dotaz | Zadat poptávku | |
| 621 0 WHR05010 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 633 0 WHR05010 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR05010 |
C00312283
481241868155 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR05010 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 681 1 WHR05010 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR05010 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR05010 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR05010 |
C00315181
481228268012 |
Feeler NTC NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR05010 |
C00311753 | Hose inlet hot 2m | Na dotaz | Zadat poptávku | |
| 701 1 WHR05010 |
C00319991
481231018302 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 701 2 WHR05010 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 0 WHR05010 |
C00319374
481241868128 |
Monoblock | Na dotaz | Zadat poptávku | |
| 710 2 WHR05010 |
C00319772
481931038536 |
matice upevnovaci-náhrada 481231038896 | 410 Kč
€ 16.20 |
||
| 710 3 WHR05010 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR05010 |
C00319565
481246278993 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 716 0 WHR05010 |
C00311895
481241868147 |
4812 418 68368 POSUDA | Na dotaz | Zadat poptávku | |
| 716 1 WHR05010 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR05010 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 1 WHR05010 |
C00330750
481246279793 |
Stopper | Na dotaz | Zadat poptávku | |
| 721 1 WHR05010 |
C00311729
481236068347 |
Spray arm lower. cpl. | Na dotaz | Zadat poptávku | |
| 722 0 WHR05010 |
C00312314 | Spray arm upper wh; upper wh | Na dotaz | Zadat poptávku | |
| 722 2 WHR05010 |
C00312995
481236068349 |
Spray arm 2nd level cp sub 481010555121 | Na dotaz | Zadat poptávku | |
| 723 0 WHR05010 |
C00318248
481236068351 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 726 1 WHR05010 |
C00314298
481253029118 |
Tube assembly cpl. SUB 481253029331 | Na dotaz | Zadat poptávku | |
| 726 2 WHR05010 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 0 WHR05010 |
C00344591
481253048134 |
trubka | 1 245 Kč
€ 49.20 |
||
| 743 1 WHR05010 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 743 2 WHR05010 |
C00344579 | Air guide lower | Na dotaz | Zadat poptávku | |
| 743 3 WHR05010 |
C00318435
481250518364 |
matice | 63 Kč
€ 2.50 |
||
| 743 4 WHR05010 |
C00337301
481228138001 |
disk | 627 Kč
€ 24.80 |
||
| 743 5 WHR05010 |
C00342180
481246698934 |
disk plast | 199 Kč
€ 7.90 |
||
| 743 7 WHR05010 |
C00319749
481246668514 |
tesneni | 680 Kč
€ 26.80 |
||
| 751 0 WHR05010 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 0 WHR05010 |
C00312127
481253029119 |
Hadice myčky Whirlpool, Ignis | 1 102 Kč
€ 43.50 |
||
| 755 2 WHR05010 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 761 0 WHR05010 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR05010 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR05010 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR05010 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR05010 |
C00345765
481248058123 |
Sieve coarse | Na dotaz | Zadat poptávku | |
| 781 0 WHR05010 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR05010 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 4 WHR05010 |
C00314292
481253028888 |
Hadice myčky Whirlpool, Ignis | 120 Kč
€ 4.70 |
||
| 783 6 WHR05010 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR05010 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR05010 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 4 WHR05010 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.30 |
||
| 791 5 WHR05010 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 901 0 WHR05010 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR05010 |
C00317950
481240118424 |
spona050,0 | 167 Kč
€ 6.60 |
||
| 901 2 WHR05010 |
C00311047
481240118157 |
spona 33-55 | 202 Kč
€ 8.00 |
||
| 901 5 WHR05010 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 904 4 WHR05010 |
C00319579
481246279659 |
THREADED CAP | 378 Kč
€ 14.90 |
||
| 910 1 WHR05010 |
C00311881
481250218394 |
Šroub | 152 Kč
€ 6.00 |
||
| 910 2 WHR05010 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR05010 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 4 WHR05010 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR05010 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 910 7 WHR05010 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR05010 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 9 WHR05010 |
C00328872
481240118425 |
Screw 2,5x18-H | Na dotaz | Zadat poptávku | |
| 964 0 WHR05010 |
C00340399
481246668577 |
Gaskethousing ri/le | Na dotaz | Zadat poptávku | |
| 964 1 WHR05010 |
C00340445
481246668576 |
Gasket housing upper grey | Na dotaz | Zadat poptávku | |
| 993 0 WHR05010 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 5 WHR05010 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360703 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360704 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360705 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360706 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360707 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360708 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360709 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR05010 |
C00360710 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
