WHIRLPOOL ADP 588/WH DISHWASHERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADP 588/WH DISHWASHERS WP |
| Kód 12NC: | 851117310000 |
| I.C. kód: | 851117310001 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
| Další podobné modely: | 851116010810, 851117310000 |
Potřebujete servis? Jsme tady pro Vás

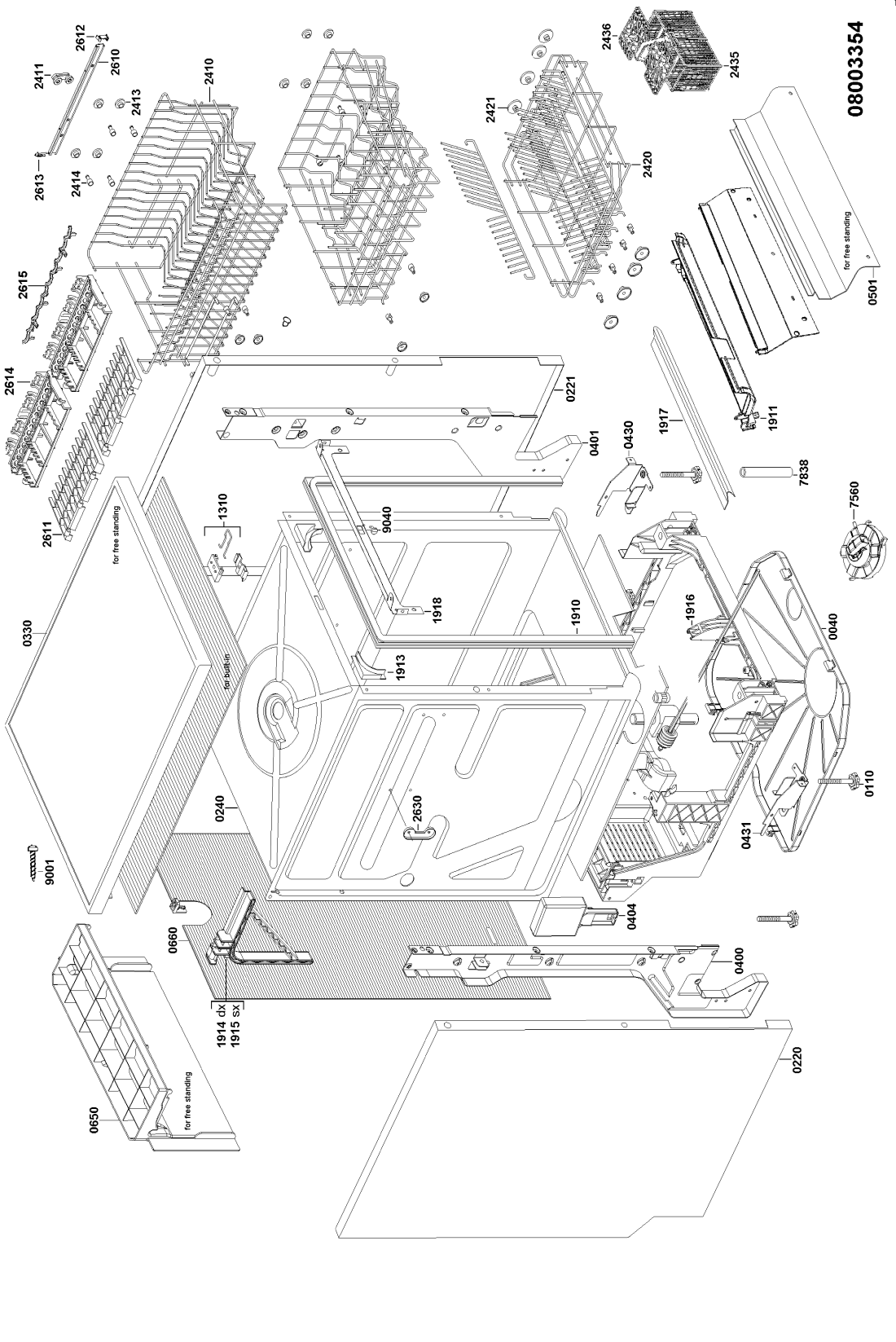

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 004 0 WHR67138 |
C00341209
481290508205 |
Miska spodní,odkapávací | 916 Kč
€ 36.20 |
||
| 011 0 WHR67138 |
C00500953
481290508334 |
Foot | Na dotaz | Zadat poptávku | |
| 022 0 WHR67138 |
C00496772
481290508664 |
Side panel | Na dotaz | Zadat poptávku | |
| 022 1 WHR67138 |
C00492171
481290508665 |
Side panel | Na dotaz | Zadat poptávku | |
| 024 0 WHR67138 |
C00621510
481290500234 |
Tub | Na dotaz | Zadat poptávku | |
| 033 0 WHR67138 |
C00492159
481290508348 |
Deska horní | 2 648 Kč
€ 104.50 |
||
| 040 0 WHR67138 |
C00340725
481290508161 |
Frame right | Na dotaz | Zadat poptávku | |
| 040 1 WHR67138 |
C00340736
481290508162 |
Frame left | Na dotaz | Zadat poptávku | |
| 040 2 WHR67138 |
C00339778
481290508241 |
Hinge right | Na dotaz | Zadat poptávku | |
| 040 3 WHR67138 |
C00339815
481290508242 |
Hinge left | Na dotaz | Zadat poptávku | |
| 040 4 WHR67138 |
C00342708
481290508208 |
Container | Na dotaz | Zadat poptávku | |
| 043 0 WHR67138 |
C00484156
481290508336 |
Bracket | Na dotaz | Zadat poptávku | |
| 043 1 WHR67138 |
C00500954
481290508363 |
Bracket | Na dotaz | Zadat poptávku | |
| 044 0 WHR67138 |
C00316733
481290508234 |
Spring Door | Na dotaz | Zadat poptávku | |
| 044 1 WHR67138 |
C00387862
481290508332 |
pruzina | 154 Kč
€ 6.10 |
||
| 050 1 WHR67138 |
C00490266
481290508345 |
Plinth | Na dotaz | Zadat poptávku | |
| 065 0 WHR67138 |
C00580865
481290508341 |
Counter weight | Na dotaz | Zadat poptávku | |
| 066 0 WHR67138 |
C00621512
481290508346 |
Insulation | Na dotaz | Zadat poptávku | |
| 066 1 WHR67138 |
C00338711
481990500692 |
izolace dveri | 380 Kč
€ 15.00 |
||
| 103 0 WHR67138 |
C00486357
481290500211 |
dvere | Na dotaz | Zadat poptávku | |
| 110 0 WHR67138 |
C00487930
481290500213 |
kryt rukojete WH | 453 Kč
€ 17.90 |
||
| 120 0 WHR67138 |
C00580902
481290508667 |
Door,inner | Na dotaz | Zadat poptávku | |
| 130 0 WHR67138 |
C00494235
481290508816 |
drzak mikrospinace | 1 870 Kč
€ 73.80 |
||
| 131 0 WHR67138 |
C00338331
481290508536 |
hak dveri | 694 Kč
€ 27.40 |
||
| 176 1 WHR67138 |
C00337100
481990500484 |
OCHRANA ADG940 | 337 Kč
€ 13.30 |
||
| 191 0 WHR67138 |
C00340457
481990500569 |
Gasket door from 96/12 | Na dotaz | Zadat poptávku | |
| 191 1 WHR67138 |
C00337097
481290508197 |
Protector | Na dotaz | Zadat poptávku | |
| 191 3 WHR67138 |
C00343115
481290508004 |
Corner piece | Na dotaz | Zadat poptávku | |
| 191 4 WHR67138 |
C00344159
481290508179 |
Bracket right | Na dotaz | Zadat poptávku | |
| 191 5 WHR67138 |
C00344172
481290508181 |
Bracket left | Na dotaz | Zadat poptávku | |
| 191 6 WHR67138 |
C00340789
481290508164 |
Foot Base. | Na dotaz | Zadat poptávku | |
| 191 7 WHR67138 |
C00340525
481290508163 |
Gasket | Na dotaz | Zadat poptávku | |
| 191 8 WHR67138 |
C00621518
481290508666 |
Protector | Na dotaz | Zadat poptávku | |
| 241 0 WHR67138 |
C00373930
481290508304 |
kos mycky horni | Na dotaz | Zadat poptávku | |
| 241 1 WHR67138 |
C00340173
481290508159 |
Nosič koše s kolečky | 699 Kč
€ 27.60 |
||
| 241 3 WHR67138 |
C00337337
481990501224 |
UPPERBASKET WHEEL | Na dotaz | Zadat poptávku | |
| 241 4 WHR67138 |
C00344090
481990501225 |
Bushing | Na dotaz | Zadat poptávku | |
| 242 0 WHR67138 |
C00627425
481290508306 |
KOS | Na dotaz | Zadat poptávku | |
| 242 1 WHR67138 |
C00337186
481990500675 |
Wheel basket lower | Na dotaz | Zadat poptávku | |
| 243 5 WHR67138 |
C00576450
481290508305 |
kosik na pribory | 643 Kč
€ 25.40 |
||
| 261 0 WHR67138 |
C00340168
481290508274 |
Guide Basket | Na dotaz | Zadat poptávku | |
| 261 1 WHR67138 |
C00344482
481290508146 |
Rošt plastový na příbory do myčky | 903 Kč
€ 35.60 |
||
| 261 2 WHR67138 |
C00317432
481990501226 |
koncovka kolejnice | 153 Kč
€ 6.00 |
||
| 261 3 WHR67138 |
C00335612
481990501217 |
tailpiece guide | Na dotaz | Zadat poptávku | |
| 261 4 WHR67138 |
C00490264
481290508303 |
Insert | Na dotaz | Zadat poptávku | |
| 261 5 WHR67138 |
C00492156
481290508302 |
Cup holder | Na dotaz | Zadat poptávku | |
| 263 0 WHR67138 |
C00336237
481990501215 |
Small plate support | Na dotaz | Zadat poptávku | |
| 301 0 WHR67138 |
C00621520
481290508822 |
Panel | 1 732 Kč
€ 68.40 |
||
| 303 0 WHR67138 |
C00487931
481290500214 |
Handle | Na dotaz | Zadat poptávku | |
| 331 0 WHR67138 |
C00580847
481290500212 |
Knoflík | 919 Kč
€ 36.30 |
||
| 332 1 WHR67138 |
C00494188
481290500217 |
tlacitko | 145 Kč
€ 5.70 |
||
| 350 0 WHR67138 |
C00490285
481290508757 |
Držák tlačítek | Na dotaz | Zadat poptávku | |
| 350 1 WHR67138 |
C00490288
481290508792 |
jednotka ovladaci | 5 118 Kč
€ 202.10 |
||
| 350 3 WHR67138 |
C00486392
481290508762 |
Salt | Na dotaz | Zadat poptávku | |
| 351 0 WHR67138 |
C00490269
481290508407 |
signalka | 480 Kč
€ 18.90 |
||
| 352 0 WHR67138 |
C00486394
481290508817 |
kryt | 228 Kč
€ 9.00 |
||
| 400 0 WHR67138 |
C00315252
481290508661 |
Spray pump | Na dotaz | Zadat poptávku | |
| 405 0 WHR67138 |
C00335812
481290508217 |
Support motor | Na dotaz | Zadat poptávku | |
| 420 0 WHR67138 |
C00342804
481290508314 |
Capacitor | Na dotaz | Zadat poptávku | |
| 430 0 WHR67138 |
C00314356
481290508156 |
Čerpadlo vypouštěcí 22W | 2 162 Kč
€ 85.40 |
||
| 450 0 WHR67138 |
C00373928
481290508537 |
topeni prutokove | 3 257 Kč
€ 128.60 |
||
| 450 1 WHR67138 |
C00320708
481290508538 |
Connection SP/heatingelem. | Na dotaz | Zadat poptávku | |
| 480 3 WHR67138 |
C00340512
481990500002 |
tesneni | 185 Kč
€ 7.30 |
||
| 490 0 WHR67138 |
C00119931
481290508155 |
KABEL | Na dotaz | Zadat poptávku | |
| 501 0 WHR67138 |
C00494237
481290508819 |
prepinac programu | 1 331 Kč
€ 52.50 |
||
| 501 2 WHR67138 |
C00484191
481290508795 |
krytka | 89 Kč
€ 3.50 |
||
| 552 0 WHR67138 |
C00318592
481221078011 |
senzor NTC | 799 Kč
€ 31.50 |
||
| 571 0 WHR67138 |
C00317206
481290508158 |
Filtr odrušovací | Na dotaz | Zadat poptávku | |
| 571 1 WHR67138 |
C00317208
481290508369 |
ventil napousteci | 1 507 Kč
€ 59.50 |
||
| 583 0 WHR67138 |
C00314358
481290508194 |
presostat mycky | 1 427 Kč
€ 56.30 |
||
| 620 0 WHR67138 |
C00494238
481290508823 |
programator mycky | 7 209 Kč
€ 284.60 |
||
| 620 1 WHR67138 |
C00486368
481290508384 |
Držák spínačů myčky Whirlpool | 620 Kč
€ 24.50 |
||
| 620 2 WHR67138 |
C00492181
481290508811 |
Fastener | Na dotaz | Zadat poptávku | |
| 633 0 WHR67138 |
C00494230
481290508749 |
mikrospinac dveri | 1 551 Kč
€ 61.20 |
||
| 680 0 WHR67138 |
C00318336
481990501044 |
Combidosage electr. Indicaton | Na dotaz | Zadat poptávku | |
| 680 1 WHR67138 |
C00318324
481990500026 |
tesneni nasypky | 480 Kč
€ 18.90 |
||
| 680 2 WHR67138 |
C00341008
481990500027 |
drzak nasypky | 373 Kč
€ 14.70 |
||
| 701 0 WHR67138 |
C00339344
481290508347 |
Hose inlet | Na dotaz | Zadat poptávku | |
| 701 1 WHR67138 |
C00344147
481290508337 |
Bracket valve | Na dotaz | Zadat poptávku | |
| 701 2 WHR67138 |
C00339417
481290508373 |
Hose | Na dotaz | Zadat poptávku | |
| 710 0 WHR67138 |
C00494207
481290508412 |
zasobnik soli | 2 225 Kč
€ 87.80 |
||
| 710 2 WHR67138 |
C00335463
481290508327 |
Matice zásobníku | Na dotaz | Zadat poptávku | |
| 714 0 WHR67138 |
C00335468
481290508153 |
Threaded cap | Na dotaz | Zadat poptávku | |
| 716 0 WHR67138 |
C00342736
481290508151 |
Chamber,air | Na dotaz | Zadat poptávku | |
| 716 1 WHR67138 |
C00340514
481290508133 |
tesneni | 231 Kč
€ 9.10 |
||
| 716 2 WHR67138 |
C00343605
481290508132 |
uzaver | 106 Kč
€ 4.20 |
||
| 721 0 WHR67138 |
C00500478
481290508309 |
HADICA | Na dotaz | Zadat poptávku | |
| 721 1 WHR67138 |
C00379177
481290508307 |
Rameno mycí spodní | 425 Kč
€ 16.80 |
||
| 721 2 WHR67138 |
C00486366
481290508353 |
naboj ramene spodni | 668 Kč
€ 26.40 |
||
| 722 0 WHR67138 |
C00336154
481290508145 |
rameno myci stredni | Na dotaz | Zadat poptávku | |
| 722 2 WHR67138 |
C00343487
481290508212 |
naboj ramene stred | 347 Kč
€ 13.70 |
||
| 722 3 WHR67138 |
C00340835
481290508207 |
klapka zpetna | 178 Kč
€ 7.00 |
||
| 722 4 WHR67138 |
C00343488
481290508213 |
SPOJKA | Na dotaz | Zadat poptávku | |
| 722 5 WHR67138 |
C00340526
481990501223 |
tesneni ramene | 733 Kč
€ 28.90 |
||
| 723 0 WHR67138 |
C00341592
481990501218 |
Nozzle ceiling | Na dotaz | Zadat poptávku | |
| 723 1 WHR67138 |
C00341591
481290508131 |
NOZZLE | 344 Kč
€ 13.60 |
||
| 726 1 WHR67138 |
C00339418
481290508183 |
Hose | Na dotaz | Zadat poptávku | |
| 726 2 WHR67138 |
C00335464
481290508185 |
Threaded ring | Na dotaz | Zadat poptávku | |
| 726 3 WHR67138 |
C00340527
481290508184 |
tesneni nab rame | 153 Kč
€ 6.00 |
||
| 726 4 WHR67138 |
C00492157
481290508308 |
matice | 411 Kč
€ 16.20 |
||
| 751 0 WHR67138 |
C00484164
481290508468 |
ZBERAC VODY | Na dotaz | Zadat poptávku | |
| 756 0 WHR67138 |
C00373929
481290508437 |
Floater | Na dotaz | Zadat poptávku | |
| 761 0 WHR67138 |
C00486362
481290508321 |
Filter | Na dotaz | Zadat poptávku | |
| 761 3 WHR67138 |
C00484154
481290508313 |
naboj ramene | 589 Kč
€ 23.30 |
||
| 763 0 WHR67138 |
C00340956
481290508173 |
filtr | 1 304 Kč
€ 51.50 |
||
| 781 0 WHR67138 |
C00320442
481290508135 |
hadice vytok. mycky | 848 Kč
€ 33.50 |
||
| 781 3 WHR67138 |
C00317220
481290508905 |
tesneni cerpadla | 269 Kč
€ 10.60 |
||
| 781 4 WHR67138 |
C00336779
481990501144 |
Rubber Motor | Na dotaz | Zadat poptávku | |
| 783 1 WHR67138 |
C00339419
481290508187 |
Hose | Na dotaz | Zadat poptávku | |
| 783 2 WHR67138 |
C00494201
481290508319 |
Hadice myčky Whirlpool, Bauknecht | 913 Kč
€ 36.00 |
||
| 783 3 WHR67138 |
C00339420
481290508149 |
Hose | Na dotaz | Zadat poptávku | |
| 783 4 WHR67138 |
C00339243
481290508182 |
hadice | 539 Kč
€ 21.30 |
||
| 783 5 WHR67138 |
C00339360
481290508539 |
Hose heating element | Na dotaz | Zadat poptávku | |
| 783 6 WHR67138 |
C00494200
481290508315 |
Hose | Na dotaz | Zadat poptávku | |
| 783 7 WHR67138 |
C00494193
481290500263 |
Spojka hadic myčky Whirlpool, Bauknecht | 217 Kč
€ 8.60 |
||
| 783 8 WHR67138 |
C00341278
481290508196 |
Drainhose | Na dotaz | Zadat poptávku | |
| 791 0 WHR67138 |
C00340886
481290508186 |
Flange | Na dotaz | Zadat poptávku | |
| 791 1 WHR67138 |
C00340529
481290508167 |
tesneni | 501 Kč
€ 19.80 |
||
| 794 0 WHR67138 |
C00340472
481990501143 |
tesneni ramene horni | 136 Kč
€ 5.40 |
||
| 794 1 WHR67138 |
C00486361
481290508318 |
tesneni naboje | 306 Kč
€ 12.10 |
||
| 794 7 WHR67138 |
C00333164
481948053059 |
Filter | Na dotaz | Zadat poptávku | |
| 900 1 WHR67138 |
C00492581
481950218517 |
SKRUTKA HORNEJ DOSKY ADP925 N | Na dotaz | Zadat poptávku | |
| 900 2 WHR67138 |
C00339547
481990500494 |
Holder Thermostat | Na dotaz | Zadat poptávku | |
| 904 0 WHR67138 |
C00335999
481290508147 |
Záslepka šroubu myčky Whirlpool, Bauknecht | 147 Kč
€ 5.80 |
||
| 971 0 WHR67138 |
C00487936
481290508409 |
NOHA | Na dotaz | Zadat poptávku | |
| 993 5 WHR67138 |
C00340633
481990500033 |
davkovac soli | 214 Kč
€ 8.40 |
||
