WHIRLPOOL ADP 6406
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADP 6406 |
| Kód 12NC: | 851156115840 |
| I.C. kód: | 851156115841 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
| Další podobné modely: | 851156115840, Q0915990000, Q0915990001 |
Potřebujete servis? Jsme tady pro Vás

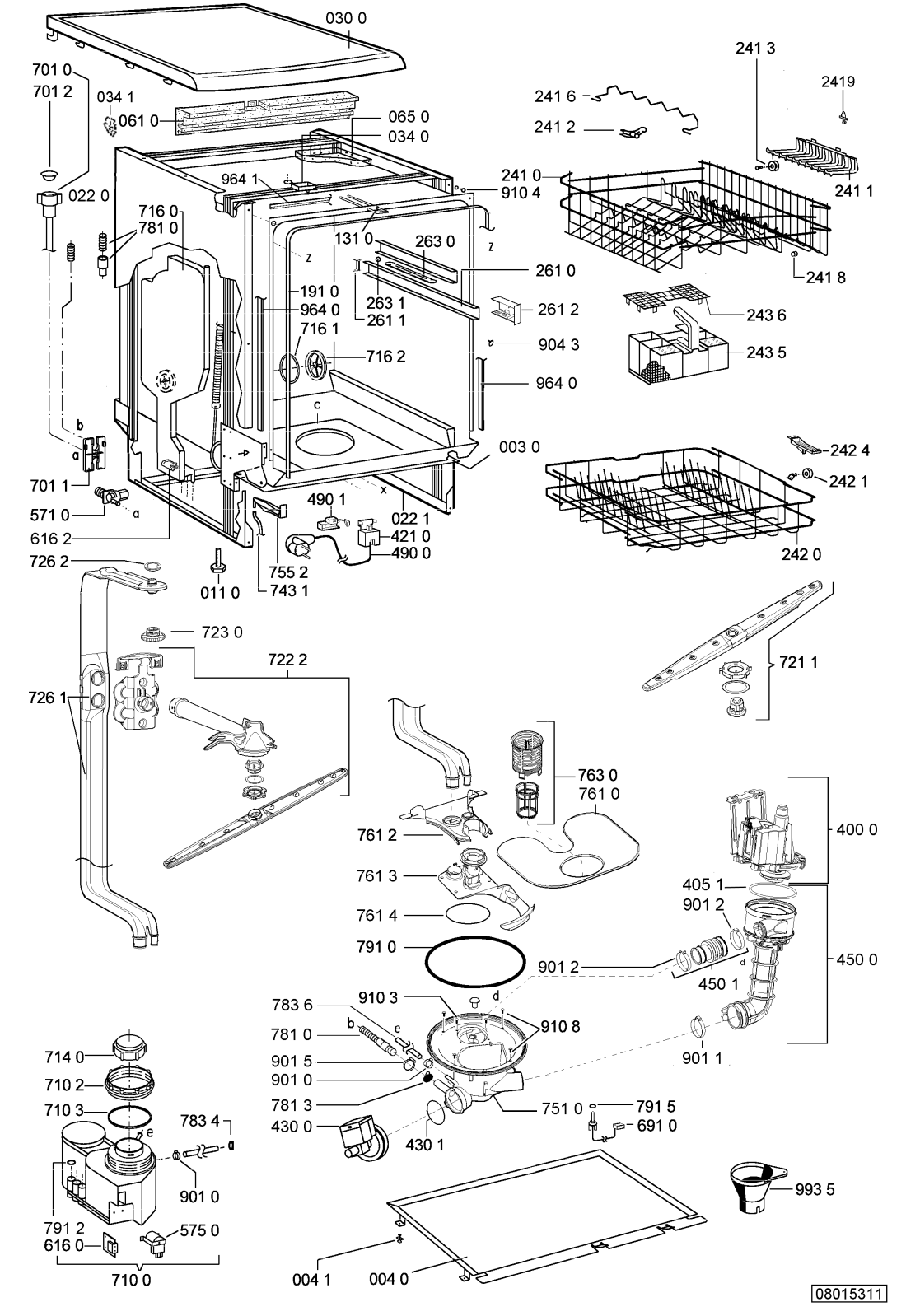

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR00399 |
C00328008
481244011455 |
LISTA ADP962/3 | 573 Kč
€ 22.60 |
||
| 004 0 WHR00399 |
C00317159
481244011463 |
Krycí plech spodní myčky Whirlpool | 945 Kč
€ 37.30 |
||
| 004 1 WHR00399 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR00399 |
C00318445
481250518419 |
noha nastavitelna | 352 Kč
€ 13.90 |
||
| 022 0 WHR00399 |
C00327954
481244010755 |
stena bocni leva | 2 628 Kč
€ 103.80 |
||
| 022 1 WHR00399 |
C00327953
481244010754 |
stena bocni prava | 2 628 Kč
€ 103.80 |
||
| 030 0 WHR00399 |
C00315197
481231019115 |
deska horni mycky | 2 426 Kč
€ 95.80 |
||
| 034 0 WHR00399 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 034 1 WHR00399 |
C00313535
481240478242 |
drzak desky horni | 671 Kč
€ 26.50 |
||
| 040 1 WHR00399 |
C00313635
481231019244 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR00399 |
C00317957
481241719172 |
Protector f.door white SKIT | Na dotaz | Zadat poptávku | |
| 044 0 WHR00399 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 047 0 WHR00399 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR00399 |
C00311072
481240118707 |
Páska brzdná | 135 Kč
€ 5.30 |
||
| 047 2 WHR00399 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR00399 |
C00328411
481244089144 |
Plinth WH | Na dotaz | Zadat poptávku | |
| 053 4 WHR00399 |
C00328391
481244089036 |
Plinth rounded | Na dotaz | Zadat poptávku | |
| 061 0 WHR00399 |
C00331004
481246688672 |
senzor hmotnosti | 1 632 Kč
€ 64.40 |
||
| 065 0 WHR00399 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR00399 |
C00327955
481244010758 |
dvere mycky vnejsi | 3 804 Kč
€ 150.20 |
||
| 120 0 WHR00399 |
C00314067
481244011718 |
Vnitřní plech dveří myčky Whirlpool, Bauknecht | 4 218 Kč
€ 166.50 |
||
| 120 1 WHR00399 |
C00322624
480140100772 |
Ledge | Na dotaz | Zadat poptávku | |
| 130 0 WHR00399 |
C00311942
481241758398 |
Zámek dveří | 1 518 Kč
€ 59.90 |
||
| 131 0 WHR00399 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 191 0 WHR00399 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 192 0 WHR00399 |
C00313059
481246668912 |
Těsnění dveří - spodní | 368 Kč
€ 14.50 |
||
| 241 0 WHR00399 |
C00319119
481245819379 |
Basket upper straight VBL 9.8132 | Na dotaz | Zadat poptávku | |
| 241 1 WHR00399 |
C00314727
481245819264 |
Držák sklenic | 1 013 Kč
€ 40.00 |
||
| 241 2 WHR00399 |
C00315630
481253578095 |
pouzdro | Na dotaz | Zadat poptávku | |
| 241 3 WHR00399 |
C00312273
481252888113 |
Kolečka horn.koše - 4ks | 499 Kč
€ 19.70 |
||
| 241 6 WHR00399 |
C00319117
481245819355 |
Držák sklenic | 347 Kč
€ 13.70 |
||
| 241 8 WHR00399 |
C00311091
481246668848 |
kus distancni - 2ks v balení | 537 Kč
€ 21.20 |
||
| 242 0 WHR00399 |
C00330103
481245819389 |
Koš myčky - spodní | Na dotaz | Zadat poptávku | |
| 242 1 WHR00399 |
C00311316
481252888112 |
Kolečko spodního koše - sada 8 ks | 947 Kč
€ 37.40 |
||
| 242 4 WHR00399 |
C00314546
481246648102 |
doraz kose | 203 Kč
€ 8.00 |
||
| 243 5 WHR00399 |
C00311331
481231038897 |
Cutlery basket KIT soft 10809/10752 | Na dotaz | Zadat poptávku | |
| 243 6 WHR00399 |
C00314807
481245819296 |
Mrížka koše | 444 Kč
€ 17.50 |
||
| 261 0 WHR00399 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR00399 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR00399 |
C00311243
481246279986 |
Koncovka kolejnice | Na dotaz | Zadat poptávku | |
| 263 0 WHR00399 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR00399 |
C00311847
481231048026 |
kulicka plastova | 574 Kč
€ 22.70 |
||
| 265 0 WHR00399 |
C00311182
481240449712 |
Držák nastavení koše | 1 616 Kč
€ 63.80 |
||
| 265 2 WHR00399 |
C00311690
481240448934 |
Držák | 813 Kč
€ 32.10 |
||
| 301 0 WHR00399 |
C00329979
481245373548 |
Control panel ADP 6406 | Na dotaz | Zadat poptávku | |
| 303 1 WHR00399 |
C00312754
481246038148 |
rukojet | 1 411 Kč
€ 55.70 |
||
| 331 0 WHR00399 |
C00318439
481241359155 |
knoflik programatoru | 540 Kč
€ 21.30 |
||
| 331 0 WHR00399 |
C00329510
481241359203 |
Knob | Na dotaz | Zadat poptávku | |
| 332 0 WHR00399 |
C00319807
481241029163 |
Tlačítko start | 589 Kč
€ 23.30 |
||
| 332 1 WHR00399 |
C00329300
481241029242 |
Button options WH | Na dotaz | Zadat poptávku | |
| 332 3 WHR00399 |
C00315411
481241029437 |
Tlačítko | 640 Kč
€ 25.30 |
||
| 350 1 WHR00399 |
C00328856
481238128077 |
Window 7seg. WH-EBL-low | Na dotaz | Zadat poptávku | |
| 350 2 WHR00399 |
C00317834
481238128068 |
svetlovod | 398 Kč
€ 15.70 |
||
| 350 3 WHR00399 |
C00328855
481238128075 |
Light guide | Na dotaz | Zadat poptávku | |
| 400 0 WHR00399 |
C00320731
480140100848 |
Motor, SET MPH PERM 220/230V EUR | Na dotaz | Zadat poptávku | |
| 405 1 WHR00399 |
C00322630
480140100908 |
tesneni | 334 Kč
€ 13.20 |
||
| 421 0 WHR00399 |
C00311367
481212118276 |
Interf.filter | Na dotaz | Zadat poptávku | |
| 430 0 WHR00399 |
C00311158
481236018558 |
Čerpadlo myčky Whirlpool, Bauknecht - vypouštěcí 481236018558 | 407 Kč
€ 16.10 |
||
| 430 1 WHR00399 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR00399 |
C00311283
480131000114 |
Heating element | Na dotaz | Zadat poptávku | |
| 450 1 WHR00399 |
C00312781
480140100778 |
Hadice myčky Whirlpool vnitřní + spona | 593 Kč
€ 23.40 |
||
| 480 0 WHR00399 |
C00313136
481232128499 |
kabelaz | 2 212 Kč
€ 87.30 |
||
| 480 0 WHR00399 |
C00318328
480140101442 |
kabelaz | 3 346 Kč
€ 132.10 |
||
| 480 1 WHR00399 |
C00328510
481232128458 |
Cable UB - DB | Na dotaz | Zadat poptávku | |
| 480 3 WHR00399 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR00399 |
C00314874
481232118049 |
Cable mains UK | Na dotaz | Zadat poptávku | |
| 490 1 WHR00399 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 521 0 WHR00399 |
C00312894
481221838522 |
User board (CB) SAM BASIC | Na dotaz | Zadat poptávku | |
| 521 0 WHR00399 |
C00327053
481221838631 |
Control board UCB | Na dotaz | Zadat poptávku | |
| 521 8 WHR00399 |
C00314532
481253078066 |
Osa knoflíku | 680 Kč
€ 26.80 |
||
| 571 0 WHR00399 |
C00311288
481228128462 |
Napouštecí ventil myčky - jednocestný, přímý | 339 Kč
€ 13.40 |
||
| 575 0 WHR00399 |
C00314610
481231019146 |
ventil regeneracni | 2 612 Kč
€ 103.10 |
||
| 616 0 WHR00399 |
C00316751
481228118066 |
senzor mnozstvi soli | 1 115 Kč
€ 44.00 |
||
| 616 2 WHR00399 |
C00311116
481231019147 |
Senzor průtokoměru | 949 Kč
€ 37.50 |
||
| 620 0 WHR00399 |
C00315125
481227658156 |
Ovládací jednotka myček Whirlpool a Bauknecht | 3 231 Kč
€ 127.60 |
||
| 621 0 WHR00399 |
C00311983
481227618495 |
Spínač hlavní | 748 Kč
€ 29.50 |
||
| 621 0 WHR00399 |
C00314725
480140100929 |
Spínač ON/OFF | 1 038 Kč
€ 41.00 |
||
| 633 0 WHR00399 |
C00319289
481227138488 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR00399 |
C00311789
481241868371 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR00399 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 680 3 WHR00399 |
C00328081
481244011725 |
Lever,fastener | Na dotaz | Zadat poptávku | |
| 681 1 WHR00399 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR00399 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR00399 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 0 WHR00399 |
C00311048
481228268051 |
Senzor NTC | 910 Kč
€ 35.90 |
||
| 701 0 WHR00399 |
C00311753 | Hose inlet hot 2m | Na dotaz | Zadat poptávku | |
| 701 0 WHR00399 |
C00317134 | Hose inlet 3/8Z cpl.; 3/8Z cpl. 5m | Na dotaz | Zadat poptávku | |
| 701 1 WHR00399 |
C00319991
481231018302 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 701 2 WHR00399 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 0 WHR00399 |
C00311491
481241868373 |
Zásobník soli | 2 193 Kč
€ 86.60 |
||
| 710 2 WHR00399 |
C00316961
481231038896 |
matice k zásobníku soli pro myčku Whirlpool | 172 Kč
€ 6.80 |
||
| 710 3 WHR00399 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR00399 |
C00313274
481246279903 |
Uzávěr zásobníku soli | 532 Kč
€ 21.00 |
||
| 716 0 WHR00399 |
C00310997
481241868368 |
Změkčovač s průtokoměrem,Labyrint do myčky Whirlpool | 1 136 Kč
€ 44.80 |
||
| 716 1 WHR00399 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR00399 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 721 1 WHR00399 |
C00311132
481236068689 |
Spray arm lower. cpl. sa | Na dotaz | Zadat poptávku | |
| 722 2 WHR00399 |
C00311304
481236068693 |
Spray arm 2nd level cpl. saph | Na dotaz | Zadat poptávku | |
| 723 0 WHR00399 |
C00312540
481236068691 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 726 1 WHR00399 |
C00313019
481253029331 |
Trubice přívodová | 640 Kč
€ 25.30 |
||
| 726 2 WHR00399 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 1 WHR00399 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR00399 |
C00315548
481241818598 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 2 WHR00399 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 761 0 WHR00399 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR00399 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR00399 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR00399 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR00399 |
C00313492
481248058363 |
Sieve | Na dotaz | Zadat poptávku | |
| 781 0 WHR00399 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR00399 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 4 WHR00399 |
C00314292
481253028888 |
Hadice myčky Whirlpool, Ignis | 120 Kč
€ 4.70 |
||
| 783 6 WHR00399 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR00399 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR00399 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 5 WHR00399 |
C00330909
481246668504 |
tesneni | 544 Kč
€ 21.50 |
||
| 900 1 WHR00399 |
C00314510
481231028401 |
Sada montážní pro vestavnou myčku | Na dotaz | Zadat poptávku | |
| 901 0 WHR00399 |
C00311521
481240118709 |
Clamp hose S10-16/9-C7W1 | Na dotaz | Zadat poptávku | |
| 901 0 WHR00399 |
C00317847
482240110492 |
spona12-20/9A | 222 Kč
€ 8.80 |
||
| 901 1 WHR00399 |
C00311510
481240118708 |
SPONA | 175 Kč
€ 6.90 |
||
| 901 2 WHR00399 |
C00312178
481240118705 |
spona na hadici | 102 Kč
€ 4.00 |
||
| 901 5 WHR00399 |
C00311821
481240148588 |
SPONA 028,6 | 143 Kč
€ 5.60 |
||
| 910 1 WHR00399 |
C00311881
481250218394 |
Šroub | 152 Kč
€ 6.00 |
||
| 910 2 WHR00399 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR00399 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 4 WHR00399 |
C00332118
481250218743 |
Screw M3,5x8TC STAR | Na dotaz | Zadat poptávku | |
| 910 5 WHR00399 |
C00345782
481250218393 |
Screw 3,5x9-1 Tx15 | Na dotaz | Zadat poptávku | |
| 910 7 WHR00399 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR00399 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 9 WHR00399 |
C00314583
481240118706 |
sroub | 72 Kč
€ 2.80 |
||
| 964 0 WHR00399 |
C00330944
481246668866 |
Těsnění myčky levé/pravé (v balení 1ks) | 816 Kč
€ 32.20 |
||
| 964 1 WHR00399 |
C00330914
481246668573 |
Těsnění skříně horní | 708 Kč
€ 28.00 |
||
| 993 2 WHR00399 |
C00329037
481240448753 |
Kliž pro nastavení nohy myčky | 555 Kč
€ 21.90 |
||
| 993 5 WHR00399 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348455 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348456 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348457 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348458 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348459 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348460 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348461 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348462 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00348463 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00349079 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00349080 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00399 |
C00349081 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
