WHIRLPOOL ADP6940/5ALM DISHWASHERS WP
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADP6940/5ALM DISHWASHERS WP |
| Kód 12NC: | 854294038920 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
Potřebujete servis? Jsme tady pro Vás

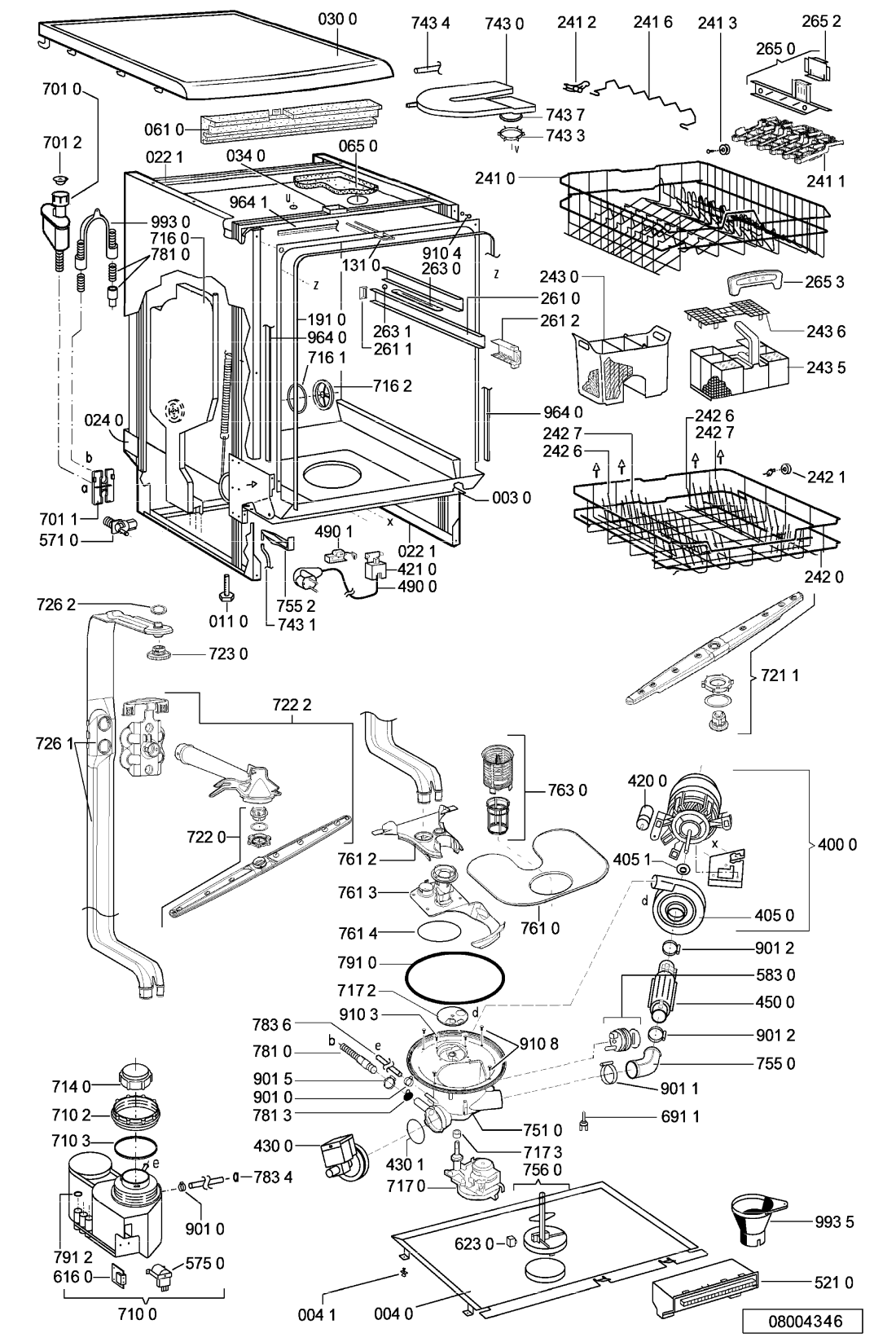

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR58843 |
C00497944
481244019594 |
LISTA ADP962/3 N | Na dotaz | Zadat poptávku | |
| 004 0 WHR58843 |
C00328100
481244018952 |
Drip tray assy | Na dotaz | Zadat poptávku | |
| 004 1 WHR58843 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR58843 |
C00332170
481250518357 |
noha | 216 Kč
€ 8.50 |
||
| 022 1 WHR58843 |
C00587559
481244010692 |
Side panel le/ri SIL. | Na dotaz | Zadat poptávku | |
| 024 0 WHR58843 |
C00497878
481244010417 |
Panel, rear | Na dotaz | Zadat poptávku | |
| 030 0 WHR58843 |
C00491394
481231019003 |
Table top cpl. | Na dotaz | Zadat poptávku | |
| 034 0 WHR58843 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 040 1 WHR58843 |
C00312272
481241718774 |
Závěs dveří levý | 945 Kč
€ 37.30 |
||
| 040 2 WHR58843 |
C00312358
481241718773 |
zaves dveri pravy | 945 Kč
€ 37.30 |
||
| 040 3 WHR58843 |
C00329723
481241719282 |
Protectorf.door (set) | Na dotaz | Zadat poptávku | |
| 044 0 WHR58843 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 047 0 WHR58843 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR58843 |
C00311072
481240118707 |
Páska brzdná | 135 Kč
€ 5.30 |
||
| 047 1 WHR58843 |
C00311343
481240118397 |
Band,brake | Na dotaz | Zadat poptávku | |
| 047 2 WHR58843 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR58843 |
C00337649
481244089025 |
PlinthSIL | Na dotaz | Zadat poptávku | |
| 053 4 WHR58843 |
C00489316
481244089089 |
Plinth rounded SIL | Na dotaz | Zadat poptávku | |
| 061 0 WHR58843 |
C00331004
481246688672 |
senzor hmotnosti | 1 632 Kč
€ 64.40 |
||
| 065 0 WHR58843 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR58843 |
C00485076
481244011122 |
Door outer SIL | Na dotaz | Zadat poptávku | |
| 120 0 WHR58843 |
C00328106
481244019456 |
vnitrek dveri mycky | Na dotaz | Zadat poptávku | |
| 120 1 WHR58843 |
C00328101
481244018969 |
lista | 665 Kč
€ 26.30 |
||
| 130 0 WHR58843 |
C00335456
481241758361 |
Tilt lock cpl. wh | Na dotaz | Zadat poptávku | |
| 131 0 WHR58843 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 191 0 WHR58843 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 191 3 WHR58843 |
C00340530
481246668533 |
Gasket | Na dotaz | Zadat poptávku | |
| 192 0 WHR58843 |
C00311260
481246668467 |
Těsnění dveří - spodní | 561 Kč
€ 22.10 |
||
| 241 0 WHR58843 |
C00330061
481245819249 |
Basketupper straight sub 481245819383 | Na dotaz | Zadat poptávku | |
| 241 1 WHR58843 |
C00330060
481245819246 |
drzak | Na dotaz | Zadat poptávku | |
| 241 2 WHR58843 |
C00332728
481253578081 |
lozisko drzaku hrnku | Na dotaz | Zadat poptávku | |
| 241 3 WHR58843 |
C00312273
481252888113 |
Kolečka horn.koše - 4ks | 499 Kč
€ 19.70 |
||
| 241 6 WHR58843 |
C00330062
481245819251 |
drzak | 273 Kč
€ 10.80 |
||
| 242 0 WHR58843 |
C00344473
481245819248 |
Basket lower cpl. | Na dotaz | Zadat poptávku | |
| 242 1 WHR58843 |
C00311316
481252888112 |
Kolečko spodního koše - sada 8 ks | 947 Kč
€ 37.40 |
||
| 242 6 WHR58843 |
C00335801
481245819252 |
Držák talířů L | Na dotaz | Zadat poptávku | |
| 242 7 WHR58843 |
C00498289
481245819253 |
Support plate | Na dotaz | Zadat poptávku | |
| 243 0 WHR58843 |
C00330072
481245819276 |
Košík na příbory | 542 Kč
€ 21.40 |
||
| 243 5 WHR58843 |
C00311331
481231038897 |
Cutlery basket KIT soft 10809/10752 | Na dotaz | Zadat poptávku | |
| 243 6 WHR58843 |
C00314807
481245819296 |
Mrížka koše | 444 Kč
€ 17.50 |
||
| 261 0 WHR58843 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR58843 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR58843 |
C00319605
481246279904 |
koncovka kolejnice | 508 Kč
€ 20.10 |
||
| 263 0 WHR58843 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR58843 |
C00311847
481231048026 |
kulicka plastova | 574 Kč
€ 22.70 |
||
| 265 0 WHR58843 |
C00312665
481240448917 |
Držák nastavení koše | 1 575 Kč
€ 62.20 |
||
| 265 2 WHR58843 |
C00316650
481240448918 |
Grip | 1 134 Kč
€ 44.80 |
||
| 265 3 WHR58843 |
C00340210
481240448931 |
Grip cpl. | Na dotaz | Zadat poptávku | |
| 301 0 WHR58843 |
C00463364
481245373069 |
Control panel ALU | Na dotaz | Zadat poptávku | |
| 303 1 WHR58843 |
C00313510
481246058396 |
rukojet WH | 1 698 Kč
€ 67.00 |
||
| 331 0 WHR58843 |
C00329294
481241029223 |
Knob SIL | Na dotaz | Zadat poptávku | |
| 332 0 WHR58843 |
C00329292
481241029216 |
Button SIL | Na dotaz | Zadat poptávku | |
| 332 1 WHR58843 |
C00329291
481241029215 |
Button SIL | Na dotaz | Zadat poptávku | |
| 332 3 WHR58843 |
C00329290
481241029214 |
Button ON/OFF SIL | Na dotaz | Zadat poptávku | |
| 350 0 WHR58843 |
C00342155
481227658148 |
Display board (DB) | Na dotaz | Zadat poptávku | |
| 400 0 WHR58843 |
C00337607
481236158407 |
POMPE DE CYCLAGE (model.M202)77w220-240V | Na dotaz | Zadat poptávku | |
| 405 0 WHR58843 |
C00328559
481236018546 |
Ťěleso cirkulačního čerpadla L | 1 923 Kč
€ 75.90 |
||
| 405 1 WHR58843 |
C00318527
481251528107 |
tesneni | 112 Kč
€ 4.40 |
||
| 420 0 WHR58843 |
C00326768
481212118132 |
Capacitor | Na dotaz | Zadat poptávku | |
| 421 0 WHR58843 |
C00318174
481212118158 |
Interf.filter - 68820-06 | Na dotaz | Zadat poptávku | |
| 430 0 WHR58843 |
C00312277
481236018508 |
Pump,draining - 7828.64747 | Na dotaz | Zadat poptávku | |
| 430 1 WHR58843 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR58843 |
C00311759
481225928684 |
Heating element 2040W 220V - 303554 | Na dotaz | Zadat poptávku | |
| 480 0 WHR58843 |
C00317800
481232128444 |
Cable harness 3in1/4in1(EBL)w/o.LS6 | Na dotaz | Zadat poptávku | |
| 480 3 WHR58843 |
C00311946
481240118418 |
Protector f.wiring | Na dotaz | Zadat poptávku | |
| 490 0 WHR58843 |
C00316393
481932118136 |
Flexo kabel 2 m, konektory | Na dotaz | Zadat poptávku | |
| 490 1 WHR58843 |
C00309418
481232128367 |
Přechodka | 591 Kč
€ 23.30 |
||
| 521 0 WHR58843 |
C00377471
481221838415 |
programator mycky | Na dotaz | Zadat poptávku | |
| 521 0 WHR58843 |
C00400468
481221479512 |
programator mycky | 3 503 Kč
€ 138.30 |
||
| 571 0 WHR58843 |
C00312837
481228128379 |
Valve inlet inlet | Na dotaz | Zadat poptávku | |
| 575 0 WHR58843 |
C00327511
481228128361 |
Regen.valve | Na dotaz | Zadat poptávku | |
| 583 0 WHR58843 |
C00317857
481227128537 |
Switchdiaphragm (OWI) | Na dotaz | Zadat poptávku | |
| 616 0 WHR58843 |
C00327505
481228118047 |
Contact reed salt | Na dotaz | Zadat poptávku | |
| 616 1 WHR58843 |
C00327262
481227158161 |
Contact reed rinsing agent | Na dotaz | Zadat poptávku | |
| 620 0 WHR58843 |
C00337333
481221838235 |
User board | Na dotaz | Zadat poptávku | |
| 621 0 WHR58843 |
C00311780
481941029004 |
Spínač síťový | 842 Kč
€ 33.20 |
||
| 623 0 WHR58843 |
C00338099
481227138356 |
Microswitch | Na dotaz | Zadat poptávku | |
| 633 0 WHR58843 |
C00327238
481227138355 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR58843 |
C00343598
481241868317 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR58843 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 680 3 WHR58843 |
C00327991
481244011209 |
rinse aid clipcombidos. 442300.XX | Na dotaz | Zadat poptávku | |
| 681 1 WHR58843 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR58843 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR58843 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 691 1 WHR58843 |
C00335994
481246279769 |
Stopper NTC | Na dotaz | Zadat poptávku | |
| 701 0 WHR58843 |
C00312612
481953028926 |
Přívodní hadice 2,5 m s aqua stopem | Na dotaz | Zadat poptávku | |
| 701 1 WHR58843 |
C00319991
481231018302 |
drzak hadic | Na dotaz | Zadat poptávku | |
| 701 2 WHR58843 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 0 WHR58843 |
C00327349
481231019022 |
MonoblockSK5176.0 | Na dotaz | Zadat poptávku | |
| 710 2 WHR58843 |
C00316961
481231038896 |
matice k zásobníku soli pro myčku Whirlpool | 172 Kč
€ 6.80 |
||
| 710 3 WHR58843 |
C00315128
481946669562 |
Gasket set | Na dotaz | Zadat poptávku | |
| 714 0 WHR58843 |
C00313274
481246279903 |
Uzávěr zásobníku soli | 532 Kč
€ 21.00 |
||
| 716 0 WHR58843 |
C00311895
481241868147 |
4812 418 68368 POSUDA | Na dotaz | Zadat poptávku | |
| 716 1 WHR58843 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR58843 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 0 WHR58843 |
C00317941
481228128431 |
Valve motordivertermotordiverter | Na dotaz | Zadat poptávku | |
| 717 2 WHR58843 |
C00318705
481252898011 |
Disk motorku distribuce vody myčky (divertoru) | 471 Kč
€ 18.60 |
||
| 717 3 WHR58843 |
C00313130
481253029121 |
Gufero 10x18x4mm | 29 Kč
€ 1.10 |
||
| 721 1 WHR58843 |
C00311132
481236068689 |
Spray arm lower. cpl. sa | Na dotaz | Zadat poptávku | |
| 722 0 WHR58843 |
C00311968
481236068687 |
Spray arm upper sa | Na dotaz | Zadat poptávku | |
| 722 2 WHR58843 |
C00313785
481236068688 |
Spray arm 2nd level cpl. saph | Na dotaz | Zadat poptávku | |
| 723 0 WHR58843 |
C00312540
481236068691 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 726 1 WHR58843 |
C00313019
481253029331 |
Trubice přívodová | 640 Kč
€ 25.30 |
||
| 726 2 WHR58843 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 0 WHR58843 |
C00318471
481251148171 |
jednotka kondenzacni | 727 Kč
€ 28.70 |
||
| 743 1 WHR58843 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 743 4 WHR58843 |
C00332410
481253028807 |
hadice | Na dotaz | Zadat poptávku | |
| 743 7 WHR58843 |
C00319749
481246668514 |
tesneni | 680 Kč
€ 26.80 |
||
| 751 0 WHR58843 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 0 WHR58843 |
C00312127
481253029119 |
Hadice myčky Whirlpool, Ignis | 1 102 Kč
€ 43.50 |
||
| 755 2 WHR58843 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 756 0 WHR58843 |
C00340827
481236058099 |
Floater | Na dotaz | Zadat poptávku | |
| 761 0 WHR58843 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR58843 |
C00311695
481241818337 |
kryt | Na dotaz | Zadat poptávku | |
| 761 3 WHR58843 |
C00311568
481241818341 |
Cover | Na dotaz | Zadat poptávku | |
| 761 4 WHR58843 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR58843 |
C00313492
481248058363 |
Sieve | Na dotaz | Zadat poptávku | |
| 781 0 WHR58843 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR58843 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 4 WHR58843 |
C00314292
481253028888 |
Hadice myčky Whirlpool, Ignis | 120 Kč
€ 4.70 |
||
| 783 6 WHR58843 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR58843 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR58843 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 901 0 WHR58843 |
C00312134
482240110258 |
SPONA HADICE OD VENT | 180 Kč
€ 7.10 |
||
| 901 1 WHR58843 |
C00317950
481240118424 |
spona050,0 | 167 Kč
€ 6.60 |
||
| 901 2 WHR58843 |
C00311047
481240118157 |
spona 33-55 | 202 Kč
€ 8.00 |
||
| 901 5 WHR58843 |
C00314613
481240148573 |
spona028,6 | Na dotaz | Zadat poptávku | |
| 904 4 WHR58843 |
C00319579
481246279659 |
THREADED CAP | 378 Kč
€ 14.90 |
||
| 910 1 WHR58843 |
C00332160
481250238373 |
Screw 4,8x19 | Na dotaz | Zadat poptávku | |
| 910 2 WHR58843 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR58843 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 4 WHR58843 |
C00345780
481250218385 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR58843 |
C00318399
481250218739 |
sroub | 342 Kč
€ 13.50 |
||
| 910 7 WHR58843 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR58843 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 964 0 WHR58843 |
C00330943
481246668865 |
Gasket housing ri/le | Na dotaz | Zadat poptávku | |
| 964 1 WHR58843 |
C00340445
481246668576 |
Gasket housing upper grey | Na dotaz | Zadat poptávku | |
| 993 0 WHR58843 |
C00316831
481953029028 |
Koleno výtokové hadice | 95 Kč
€ 3.80 |
||
| 993 5 WHR58843 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
