WHIRLPOOL ADP 8800/WH
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | ADP 8800/WH |
| Kód 12NC: | 851159915930 |
| I.C. kód: | 851159915931 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Myčky |
| Další podobné modely: | 851159915930, Q0916100000, Q0916100001 |
Potřebujete servis? Jsme tady pro Vás

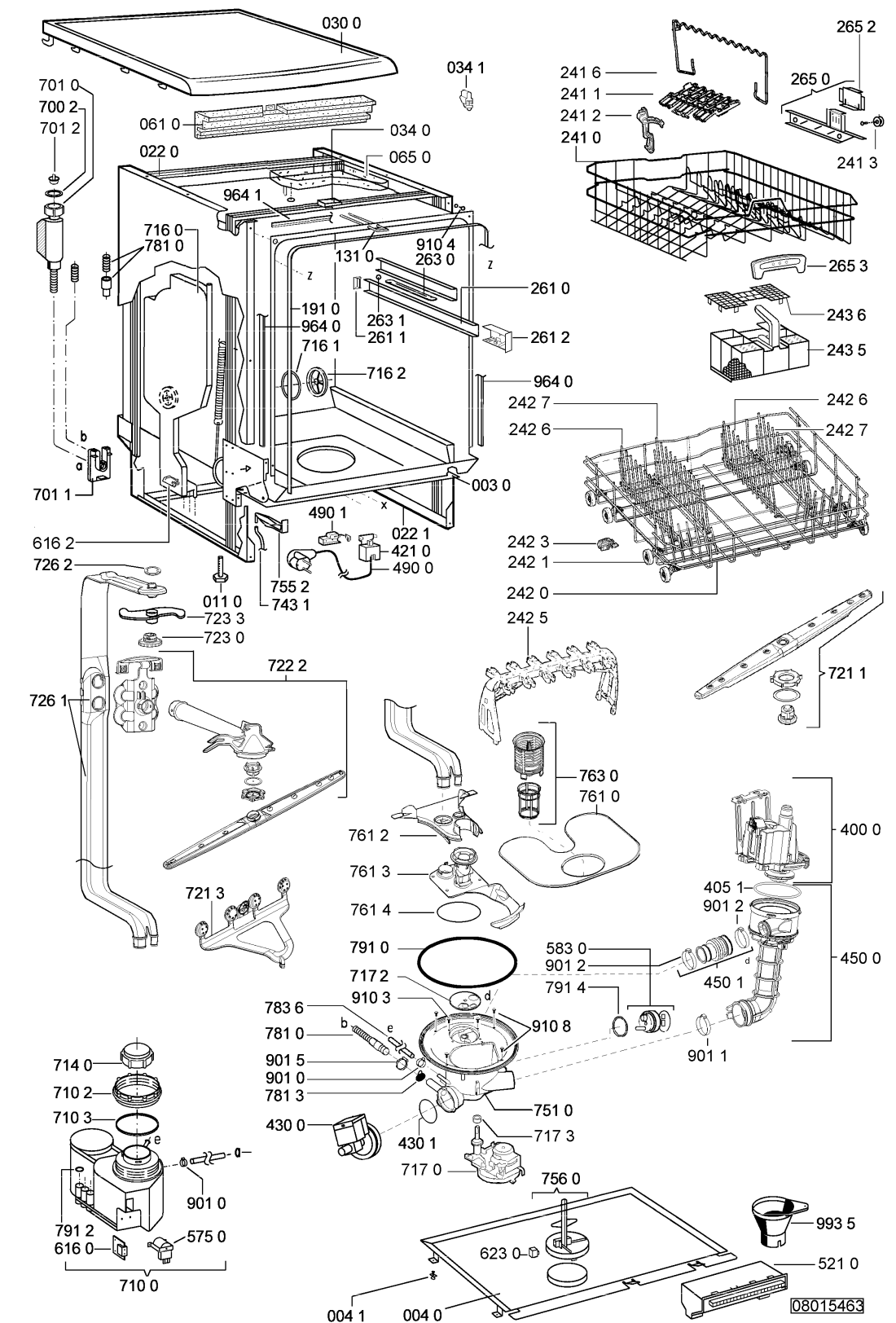

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 0 WHR00494 |
C00328008
481244011455 |
LISTA ADP962/3 | 573 Kč
€ 22.60 |
||
| 004 0 WHR00494 |
C00317159
481244011463 |
Krycí plech spodní myčky Whirlpool | 945 Kč
€ 37.30 |
||
| 004 1 WHR00494 |
C00317898
481240118402 |
drzak | Na dotaz | Zadat poptávku | |
| 011 0 WHR00494 |
C00318445
481250518419 |
noha nastavitelna | 352 Kč
€ 13.90 |
||
| 022 0 WHR00494 |
C00327954
481244010755 |
stena bocni leva | 2 628 Kč
€ 103.80 |
||
| 022 1 WHR00494 |
C00327953
481244010754 |
stena bocni prava | 2 628 Kč
€ 103.80 |
||
| 030 0 WHR00494 |
C00317708
481231019004 |
deska horni | 3 673 Kč
€ 145.00 |
||
| 034 0 WHR00494 |
C00329171
481240478237 |
PRICHYTKA | 641 Kč
€ 25.30 |
||
| 034 1 WHR00494 |
C00313535
481240478242 |
drzak desky horni | 671 Kč
€ 26.50 |
||
| 040 1 WHR00494 |
C00313635
481231019244 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 3 WHR00494 |
C00329722
481241719279 |
Protector f.door (set) | Na dotaz | Zadat poptávku | |
| 044 0 WHR00494 |
C00312167
481249238358 |
pruzina | 1 134 Kč
€ 44.80 |
||
| 047 0 WHR00494 |
C00311044
481240448746 |
Brzda dveří | 100 Kč
€ 3.90 |
||
| 047 1 WHR00494 |
C00311072
481240118707 |
Páska brzdná | 135 Kč
€ 5.30 |
||
| 047 2 WHR00494 |
C00311951
481240468023 |
hak brzdne pasky | 174 Kč
€ 6.90 |
||
| 053 0 WHR00494 |
C00328411
481244089144 |
Plinth WH | Na dotaz | Zadat poptávku | |
| 053 4 WHR00494 |
C00328399
481244089087 |
sokl mycky WH | 1 531 Kč
€ 60.40 |
||
| 061 0 WHR00494 |
C00331004
481246688672 |
senzor hmotnosti | 1 632 Kč
€ 64.40 |
||
| 065 0 WHR00494 |
C00330893
481246648051 |
izolace | Na dotaz | Zadat poptávku | |
| 103 0 WHR00494 |
C00328073 | Door outer WH rounded | Na dotaz | Zadat poptávku | |
| 120 0 WHR00494 |
C00314067
481244011718 |
Vnitřní plech dveří myčky Whirlpool, Bauknecht | 4 218 Kč
€ 166.50 |
||
| 120 1 WHR00494 |
C00322624
480140100772 |
Ledge | Na dotaz | Zadat poptávku | |
| 130 0 WHR00494 |
C00311942
481241758398 |
Zámek dveří | 1 518 Kč
€ 59.90 |
||
| 131 0 WHR00494 |
C00314010
481240118416 |
pojistka zamku | 848 Kč
€ 33.50 |
||
| 191 0 WHR00494 |
C00311041
481246668564 |
Těsnění dveří myčky - obvodové | 588 Kč
€ 23.20 |
||
| 191 3 WHR00494 |
C00330946
481246668871 |
Gasket | Na dotaz | Zadat poptávku | |
| 192 0 WHR00494 |
C00313059
481246668912 |
Těsnění dveří - spodní | 368 Kč
€ 14.50 |
||
| 241 0 WHR00494 |
C00330100
481245819383 |
Koš myčky - horní-náhrada 480131000223 | Na dotaz | Zadat poptávku | |
| 241 1 WHR00494 |
C00330060
481245819246 |
drzak | Na dotaz | Zadat poptávku | |
| 241 2 WHR00494 |
C00332728
481253578081 |
lozisko drzaku hrnku | Na dotaz | Zadat poptávku | |
| 241 3 WHR00494 |
C00312273
481252888113 |
Kolečka horn.koše - 4ks | 499 Kč
€ 19.70 |
||
| 241 6 WHR00494 |
C00330062
481245819251 |
drzak | 273 Kč
€ 10.80 |
||
| 242 0 WHR00494 |
C00319127
481245819391 |
Koš myčky spodní | Na dotaz | Zadat poptávku | |
| 242 1 WHR00494 |
C00311316
481252888112 |
Kolečko spodního koše - sada 8 ks | 947 Kč
€ 37.40 |
||
| 242 3 WHR00494 |
C00314334
481253578098 |
Držák roštu talířů | Na dotaz | Zadat poptávku | |
| 242 5 WHR00494 |
C00332765
481281719079 |
Držák na sklenice do myček nádobí | 526 Kč
€ 20.80 |
||
| 242 6 WHR00494 |
C00327362
481231019219 |
Kit | Na dotaz | Zadat poptávku | |
| 242 7 WHR00494 |
C00327361
481231019218 |
Kit | Na dotaz | Zadat poptávku | |
| 243 5 WHR00494 |
C00311331
481231038897 |
Cutlery basket KIT soft 10809/10752 | Na dotaz | Zadat poptávku | |
| 243 6 WHR00494 |
C00314807
481245819296 |
Mrížka koše | 444 Kč
€ 17.50 |
||
| 261 0 WHR00494 |
C00311448
481246279831 |
Rail telescope, inner | Na dotaz | Zadat poptávku | |
| 261 1 WHR00494 |
C00311245
481246279768 |
Koncovka kolejnice - zadní | Na dotaz | Zadat poptávku | |
| 261 2 WHR00494 |
C00311243
481246279986 |
Koncovka kolejnice | Na dotaz | Zadat poptávku | |
| 263 0 WHR00494 |
C00311960
481952018013 |
Ball cage cpl. | Na dotaz | Zadat poptávku | |
| 263 1 WHR00494 |
C00311847
481231048026 |
kulicka plastova | 574 Kč
€ 22.70 |
||
| 265 0 WHR00494 |
C00312665
481240448917 |
Držák nastavení koše | 1 575 Kč
€ 62.20 |
||
| 265 2 WHR00494 |
C00316650
481240448918 |
Grip | 1 134 Kč
€ 44.80 |
||
| 265 3 WHR00494 |
C00329134
481240449846 |
Grip cpl. gr./gr./blue | Na dotaz | Zadat poptávku | |
| 301 0 WHR00494 |
C00317481
481245373865 |
Control panel ,adp 8800 | Na dotaz | Zadat poptávku | |
| 301 1 WHR00494 |
C00315190
481245918288 |
logo | 293 Kč
€ 11.60 |
||
| 303 1 WHR00494 |
C00313510
481246058396 |
rukojet WH | 1 698 Kč
€ 67.00 |
||
| 331 0 WHR00494 |
C00329294
481241029223 |
Knob SIL | Na dotaz | Zadat poptávku | |
| 332 0 WHR00494 |
C00329292
481241029216 |
Button SIL | Na dotaz | Zadat poptávku | |
| 332 1 WHR00494 |
C00329291
481241029215 |
Button SIL | Na dotaz | Zadat poptávku | |
| 332 3 WHR00494 |
C00329290
481241029214 |
Button ON/OFF SIL | Na dotaz | Zadat poptávku | |
| 350 0 WHR00494 |
C00315013
481221838414 |
jednotka ovladaci | 4 598 Kč
€ 181.50 |
||
| 350 1 WHR00494 |
C00328861
481238128095 |
Window 7 segments | Na dotaz | Zadat poptávku | |
| 350 2 WHR00494 |
C00328862
481238128096 |
světlovod | 167 Kč
€ 6.60 |
||
| 350 3 WHR00494 |
C00328863
481238128097 |
Light guide alarm | Na dotaz | Zadat poptávku | |
| 350 6 WHR00494 |
C00328864
481238128098 |
světlovod programu | 208 Kč
€ 8.20 |
||
| 400 0 WHR00494 |
C00312549
481236158513 |
Motor | Na dotaz | Zadat poptávku | |
| 405 1 WHR00494 |
C00322630
480140100908 |
tesneni | 334 Kč
€ 13.20 |
||
| 421 0 WHR00494 |
C00311350
481212118285 |
Filtr odrušovací 1 uF | Na dotaz | Zadat poptávku | |
| 430 0 WHR00494 |
C00311158
481236018558 |
Čerpadlo myčky Whirlpool, Bauknecht - vypouštěcí 481236018558 | 407 Kč
€ 16.10 |
||
| 430 1 WHR00494 |
C00317755
481246668689 |
tesneni | 739 Kč
€ 29.20 |
||
| 450 0 WHR00494 |
C00311283
480131000114 |
Heating element | Na dotaz | Zadat poptávku | |
| 450 1 WHR00494 |
C00312781
480140100778 |
Hadice myčky Whirlpool vnitřní + spona | 593 Kč
€ 23.40 |
||
| 480 0 WHR00494 |
C00318470
480140101468 |
vodic svazek | 2 400 Kč
€ 94.70 |
||
| 480 0 WHR00494 |
C00318860
481232128432 |
Kabeláž myčky | 2 746 Kč
€ 108.40 |
||
| 480 1 WHR00494 |
C00328510
481232128458 |
Cable UB - DB | Na dotaz | Zadat poptávku | |
| 480 3 WHR00494 |
C00311055
480140100687 |
Kryt kabeláže myček Whirlpool, Ignis o šířce 60 cm | 458 Kč
€ 18.10 |
||
| 490 0 WHR00494 |
C00314874
481232118049 |
Cable mains UK | Na dotaz | Zadat poptávku | |
| 490 1 WHR00494 |
C00313305
488000313305 |
Strain relief | Na dotaz | Zadat poptávku | |
| 521 0 WHR00494 |
C00313300
481221838777 |
Control board ,UCB | Na dotaz | Zadat poptávku | |
| 521 0 WHR00494 |
C00312777
480140100554 |
programator mycky | 3 312 Kč
€ 130.80 |
||
| 575 0 WHR00494 |
C00314610
481231019146 |
ventil regeneracni | 2 612 Kč
€ 103.10 |
||
| 583 0 WHR00494 |
C00312670
481227128557 |
Switch diaphragm (OWI) | Na dotaz | Zadat poptávku | |
| 616 0 WHR00494 |
C00316751
481228118066 |
senzor mnozstvi soli | 1 115 Kč
€ 44.00 |
||
| 616 1 WHR00494 |
C00319599
481227158184 |
senzor lestidla | 637 Kč
€ 25.10 |
||
| 616 2 WHR00494 |
C00311116
481231019147 |
Senzor průtokoměru | 949 Kč
€ 37.50 |
||
| 620 0 WHR00494 |
C00316691
481227658151 |
jednotka+displej | 3 354 Kč
€ 132.40 |
||
| 621 0 WHR00494 |
C00311983
481227618495 |
Spínač hlavní | 748 Kč
€ 29.50 |
||
| 621 0 WHR00494 |
C00314725
480140100929 |
Spínač ON/OFF | 1 038 Kč
€ 41.00 |
||
| 623 0 WHR00494 |
C00319339
481227138489 |
mikrospinac plovaku | 1 115 Kč
€ 44.00 |
||
| 633 0 WHR00494 |
C00319289
481227138488 |
Microswitch door | Na dotaz | Zadat poptávku | |
| 680 0 WHR00494 |
C00311789
481241868371 |
Combidosage | Na dotaz | Zadat poptávku | |
| 680 1 WHR00494 |
C00314550
481246668495 |
Těsnění násypky | 783 Kč
€ 30.90 |
||
| 680 3 WHR00494 |
C00328081
481244011725 |
Lever,fastener | Na dotaz | Zadat poptávku | |
| 681 1 WHR00494 |
C00313952
481246668497 |
Gasket SK 5244.04.04 | Na dotaz | Zadat poptávku | |
| 681 2 WHR00494 |
C00316126
481244018975 |
klapka | 896 Kč
€ 35.40 |
||
| 682 0 WHR00494 |
C00319741
481246668496 |
tesneni nasypky | 116 Kč
€ 4.60 |
||
| 700 1 WHR00494 |
C00345763
481248048095 |
filtr | 78 Kč
€ 3.10 |
||
| 700 2 WHR00494 |
C00330915
481246668628 |
Gasket | Na dotaz | Zadat poptávku | |
| 701 0 WHR00494 |
C00318851
481253029403 |
Aquastop 2m - elektrický | 1 985 Kč
€ 78.40 |
||
| 701 1 WHR00494 |
C00327323
481231018153 |
Držák hadic | 542 Kč
€ 21.40 |
||
| 701 2 WHR00494 |
C00318772
482248050159 |
Sieve inlet | Na dotaz | Zadat poptávku | |
| 710 0 WHR00494 |
C00311491
481241868373 |
Zásobník soli | 2 193 Kč
€ 86.60 |
||
| 710 2 WHR00494 |
C00316961
481231038896 |
matice k zásobníku soli pro myčku Whirlpool | 172 Kč
€ 6.80 |
||
| 710 3 WHR00494 |
C00322603
480140100416 |
Těsnění zásobníku soli | 248 Kč
€ 9.80 |
||
| 714 0 WHR00494 |
C00313274
481246279903 |
Uzávěr zásobníku soli | 532 Kč
€ 21.00 |
||
| 716 0 WHR00494 |
C00310997
481241868368 |
Změkčovač s průtokoměrem,Labyrint do myčky Whirlpool | 1 136 Kč
€ 44.80 |
||
| 716 1 WHR00494 |
C00315959
481246668475 |
Gasket | Na dotaz | Zadat poptávku | |
| 716 2 WHR00494 |
C00311305
481246278994 |
mrizka bloku upravy vody | 300 Kč
€ 11.80 |
||
| 717 0 WHR00494 |
C00311375
481228128469 |
Valve diverter valve cpl.TZ | Na dotaz | Zadat poptávku | |
| 717 2 WHR00494 |
C00311830
481252898029 |
disk | 490 Kč
€ 19.30 |
||
| 717 3 WHR00494 |
C00313130
481253029121 |
Gufero 10x18x4mm | 29 Kč
€ 1.10 |
||
| 721 1 WHR00494 |
C00311132
481236068689 |
Spray arm lower. cpl. sa | Na dotaz | Zadat poptávku | |
| 721 3 WHR00494 |
C00315293
481236068969 |
Rameno POWERCLEAN | 1 759 Kč
€ 69.40 |
||
| 722 2 WHR00494 |
C00313785
481236068688 |
Spray arm 2nd level cpl. saph | Na dotaz | Zadat poptávku | |
| 723 0 WHR00494 |
C00312540
481236068691 |
Douche ceiling | Na dotaz | Zadat poptávku | |
| 723 3 WHR00494 |
C00313456
481236068692 |
Rameno mycí horní - vrtule | 1 368 Kč
€ 54.00 |
||
| 726 1 WHR00494 |
C00313019
481253029331 |
Trubice přívodová | 640 Kč
€ 25.30 |
||
| 726 2 WHR00494 |
C00314925
481250518208 |
matice plast | 480 Kč
€ 18.90 |
||
| 743 1 WHR00494 |
C00314290
481253028102 |
Hadička | 169 Kč
€ 6.70 |
||
| 751 0 WHR00494 |
C00315536
481241818338 |
nadoba sberna | Na dotaz | Zadat poptávku | |
| 755 2 WHR00494 |
C00332503
481253048148 |
Přepadový kanál levý | 388 Kč
€ 15.30 |
||
| 756 0 WHR00494 |
C00318106
481236058479 |
plovák | Na dotaz | Zadat poptávku | |
| 761 0 WHR00494 |
C00313265
481248058122 |
sitko jemne | Na dotaz | Zadat poptávku | |
| 761 2 WHR00494 |
C00315556
481241818677 |
kryt | 613 Kč
€ 24.20 |
||
| 761 3 WHR00494 |
C00312384
481241818678 |
Kryt | Na dotaz | Zadat poptávku | |
| 761 4 WHR00494 |
C00311339
481253058141 |
Spodní těsnění k přívodu vody do mycích ramen myčky Whirlpool ADG 2040 FD, 5720 IX, ADG 6 | 175 Kč
€ 6.90 |
||
| 763 0 WHR00494 |
C00313492
481248058363 |
Sieve | Na dotaz | Zadat poptávku | |
| 781 0 WHR00494 |
C00311031
481253029113 |
Hadice výtoková na myčku Whirlpool | 158 Kč
€ 6.20 |
||
| 781 3 WHR00494 |
C00317931
481228128417 |
Klapka zpětná | 803 Kč
€ 31.70 |
||
| 783 6 WHR00494 |
C00332409
481253028796 |
Hose 10x3x180+10 | Na dotaz | Zadat poptávku | |
| 791 0 WHR00494 |
C00313003
481253268099 |
Těsnění jímky (spodní nádoby) myčky nádobí Whirlpool ADG 5720 FD A+, ADG 6240 FD, ADG 772 | 701 Kč
€ 27.70 |
||
| 791 2 WHR00494 |
C00312677
481253058093 |
Gasket SK 5199 01 4 | Na dotaz | Zadat poptávku | |
| 791 4 WHR00494 |
C00319745
481246668503 |
Těsnění ADP941 | 741 Kč
€ 29.30 |
||
| 901 0 WHR00494 |
C00311521
481240118709 |
Clamp hose S10-16/9-C7W1 | Na dotaz | Zadat poptávku | |
| 901 1 WHR00494 |
C00311510
481240118708 |
SPONA | 175 Kč
€ 6.90 |
||
| 901 2 WHR00494 |
C00312178
481240118705 |
spona na hadici | 102 Kč
€ 4.00 |
||
| 901 5 WHR00494 |
C00311821
481240148588 |
SPONA 028,6 | 143 Kč
€ 5.60 |
||
| 910 1 WHR00494 |
C00311881
481250218394 |
Šroub | 152 Kč
€ 6.00 |
||
| 910 2 WHR00494 |
C00316659
481250218363 |
Šroub | 191 Kč
€ 7.50 |
||
| 910 3 WHR00494 |
C00332082
481250218527 |
Screw 4x15 T204x15 T20 | Na dotaz | Zadat poptávku | |
| 910 4 WHR00494 |
C00332116
481250218741 |
Screw M3,5x8-T15M | Na dotaz | Zadat poptávku | |
| 910 5 WHR00494 |
C00318399
481250218739 |
sroub | 342 Kč
€ 13.50 |
||
| 910 7 WHR00494 |
C00314887
481250218397 |
Screw INOX A2 M 5x14 TX20 | Na dotaz | Zadat poptávku | |
| 910 8 WHR00494 |
C00345781
481250218389 |
sroub 5x20-TORX | 156 Kč
€ 6.20 |
||
| 910 9 WHR00494 |
C00314583
481240118706 |
sroub | 72 Kč
€ 2.80 |
||
| 964 0 WHR00494 |
C00330944
481246668866 |
Těsnění myčky levé/pravé (v balení 1ks) | 816 Kč
€ 32.20 |
||
| 964 1 WHR00494 |
C00330947
481246668873 |
Těsnění myčky horní | 595 Kč
€ 23.50 |
||
| 993 5 WHR00494 |
C00335151
482253280216 |
SALT FUNNEL | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348787 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348789 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348790 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348791 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348792 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348793 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348794 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348795 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348796 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348797 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
| 999 WHR00494 |
C00348798 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
