Komerční kód: | AFB 635 |
Kód 12NC: | 850463515000 |
Značka: | WHIRLPOOL |
Typ produktu: | Vestavné lednice |
Další podobné modely: | Q0912410000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

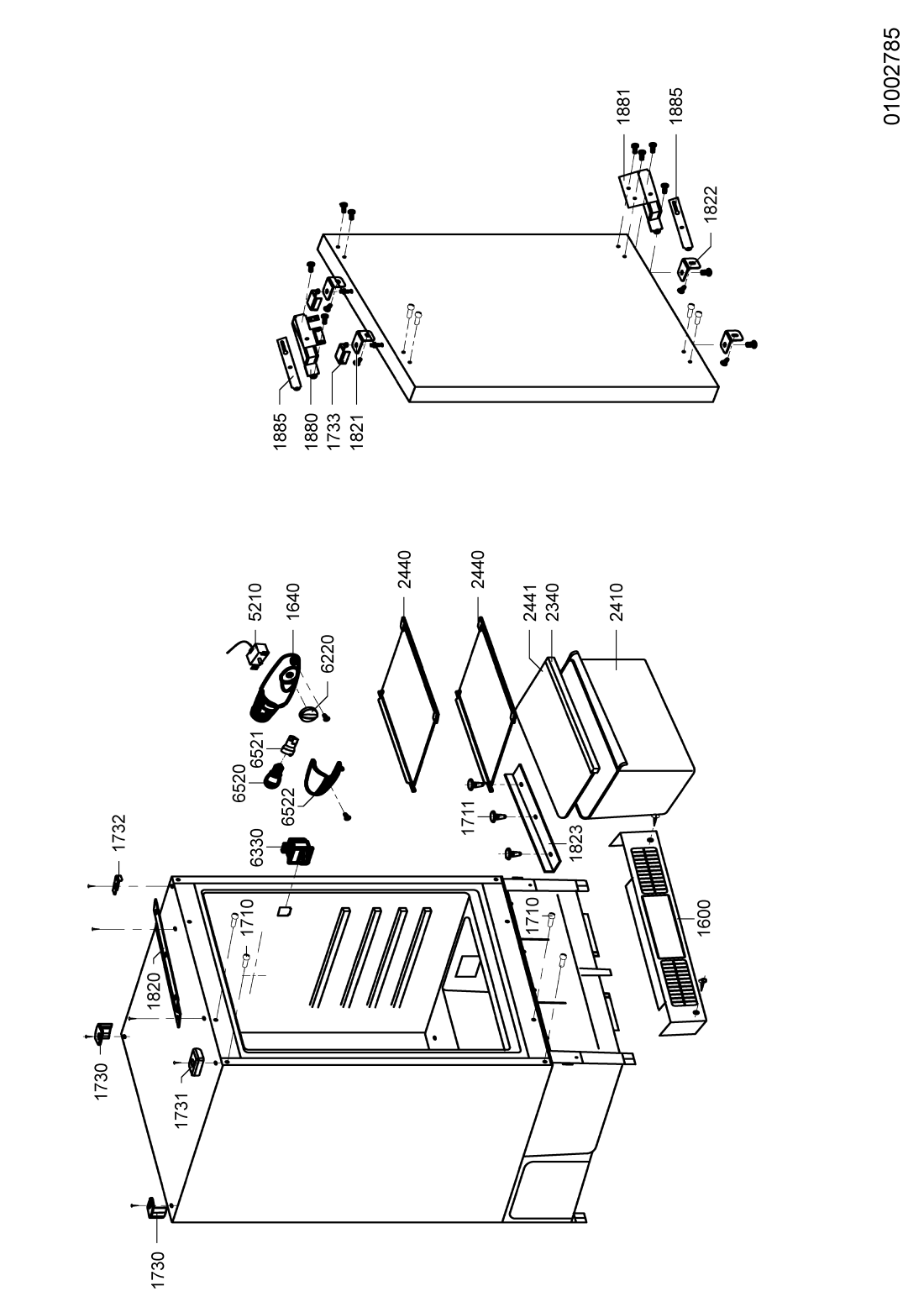

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
1040 WHR00206 |
C00315981
480131100806 |
Door | Na dotaz | Zadat poptávku | |
1520 WHR00206 |
C00319829
480131100807 |
Flap Door dairy | Na dotaz | Zadat poptávku | |
1521 WHR00206 |
C00323085
480131100808 |
Door dairy | Na dotaz | Zadat poptávku | |
1522 WHR00206 |
C00319831
480131100809 |
Support Door dairy | Na dotaz | Zadat poptávku | |
1530 WHR00206 |
C00323086
480131100811 |
Bottle shelf | Na dotaz | Zadat poptávku | |
1531 WHR00206 |
C00323087
480131100812 |
Separator Bottle shelf | Na dotaz | Zadat poptávku | |
1560 WHR00206 |
C00323088
480131100813 |
Egg rack | Na dotaz | Zadat poptávku | |
1561 WHR00206 |
C00323089
480131100814 |
Police sklopná/poloviční | 342 Kč
€ 13.50 |
||
1600 WHR00206 |
C00323090
480131100815 |
Cover front lower | Na dotaz | Zadat poptávku | |
1610 WHR00206 |
C00319835
480131100816 |
Cover rear lower | Na dotaz | Zadat poptávku | |
1640 WHR00206 |
C00315989
480131100817 |
Cover Thermostat | Na dotaz | Zadat poptávku | |
1710 WHR00206 |
C00323091
480131100818 |
Cover | Na dotaz | Zadat poptávku | |
1711 WHR00206 |
C00314489
480131100819 |
Cover | Na dotaz | Zadat poptávku | |
1730 WHR00206 |
C00323092
480131100821 |
Corner piece rear | Na dotaz | Zadat poptávku | |
1731 WHR00206 |
C00323093
480131100822 |
Corner piece left | Na dotaz | Zadat poptávku | |
1732 WHR00206 |
C00323094
480131100823 |
Corner piece right | Na dotaz | Zadat poptávku | |
1733 WHR00206 |
C00315723
480131100824 |
Cover Bracket | Na dotaz | Zadat poptávku | |
1740 WHR00206 |
C00323095
480131100825 |
Tube | Na dotaz | Zadat poptávku | |
1741 WHR00206 |
C00323108
480131100856 |
Tube | Na dotaz | Zadat poptávku | |
1820 WHR00206 |
C00323096
480131100826 |
Batten Support | Na dotaz | Zadat poptávku | |
1821 WHR00206 |
C00316003
480131100827 |
Bracket upper | Na dotaz | Zadat poptávku | |
1822 WHR00206 |
C00323097
480131100828 |
Bracket lower | Na dotaz | Zadat poptávku | |
1823 WHR00206 |
C00316007
480131100829 |
Plate protect. | Na dotaz | Zadat poptávku | |
1840 WHR00206 |
C00323098
480131100831 |
Base Compressor | Na dotaz | Zadat poptávku | |
1850 WHR00206 |
C00316021
480131100832 |
Foot | Na dotaz | Zadat poptávku | |
1880 WHR00206 |
C00311757
482000001357 |
Hinge upper | Na dotaz | Zadat poptávku | |
1880 WHR00206 |
C00316027
480131100833 |
Hinge top | Na dotaz | Zadat poptávku | |
1881 WHR00206 |
C00311791
482000001358 |
Hinge lower | Na dotaz | Zadat poptávku | |
1881 WHR00206 |
C00316029
480131100834 |
závěs | 877 Kč
€ 34.60 |
||
1885 WHR00206 |
C00323099
480131100835 |
Holder Hinge | Na dotaz | Zadat poptávku | |
1910 WHR00206 |
C00319949
480131100836 |
Magnetic seal | Na dotaz | Zadat poptávku | |
2340 WHR00206 |
C00323100
480131100837 |
Trim | Na dotaz | Zadat poptávku | |
2410 WHR00206 |
C00316050
480131100838 |
Crisper | Na dotaz | Zadat poptávku | |
2440 WHR00206 |
C00313357
480131100839 |
Shelf | Na dotaz | Zadat poptávku | |
2441 WHR00206 |
C00323101
480131100841 |
Cover Crisper | Na dotaz | Zadat poptávku | |
4020 WHR00206 |
C00314382
480131100842 |
Compressor | Na dotaz | Zadat poptávku | |
4400 WHR00206 |
C00316043
480131100843 |
Fan wheel | Na dotaz | Zadat poptávku | |
4401 WHR00206 |
C00319977
480131100844 |
Ring Fan wheel | Na dotaz | Zadat poptávku | |
4410 WHR00206 |
C00316627
480131100845 |
Motor fan | Na dotaz | Zadat poptávku | |
5210 WHR00206 |
C00311747
480131100846 |
Thermostat | Na dotaz | Zadat poptávku | |
5620 WHR00206 |
C00323102
480131100847 |
Housing,fuse | Na dotaz | Zadat poptávku | |
5621 WHR00206 |
C00323103
480131100848 |
cover Housing,fuse | Na dotaz | Zadat poptávku | |
6220 WHR00206 |
C00323104
480131100849 |
Knob | Na dotaz | Zadat poptávku | |
6330 WHR00206 |
C00323105
480131100851 |
Switch door | Na dotaz | Zadat poptávku | |
6520 WHR00206 |
C00314396
480131100852 |
Lampe E14/25x17 | Na dotaz | Zadat poptávku | |
6521 WHR00206 |
C00315459
480131100853 |
lampholder | Na dotaz | Zadat poptávku | |
6522 WHR00206 |
C00323106
480131100854 |
Cover Lamp | Na dotaz | Zadat poptávku | |
7400 WHR00206 |
C00323107
480131100855 |
Condenser | Na dotaz | Zadat poptávku | |
7410 WHR00206 |
C00323109
480131100857 |
Cover Motor | Na dotaz | Zadat poptávku | |
7630 WHR00206 |
C00313426
481248028088 |
Filtr - patronka | 211 Kč
€ 8.30 |
||
7850 WHR00206 |
C00323110
480131100858 |
Tray Compressor | Na dotaz | Zadat poptávku | |
9930 WHR00206 |
C00319306
484000000360 |
Accessories door screws | Na dotaz | Zadat poptávku | |
999 WHR00206 |
C00346643 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku | |
999 WHR00206 |
C00346644 | SERVICE MANUAL WHP | Na dotaz | Zadat poptávku |
