| Komerční kód: | AFE 275-K FREEZING INTEGRATABLE IG |
| Kód 12NC: | 850727515340 |
| Značka: | IGNIS |
| Typ produktu: | Vestavné mrazáky |
Potřebujete servis? Jsme tady pro Vás

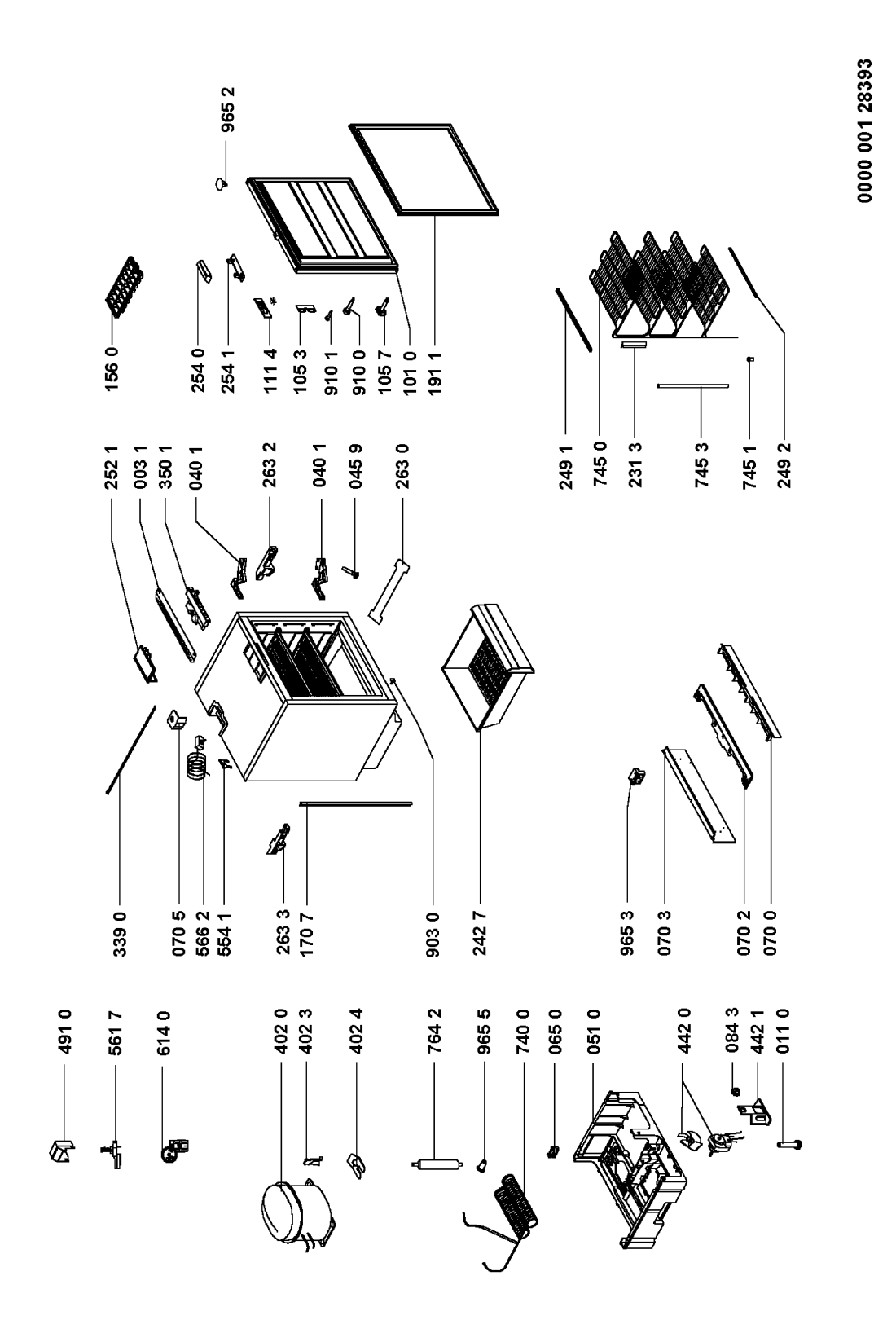

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 003 1 WHR77730 |
C00328282
481244069218 |
lista | Na dotaz | Zadat poptávku | |
| 011 0 WHR77730 |
C00311579
481950018141 |
Noha vestavné chladničky Whirlpool AFB 821/1, AFB 8281, ARG 913/A+, ARG 913 1, ARZ 005/A+ | 85 Kč
€ 3.40 |
||
| 040 1 WHR77730 |
C00310966
481231018672 |
Závěs dveří - sada 481231018672 | Na dotaz | Zadat poptávku | |
| 045 9 WHR77730 |
C00315522
481241778065 |
Čep | Na dotaz | Zadat poptávku | |
| 051 0 WHR77730 |
C00333116
481946418163 |
Base | Na dotaz | Zadat poptávku | |
| 065 0 WHR77730 |
C00333279
481952918041 |
Buffer piece | Na dotaz | Zadat poptávku | |
| 070 0 WHR77730 |
C00319326
481244269321 |
sokl | 1 549 Kč
€ 61.20 |
||
| 070 2 WHR77730 |
C00317269
481244229215 |
kryt | Na dotaz | Zadat poptávku | |
| 070 3 WHR77730 |
C00333019
481944229927 |
Kryt | Na dotaz | Zadat poptávku | |
| 070 5 WHR77730 |
C00328320
481244079088 |
Separator | Na dotaz | Zadat poptávku | |
| 084 3 WHR77730 |
C00333073
481946248211 |
gufero | 121 Kč
€ 4.80 |
||
| 101 0 WHR77730 |
C00333020
481944229989 |
Door freezer | Na dotaz | Zadat poptávku | |
| 105 3 WHR77730 |
C00333128
481946689044 |
Fastener | Na dotaz | Zadat poptávku | |
| 105 7 WHR77730 |
C00333274
481952838286 |
kolik s excentrem | 40 Kč
€ 1.60 |
||
| 111 4 WHR77730 |
C00333061
481946049859 |
Nameplate | Na dotaz | Zadat poptávku | |
| 156 0 WHR77730 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
| 170 7 WHR77730 |
C00330264
481246049368 |
Trim | Na dotaz | Zadat poptávku | |
| 191 1 WHR77730 |
C00312856
481946818162 |
Těsnění magnetické | 2 394 Kč
€ 94.50 |
||
| 231 3 WHR77730 |
C00333124
481946688704 |
Clamp sensor thermostat | Na dotaz | Zadat poptávku | |
| 242 7 WHR77730 |
C00311662
481241848595 |
Šuplík Mrazáku | 2 824 Kč
€ 111.50 |
||
| 249 1 WHR77730 |
C00498305
481245948134 |
Profile | Na dotaz | Zadat poptávku | |
| 249 2 WHR77730 |
C00320056
481946088126 |
Trim short | Na dotaz | Zadat poptávku | |
| 252 1 WHR77730 |
C00333095
481946279338 |
kryt | 121 Kč
€ 4.80 |
||
| 254 0 WHR77730 |
C00327270
481227328221 |
LIGHT LEVEL | Na dotaz | Zadat poptávku | |
| 254 1 WHR77730 |
C00329049
481240448878 |
drzak | 617 Kč
€ 24.40 |
||
| 263 0 WHR77730 |
C00328424
481244098165 |
Guide | Na dotaz | Zadat poptávku | |
| 263 2 WHR77730 |
C00328425
481244098166 |
drzak kose a vyparn | 117 Kč
€ 4.60 |
||
| 263 3 WHR77730 |
C00331010
481244098167 |
Support | Na dotaz | Zadat poptávku | |
| 339 0 WHR77730 |
C00333349
481953598346 |
Rod | Na dotaz | Zadat poptávku | |
| 350 1 WHR77730 |
C00312136
481228018015 |
jednotka signalek | 4 073 Kč
€ 160.80 |
||
| 402 0 WHR77730 |
C00497500
481236038584 |
KOMPRESOR EMT40CLP N | Na dotaz | Zadat poptávku | |
| 402 3 WHR77730 |
C00333348
481953598345 |
Fastener | Na dotaz | Zadat poptávku | |
| 402 4 WHR77730 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 442 0 WHR77730 |
C00314229
481936178144 |
motorek ventilatoru | 2 193 Kč
€ 86.60 |
||
| 442 1 WHR77730 |
C00332945
481940478859 |
drzak | 169 Kč
€ 6.70 |
||
| 491 0 WHR77730 |
C00327312
481229088075 |
Cover connection block | Na dotaz | Zadat poptávku | |
| 554 1 WHR77730 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
| 561 7 WHR77730 |
C00480850
481929068431 |
KRABICKA SVORKOVNICE AFG527 N | Na dotaz | Zadat poptávku | |
| 566 2 WHR77730 |
C00311565
481927129106 |
Thermostat A04-391 | Na dotaz | Zadat poptávku | |
| 614 0 WHR77730 |
C00333354
481969028196 |
Monoblock | Na dotaz | Zadat poptávku | |
| 740 0 WHR77730 |
C00332232
481251148279 |
Condenser | Na dotaz | Zadat poptávku | |
| 745 0 WHR77730 |
C00576526
481951138713 |
VÝPARNÍK | 4 375 Kč
€ 172.70 |
||
| 745 1 WHR77730 |
C00333321
481953268708 |
Bushing | Na dotaz | Zadat poptávku | |
| 745 3 WHR77730 |
C00332389
481252928038 |
Hose | Na dotaz | Zadat poptávku | |
| 764 2 WHR77730 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 903 0 WHR77730 |
C00319367
481246228507 |
Záslepka | 302 Kč
€ 11.90 |
||
| 910 0 WHR77730 |
C00332310
481252388004 |
Screw M5X18,5M5X18,5 | Na dotaz | Zadat poptávku | |
| 910 1 WHR77730 |
C00333205
481950218306 |
sroubek | 40 Kč
€ 1.60 |
||
| 965 2 WHR77730 |
C00330487
481246228383 |
STOPPER | Na dotaz | Zadat poptávku | |
| 965 3 WHR77730 |
C00315434
481246279858 |
Insert | Na dotaz | Zadat poptávku | |
| 965 5 WHR77730 |
C00333278
481952918039 |
Spacer | Na dotaz | Zadat poptávku | |
| 999 WHR77730 |
C00705271 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
