IGNIS AFE 513/G
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AFE 513/G |
| Kód 12NC: | 850751301000 |
| Značka: | IGNIS |
| Typ produktu: | Volně stojící mrazáky |
| Další podobné modely: | 850751310010, 850751310000, 850751301010 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

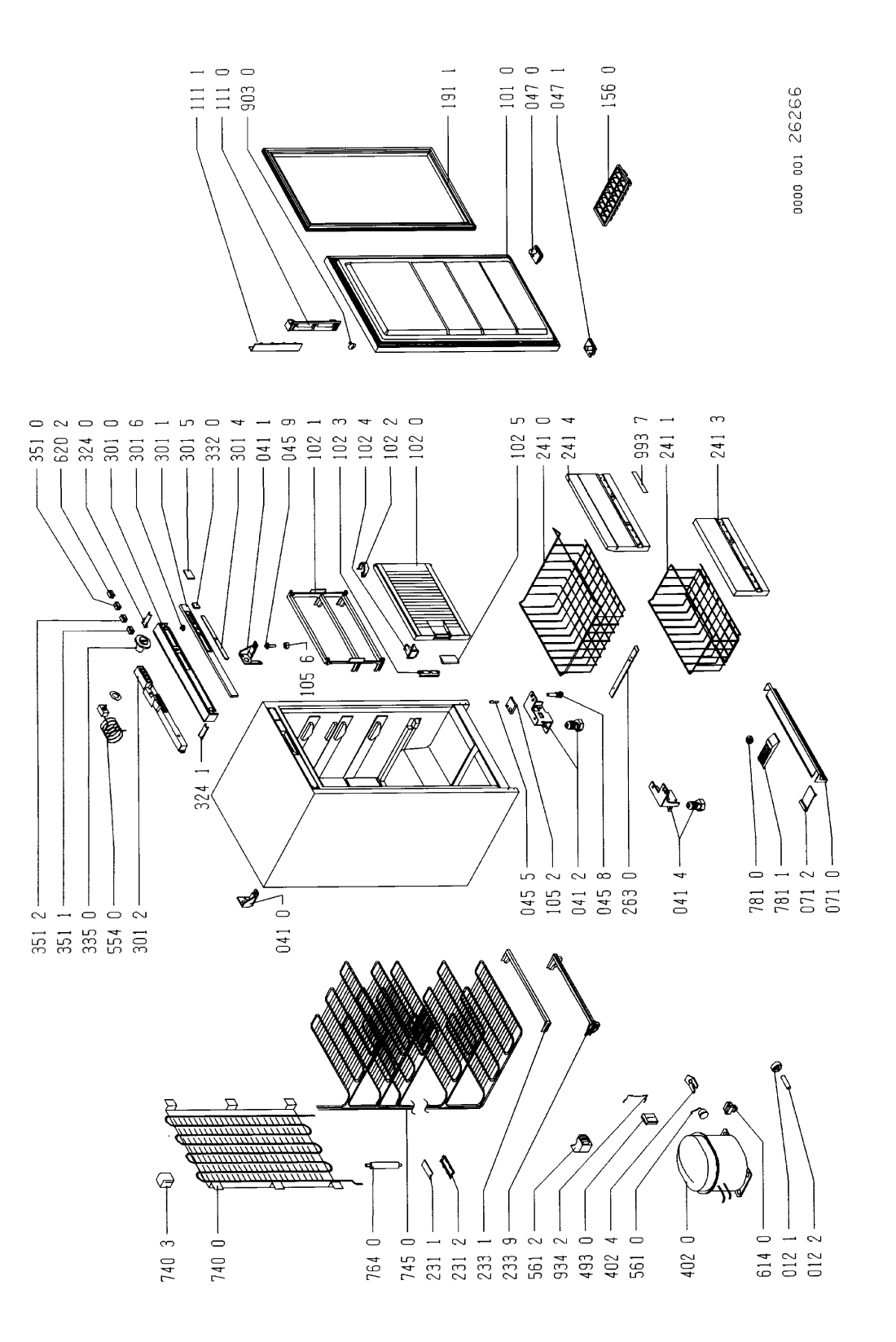

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 012 1 WHR105153 |
C00333276
481952878028 |
kolecko lednice | Na dotaz | Zadat poptávku | |
| 012 2 WHR105153 |
C00333340
481953538013 |
osa kolecka lednice | 47 Kč
€ 1.90 |
||
| 041 0 WHR105153 |
C00339812
481941719122 |
HINGE LEFT | Na dotaz | Zadat poptávku | |
| 041 1 WHR105153 |
C00339775
481941719121 |
Hinge right | Na dotaz | Zadat poptávku | |
| 041 2 WHR105153 |
C00339829
481941719358 |
Hinge bottom right | Na dotaz | Zadat poptávku | |
| 041 4 WHR105153 |
C00339830
481941719359 |
HINGE BOTTOM LEFT | Na dotaz | Zadat poptávku | |
| 045 5 WHR105153 |
C00333341
481953538056 |
Shaft | Na dotaz | Zadat poptávku | |
| 045 8 WHR105153 |
C00499619
481953538061 |
CAP ZAVESU N | Na dotaz | Zadat poptávku | |
| 045 9 WHR105153 |
C00315304
481953538093 |
Extension piece f.hing f.hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR105153 |
C00344078
481953268438 |
BUSHING | Na dotaz | Zadat poptávku | |
| 047 1 WHR105153 |
C00344077
481953268437 |
Bushing | Na dotaz | Zadat poptávku | |
| 071 0 WHR105153 |
C00556042
481944268036 |
NAHRADENE 481944268967 N | Na dotaz | Zadat poptávku | |
| 071 2 WHR105153 |
C00590849
481946078021 |
Small plate plinth. | Na dotaz | Zadat poptávku | |
| 101 0 WHR105153 |
C00740254
481944229983 |
Door freezer | Na dotaz | Zadat poptávku | |
| 102 0 WHR105153 |
C00741252
481944278185 |
Door flap | Na dotaz | Zadat poptávku | |
| 102 1 WHR105153 |
C00740194
481945948758 |
Frame | Na dotaz | Zadat poptávku | |
| 102 2 WHR105153 |
C00492281
481940118289 |
SPONA N | Na dotaz | Zadat poptávku | |
| 102 3 WHR105153 |
C00741253
481949268752 |
Spring. flap | Na dotaz | Zadat poptávku | |
| 102 4 WHR105153 |
C00741254
481946279889 |
Plug | Na dotaz | Zadat poptávku | |
| 102 5 WHR105153 |
C00741255
481949878124 |
Handle | Na dotaz | Zadat poptávku | |
| 105 2 WHR105153 |
C00336200
481946698465 |
Spacer | Na dotaz | Zadat poptávku | |
| 105 6 WHR105153 |
C00344071
481953268476 |
Bushing hinge | Na dotaz | Zadat poptávku | |
| 111 0 WHR105153 |
C00576520
481949878132 |
NAHRADENE 481246268886 | Na dotaz | Zadat poptávku | |
| 111 1 WHR105153 |
C00336007
481946279466 |
Stopper | Na dotaz | Zadat poptávku | |
| 156 0 WHR105153 |
C00636179
481941878026 |
NADOBKA NA LAD AFG311 N | Na dotaz | Zadat poptávku | |
| 191 1 WHR105153 |
C00338295
481946818141 |
Magnetic seal | Na dotaz | Zadat poptávku | |
| 231 1 WHR105153 |
C00333126
481946688956 |
PLATE THERMOSTAT SENSOR | Na dotaz | Zadat poptávku | |
| 231 2 WHR105153 |
C00343341
481946689101 |
Clamp sensor | Na dotaz | Zadat poptávku | |
| 233 1 WHR105153 |
C00335835
481940478693 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 233 9 WHR105153 |
C00555916
481940478694 |
NAHRADENE 481940479385 N | Na dotaz | Zadat poptávku | |
| 241 0 WHR105153 |
C00576499
481945819148 |
Basket.. | Na dotaz | Zadat poptávku | |
| 241 1 WHR105153 |
C00576501
481945819571 |
Basket.. | Na dotaz | Zadat poptávku | |
| 241 3 WHR105153 |
C00576532
481955021740 |
Cover,basket | Na dotaz | Zadat poptávku | |
| 241 4 WHR105153 |
C00576488
481944278195 |
kryt kose | 737 Kč
€ 29.10 |
||
| 263 0 WHR105153 |
C00336943
481946238683 |
Rail | Na dotaz | Zadat poptávku | |
| 301 0 WHR105153 |
C00740086
481946279233 |
panel predni | 192 Kč
€ 7.60 |
||
| 301 1 WHR105153 |
C00740367
481944089228 |
kryt predniho panelu | 167 Kč
€ 6.60 |
||
| 301 2 WHR105153 |
C00740085
481940478623 |
Control panel | Na dotaz | Zadat poptávku | |
| 301 4 WHR105153 |
C00741257
481945299582 |
Insert | Na dotaz | Zadat poptávku | |
| 301 5 WHR105153 |
C00490740
481945298927 |
INSERT | Na dotaz | Zadat poptávku | |
| 301 6 WHR105153 |
C00336003
481946279189 |
STOPPER | Na dotaz | Zadat poptávku | |
| 324 0 WHR105153 |
C00336241
481946049681 |
Small plate | Na dotaz | Zadat poptávku | |
| 324 1 WHR105153 |
C00740089
481946049682 |
Small plate | Na dotaz | Zadat poptávku | |
| 332 0 WHR105153 |
C00740285
481941028583 |
Button | Na dotaz | Zadat poptávku | |
| 335 0 WHR105153 |
C00740264
481941128689 |
Knob thermostat | Na dotaz | Zadat poptávku | |
| 351 0 WHR105153 |
C00315545
481913448298 |
signalka zelena | 710 Kč
€ 28.00 |
||
| 351 1 WHR105153 |
C00332810
481913448297 |
signalka zluta | 116 Kč
€ 4.60 |
||
| 351 2 WHR105153 |
C00332809
481913448296 |
signalka cervena | 159 Kč
€ 6.30 |
||
| 402 0 WHR105153 |
C00343585
481936038618 |
Compressor B 1116 Z | Na dotaz | Zadat poptávku | |
| 402 4 WHR105153 |
C00343301
481940448991 |
CLIP | Na dotaz | Zadat poptávku | |
| 493 0 WHR105153 |
C00499385
481946279046 |
KRYT SVORKOVNICE MR.BOXU N | Na dotaz | Zadat poptávku | |
| 554 0 WHR105153 |
C00740091
481927128809 |
TERMOSTAT AFE513 | 1 089 Kč
€ 43.00 |
||
| 561 0 WHR105153 |
C00555809
481928228606 |
NAHRADENE 481928228631 | Na dotaz | Zadat poptávku | |
| 561 2 WHR105153 |
C00498894
481929068198 |
svorkovnice | 267 Kč
€ 10.50 |
||
| 614 0 WHR105153 |
C00336886
481928068313 |
Relay | Na dotaz | Zadat poptávku | |
| 620 2 WHR105153 |
C00319478
481927618256 |
spinac rychlorozmraz | 204 Kč
€ 8.10 |
||
| 740 0 WHR105153 |
C00740107
481951148527 |
Condenser | Na dotaz | Zadat poptávku | |
| 740 3 WHR105153 |
C00333137
481946698259 |
Spacer | Na dotaz | Zadat poptávku | |
| 745 0 WHR105153 |
C00740110
481951138575 |
Evaporator | Na dotaz | Zadat poptávku | |
| 764 0 WHR105153 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR105153 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR105153 |
C00499108
481941849577 |
ODTOKOVY ZLIABOK N | Na dotaz | Zadat poptávku | |
| 903 0 WHR105153 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 934 2 WHR105153 |
C00336101
481949268431 |
pruzina | 106 Kč
€ 4.20 |
||
| 993 7 WHR105153 |
C00576506
481946078365 |
krytka | 156 Kč
€ 6.20 |
||
| 993 9 WHR105153 |
C00741258
481931039267 |
Door revers.Kit (not shown) | Na dotaz | Zadat poptávku | |
