| Komerční kód: | AFG 371/H UPRIGHT FREEZERS SUP. WP |
| Kód 12NC: | 854937116000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící mrazáky |
| Další podobné modely: | 854937101011, 854937101012, 854937101022, 854937101023, 854937101024, 854937115001, 854937115002, 854937116001, 854937116002, 854937101010, 854937101020, 854937115000 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

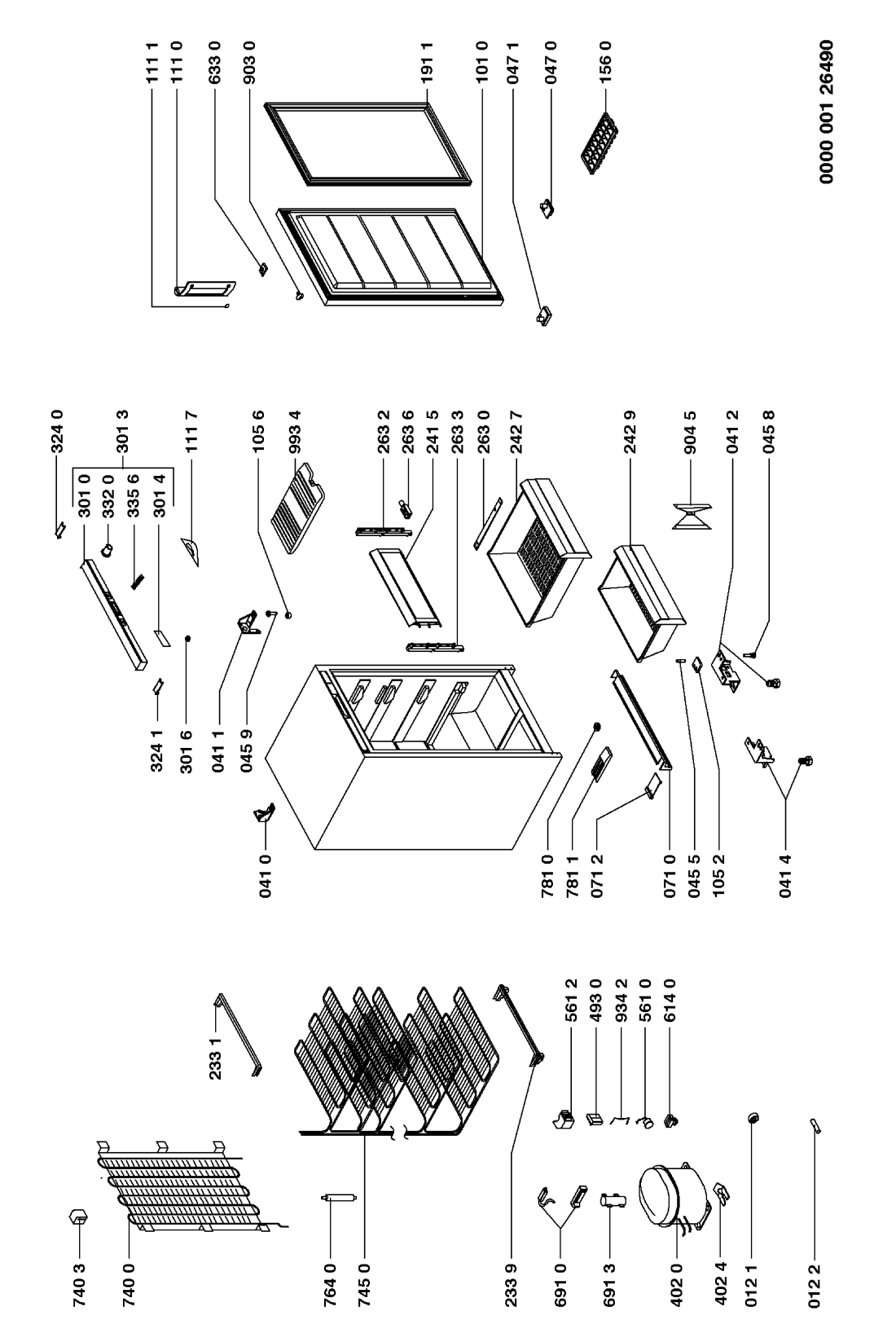

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 012 1 WHR90710 |
C00333276
481952878028 |
kolecko lednice | Na dotaz | Zadat poptávku | |
| 012 2 WHR90710 |
C00333340
481953538013 |
osa kolecka lednice | 47 Kč
€ 1.90 |
||
| 041 0 WHR90710 |
C00557434
481941719536 |
HINGE.. | Na dotaz | Zadat poptávku | |
| 041 1 WHR90710 |
C00555970
481941719535 |
HINGE.. | Na dotaz | Zadat poptávku | |
| 041 2 WHR90710 |
C00339829
481941719358 |
Hinge bottom right | Na dotaz | Zadat poptávku | |
| 041 4 WHR90710 |
C00339830
481941719359 |
HINGE BOTTOM LEFT | Na dotaz | Zadat poptávku | |
| 045 5 WHR90710 |
C00333341
481953538056 |
Shaft | Na dotaz | Zadat poptávku | |
| 045 8 WHR90710 |
C00499619
481953538061 |
CAP ZAVESU N | Na dotaz | Zadat poptávku | |
| 045 9 WHR90710 |
C00315304
481953538093 |
Extension piece f.hing f.hinge | Na dotaz | Zadat poptávku | |
| 047 0 WHR90710 |
C00556338
481953268842 |
NAHRADENE 481953268873 N | Na dotaz | Zadat poptávku | |
| 047 1 WHR90710 |
C00556339
481953268843 |
drzak dveri pravy | 111 Kč
€ 4.40 |
||
| 071 0 WHR90710 |
C00490724
481944268965 |
PLINTH | Na dotaz | Zadat poptávku | |
| 071 2 WHR90710 |
C00590147
481946078538 |
KRYTKA N | Na dotaz | Zadat poptávku | |
| 101 0 WHR90710 |
C00556055
481944268795 |
DOOR,FREEZER.. | Na dotaz | Zadat poptávku | |
| 105 2 WHR90710 |
C00320126
481946699106 |
distancni podlozka | 144 Kč
€ 5.70 |
||
| 105 6 WHR90710 |
C00344071
481953268476 |
Bushing hinge | Na dotaz | Zadat poptávku | |
| 111 0 WHR90710 |
C00590174
481949878294 |
NAHRADENE 481246268881 | Na dotaz | Zadat poptávku | |
| 111 1 WHR90710 |
C00336007
481946279466 |
Stopper | Na dotaz | Zadat poptávku | |
| 111 7 WHR90710 |
C00341607
481945919372 |
logo Whirlpool | 167 Kč
€ 6.60 |
||
| 156 0 WHR90710 |
C00287849
481941878977 |
miska na led | 300 Kč
€ 11.80 |
||
| 191 1 WHR90710 |
C00590172
481946818168 |
MAGNETIC SEAL. | Na dotaz | Zadat poptávku | |
| 233 1 WHR90710 |
C00335835
481940478693 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 233 9 WHR90710 |
C00335836
481940479385 |
Support evaporator | Na dotaz | Zadat poptávku | |
| 241 5 WHR90710 |
C00316416
481944229757 |
DOOR,FLAP | Na dotaz | Zadat poptávku | |
| 242 7 WHR90710 |
C00341254
481945868117 |
DRAWER | Na dotaz | Zadat poptávku | |
| 242 9 WHR90710 |
C00341255
481945868116 |
kos mraznicky | 1 896 Kč
€ 74.90 |
||
| 263 0 WHR90710 |
C00340172
481946238886 |
kolejnice kose | Na dotaz | Zadat poptávku | |
| 263 2 WHR90710 |
C00319894
481940479392 |
drzak dveri vyparnik | 268 Kč
€ 10.60 |
||
| 263 3 WHR90710 |
C00318033
481940479393 |
drzak dveri vyparnik | 268 Kč
€ 10.60 |
||
| 263 6 WHR90710 |
C00336461
481953598485 |
SHAFT | Na dotaz | Zadat poptávku | |
| 301 0 WHR90710 |
C00590148
481946078565 |
CONTROL PANEL. | Na dotaz | Zadat poptávku | |
| 301 3 WHR90710 |
C00556091
481945299736 |
CONTROL PANEL.. | Na dotaz | Zadat poptávku | |
| 301 4 WHR90710 |
C00499336
481946078566 |
Insert | Na dotaz | Zadat poptávku | |
| 301 6 WHR90710 |
C00336015
481946279258 |
Stopper | Na dotaz | Zadat poptávku | |
| 324 0 WHR90710 |
C00590159
481946258314 |
COVER,HINGE. | Na dotaz | Zadat poptávku | |
| 324 1 WHR90710 |
C00590160
481946258315 |
Cover hinge. | Na dotaz | Zadat poptávku | |
| 332 0 WHR90710 |
C00590121
481941028974 |
BUTTON. | Na dotaz | Zadat poptávku | |
| 335 6 WHR90710 |
C00590173
481949268794 |
Spring. | Na dotaz | Zadat poptávku | |
| 402 0 WHR90710 |
C00555860
481936038675 |
NAHRADENE 481236038651 N | Na dotaz | Zadat poptávku | |
| 402 4 WHR90710 |
C00333135
481946689405 |
PRICHYTKA | 120 Kč
€ 4.70 |
||
| 493 0 WHR90710 |
C00499385
481946279046 |
KRYT SVORKOVNICE MR.BOXU N | Na dotaz | Zadat poptávku | |
| 561 0 WHR90710 |
C00486455
481928228634 |
Protect motor AC19BU4 | Na dotaz | Zadat poptávku | |
| 561 2 WHR90710 |
C00498894
481929068198 |
svorkovnice | 267 Kč
€ 10.50 |
||
| 614 0 WHR90710 |
C00336871
481928068359 |
Relé rozběhové | Na dotaz | Zadat poptávku | |
| 633 0 WHR90710 |
C00332844
481927618355 |
magnet | 402 Kč
€ 15.90 |
||
| 691 0 WHR90710 |
C00555701
481921078089 |
PROBE.. | Na dotaz | Zadat poptávku | |
| 691 3 WHR90710 |
C00555924
481940478958 |
Support.. | Na dotaz | Zadat poptávku | |
| 740 0 WHR90710 |
C00590177
481951148508 |
Condenser. | Na dotaz | Zadat poptávku | |
| 740 3 WHR90710 |
C00333137
481946698259 |
Spacer | Na dotaz | Zadat poptávku | |
| 745 0 WHR90710 |
C00590176
481951138679 |
VÝPARNÍK | 5 441 Kč
€ 214.80 |
||
| 764 0 WHR90710 |
C00311590
481952648527 |
Dryer DRS15 With 3 ways valve | Na dotaz | Zadat poptávku | |
| 781 0 WHR90710 |
C00342193
481953228145 |
Defroster plug | Na dotaz | Zadat poptávku | |
| 781 1 WHR90710 |
C00342192
481941878208 |
kanal odtokovy | 189 Kč
€ 7.50 |
||
| 903 0 WHR90710 |
C00333338
481953518117 |
krytka | 20 Kč
€ 0.80 |
||
| 904 5 WHR90710 |
C00336190
481946698669 |
SPACER | Na dotaz | Zadat poptávku | |
| 934 2 WHR90710 |
C00336101
481949268431 |
pruzina | 106 Kč
€ 4.20 |
||
| 993 4 WHR90710 |
C00339164
481944278178 |
ICE PACK | Na dotaz | Zadat poptávku | |
| 993 9 WHR90710 |
C00576461
481931039465 |
balicek montazni | 258 Kč
€ 10.20 |
||
| 999 WHR90710 |
C00733686 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
