| Komerční kód: | AFG 528/H CHEST FREEZERS WP |
| Kód 12NC: | 854952815000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Volně stojící mrazáky |
| Další podobné modely: | 854952815001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

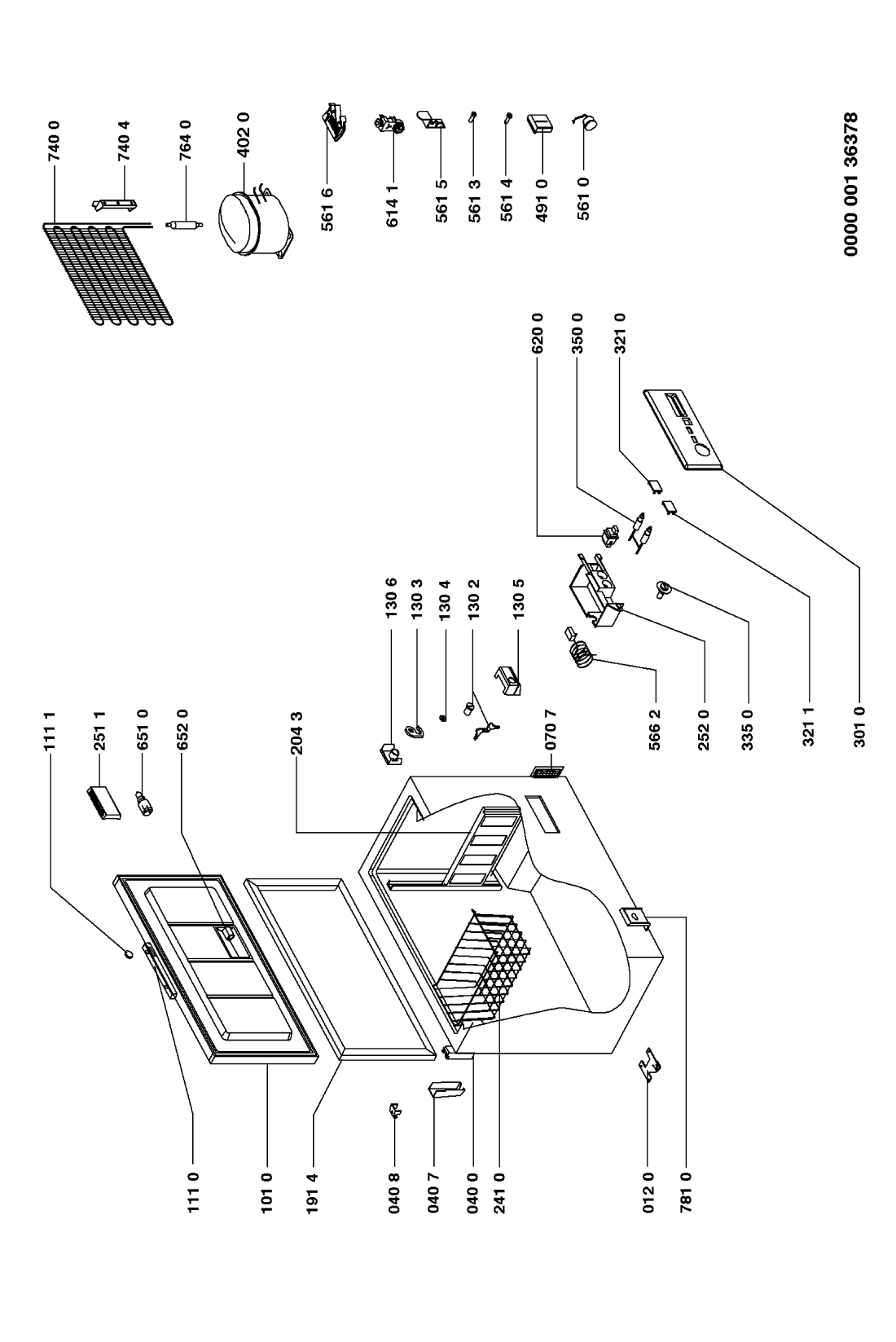

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 012 0 WHR90845 |
C00333074
481946248259 |
Foot | Na dotaz | Zadat poptávku | |
| 040 0 WHR90845 |
C00332996
481941719607 |
Hinge | Na dotaz | Zadat poptávku | |
| 040 7 WHR90845 |
C00266543
481946258187 |
Kryt závěsu | 792 Kč
€ 31.30 |
||
| 040 8 WHR90845 |
C00313549
481946258354 |
Kryt závěsu | 673 Kč
€ 26.60 |
||
| 070 7 WHR90845 |
C00340238
481945858384 |
Grid,air | Na dotaz | Zadat poptávku | |
| 101 0 WHR90845 |
C00374303
481944269255 |
Door freezer | Na dotaz | Zadat poptávku | |
| 111 0 WHR90845 |
C00339031
481949878464 |
rukojet dveri | 1 525 Kč
€ 60.20 |
||
| 111 1 WHR90845 |
C00333112
481946288135 |
krytka rukojete | 192 Kč
€ 7.60 |
||
| 130 2 WHR90845 |
C00319940
481941738118 |
Plunger + key | Na dotaz | Zadat poptávku | |
| 130 3 WHR90845 |
C00317298
481940118332 |
hak uzamykaci | 445 Kč
€ 17.60 |
||
| 130 4 WHR90845 |
C00317414
481953258291 |
podlozka | 189 Kč
€ 7.50 |
||
| 130 5 WHR90845 |
C00557554
481946258402 |
KRYTKA ART N | Na dotaz | Zadat poptávku | |
| 130 6 WHR90845 |
C00335910
481940479522 |
drzak | 111 Kč
€ 4.40 |
||
| 191 4 WHR90845 |
C00314867
481946818201 |
tesneni magneticke | 1 813 Kč
€ 71.60 |
||
| 204 3 WHR90845 |
C00336513
481944278229 |
pricka rozdelovaci | 320 Kč
€ 12.60 |
||
| 241 0 WHR90845 |
C00333054
481945868203 |
kos mrazaku | 667 Kč
€ 26.30 |
||
| 251 1 WHR90845 |
C00374322
481938118262 |
Cover lamp | Na dotaz | Zadat poptávku | |
| 252 0 WHR90845 |
C00333115
481946418155 |
Casing | Na dotaz | Zadat poptávku | |
| 301 0 WHR90845 |
C00313844
481945948917 |
Control panel | Na dotaz | Zadat poptávku | |
| 321 0 WHR90845 |
C00332900
481938118108 |
stinidlo signalky | 123 Kč
€ 4.90 |
||
| 321 1 WHR90845 |
C00332903
481938118246 |
LENS GREEN | Na dotaz | Zadat poptávku | |
| 335 0 WHR90845 |
C00332970
481941128789 |
knoflik termostatu | 551 Kč
€ 21.80 |
||
| 350 0 WHR90845 |
C00498804
481913448513 |
NAHRADA 481213448371 | Na dotaz | Zadat poptávku | |
| 402 0 WHR90845 |
C00555870
481936038707 |
COMPRESSOR.. | Na dotaz | Zadat poptávku | |
| 491 0 WHR90845 |
C00486743
481946258296 |
VEKO KRABICKY N | Na dotaz | Zadat poptávku | |
| 561 0 WHR90845 |
C00620498
481928228701 |
Protect motor. | Na dotaz | Zadat poptávku | |
| 561 3 WHR90845 |
C00336701
481950218311 |
Screw | Na dotaz | Zadat poptávku | |
| 561 4 WHR90845 |
C00336586
481929068281 |
Screw f. connect.block | Na dotaz | Zadat poptávku | |
| 561 5 WHR90845 |
C00499442
481946688907 |
PRICHYTKA | 78 Kč
€ 3.10 |
||
| 561 6 WHR90845 |
C00337747
481929068279 |
Plate,connector | Na dotaz | Zadat poptávku | |
| 566 2 WHR90845 |
C00313891
481927128766 |
termostat A04 | Na dotaz | Zadat poptávku | |
| 614 1 WHR90845 |
C00621544
481928238031 |
RELE PTC-1260001 | 208 Kč
€ 8.20 |
||
| 620 0 WHR90845 |
C00332843
481927618332 |
Switch | Na dotaz | Zadat poptávku | |
| 651 0 WHR90845 |
C00563962
488000563962 |
Žárovka LED 0,6W E14 | 561 Kč
€ 22.10 |
||
| 652 0 WHR90845 |
C00316355
481925518208 |
Holder,lamp | Na dotaz | Zadat poptávku | |
| 740 0 WHR90845 |
C00556295
481951148648 |
CHLADIC AFE946 N | Na dotaz | Zadat poptávku | |
| 740 4 WHR90845 |
C00499007
481940449922 |
DRZIAK CHLADICA N | Na dotaz | Zadat poptávku | |
| 764 0 WHR90845 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
| 781 0 WHR90845 |
C00333111
481946288134 |
kanalek vytoku | 113 Kč
€ 4.50 |
||
| 999 WHR90845 |
C00733950 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku | |
