Komerční kód: | AFG 7050 UPRIGHT FREEZER WH |
Kód 12NC: | 854970516000 |
I.C. kód: | 854970516002 |
Značka: | WHIRLPOOL |
Typ produktu: | Volně stojící mrazáky |
Další podobné modely: | 854970516000, 854970516001 |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

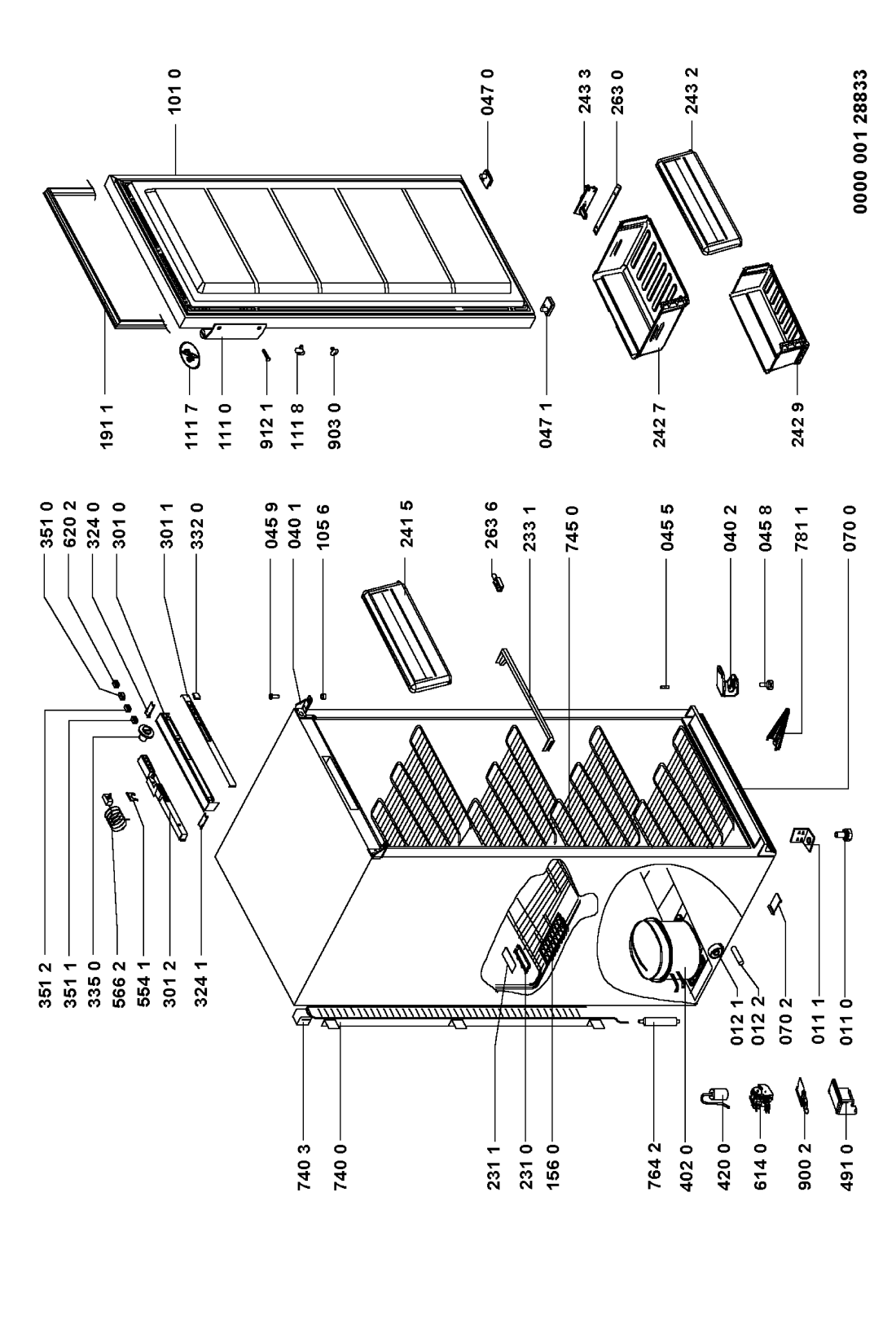

Číslo | Kód | Název | Cena | ||
---|---|---|---|---|---|
011 0 WHR73523 |
C00333198
481950018124 |
noha nastavitelna | 56 Kč
€ 2.20 |
||
011 1 WHR73523 |
C00319501
481246248399 |
Foot support | Na dotaz | Zadat poptávku | |
012 1 WHR73523 |
C00333276
481952878028 |
kolecko lednice | Na dotaz | Zadat poptávku | |
012 2 WHR73523 |
C00333340
481953538013 |
osa kolecka lednice | 47 Kč
€ 1.90 |
||
040 1 WHR73523 |
C00314777
481941719619 |
zaves horni | 949 Kč
€ 37.40 |
||
040 2 WHR73523 |
C00314779
481941719627 |
Závěs spodní | 730 Kč
€ 28.80 |
||
045 5 WHR73523 |
C00333341
481953538056 |
Shaft | Na dotaz | Zadat poptávku | |
045 8 WHR73523 |
C00317178
481253538098 |
kolik | Na dotaz | Zadat poptávku | |
045 9 WHR73523 |
C00315304
481953538093 |
Extension piece f.hing f.hinge | Na dotaz | Zadat poptávku | |
047 0 WHR73523 |
C00317578
481244688142 |
Pouzdro dveří levé | 145 Kč
€ 5.70 |
||
047 1 WHR73523 |
C00333330
481953268862 |
drzak dveri pravy | 661 Kč
€ 26.10 |
||
070 0 WHR73523 |
C00320871
481270448018 |
Plinth | Na dotaz | Zadat poptávku | |
070 2 WHR73523 |
C00330270
481246049421 |
kryt | 730 Kč
€ 28.80 |
||
101 0 WHR73523 |
C00576196
481241619508 |
DVERE CHLADNICKY | Na dotaz | Zadat poptávku | |
105 6 WHR73523 |
C00314341
481244688139 |
Bushing | Na dotaz | Zadat poptávku | |
111 0 WHR73523 |
C00311693
481246268883 |
Rukojeť dveří | 1 147 Kč
€ 45.20 |
||
111 7 WHR73523 |
C00480209
481245918218 |
logo Whirlpool | 429 Kč
€ 16.90 |
||
111 8 WHR73523 |
C00315436
481246279866 |
krytka rukojete | 298 Kč
€ 11.80 |
||
156 0 WHR73523 |
C00333002
481941848116 |
NÁDOBKA NA LED | Na dotaz | Zadat poptávku | |
191 1 WHR73523 |
C00320298
481946818158 |
tesneni magneticke | 2 343 Kč
€ 92.40 |
||
231 0 WHR73523 |
C00333130
481946689227 |
BRACKET THERMOSTAT SENSOR CPL. | Na dotaz | Zadat poptávku | |
231 1 WHR73523 |
C00333126
481946688956 |
PLATE THERMOSTAT SENSOR | Na dotaz | Zadat poptávku | |
233 1 WHR73523 |
C00330403
481246079116 |
Držák výparníku | 270 Kč
€ 10.60 |
||
241 5 WHR73523 |
C00317217
481244069311 |
Flap | Na dotaz | Zadat poptávku | |
242 7 WHR73523 |
C00327830
481241848726 |
Drawer | Na dotaz | Zadat poptávku | |
242 9 WHR73523 |
C00327828
481241848678 |
Drawer | Na dotaz | Zadat poptávku | |
243 2 WHR73523 |
C00328284
481244069288 |
Čelo koše | Na dotaz | Zadat poptávku | |
243 3 WHR73523 |
C00339694
481240448889 |
Holder | Na dotaz | Zadat poptávku | |
263 0 WHR73523 |
C00340172
481946238886 |
kolejnice kose | Na dotaz | Zadat poptávku | |
263 6 WHR73523 |
C00329050
481240448891 |
Pin | Na dotaz | Zadat poptávku | |
301 0 WHR73523 |
C00341510
481245228637 |
Panel,control | Na dotaz | Zadat poptávku | |
301 1 WHR73523 |
C00331298
481245228534 |
VLOZKA | 899 Kč
€ 35.50 |
||
301 2 WHR73523 |
C00331296
481245228441 |
panel | 243 Kč
€ 9.60 |
||
324 0 WHR73523 |
C00330273
481246049425 |
Insert | Na dotaz | Zadat poptávku | |
324 1 WHR73523 |
C00330274
481246049426 |
Insert | Na dotaz | Zadat poptávku | |
332 0 WHR73523 |
C00330275
481246049431 |
Button | Na dotaz | Zadat poptávku | |
335 0 WHR73523 |
C00329409
481241168011 |
Knoflík termostatu | 140 Kč
€ 5.50 |
||
351 0 WHR73523 |
C00315545
481913448298 |
signalka zelena | 710 Kč
€ 28.00 |
||
351 1 WHR73523 |
C00332810
481913448297 |
signalka zluta | 116 Kč
€ 4.60 |
||
351 2 WHR73523 |
C00332809
481913448296 |
signalka cervena | 159 Kč
€ 6.30 |
||
402 0 WHR73523 |
C00313753
481236058114 |
COMPRESSOR | Na dotaz | Zadat poptávku | |
420 0 WHR73523 |
C00326771
481212118201 |
Capacitor 4#F 4#F | Na dotaz | Zadat poptávku | |
491 0 WHR73523 |
C00267000
481229088084 |
KRYT PLAST | Na dotaz | Zadat poptávku | |
554 1 WHR73523 |
C00333185
481949268723 |
pruzina | 472 Kč
€ 18.60 |
||
566 2 WHR73523 |
C00317357
481227128405 |
Thermostat RK56L1907-3 | Na dotaz | Zadat poptávku | |
614 0 WHR73523 |
C00341713
481228038051 |
elektroinstalace MK | Na dotaz | Zadat poptávku | |
620 2 WHR73523 |
C00319478
481927618256 |
spinac rychlorozmraz | 204 Kč
€ 8.00 |
||
740 0 WHR73523 |
C00343543
481251138175 |
CONDENSER | Na dotaz | Zadat poptávku | |
740 3 WHR73523 |
C00333329
481953268859 |
Spacer | Na dotaz | Zadat poptávku | |
745 0 WHR73523 |
C00576432
481251138249 |
Evaporator | Na dotaz | Zadat poptávku | |
764 2 WHR73523 |
C00266743
481948028144 |
Filtr chladničky - patrona | Na dotaz | Zadat poptávku | |
781 1 WHR73523 |
C00329262
481240488069 |
Kanál odtokový | 697 Kč
€ 27.50 |
||
900 2 WHR73523 |
C00330476
481246228261 |
pruchodka | 189 Kč
€ 7.50 |
||
903 0 WHR73523 |
C00319367
481246228507 |
Záslepka | 302 Kč
€ 11.90 |
||
912 1 WHR73523 |
C00317062
481250218425 |
Screw | Na dotaz | Zadat poptávku | |
993 9 WHR73523 |
C00327380
481231028228 |
Accessories not shown | Na dotaz | Zadat poptávku | |
999 WHR73523 |
C00696755 | Circuit/Wiring Diagram WHP | Na dotaz | Zadat poptávku |
