| Komerční kód: | AGB 270/WP DV14MPI - 14KG Tumble dryer |
| Kód 12NC: | 851227001000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální pračky a sušičky |
Potřebujete servis? Jsme tady pro Vás
Nabídka náhradních dílů

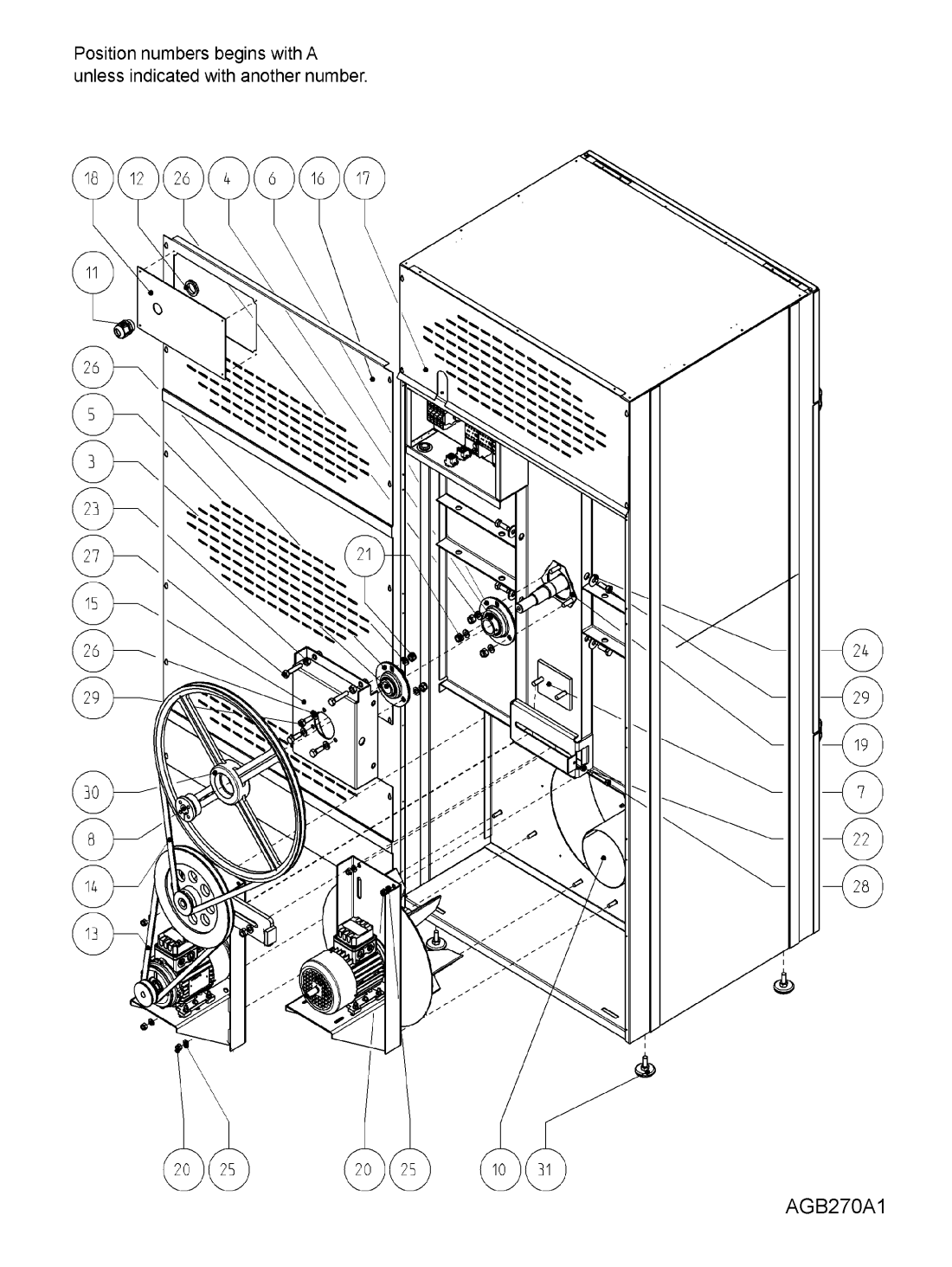

| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A03 WHR43090 |
C00503484
483286009757 |
Bearing SBPF 206 | Na dotaz | Zadat poptávku | |
| A04 WHR43090 |
C00524950
483286009759 |
Bearing SBPF 207 | Na dotaz | Zadat poptávku | |
| A05 WHR43090 |
C00420910
483286002736 |
Bearing flange | Na dotaz | Zadat poptávku | |
| A06 WHR43090 |
C00420911
483286002737 |
Bearing flange | Na dotaz | Zadat poptávku | |
| A07 WHR43090 |
C00420912
483286002738 |
Stay | Na dotaz | Zadat poptávku | |
| A08 WHR43090 |
C00524948
483286009755 |
Bushing conic | Na dotaz | Zadat poptávku | |
| A10 WHR43090 |
C00420913
483286002739 |
Connect.piece | Na dotaz | Zadat poptávku | |
| A11 WHR43090 |
C00524613
483286008311 |
Pressure piece plastic | Na dotaz | Zadat poptávku | |
| A12 WHR43090 |
C00524419
483286001476 |
Nut f. Pressure piece | Na dotaz | Zadat poptávku | |
| A13 WHR43090 |
C00499961
483286009749 |
Belt,driving A48 | Na dotaz | Zadat poptávku | |
| A14 WHR43090 |
C00420891
483286002715 |
Belt,driving A 073 | Na dotaz | Zadat poptávku | |
| A15 WHR43090 |
C00420914
483286002741 |
Cover | Na dotaz | Zadat poptávku | |
| A16 WHR43090 |
C00420915
483286002742 |
Rear panel lower | Na dotaz | Zadat poptávku | |
| A17 WHR43090 |
C00524933
483286009709 |
Panel rear upper | Na dotaz | Zadat poptávku | |
| A18 WHR43090 |
C00420916
483286002743 |
Bonnet | Na dotaz | Zadat poptávku | |
| A19 WHR43090 |
C00420917
483286002744 |
Spacebar | Na dotaz | Zadat poptávku | |
| A20 WHR43090 |
C00524742
483286008564 |
Screw M8 | Na dotaz | Zadat poptávku | |
| A21 WHR43090 |
C00501095
483286008387 |
Counternut M10 | Na dotaz | Zadat poptávku | |
| A22 WHR43090 |
C00524899
483286009523 |
Nut M8 Zn UNI 5588 | Na dotaz | Zadat poptávku | |
| A23 WHR43090 |
C00524650
483286008389 |
Nut M10 | Na dotaz | Zadat poptávku | |
| A24 WHR43090 |
C00420918
483286002745 |
Rosette 10X30 | Na dotaz | Zadat poptávku | |
| A25 WHR43090 |
C00524698
483286008472 |
Rosette 8X16 | Na dotaz | Zadat poptávku | |
| A26 WHR43090 |
C00524654
483286008394 |
Rosette 10x20 | Na dotaz | Zadat poptávku | |
| A27 WHR43090 |
C00524657
483286008397 |
Screw hexa. M10x50 | Na dotaz | Zadat poptávku | |
| A28 WHR43090 |
C00420919
483286002746 |
Screw hexa. M8X50 | Na dotaz | Zadat poptávku | |
| A29 WHR43090 |
C00524658
483286008398 |
Screw hexa. M10x30 | Na dotaz | Zadat poptávku | |
| A30 WHR43090 |
C00524949
483286009756 |
Pulley, drum | Na dotaz | Zadat poptávku | |
| A31 WHR43090 |
C00524954
483286009771 |
Foot Rubber | Na dotaz | Zadat poptávku | |
| A32 WHR43090 |
C00501064
483286000721 |
Sensor temper. | Na dotaz | Zadat poptávku | |
| A33 WHR43090 |
C00581545
483286009739 |
Disc Sensor | Na dotaz | Zadat poptávku | |
| B01 WHR43090 |
C00524908
483286009546 |
Lever 46 mm | Na dotaz | Zadat poptávku | |
| B02 WHR43090 |
C00420925
483286002753 |
Front upper | Na dotaz | Zadat poptávku | |
| B03 WHR43090 |
C00524927
483286009608 |
Rotary locking | Na dotaz | Zadat poptávku | |
| B04 WHR43090 |
C00420920
483286002747 |
Key | Na dotaz | Zadat poptávku | |
| B05 WHR43090 |
C00524934
483286009718 |
Upper, front | Na dotaz | Zadat poptávku | |
| B06 WHR43090 |
C00524900
483286009524 |
Screw cylindric cross M5X8 | Na dotaz | Zadat poptávku | |
| B07 WHR43090 |
C00420921
483286002748 |
Screw 4,8X9,5 | Na dotaz | Zadat poptávku | |
| C01 WHR43090 |
C00524936
483286009723 |
Hinge | Na dotaz | Zadat poptávku | |
| C02 WHR43090 |
C00501090
483286008354 |
Magnet M302 AA | Na dotaz | Zadat poptávku | |
| C03 WHR43090 |
C00524641
483286008369 |
Sensor Magnet | Na dotaz | Zadat poptávku | |
| C04 WHR43090 |
C00420922
483286002749 |
Front | Na dotaz | Zadat poptávku | |
| C05 WHR43090 |
C00420923
483286002751 |
Rail | Na dotaz | Zadat poptávku | |
| C06 WHR43090 |
C00524617
483286008315 |
Counternut self-blocked | Na dotaz | Zadat poptávku | |
| C07 WHR43090 |
C00420924
483286002752 |
Rivet 3,8X10 | Na dotaz | Zadat poptávku | |
| C08 WHR43090 |
C00524602
483286008293 |
Rosette 6x18 | Na dotaz | Zadat poptávku | |
| C09 WHR43090 |
C00524644
483286008376 |
Screw cylind. M4x10 | Na dotaz | Zadat poptávku | |
| C11 WHR43090 |
C00524935
483286009722 |
Door lock | Na dotaz | Zadat poptávku | |
| D01 WHR43090 |
C00420926
483286002754 |
Window | Na dotaz | Zadat poptávku | |
| D02 WHR43090 |
C00524941
483286009729 |
gasket door | Na dotaz | Zadat poptávku | |
| D03 WHR43090 |
C00524945
483286009742 |
Screw | Na dotaz | Zadat poptávku | |
| D04 WHR43090 |
C00501063
483286000665 |
Screw M4X10 | Na dotaz | Zadat poptávku | |
| D05 WHR43090 |
C00524938
483286009725 |
Door glass | Na dotaz | Zadat poptávku | |
| D06 WHR43090 |
C00524937
483286009724 |
Stopper | Na dotaz | Zadat poptávku | |
| E02 WHR43090 |
C00524940
483286009728 |
Cover front lower | Na dotaz | Zadat poptávku | |
| E05 WHR43090 |
C00524939
483286009727 |
Front panel lower | Na dotaz | Zadat poptávku | |
| E06 WHR43090 |
C00524106
483286000643 |
Gasket border | Na dotaz | Zadat poptávku | |
| F01 WHR43090 |
C00420927
483286002755 |
Holder filter | Na dotaz | Zadat poptávku | |
| F02 WHR43090 |
C00500556
483286009732 |
Filter Assembly cpl. | Na dotaz | Zadat poptávku | |
| F03 WHR43090 |
C00420928
483286002756 |
Fastener filter | Na dotaz | Zadat poptávku | |
| F04 WHR43090 |
C00524128
483286000678 |
Screw 3,6X13 Zn | Na dotaz | Zadat poptávku | |
| G01 WHR43090 |
C00420938
483286002767 |
Bushing M5 | Na dotaz | Zadat poptávku | |
| G02 WHR43090 |
C00420939
483286002768 |
Panel front Electronic box | Na dotaz | Zadat poptávku | |
| G03 WHR43090 |
C00420940
483286002769 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| G04 WHR43090 |
C00524129
483286000681 |
Spacer | Na dotaz | Zadat poptávku | |
| G05 WHR43090 |
C00420941
483286002771 |
Plug female | Na dotaz | Zadat poptávku | |
| G06 WHR43090 |
C00548298
483286000682 |
Display board | Na dotaz | Zadat poptávku | |
| G07 WHR43090 |
C00548299
483286000683 |
User board | Na dotaz | Zadat poptávku | |
| G08 WHR43090 |
C00420942
483286002772 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| G09 WHR43090 |
C00524130
483286000684 |
Spacer | Na dotaz | Zadat poptávku | |
| G10 WHR43090 |
C00524131
483286000685 |
Keyboard | Na dotaz | Zadat poptávku | |
| G11 WHR43090 |
C00524702
483286008477 |
Nut M3 | Na dotaz | Zadat poptávku | |
| G13 WHR43090 |
C00524745
483286008572 |
Rosette 6x12 | Na dotaz | Zadat poptávku | |
| G14 WHR43090 |
C00524895
483286009512 |
Screw M5X12 exagonal | Na dotaz | Zadat poptávku | |
| H01 WHR43090 |
C00420943
483286002773 |
Crosspiece | Na dotaz | Zadat poptávku | |
| H02 WHR43090 |
C00420944
483286002774 |
Tie rod Drum | Na dotaz | Zadat poptávku | |
| H03 WHR43090 |
C00420945
483286002775 |
Drum | Na dotaz | Zadat poptávku | |
| H07 WHR43090 |
C00524175
483286000781 |
Screw cap. M8X20 | Na dotaz | Zadat poptávku | |
| I01 WHR43090 |
C00422458
483286010088 |
Pulley Bearing, kit | Na dotaz | Zadat poptávku | |
| J01 WHR43090 |
C00420930
483286002758 |
Holder Motor | Na dotaz | Zadat poptávku | |
| J02 WHR43090 |
C00524947
483286009747 |
Motor 71B3 | Na dotaz | Zadat poptávku | |
| J04 WHR43090 |
C00524946
483286009745 |
Impeller DM 317 | Na dotaz | Zadat poptávku | |
| J08 WHR43090 |
C00524894
483286009509 |
Washer 5X15 Zn UNI 9021 | Na dotaz | Zadat poptávku | |
| J09 WHR43090 |
C00524912
483286009555 |
Screw M 6X30 exagonale | Na dotaz | Zadat poptávku | |
| J10 WHR43090 |
C00524717
483286008508 |
Screw hexa.cylindr. M5X30 | Na dotaz | Zadat poptávku | |
| K01 WHR43090 |
C00420931
483286002759 |
Holder Motor | Na dotaz | Zadat poptávku | |
| K02 WHR43090 |
C00581546
483286009748 |
Pulley SPA 56X1 | Na dotaz | Zadat poptávku | |
| K03 WHR43090 |
C00524089
483286000567 |
Motor 71B3 profesionální sušičky Whirlpool | 18 087 Kč
€ 713.40 |
||
| K05 WHR43090 |
C00524670
483286008427 |
Screw M6x10 | Na dotaz | Zadat poptávku | |
| L01 WHR43090 |
C00421015
483286002861 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| L02 WHR43090 |
C00524245
483286001018 |
Connector 9 way | Na dotaz | Zadat poptávku | |
| L03 WHR43090 |
C00524944
483286009735 |
Connection 12 way | Na dotaz | Zadat poptávku | |
| L04 WHR43090 |
C00524735
483286008548 |
Lock | Na dotaz | Zadat poptávku | |
| L05 WHR43090 |
C00421039
483286002887 |
CONTACTEUR | Na dotaz | Zadat poptávku | |
| L06 WHR43090 |
C00421016
483286002862 |
Contactor B6-30-01 | Na dotaz | Zadat poptávku | |
| L07 WHR43090 |
C00524736
483286008554 |
Clamp blue 6 mm | Na dotaz | Zadat poptávku | |
| L08 WHR43090 |
C00524737
483286008555 |
Clamp yellow 6 mm | Na dotaz | Zadat poptávku | |
| L09 WHR43090 |
C00524738
483286008556 |
Clamp brown 6 mm | Na dotaz | Zadat poptávku | |
| L10 WHR43090 |
C00421017
483286002863 |
Grommet cable | Na dotaz | Zadat poptávku | |
| L11 WHR43090 |
C00524746
483286008577 |
Rear panel | Na dotaz | Zadat poptávku | |
| L12 WHR43090 |
C00524925
483286009583 |
Lock | Na dotaz | Zadat poptávku | |
| L13 WHR43090 |
C00581548
483286009765 |
Relay | Na dotaz | Zadat poptávku | |
| M01 WHR43090 |
C00422256
483286004302 |
Capacitor | Na dotaz | Zadat poptávku | |
| M02 WHR43090 |
C00524943
483286009734 |
Connection 6 way | Na dotaz | Zadat poptávku | |
| M03 WHR43090 |
C00422257
483286004303 |
Cord,driving | Na dotaz | Zadat poptávku | |
| M05 WHR43090 |
C00524212
483286000936 |
Nut M4 | Na dotaz | Zadat poptávku | |
| M06 WHR43090 |
C00524213
483286000937 |
Nut M6 | Na dotaz | Zadat poptávku | |
| M07 WHR43090 |
C00524151
483286000734 |
Felt,strip 10X3 | Na dotaz | Zadat poptávku | |
| M08 WHR43090 |
C00422258
483286004304 |
Clamp | Na dotaz | Zadat poptávku | |
| M09 WHR43090 |
C00524965
483286009808 |
Microswitch | Na dotaz | Zadat poptávku | |
| M10 WHR43090 |
C00422259
483286004305 |
Dowel M4X5 | Na dotaz | Zadat poptávku | |
| M11 WHR43090 |
C00422260
483286004306 |
Sleeve | Na dotaz | Zadat poptávku | |
| M12 WHR43090 |
C00524640
483286008367 |
Terminal Board 2,5 | Na dotaz | Zadat poptávku | |
| M13 WHR43090 |
C00524966
483286009812 |
Motor Steam damper | Na dotaz | Zadat poptávku | |
| M16 WHR43090 |
C00524205
483286000927 |
Screw M4X10 | Na dotaz | Zadat poptávku | |
| M17 WHR43090 |
C00524636
483286008362 |
Screw M4x8 | Na dotaz | Zadat poptávku | |
| M18 WHR43090 |
C00524904
483286009536 |
Screw cylindric M3X30 | Na dotaz | Zadat poptávku | |
| M19 WHR43090 |
C00524606
483286008297 |
Screw hexa.M6x20 | Na dotaz | Zadat poptávku | |
| M20 WHR43090 |
C00422261
483286004307 |
Battery | Na dotaz | Zadat poptávku | |
| M21 WHR43090 |
C00422262
483286004308 |
Crank | Na dotaz | Zadat poptávku | |
| M22 WHR43090 |
C00422263
483286004309 |
Holder Battery | Na dotaz | Zadat poptávku | |
| M23 WHR43090 |
C00422264
483286004311 |
Elect.parts box | Na dotaz | Zadat poptávku | |
| M24 WHR43090 |
C00422265
483286004312 |
Fastener | Na dotaz | Zadat poptávku | |
