WHIRLPOOL AGB 669/DP-SP/3 - Hood dishwasher
Zeptejte se. Rádi poradíme.
Marek Proche
Zákaznická podpora
Po–Čt 8:00—17:00
Pá 8:00—15:00
poradna@servis-whirlpool.cz
| Komerční kód: | AGB 669/DP-SP/3 - Hood dishwasher |
| Kód 12NC: | 851266915300 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální domácí čištění |
Potřebujete servis? Jsme tady pro Vás

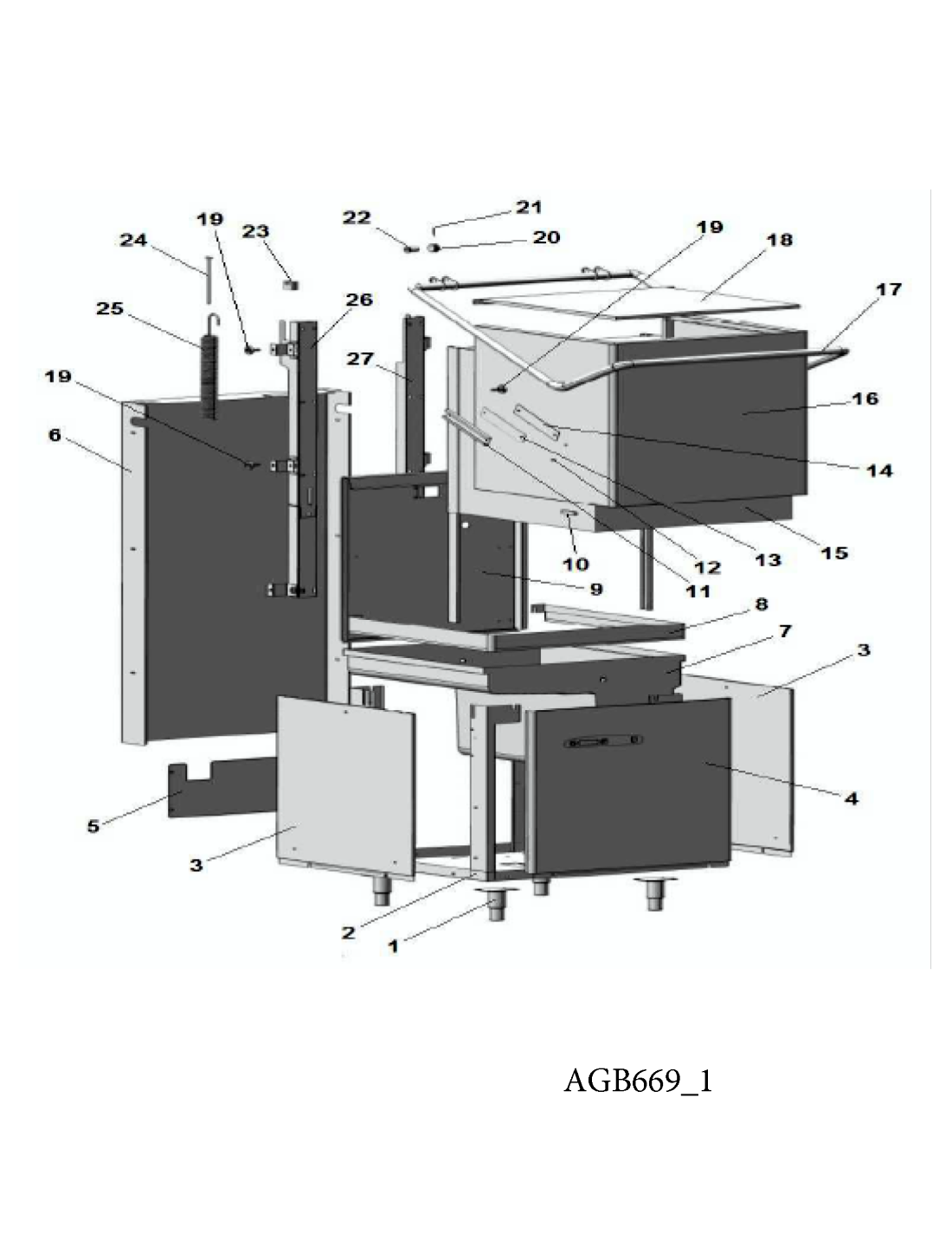

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| A001 WHR26050 |
C00421347
483286003233 |
Foot ,rubber | Na dotaz | Zadat poptávku | |
| A002 WHR26050 |
C00422375
483286008847 |
Frame | Na dotaz | Zadat poptávku | |
| A003 WHR26050 |
C00524801
483286008768 |
Insulation ,lateral | Na dotaz | Zadat poptávku | |
| A004 WHR26050 |
C00417108
482000020344 |
Control panel N1000/1300 LCD EVO | Na dotaz | Zadat poptávku | |
| A005 WHR26050 |
C00524494
483286001702 |
Panel ,back | Na dotaz | Zadat poptávku | |
| A006 WHR26050 |
C00417109
482000020345 |
Panel rear 2013 | Na dotaz | Zadat poptávku | |
| A007 WHR26050 |
C00417262
482000020904 |
Tub N1000-NE1000 H=190mm | Na dotaz | Zadat poptávku | |
| A008 WHR26050 |
C00524803
483286008772 |
Insulation ,upper back | Na dotaz | Zadat poptávku | |
| A009 WHR26050 |
C00383438
483286008854 |
Panel rear | Na dotaz | Zadat poptávku | |
| A010 WHR26050 |
C00384679
483286008762 |
Magnet ,cover | Na dotaz | Zadat poptávku | |
| A011 WHR26050 |
C00524818
483286008852 |
Plate handle | Na dotaz | Zadat poptávku | |
| A012 WHR26050 |
C00524797
483286008763 |
Spacer | Na dotaz | Zadat poptávku | |
| A013 WHR26050 |
C00497168
483286001175 |
Gasket | Na dotaz | Zadat poptávku | |
| A014 WHR26050 |
C00524817
483286008851 |
Plate | Na dotaz | Zadat poptávku | |
| A015 WHR26050 |
C00524816
483286008849 |
Cover | Na dotaz | Zadat poptávku | |
| A016 WHR26050 |
C00524799
483286008766 |
Insulation ,cover | Na dotaz | Zadat poptávku | |
| A017 WHR26050 |
C00524291
483286001173 |
Handle | Na dotaz | Zadat poptávku | |
| A018 WHR26050 |
C00417111
482000020347 |
Panel insulatin N1000/N1300 | Na dotaz | Zadat poptávku | |
| A019 WHR26050 |
C00501112
483286008748 |
Bearing | Na dotaz | Zadat poptávku | |
| A020 WHR26050 |
C00337190
483286008752 |
Wheel | Na dotaz | Zadat poptávku | |
| A021 WHR26050 |
C00341454
483286008774 |
Pin ,split | Na dotaz | Zadat poptávku | |
| A022 WHR26050 |
C00341459
483286008753 |
PIVOT FOR RAISING HOOD E1000/N1000/N1300 | Na dotaz | Zadat poptávku | |
| A023 WHR26050 |
C00524794
483286008749 |
Bearing | Na dotaz | Zadat poptávku | |
| A024 WHR26050 |
C00417112
482000020348 |
Tie rod 10X325 mm | Na dotaz | Zadat poptávku | |
| A025 WHR26050 |
C00336106
483286008755 |
Pružina | 4 131 Kč
€ 162.90 |
||
| A026 WHR26050 |
C00524812
483286008822 |
Pipe ,fitting | Na dotaz | Zadat poptávku | |
| A027 WHR26050 |
C00417113
482000020349 |
Fastener right N1000/N1300 | Na dotaz | Zadat poptávku | |
| B001 WHR26050 |
C00337307
483286008154 |
Valve | Na dotaz | Zadat poptávku | |
| B002 WHR26050 |
C00517728
483286008869 |
Boiler | Na dotaz | Zadat poptávku | |
| B003 WHR26050 |
C00501114
483286008856 |
Cap for hole | Na dotaz | Zadat poptávku | |
| B004 WHR26050 |
C00339911
483286008813 |
Heating element 6kW 230V | Na dotaz | Zadat poptávku | |
| B005 WHR26050 |
C00337971
483286008139 |
Těsnění, O kroužek topení profesionální myčky Whirlpool | 966 Kč
€ 38.10 |
||
| B006 WHR26050 |
C00416863
482000019908 |
Safety Thermos. 110° | Na dotaz | Zadat poptávku | |
| B007 WHR26050 |
C00423477
483286011303 |
T-adapter | Na dotaz | Zadat poptávku | |
| B008 WHR26050 |
C00339400
483286008798 |
Hose ,pressostat | Na dotaz | Zadat poptávku | |
| B009 WHR26050 |
C00416945
482000020116 |
Hose inlet 90° 2000mm S 800 HW | Na dotaz | Zadat poptávku | |
| B010 WHR26050 |
C00337304
483286008141 |
1-WAY SOLENOID VALVE D10 | Na dotaz | Zadat poptávku | |
| B011 WHR26050 |
C00413933
482000013899 |
Čerpadlo | 4 771 Kč
€ 188.20 |
||
| B012 WHR26050 |
C00339444
483286008155 |
TRANSPARENT HOSE 4X7 | Na dotaz | Zadat poptávku | |
| B013 WHR26050 |
C00421486
483286003391 |
Filter, weight DET./BRILL. | Na dotaz | Zadat poptávku | |
| C001 WHR26050 |
C00340916
483286008183 |
natrubek | 2 146 Kč
€ 84.60 |
||
| C002 WHR26050 |
C00337266
483286002779 |
trubice privodova | 1 697 Kč
€ 66.90 |
||
| C003 WHR26050 |
C00340544
483286002781 |
tesneni | 702 Kč
€ 27.70 |
||
| C004 WHR26050 |
C00340493
483286008821 |
tesneni | 782 Kč
€ 30.80 |
||
| C005 WHR26050 |
C00341424
483286002778 |
rozdelovac | 1 110 Kč
€ 43.80 |
||
| C006 WHR26050 |
C00419322
482000090459 |
Pipe 165mm | Na dotaz | Zadat poptávku | |
| C007 WHR26050 |
C00341430
483286002776 |
WASH COLUMN N1000/N1300/E1000 | Na dotaz | Zadat poptávku | |
| C008 WHR26050 |
C00524294
483286001181 |
hadice | 1 427 Kč
€ 56.30 |
||
| C009 WHR26050 |
C00417265
482000020907 |
Pipe N1000 2014 | Na dotaz | Zadat poptávku | |
| C010 WHR26050 |
C00417116
482000020352 |
Holder pump 2014 | Na dotaz | Zadat poptávku | |
| C011 WHR26050 |
C00417266
482000020908 |
Pump 0,75kW 230/1/50 E1000/N1000 2014 | Na dotaz | Zadat poptávku | |
| C012 WHR26050 |
C00524473
483286001664 |
hadice | 1 177 Kč
€ 46.40 |
||
| C013 WHR26050 |
C00417119
482000020355 |
Hose inlet D 24 2000mm | Na dotaz | Zadat poptávku | |
| C014 WHR26050 |
C00417120
482000020356 |
Sump 2013 ASP.55 | Na dotaz | Zadat poptávku | |
| C015 WHR26050 |
C00417121
482000020357 |
Ring packing 2013 | Na dotaz | Zadat poptávku | |
| C016 WHR26050 |
C00417122
482000020358 |
Ring packing 2013 | Na dotaz | Zadat poptávku | |
| C017 WHR26050 |
C00339938
483286008799 |
topení | 4 186 Kč
€ 165.10 |
||
| C018 WHR26050 |
C00417123
482000020359 |
Metalfilter N1000-N1300 2014 | Na dotaz | Zadat poptávku | |
| C019 WHR26050 |
C00339181
483286008806 |
Hub ,washing/rinse | Na dotaz | Zadat poptávku | |
| C020 WHR26050 |
C00340175
483286008807 |
Guide | Na dotaz | Zadat poptávku | |
| C021 WHR26050 |
C00406906
482000000370 |
Nut | Na dotaz | Zadat poptávku | |
| C022 WHR26050 |
C00340540
483286008162 |
Gasket | Na dotaz | Zadat poptávku | |
| C023 WHR26050 |
C00500407
483286008975 |
Airtrap | Na dotaz | Zadat poptávku | |
| C024 WHR26050 |
C00497223
483286008963 |
Switch,pushbut. | Na dotaz | Zadat poptávku | |
| C026 WHR26050 |
C00341423
483286008811 |
Pipe ,fitting | Na dotaz | Zadat poptávku | |
| C027 WHR26050 |
C00336918
483286008855 |
Reductor | Na dotaz | Zadat poptávku | |
| C028 WHR26050 |
C00524645
483286008378 |
Washer | Na dotaz | Zadat poptávku | |
| C029 WHR26050 |
C00335995
483286008808 |
Stopper inferior rinse pin | Na dotaz | Zadat poptávku | |
| C030 WHR26050 |
C00417126
482000020362 |
Metalfilter N1000/N1300 2014 + MANIG. | Na dotaz | Zadat poptávku | |
| C031 WHR26050 |
C00417267
482000020909 |
Overflow pipe N1000 2014 | Na dotaz | Zadat poptávku | |
| C032 WHR26050 |
C00524819
483286008853 |
Guide | Na dotaz | Zadat poptávku | |
| C033 WHR26050 |
C00423468
483286011293 |
Termostat | 1 516 Kč
€ 59.80 |
||
| D001 WHR26050 |
C00337987
483286008323 |
Šroub ramene | 1 176 Kč
€ 46.40 |
||
| D002 WHR26050 |
C00416947
482000020118 |
Rameno oplacovací | 2 226 Kč
€ 87.80 |
||
| D003 WHR26050 |
C00413104
482000012779 |
Nátrubek oplachovacího ramene | 1 293 Kč
€ 51.00 |
||
| D004 WHR26050 |
C00337267
483286008828 |
rameno horní | 6 132 Kč
€ 241.80 |
||
| D005 WHR26050 |
C00339184
483286008189 |
Nátrubek mycího ramene | 2 654 Kč
€ 104.70 |
||
| E001 WHR26050 |
C00416872
482000019917 |
Timer EVO BASE GICAR 5 RELE | Na dotaz | Zadat poptávku | |
| E002 WHR26050 |
C00417128
482000020364 |
Distanční kus | 1 462 Kč
€ 57.70 |
||
| E003 WHR26050 |
C00340952
483286008841 |
Filter ,noise. | Na dotaz | Zadat poptávku | |
| E004 WHR26050 |
C00335571
483286008838 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E005 WHR26050 |
C00335572
483286008839 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E006 WHR26050 |
C00335570
483286008837 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E007 WHR26050 |
C00423488
483286011315 |
Terminal strip | Na dotaz | Zadat poptávku | |
| E008 WHR26050 |
C00342723
483286008836 |
stykač | 3 654 Kč
€ 144.10 |
||
| E009 WHR26050 |
C00417129
482000020365 |
Connection cable 5x2.5X 3.5 | Na dotaz | Zadat poptávku | |
| E010 WHR26050 |
C00524463
483286001629 |
Nut | Na dotaz | Zadat poptávku | |
| E011 WHR26050 |
C00417130
482000020366 |
Plug PG21 | Na dotaz | Zadat poptávku | |
| E012 WHR26050 |
C00414261
482000014703 |
Display board EVO GICAR | Na dotaz | Zadat poptávku | |
| E013 WHR26050 |
C00414258
482000014700 |
Front panel LCD 2013 | Na dotaz | Zadat poptávku | |
| E014 WHR26050 |
C00414260
482000014702 |
Cable EVO GICAR | Na dotaz | Zadat poptávku | |
| E015 WHR26050 |
C00417131
482000020367 |
Elect.parts box 2014 | Na dotaz | Zadat poptávku | |
| E016 WHR26050 |
C00417132
482000020368 |
Cover probe EVO GICAR 800mm | Na dotaz | Zadat poptávku | |
| E017 WHR26050 |
C00417133
482000020369 |
Cable and probe 800mm | Na dotaz | Zadat poptávku | |
| E018 WHR26050 |
C00416875
482000019920 |
Connection cable TERMINALE SONDE | Na dotaz | Zadat poptávku | |
| E019 WHR26050 |
C00497167
483286001174 |
Sensor | Na dotaz | Zadat poptávku | |
| E020 WHR26050 |
C00524796
483286008759 |
Support ,micro | Na dotaz | Zadat poptávku | |
| F002 WHR26050 |
C00409069
482000005008 |
Čerpadlo | 5 153 Kč
€ 203.20 |
||
| F003 WHR26050 |
C00339368
483286000128 |
Hose draining d19 90° 2000 PS + CURVA | Na dotaz | Zadat poptávku | |
| F03 WHR26050 |
C00417101
482000020337 |
Tube N45-N50-CAPOT | Na dotaz | Zadat poptávku | |
| G001 WHR26050 |
C00413095
482000012769 |
Dispencer detergent PERIST. SEKO | Na dotaz | Zadat poptávku | |
| G002 WHR26050 |
C00497100
483286000996 |
Pipe | Na dotaz | Zadat poptávku | |
| G004 WHR26050 |
C00341421
483286000502 |
tryska - nátrubek | 1 854 Kč
€ 73.10 |
||
| G005 WHR26050 |
C00417134
482000020370 |
Gasket | Na dotaz | Zadat poptávku | |
| G006 WHR26050 |
C00337237
483286008757 |
Washer | Na dotaz | Zadat poptávku | |
| G007 WHR26050 |
C00338038
483286000084 |
Nut | Na dotaz | Zadat poptávku | |
| H001 WHR26050 |
C00423529
483286011362 |
Lid | Na dotaz | Zadat poptávku | |
| H002 WHR26050 |
C00524005
483286000134 |
Nut | Na dotaz | Zadat poptávku | |
| H003 WHR26050 |
C00524006
483286000135 |
Gasket | Na dotaz | Zadat poptávku | |
| H004 WHR26050 |
C00413934
482000013900 |
Salt container with sensor | Na dotaz | Zadat poptávku | |
| H005 WHR26050 |
C00417135
482000020371 |
Valve | Na dotaz | Zadat poptávku | |
| H006 WHR26050 |
C00413096
482000012770 |
Inlet valve 2way red. | Na dotaz | Zadat poptávku | |
| H007 WHR26050 |
C00335614
483286008166 |
T-adapter | Na dotaz | Zadat poptávku | |
| H008 WHR26050 |
C00523954
482000020372 |
Water softener DVA LT 5 compl. | Na dotaz | Zadat poptávku | |
| H009 WHR26050 |
C00417136
482000020373 |
Tap 3/4" | Na dotaz | Zadat poptávku | |
