| Komerční kód: | AGS 858/WP - Prof Oven Combi 6x GN 1/1 e |
| Kód 12NC: | 856385801000 |
| Značka: | WHIRLPOOL |
| Typ produktu: | Profesionální trouby , mikrovlnky , varné desky , konvektomaty |
Potřebujete servis? Jsme tady pro Vás

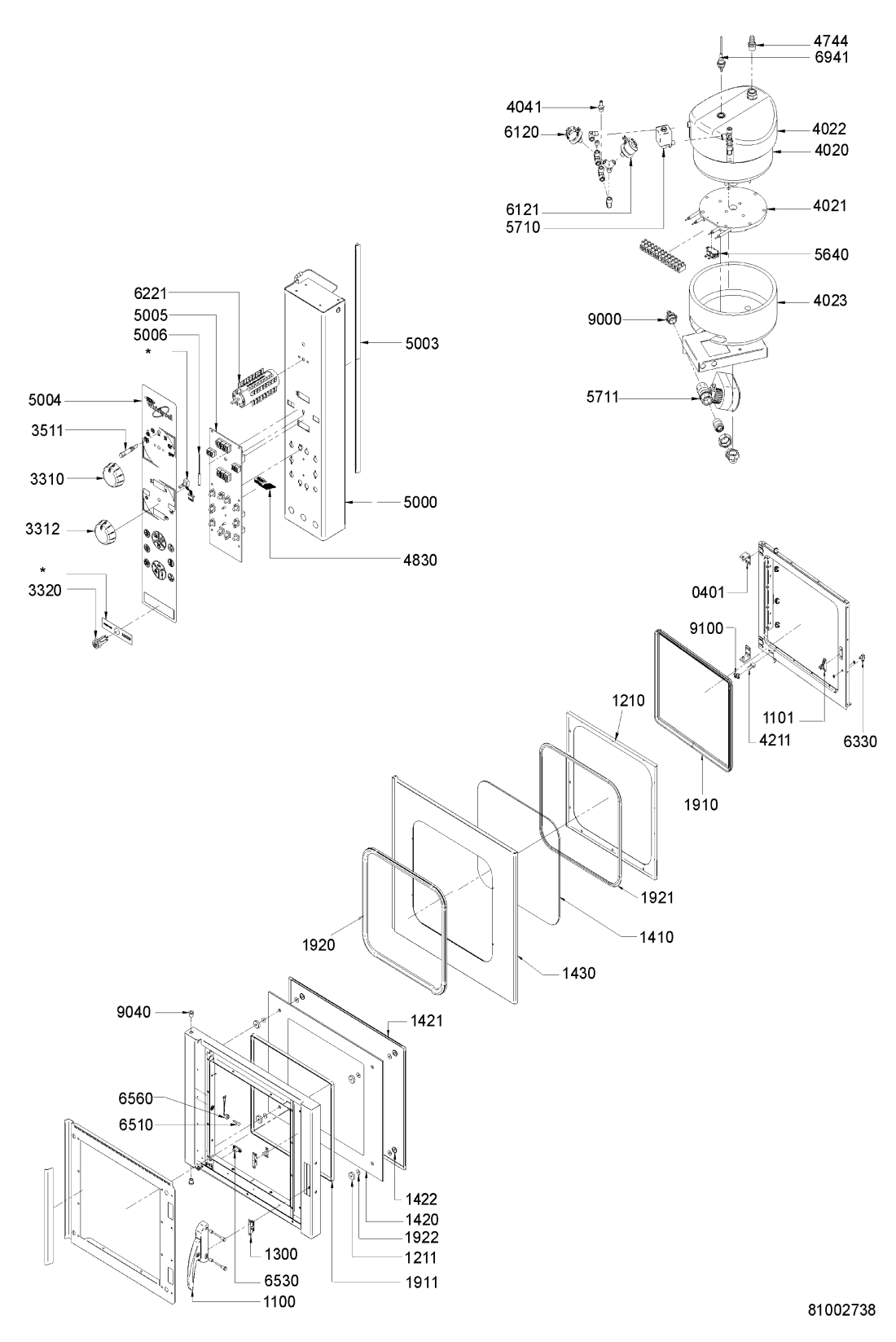

Nabídka náhradních dílů
| Číslo | Kód | Název | Cena | ||
|---|---|---|---|---|---|
| 011 0 WHR82360 |
C00422374
483286008721 |
Foot oven | Na dotaz | Zadat poptávku | |
| 040 1 WHR82360 |
C00581946
483286008717 |
Hinge lower door | Na dotaz | Zadat poptávku | |
| 110 0 WHR82360 |
C00420588
483286002378 |
Handle PORTA XT-M2005.072-3 | Na dotaz | Zadat poptávku | |
| 110 1 WHR82360 |
C00581952
483286008725 |
Lock for handle | Na dotaz | Zadat poptávku | |
| 121 0 WHR82360 |
C00420589
483286002379 |
Frame ,internal window | Na dotaz | Zadat poptávku | |
| 121 1 WHR82360 |
C00420590
483286002381 |
Spacer ,internal door | Na dotaz | Zadat poptávku | |
| 130 0 WHR82360 |
C00420591
483286002382 |
Lock MECCANISMO PER APRIRE CHIUDERE | Na dotaz | Zadat poptávku | |
| 141 0 WHR82360 |
C00420592
483286002383 |
Glass | Na dotaz | Zadat poptávku | |
| 142 0 WHR82360 |
C00420593
483286002384 |
Glass ,internal door | Na dotaz | Zadat poptávku | |
| 142 1 WHR82360 |
C00581958
483286008732 |
Gasket internal glass | Na dotaz | Zadat poptávku | |
| 142 2 WHR82360 |
C00581910
483286008215 |
Screw glass door | Na dotaz | Zadat poptávku | |
| 143 0 WHR82360 |
C00420594
483286002385 |
Frame ,external window | Na dotaz | Zadat poptávku | |
| 191 0 WHR82360 |
C00581953
483286008726 |
Gasket, door | Na dotaz | Zadat poptávku | |
| 191 1 WHR82360 |
C00581954
483286008727 |
Gasket intern.glass door | Na dotaz | Zadat poptávku | |
| 192 0 WHR82360 |
C00581957
483286008731 |
Gasket porthole | Na dotaz | Zadat poptávku | |
| 192 1 WHR82360 |
C00581956
483286008729 |
Gasket for door window | Na dotaz | Zadat poptávku | |
| 192 2 WHR82360 |
C00581911
483286008216 |
Gasket glass door | Na dotaz | Zadat poptávku | |
| 200 1 WHR82360 |
C00420639
483286002435 |
Cover ,(top panel) | Na dotaz | Zadat poptávku | |
| 331 0 WHR82360 |
C00420595
483286002386 |
Knob ,cycles selection | Na dotaz | Zadat poptávku | |
| 331 1 WHR82360 |
C00420596
483286002387 |
Knob ,threaded with valve | Na dotaz | Zadat poptávku | |
| 331 2 WHR82360 |
C00420647
483286002444 |
Knob ,050 | Na dotaz | Zadat poptávku | |
| 332 0 WHR82360 |
C00581928
483286008692 |
Button reset gas alarm | Na dotaz | Zadat poptávku | |
| 351 1 WHR82360 |
C00581902
483286008203 |
Pilot lamp green | Na dotaz | Zadat poptávku | |
| 402 0 WHR82360 |
C00420598
483286002389 |
Generator ,steam | Na dotaz | Zadat poptávku | |
| 402 1 WHR82360 |
C00420599
483286002391 |
Heating element ,for steam generator | Na dotaz | Zadat poptávku | |
| 402 2 WHR82360 |
C00420600
483286002392 |
Cap ,top for boiler | Na dotaz | Zadat poptávku | |
| 402 3 WHR82360 |
C00420601
483286002393 |
Cap ,bottom for boiler | Na dotaz | Zadat poptávku | |
| 402 4 WHR82360 |
C00420602
483286002394 |
Pipe ,boiler cap | Na dotaz | Zadat poptávku | |
| 402 5 WHR82360 |
C00420648
483286002445 |
Case ,gear | Na dotaz | Zadat poptávku | |
| 404 0 WHR82360 |
C00420603
483286002395 |
Pump ,vibration with valve | Na dotaz | Zadat poptávku | |
| 404 1 WHR82360 |
C00420604
483286002396 |
Holder ,brass pipe | Na dotaz | Zadat poptávku | |
| 404 2 WHR82360 |
C00420649
483286002446 |
Sleeve ,1/8 | Na dotaz | Zadat poptávku | |
| 404 3 WHR82360 |
C00420650
483286002447 |
Cable clamp | Na dotaz | Zadat poptávku | |
| 411 0 WHR82360 |
C00420605
483286002397 |
Transformer ,single phase60VA 230V/12 | Na dotaz | Zadat poptávku | |
| 421 0 WHR82360 |
C00581941
483286008712 |
Filter R.F.I. 250V 50-60 Hz | Na dotaz | Zadat poptávku | |
| 421 1 WHR82360 |
C00420606
483286002398 |
Filter ,interfer. +cable connect | Na dotaz | Zadat poptávku | |
| 421 2 WHR82360 |
C00420651
483286002448 |
Filter ,RFI | Na dotaz | Zadat poptávku | |
| 421 3 WHR82360 |
C00420691
483286002493 |
Filter ,RFI BG x79240 | Na dotaz | Zadat poptávku | |
| 440 0 WHR82360 |
C00420652
483286002449 |
Motor ,three-phase 1020 400 V | Na dotaz | Zadat poptávku | |
| 440 1 WHR82360 |
C00501109
483286008697 |
Gasket steamtight f.engine shaft | Na dotaz | Zadat poptávku | |
| 440 2 WHR82360 |
C00501110
483286008698 |
Flange for engine shaft 17 diam. | Na dotaz | Zadat poptávku | |
| 440 3 WHR82360 |
C00501111
483286008699 |
Lock flange f. enginge shaft | Na dotaz | Zadat poptávku | |
| 442 0 WHR82360 |
C00373262
483286008695 |
Motor fan 220V AC | Na dotaz | Zadat poptávku | |
| 443 0 WHR82360 |
C00581932
483286008701 |
Fan 210 diam. | Na dotaz | Zadat poptávku | |
| 452 1 WHR82360 |
C00581943
483286008714 |
Probe detection w. cable | Na dotaz | Zadat poptávku | |
| 455 0 WHR82360 |
C00581940
483286008711 |
Burner 40 diam. 8 KW | Na dotaz | Zadat poptávku | |
| 455 1 WHR82360 |
C00420640
483286002436 |
Shield ,flame for exchanger | Na dotaz | Zadat poptávku | |
| 455 2 WHR82360 |
C00420641
483286002437 |
Fitting ,for pipe 0 12 + bicones | Na dotaz | Zadat poptávku | |
| 464 0 WHR82360 |
C00621633
483286008223 |
Valve water inlet | Na dotaz | Zadat poptávku | |
| 464 1 WHR82360 |
C00420653
483286002451 |
sonda | 3 232 Kč
€ 127.50 |
||
| 474 0 WHR82360 |
C00420607
483286002399 |
Nozzle ,0,7mm for steam condens. | Na dotaz | Zadat poptávku | |
| 474 1 WHR82360 |
C00420642
483286002438 |
Nozzle ,R type for G20 0 195 R | Na dotaz | Zadat poptávku | |
| 474 3 WHR82360 |
C00420609
483286002402 |
Nozzle ,1/4" for pipe diam. 12 | Na dotaz | Zadat poptávku | |
| 474 4 WHR82360 |
C00420610
483286002403 |
Nozzle ,3/8 M xdiam 12 of brass | Na dotaz | Zadat poptávku | |
| 483 0 WHR82360 |
C00420654
483286002452 |
Cable ,connecting | Na dotaz | Zadat poptávku | |
| 491 0 WHR82360 |
C00420612
483286002405 |
Terminal block | Na dotaz | Zadat poptávku | |
| 491 1 WHR82360 |
C00420638
483286002434 |
Relay ,electro | Na dotaz | Zadat poptávku | |
| 491 2 WHR82360 |
C00420613
483286002406 |
Spring ,extension for electrom. | Na dotaz | Zadat poptávku | |
| 500 0 WHR82360 |
C00420655
483286002453 |
Control panel ,6 grid electronic | Na dotaz | Zadat poptávku | |
| 500 1 WHR82360 |
C00420615
483286002408 |
Regulator ,water level | Na dotaz | Zadat poptávku | |
| 500 2 WHR82360 |
C00420616
483286002409 |
Holder ,of regulator | Na dotaz | Zadat poptávku | |
| 500 3 WHR82360 |
C00420617
483286002411 |
Gasket ,control panel left side | Na dotaz | Zadat poptávku | |
| 500 4 WHR82360 |
C00420656
483286002454 |
Insert | Na dotaz | Zadat poptávku | |
| 500 5 WHR82360 |
C00420340
483286002099 |
elektronika | Na dotaz | Zadat poptávku | |
| 500 6 WHR82360 |
C00420657
483286002455 |
Probe ,electronic keyboard | Na dotaz | Zadat poptávku | |
| 522 0 WHR82360 |
C00581938
483286008708 |
Control unit flame control | Na dotaz | Zadat poptávku | |
| 522 3 WHR82360 |
C00420659
483286002457 |
Valve ,solenoid water inlet | Na dotaz | Zadat poptávku | |
| 561 0 WHR82360 |
C00581907
483286008208 |
Thermostat safety | Na dotaz | Zadat poptávku | |
| 563 0 WHR82360 |
C00581935
483286008704 |
Thermostat condensation 30-90 #C | Na dotaz | Zadat poptávku | |
| 564 0 WHR82360 |
C00420618
483286002412 |
Thermostat ,boiler safety | Na dotaz | Zadat poptávku | |
| 565 0 WHR82360 |
C00420619
483286002413 |
Contactor ,mini 10A 230V 50-60Hz | Na dotaz | Zadat poptávku | |
| 571 0 WHR82360 |
C00420620
483286002414 |
Valve ,steam electric 2mm | Na dotaz | Zadat poptávku | |
| 571 1 WHR82360 |
C00420621
483286002415 |
Valve ,discharge with motor,1/2 | Na dotaz | Zadat poptávku | |
| 595 0 WHR82360 |
C00581944
483286008715 |
Electrode ignition | Na dotaz | Zadat poptávku | |
| 595 1 WHR82360 |
C00420643
483286002439 |
Bracket ,for ignition plugs | Na dotaz | Zadat poptávku | |
| 612 0 WHR82360 |
C00420622
483286002416 |
Switch ,boiler pressure 0,9 bar | Na dotaz | Zadat poptávku | |
| 612 1 WHR82360 |
C00420623
483286002417 |
Switch ,boiler pressure 2,3 bar | Na dotaz | Zadat poptávku | |
| 615 0 WHR82360 |
C00420624
483286002418 |
Relay ,schrack 2 contacts 230V | Na dotaz | Zadat poptávku | |
| 615 1 WHR82360 |
C00420625
483286002419 |
relé | 2 078 Kč
€ 82.00 |
||
| 615 2 WHR82360 |
C00420626
483286002421 |
Clamp ,1/2 | Na dotaz | Zadat poptávku | |
| 615 3 WHR82360 |
C00420627
483286002422 |
Clamp ,4 | Na dotaz | Zadat poptávku | |
| 622 1 WHR82360 |
C00420660
483286002458 |
Switch ,7 positions 16A 600V | Na dotaz | Zadat poptávku | |
| 633 0 WHR82360 |
C00581898
483286008198 |
Door microswitch | Na dotaz | Zadat poptávku | |
| 651 0 WHR82360 |
C00581925
483286008688 |
Lamp,halogen 35W 12V | Na dotaz | Zadat poptávku | |
| 653 0 WHR82360 |
C00420629
483286002424 |
Plate ,door lighting | Na dotaz | Zadat poptávku | |
| 656 0 WHR82360 |
C00581924
483286008687 |
Holder lamp and cables 400mm | Na dotaz | Zadat poptávku | |
| 691 0 WHR82360 |
C00420661
483286002459 |
Probe ,core temperature PT1000 | Na dotaz | Zadat poptávku | |
| 691 1 WHR82360 |
C00420662
483286002461 |
SUPPORT ,core probe | Na dotaz | Zadat poptávku | |
| 691 2 WHR82360 |
C00420663
483286002462 |
Tube ,for core probe location | Na dotaz | Zadat poptávku | |
| 694 1 WHR82360 |
C00420631
483286002426 |
Probe ,water level l=175 | Na dotaz | Zadat poptávku | |
| 743 0 WHR82360 |
C00420632
483286002427 |
Air diffuser ,right side 6 grids | Na dotaz | Zadat poptávku | |
| 743 1 WHR82360 |
C00420633
483286002428 |
Air diffuser ,left side 6 grids | Na dotaz | Zadat poptávku | |
| 781 0 WHR82360 |
C00420644
483286002441 |
Drainpipe ,cooking chamber | Na dotaz | Zadat poptávku | |
| 900 0 WHR82360 |
C00420634
483286002429 |
Holder ,1/2 cylindrical pipe d12 | Na dotaz | Zadat poptávku | |
| 900 1 WHR82360 |
C00420635
483286002431 |
Support ,ES 15/4N PRS4 | Na dotaz | Zadat poptávku | |
| 900 2 WHR82360 |
C00420636
483286002432 |
Support ,ES15/4N PRS2 | Na dotaz | Zadat poptávku | |
| 904 0 WHR82360 |
C00581912
483286008217 |
Hinge bushing | Na dotaz | Zadat poptávku | |
| 910 0 WHR82360 |
C00420637
483286002433 |
Pin ,contact f.chamber light. | Na dotaz | Zadat poptávku | |
| 971 0 WHR82360 |
C00581917
483286008225 |
Fuse 2A | Na dotaz | Zadat poptávku | |
| 971 1 WHR82360 |
C00420664
483286002463 |
Fuse ,3,15A rapid 5x20 | Na dotaz | Zadat poptávku | |
| 971 2 WHR82360 |
C00420665
483286002464 |
Fuse ,1A 5x20 AC 250V | Na dotaz | Zadat poptávku | |
| 972 0 WHR82360 |
C00581948
483286008719 |
Holder fuse | Na dotaz | Zadat poptávku | |
